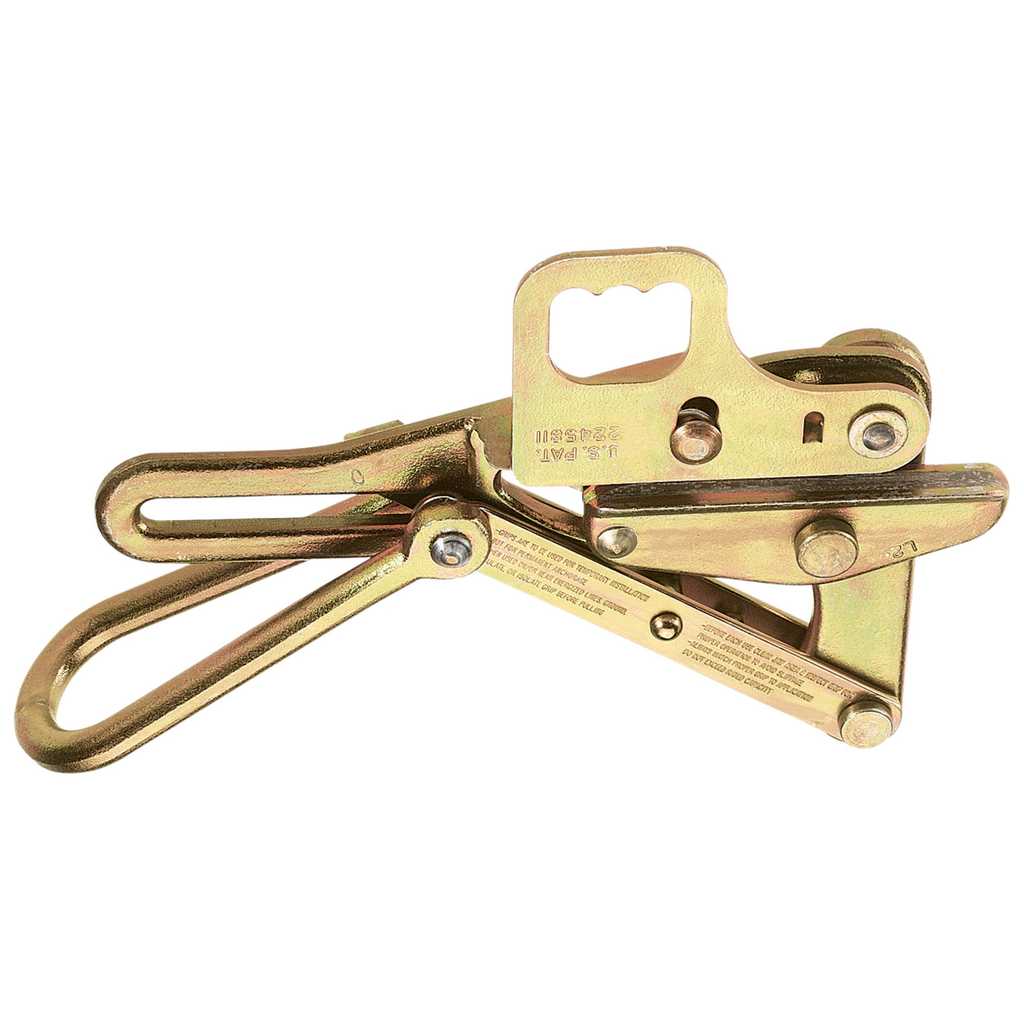

Chicago® Grip Hot Latch for Copper Wire

Finding the best grip to pull small copper can be challenging. Copper stretches over time becoming too thin for some grips which may cause slippage. Some smaller grips are harder to manipulate when wearing rubber gloves and are not hot latch compatible. Using a grip that's too big, too strong or too aggressive could damage the cable. Klein Tools' 1613 Series Bare Wire Chicago Grip is big enough to work with gloves but small enough to pull #6 and #8 copper without damaging it. It's just right for the job.

Features

• Single V groove jaw
• Lightweight, cost-effective grip pulls #8 to #6 AWG bare copper wire
• Locking loop handles allow the jaws to be held in an open position for easy placement on wire or cable
• Max Safe Load of 4500-Pound (2100 kg)
• Made in USA

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Maximum Safe Load (kg): 2041.2
• Overall Length (Inch): 12.6
• Depth: 7.4250 in
• Material: Steel
• Swing Latch: No
• Overall Width (Inch): 2.12
• Overall Height (cm): 15.2
• Spring: Yes
• Jaw Length (cm): 10.6
• Application: Wire Pulling
• Overall Width (cm): 5.4
• Weight: 2.8440 lbs
• Overall Height (Inch): 6
• Weight (kg): 1.3
• Locking Handle: Yes
• Height: 1.8000 in
• Overall Length (cm): 32
• Type: Chicago Grip
• Teeth Type: Smooth
• Weight (lb): 2.8
• Jaw Type: Single V
• Cable Diameter: 0.1285" to 0.162" (3.3 to 4.06 mm)
• Jaw Length (Inch): 4.188
• Hot Latch: Yes
• Cable Type: Copper, ACSR
• Maximum Safe Load (lb): 4500
• Width: 5.4000 in
