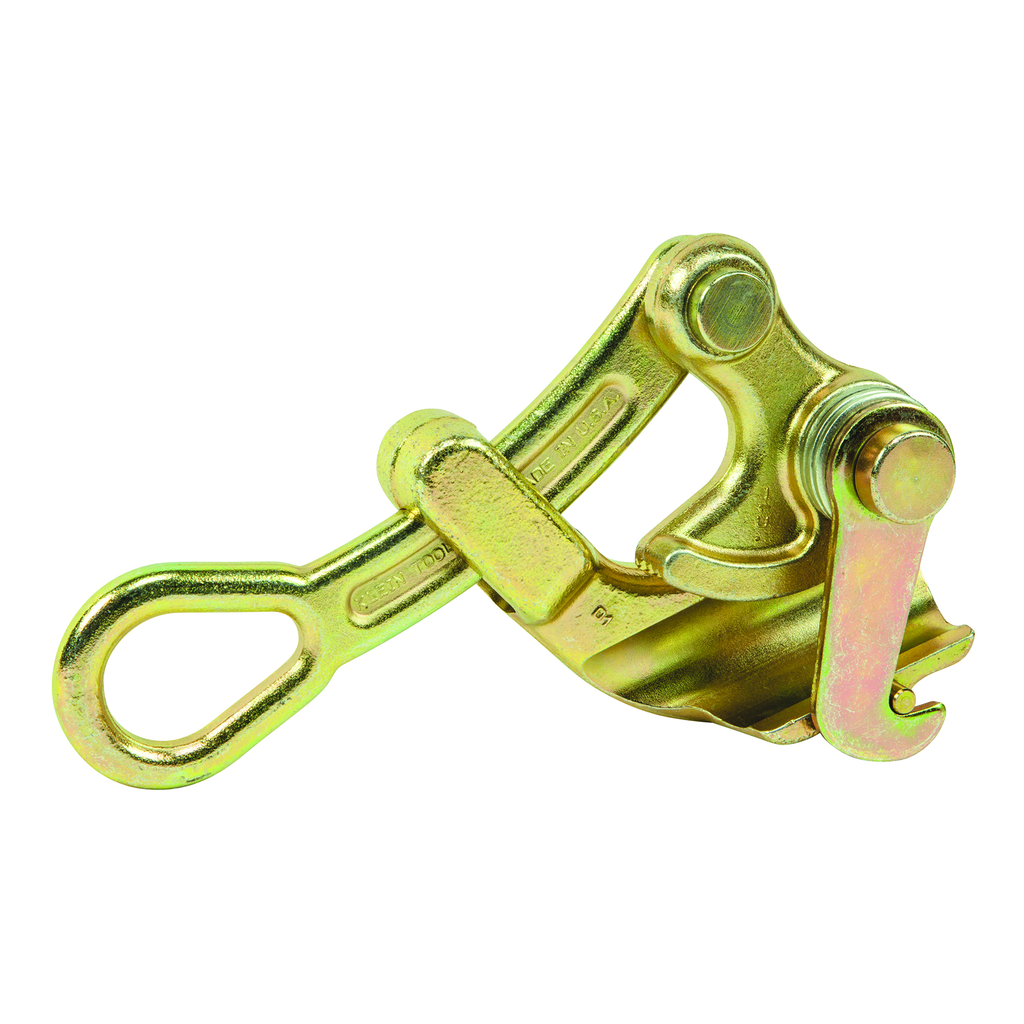

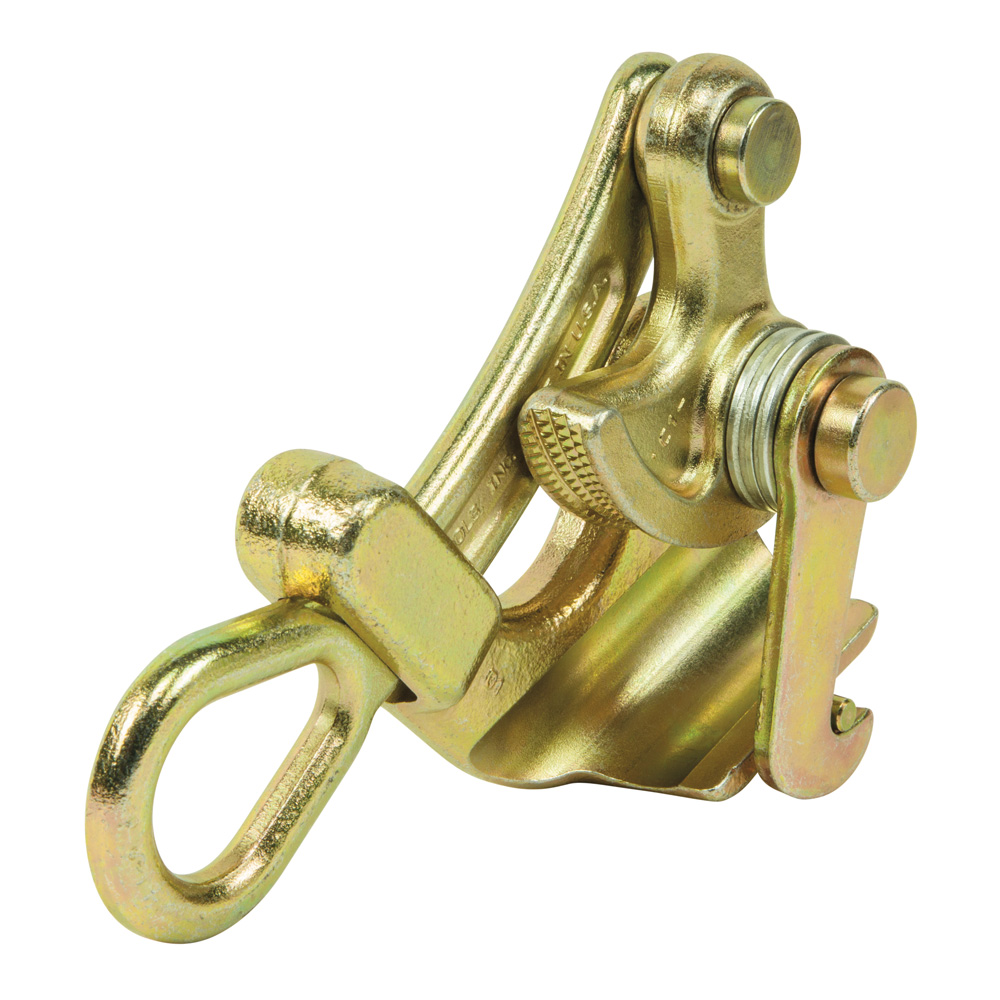

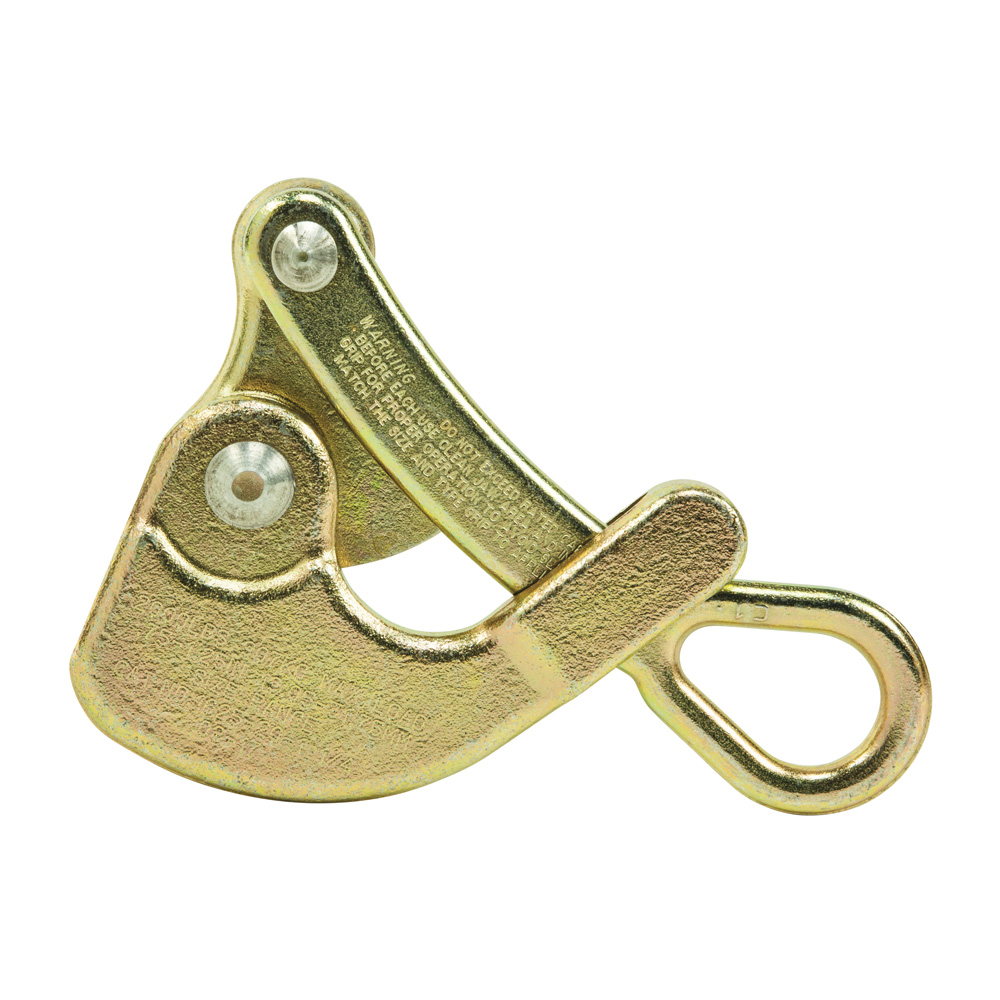

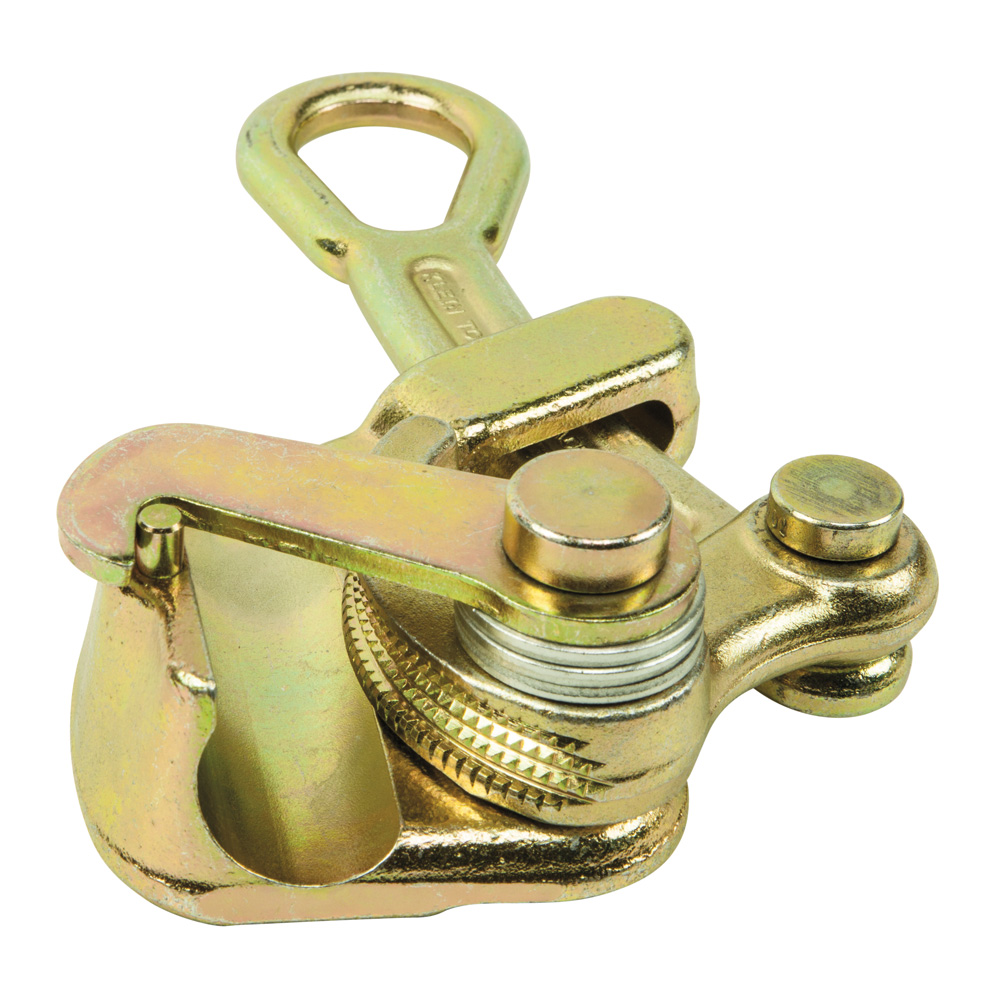

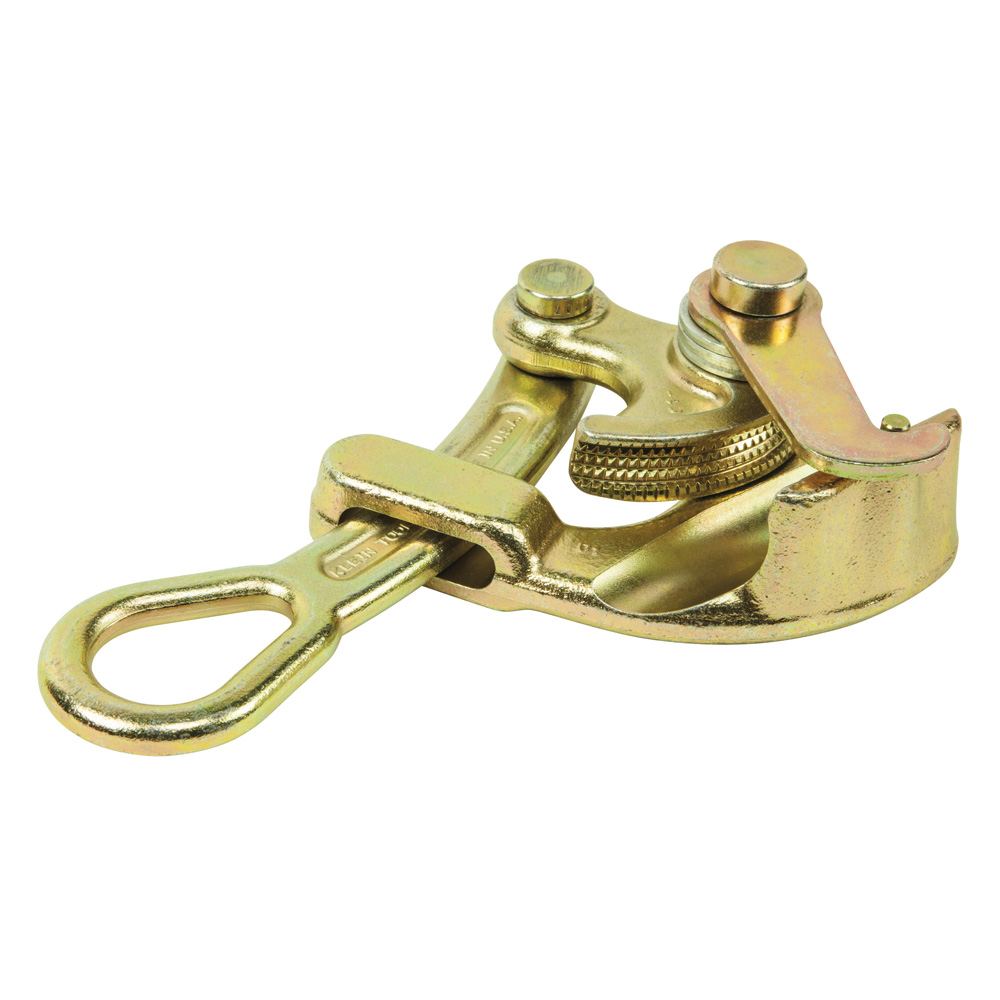

Haven's® Grip Wire Pulling Tool, 1-1/4-Inch

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.4 mm) cable area
• Works with 0.75-Inch to 1.25-Inch (19.05 to 31.8 mm) cable diameter range with 2000-Pound (907 kg) maximum safe load
• Swing latch helps hold cable in the jaw
• Ideal for light, compact grip work where conductor damage is not a factor
• Every grip is inspected by hand and actuated to insure proper function
• Made from extremely durable forged and heat treated steel
• Made in USA

Warnings

• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Jaw Length (Inch): 0.25
• Swing Latch: Yes
• Jaw Type: Curved
• Locking Handle: No
• Type: Haven's Grip
• Weight: 3.3600 lbs
• Overall Length (cm): 17.4
• Application: Wire Pulling
• Overall Height (Inch): 2.2
• Cable Type: EHS, Guy Strand, Messenger
• Overall Width (Inch): 4.05
• Material: Steel
• Overall Height (cm): 5.6
• Maximum Safe Load (lb): 2000
• Hot Latch: No
• Overall Width (cm): 10.3
• Teeth Type: Aggressive
• Maximum Safe Load (kg): 907.2
• Depth: 6.8670 in
• Cable Diameter: 0.75" to 1.25" (1.90 to 3.17 cm)
• Height: 2.2000 in
• Width: 4.0500 in
• Jaw Length (cm): 0.6
• Weight (kg): 1.7
• Overall Length (Inch): 6.86
• Weight (lb): 3.7
• Spring: No
