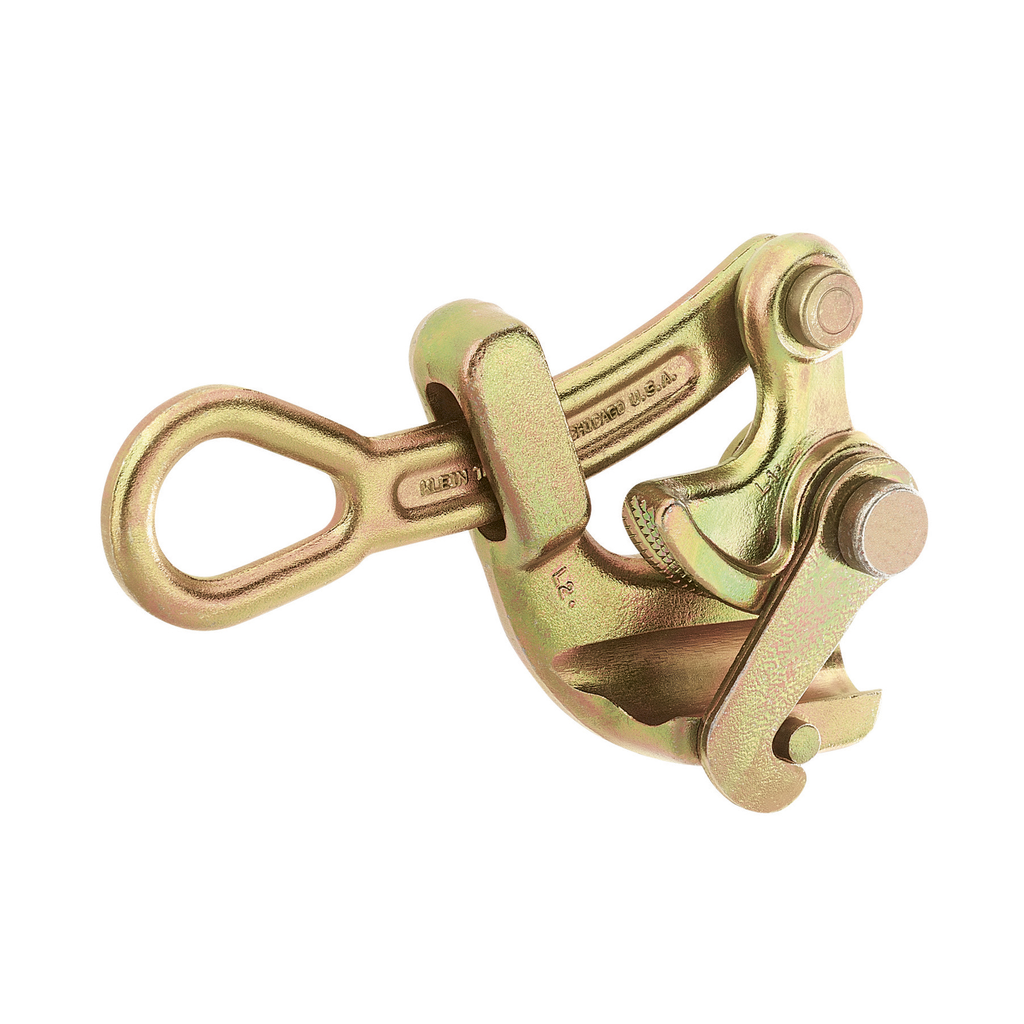

Haven's® Grip for Wire Rope 0.88-Inch

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range with max safe load of 8000 lb (3629 kg)
• Made in USA
• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
• Designed for use when light, compact grip is desired and where conductor damage is not a factor
• Swing latch helps hold cable in the jaw

Specifications

• Depth: 6.7500 in
• Weight: 3.3840 lbs
• Swing Latch: Yes
• Jaw Type: Curved
• Locking Handle: No
• Weight (lb): 3.4
• Type: Haven's Grip
• Jaw Length (cm): 0.6
• Height: 1.6920 in
• Teeth Type: Aggressive
• Weight (kg): 1.5
• Width: 4.5000 in
• Application: Wire Pulling
• Cable Diameter: 0.38" to 0.88" (9.65 to 22.35 mm)
• Hot Latch: No
• Jaw Length (Inch): 0.25
• Material: Steel
• Cable Type: EHS, Guy Strand, Messenger
• Maximum Safe Load (kg): 3628.7
• Maximum Safe Load (lb): 8000
• Spring: No
