Grip for High Strength Cables 0.62-Inch

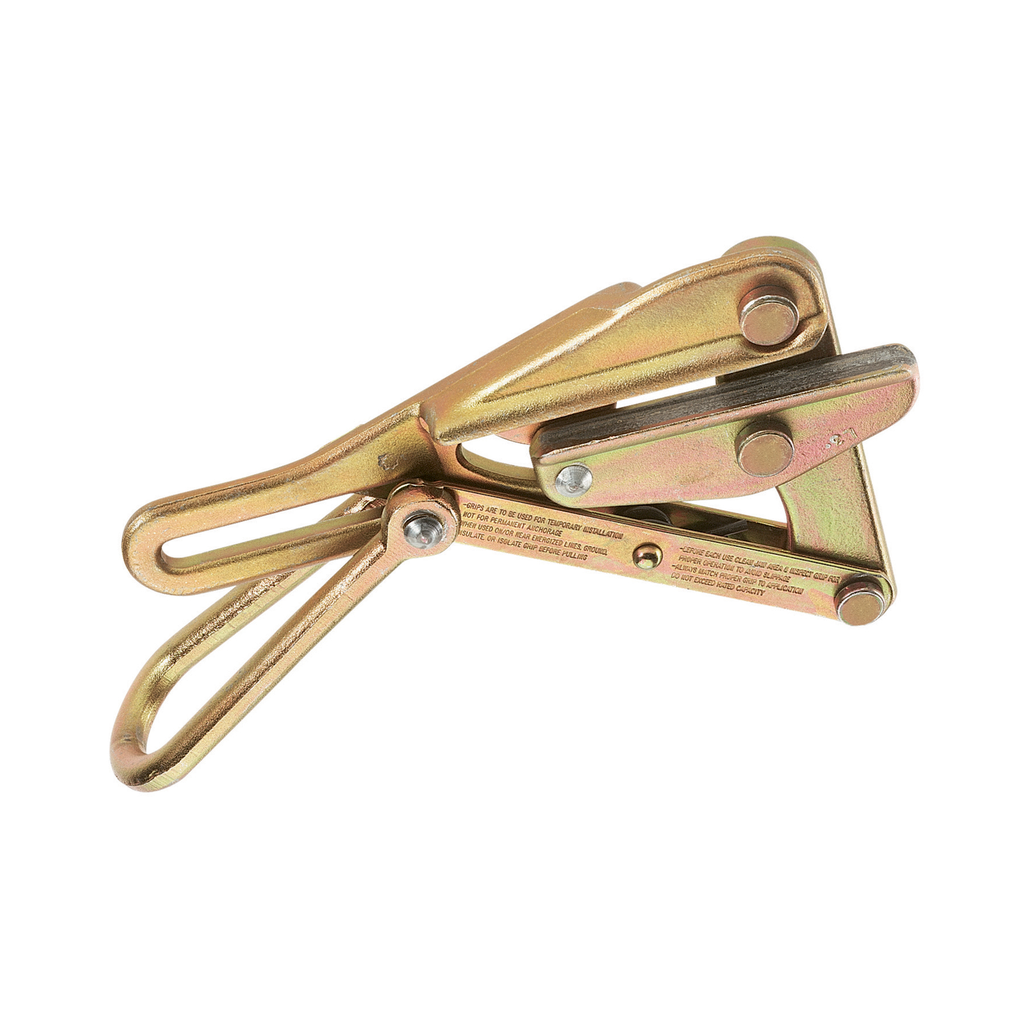

The Klein Tools 1628-16 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• For larger conductors, see our grips with round inside-jaw contour
• Designed for 0.31 to 0.62-Inches (7.9 to 15.7 mm) diameter cable sizes with max safe load of 15,000 (6803 kg)
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Double ''V'' grooves give four-point contact, reducing slipping and providing proper alignment of wire and cable
• Made in USA

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Depth: 12.8250 in
• Height: 3.1500 in
• Type: Chicago Grip
• Application: Wire Pulling
• Weight (lb): 13.7
• Weight (kg): 6.2
• Maximum Safe Load (kg): 6803.9
• Teeth Type: Smooth
• Spring: No
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Width: 6.6380 in
• Maximum Safe Load (lb): 15000
• Swing Latch: No
• Weight: 13.7250 lbs
• Locking Handle: Yes
• Jaw Length (Inch): 7.25
• Hot Latch: No
• Cable Diameter: 0.31" to 0.62" (7.87 to 15.75 mm)
• Jaw Length (cm): 18.4
• Jaw Type: Double V
