Chicago® Grip Bell-System Type H Grip

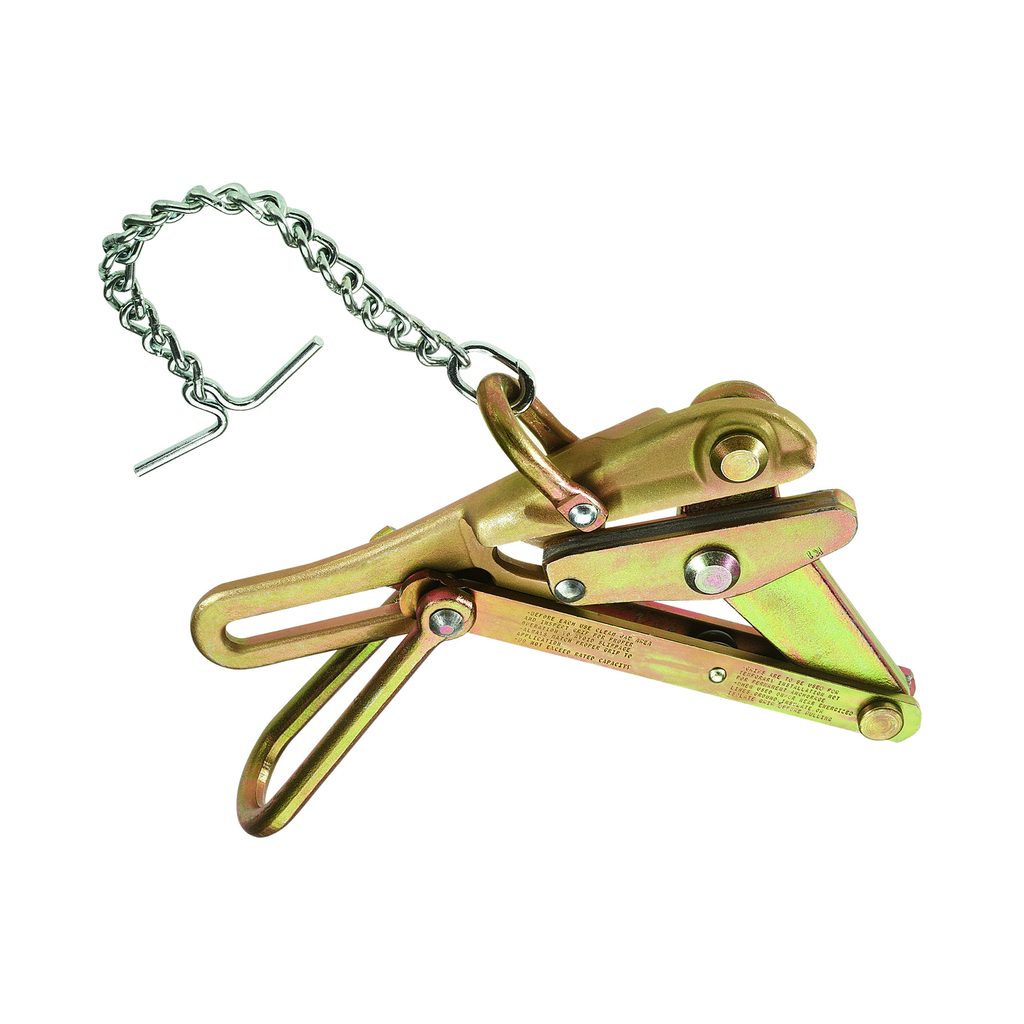

The Klein Tools 1628-16AT Chicago Grip is identical to a Bell-System type H Strand Puller. It is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.

Features

• Equipped with chain, toggle and shackle
• For support wire 0.134 and larger, refer to 1659 series
• "H" Strand Puller -- Equipped with a Chain, Toggle and Shackle
• Made in USA
• Outside diameter of support wire includes thickness of polyethylene coating
• Identical to Bell-System type ''H'' strand puller, with max safe load of 15,000-Pound (6803 kg)

Specifications

• Weight: 0.1000 lbs
• Hot Latch: No
• Jaw Length (Inch): 7.25
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Jaw Type: Double V
• Weight (kg): 7.2
• Weight (lb): 15.8
• Width: 7.0000 in
• Jaw Length (cm): 18.4
• Material: Steel
• Teeth Type: Smooth
• Depth: 13.7500 in
• Locking Handle: Yes
• Application: Wire Pulling
• Spring: Yes
• Height: 2.5000 in
• Maximum Safe Load (kg): 6803.9
• Swing Latch: No
• Cable Diameter: 0.31" to 0.62" (7.87 to 15.75 mm)
• Type: Chicago Grip
• Maximum Safe Load (lb): 15000
