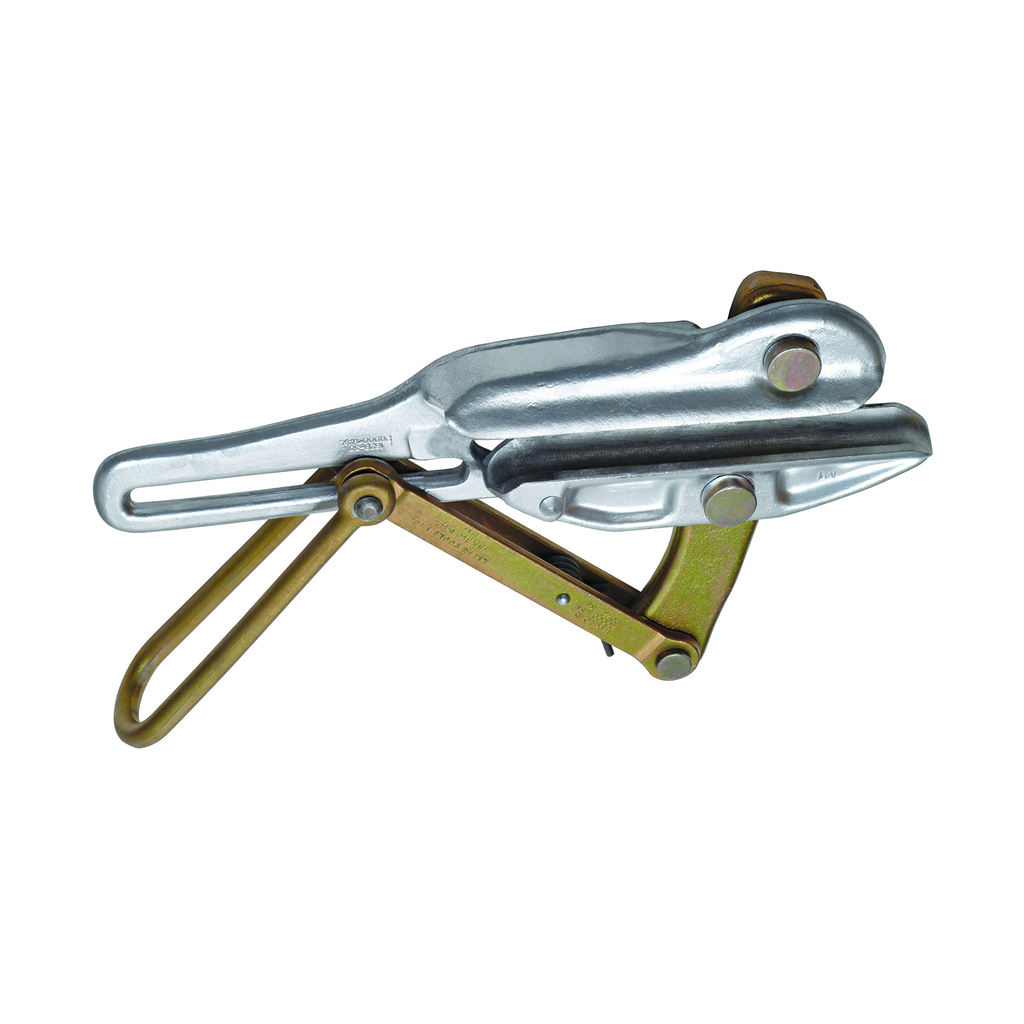

Chicago® Grip for Large Diameter Conductors

This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Features

• Made in USA
• These non-returnable grips are special order only. Please allow 30 days for delivery.
• Designed for larger diameter ACSR, AAC and copper cable
• Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code
• Round jaws provide maximum contact with the cable minimizing deformation

Specifications

• Depth: 12.3750 in
• Jaw Type: Round
• Cable Type: ACSR, AAC, Copper
• Hot Latch: No
• Cable Diameter: 0.31" to 0.89" (7.87 to 22.6 mm)
• Locking Handle: No
• Maximum Safe Load (kg): 6803.9
• Spring: No
• Width: 6.3000 in
• Jaw Length (Inch): 7.25
• Application: Wire Pulling
• Jaw Length (cm): 18.4
• Maximum Safe Load (lb): 15000
• Height: 1.8000 in
• Weight (lb): 13.73
• Weight: 13.7250 lbs
• Type: Chicago Grip
• Teeth Type: Smooth
• Swing Latch: No
• Material: Steel
• Weight (kg): 6.2
