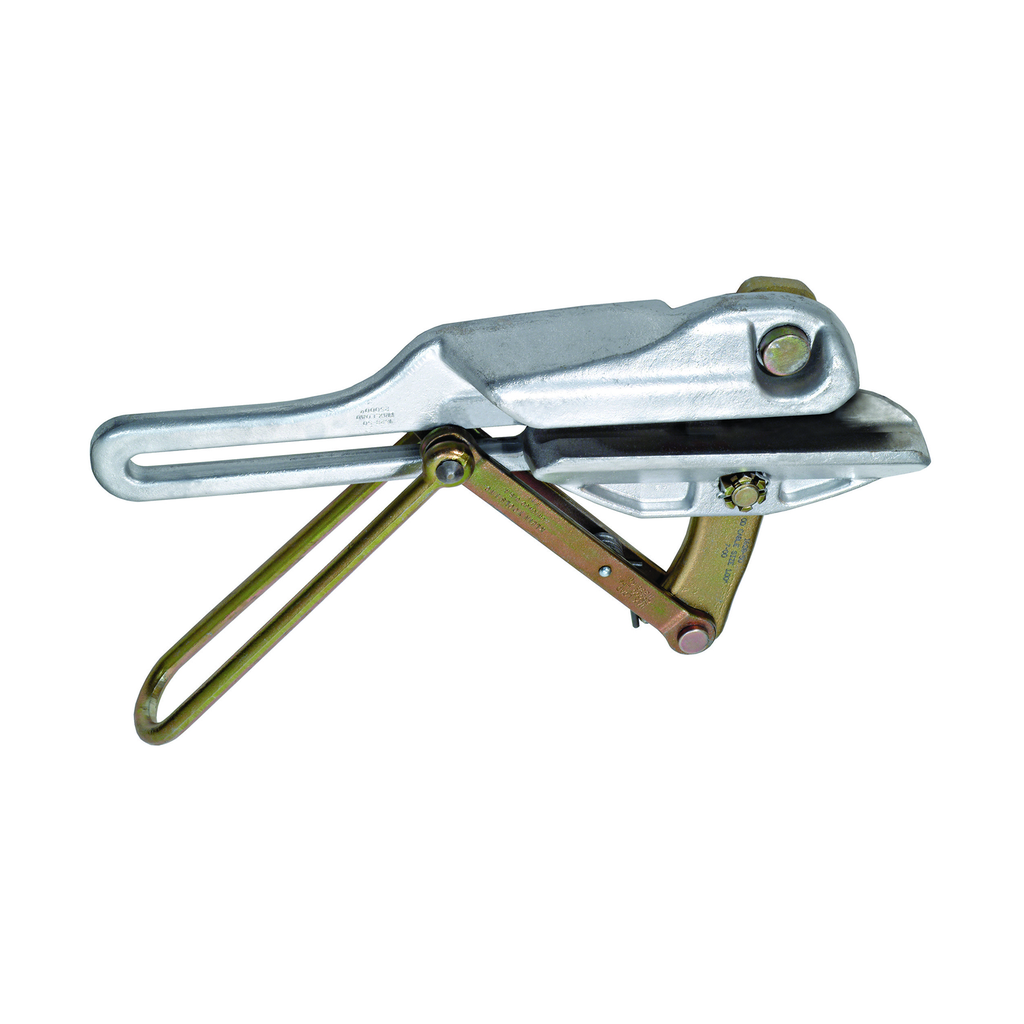

Grip for Large Diameter Conductors

This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.

Features

• Round jaws are provide maximum contact with the cable minimizing deformation
• Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
• These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable
• Jaw must be removed to insert cable
• Removable jaw allows for installation of cable
• Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
• These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.

Specifications

• Maximum Safe Load (kg): 11339.8
• Cable Type: ACSR, ACSS, ACSS-TW, AAC
• Material: Steel
• Jaw Length (Inch): 10.75
• Jaw Length (cm): 27.3
• Jaw Type: Round
• Overall Width (Inch): 3.12
• Hot Latch: No
• Weight (kg): 13.2
• Spring: Yes
• Cable Diameter: 0.95" to 1.89" (24.13 to 48 mm)
• Overall Height (cm): 23.3
• Depth: 17.5500 in
• Swing Latch: No
• Overall Height (Inch): 9.19
• Overall Length (cm): 78.7
• Weight (lb): 29.03
• Application: Wire Pulling
• Locking Handle: Yes
• Maximum Safe Load (lb): 25000
• Type: Chicago Grip
• Teeth Type: Smooth
• Width: 8.5500 in
• Overall Length (Inch): 31
• Height: 2.9250 in
• Overall Width (cm): 7.9
• Weight: 29.0250 lbs
