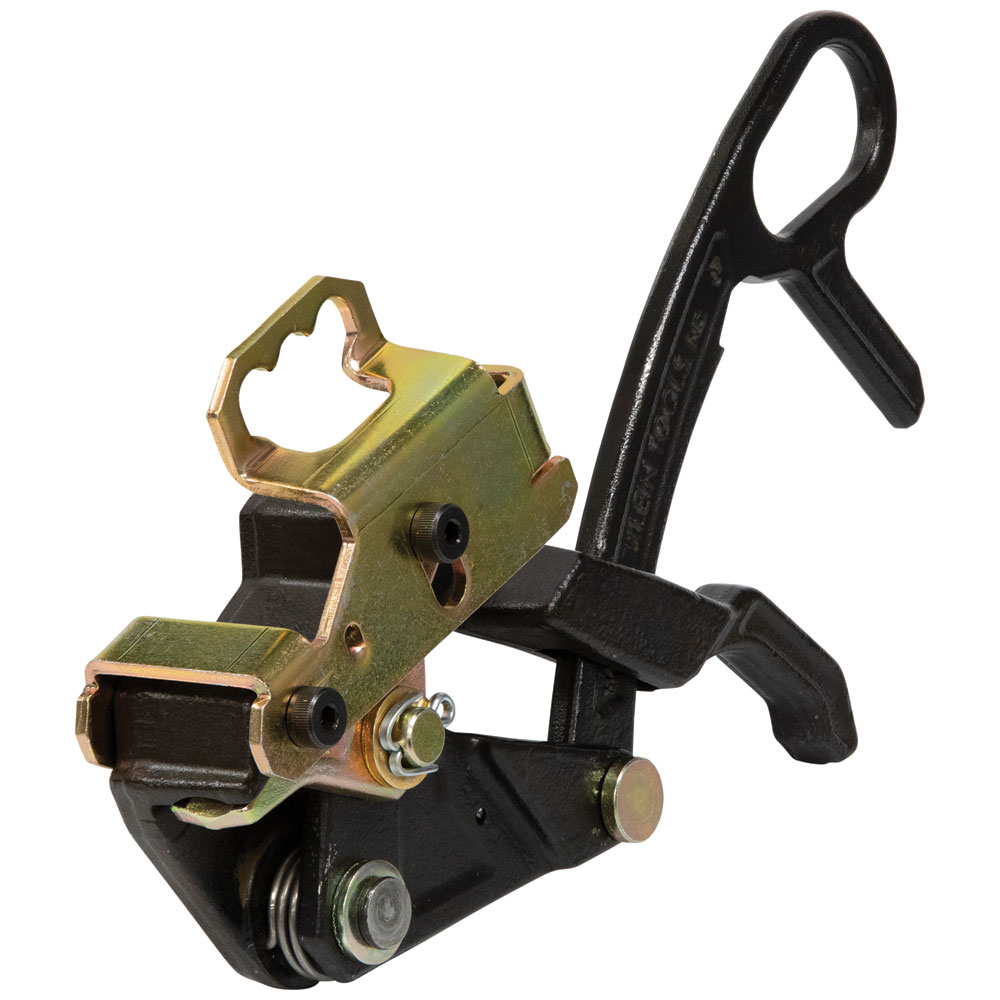

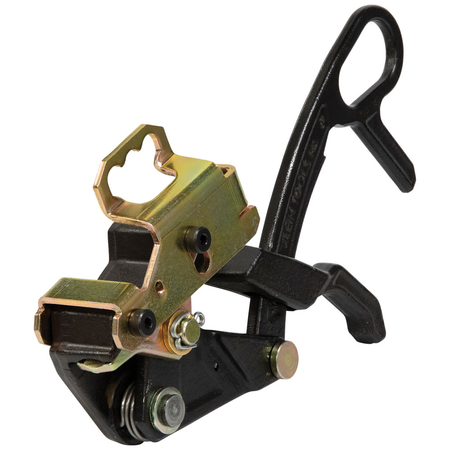

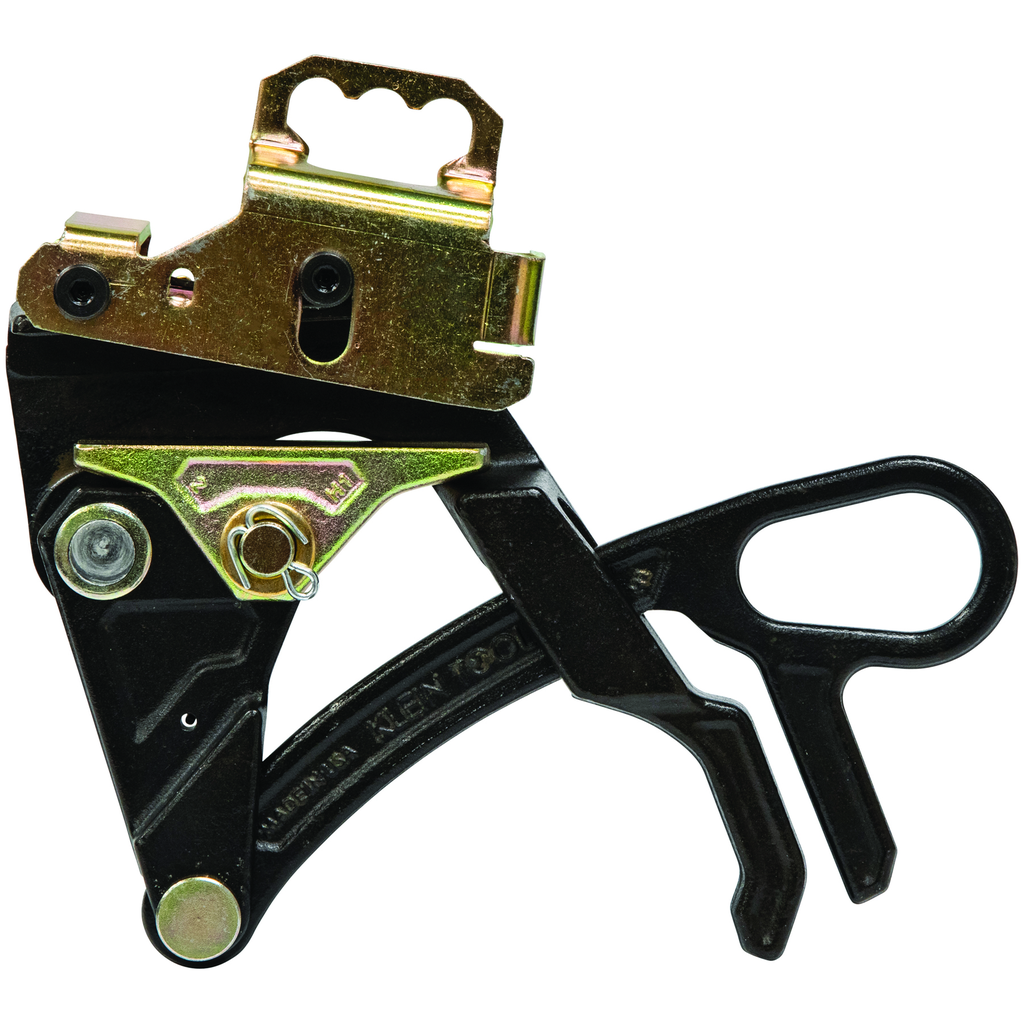

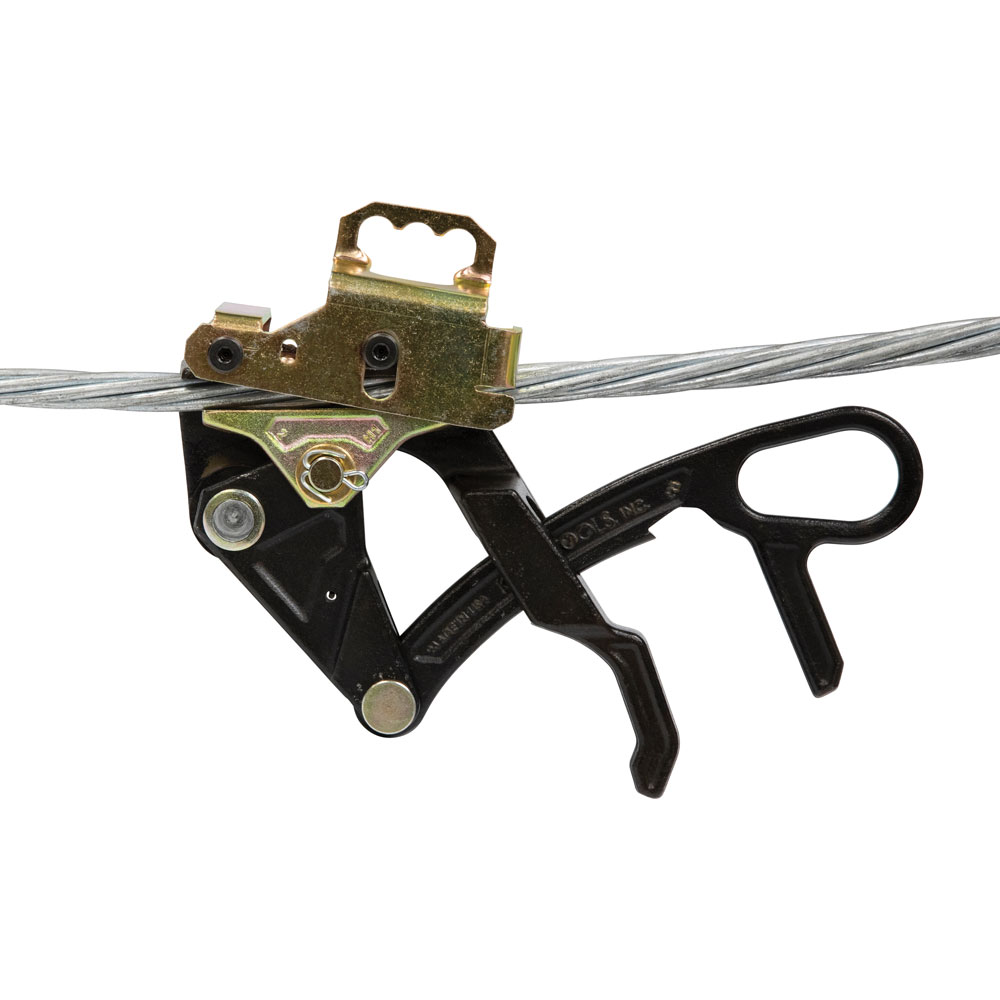

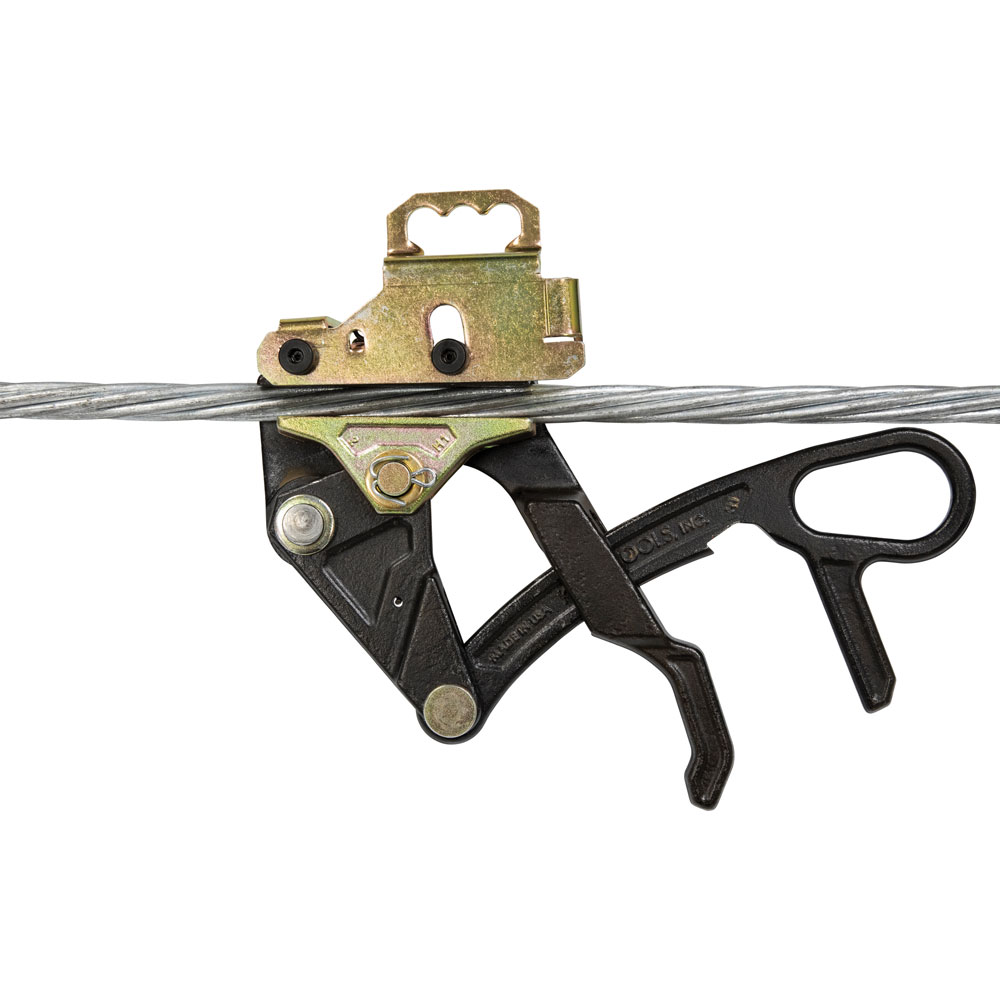

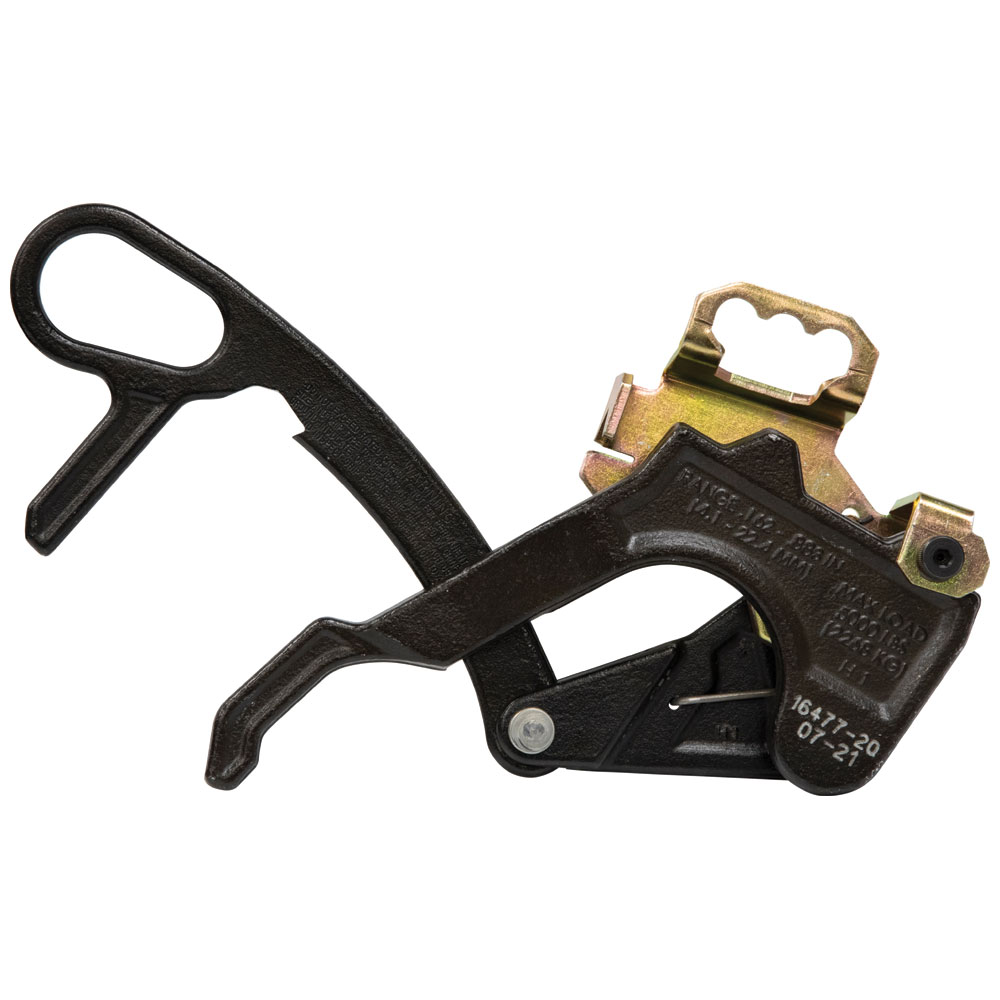

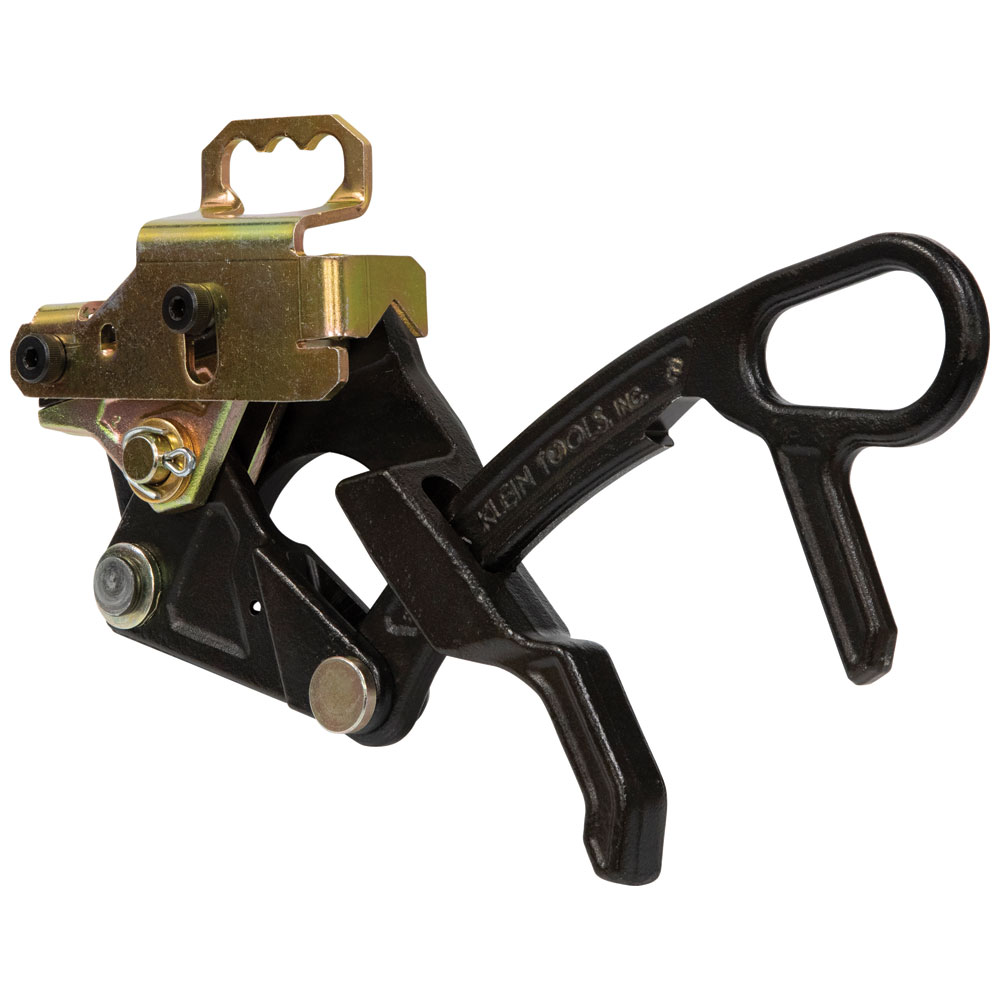

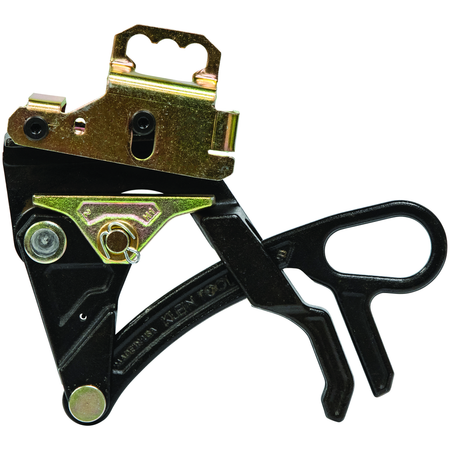

Wide Range Distribution Grip with Hot Latch

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than the Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Design includes a latch to help maintain cable position in grip jaws. Made in the USA, this grip has a maximum safe load of 5000-Pound.

Features

• 20-Percent lighter than the Cat. No. KT4500 grip
• One-handed design makes for easier actuation
• Made in the USA

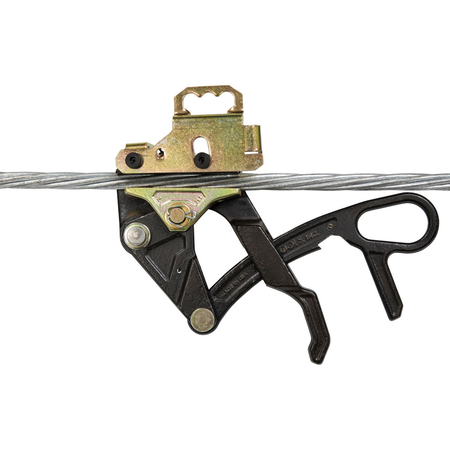

• Spring closes grip on cable to hold the initial position

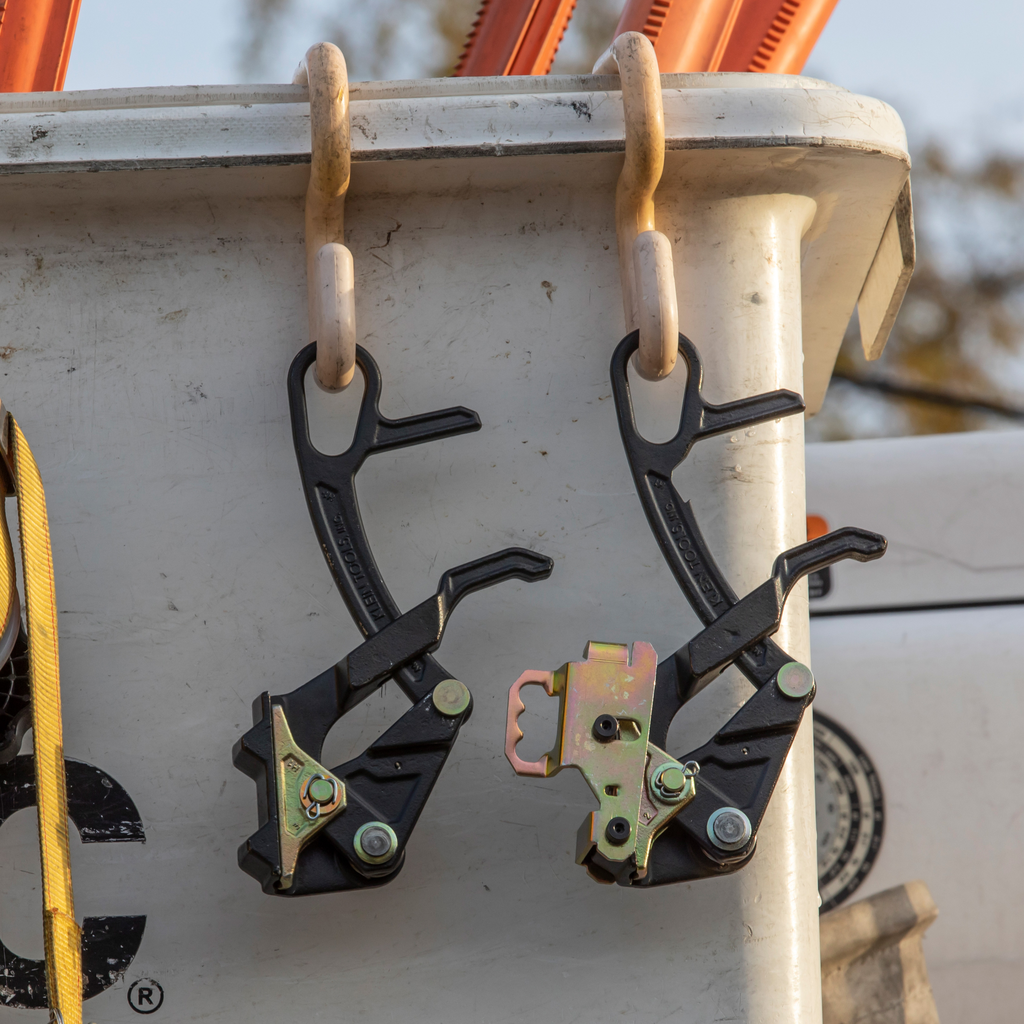

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

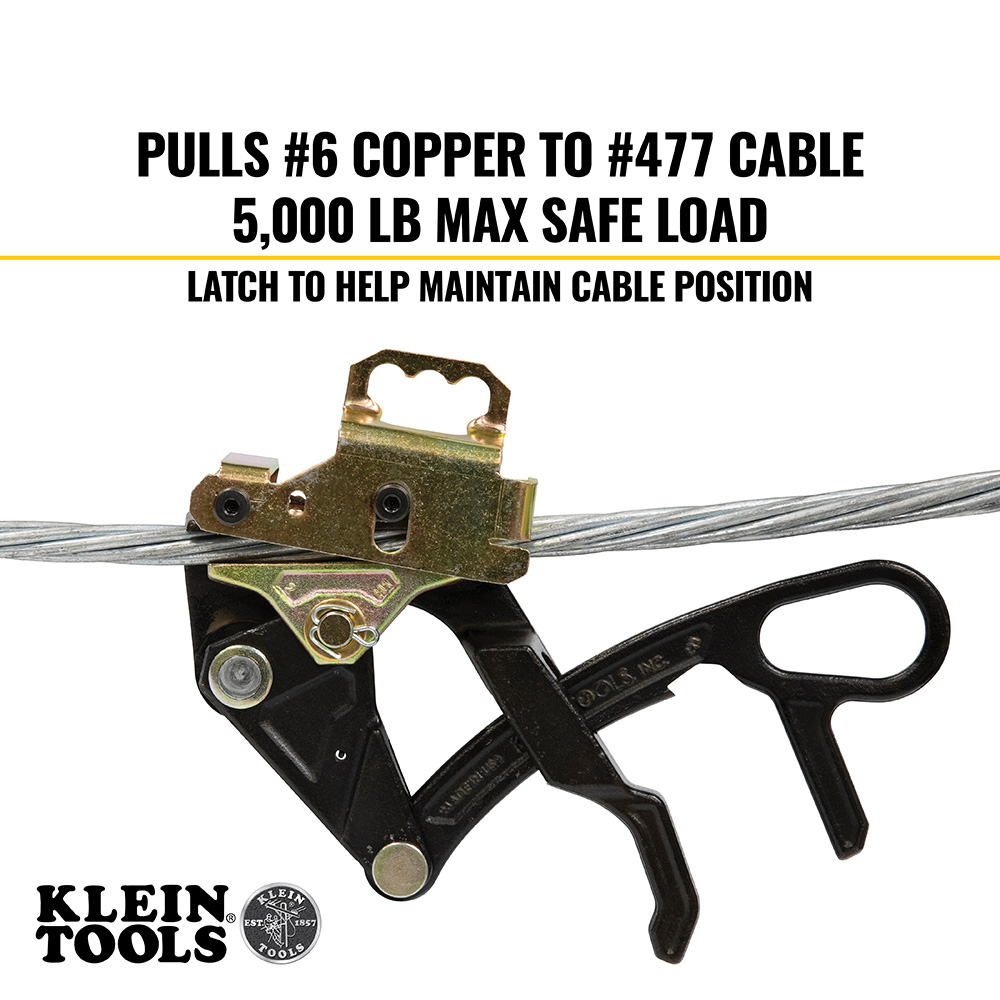

• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
• Max Safe Load of 5000-Pound (2268 kg)
• Patent pending design

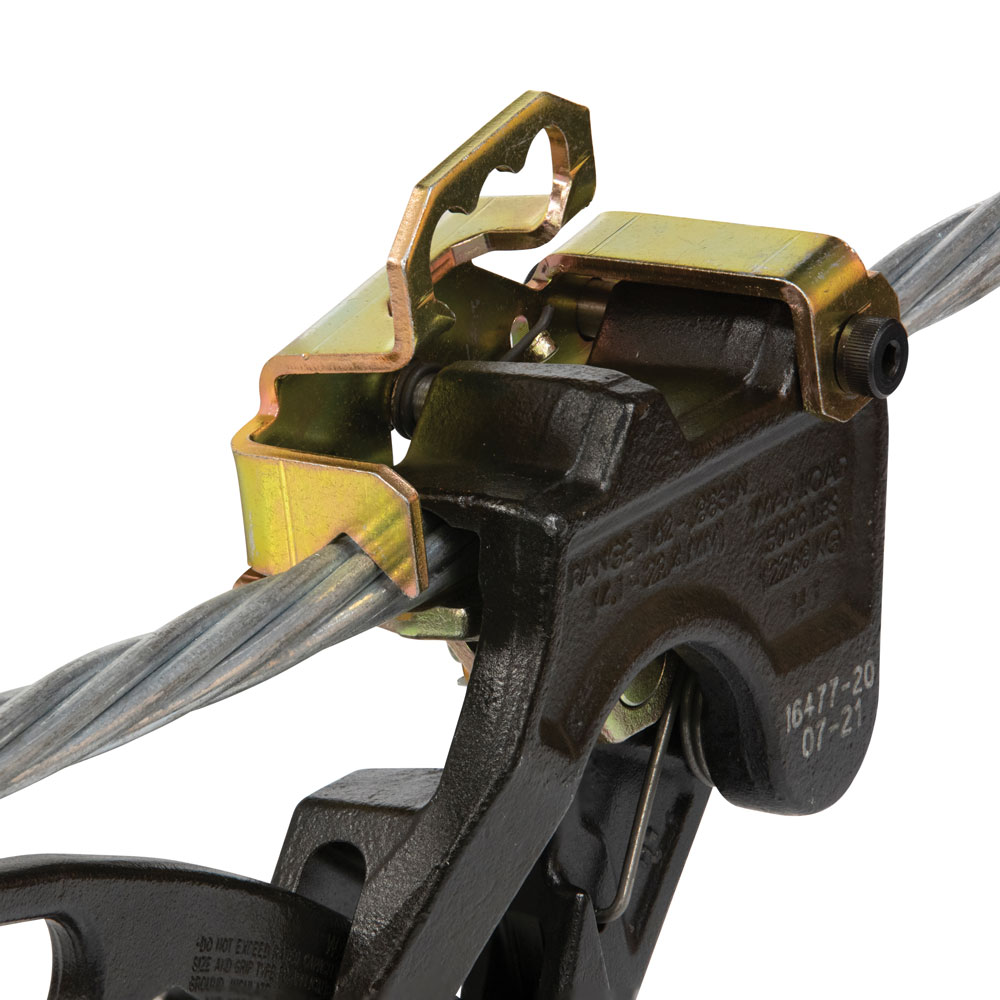

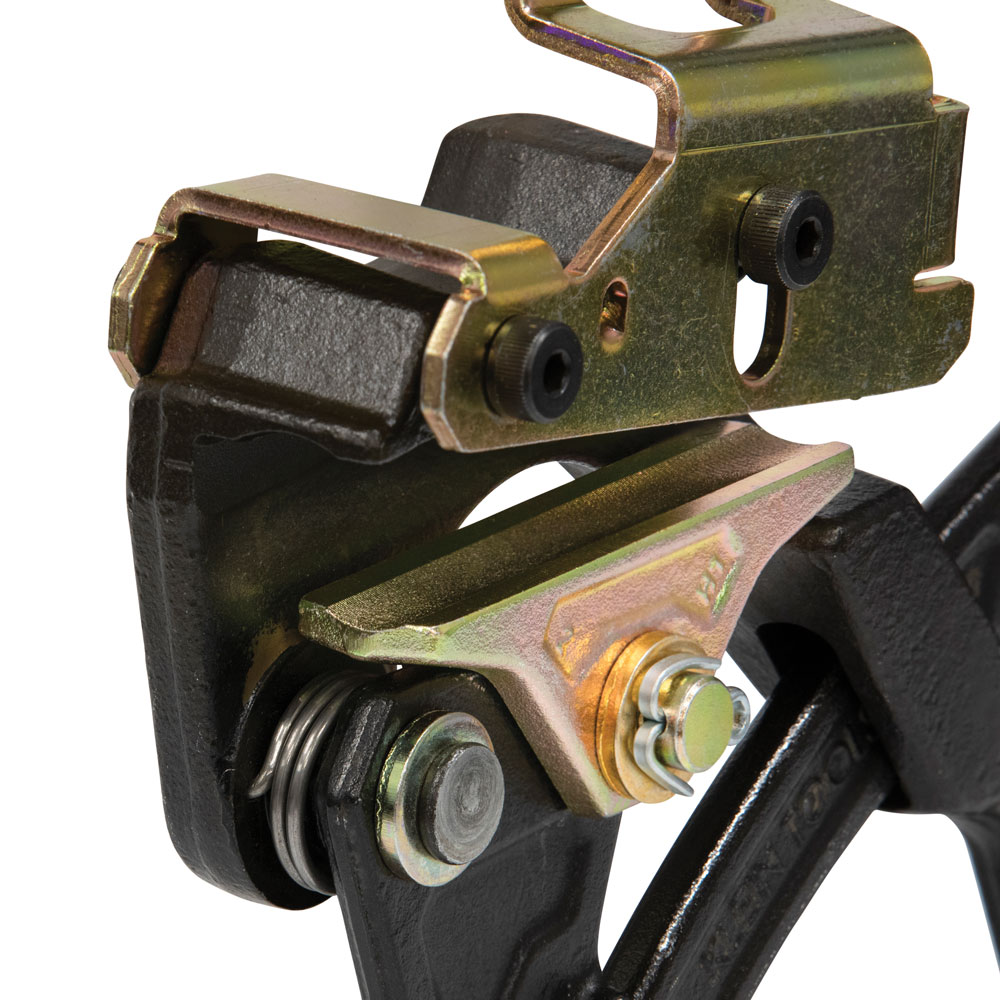

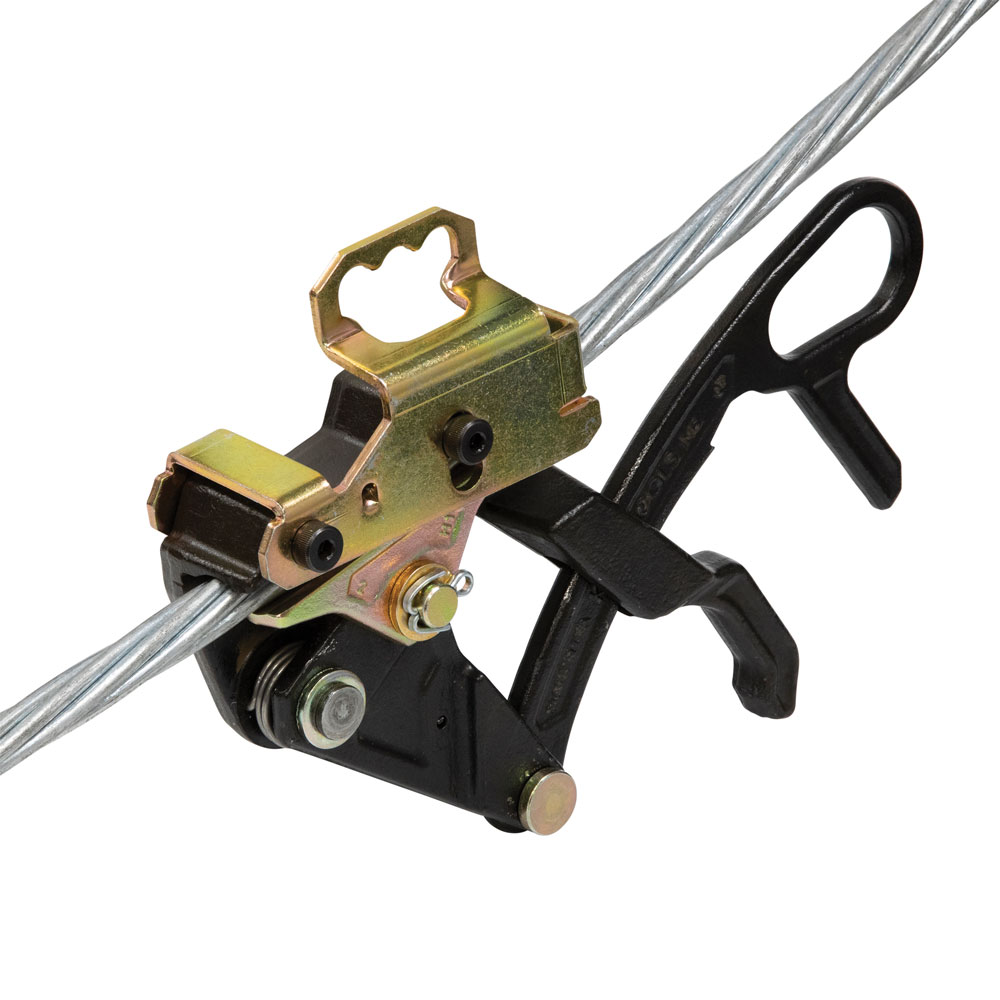

• Includes a latch to help maintain cable position in the grip jaw
• Hot Latch, One-Handed Grip

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

Specifications

• Hot Latch: Yes
• Swing Latch: No
• Overall Width (cm): 4.4
• Maximum Safe Load (kg): 2268
• Locking Handle: Yes
• Cable Type: Copper, AAC, ACSR
• Cable Diameter: 0.162 to 0.883" (4.11 to 22.42 mm)
• Overall Width (Inch): 1.75
• Material: Steel
• Overall Height (Inch): 8
• Weight (kg): 1.5
• Application: Wire Pulling
• Weight (lb): 3.2
• Jaw Length (cm): 8.4
• Weight: 2.9000 lbs
• Jaw Length (Inch): 3.31
• Width: 7.3100 in
• Maximum Safe Load (lb): 5000
• Type: Parallel Jaw Grip
• Overall Length (cm): 26
• Jaw Type: Round
• Spring: Yes
• Teeth Type: Fine
• Overall Height (cm): 20.3
• Height: 2.3000 in
• Depth: 8.6800 in
• Overall Length (Inch): 10.25
