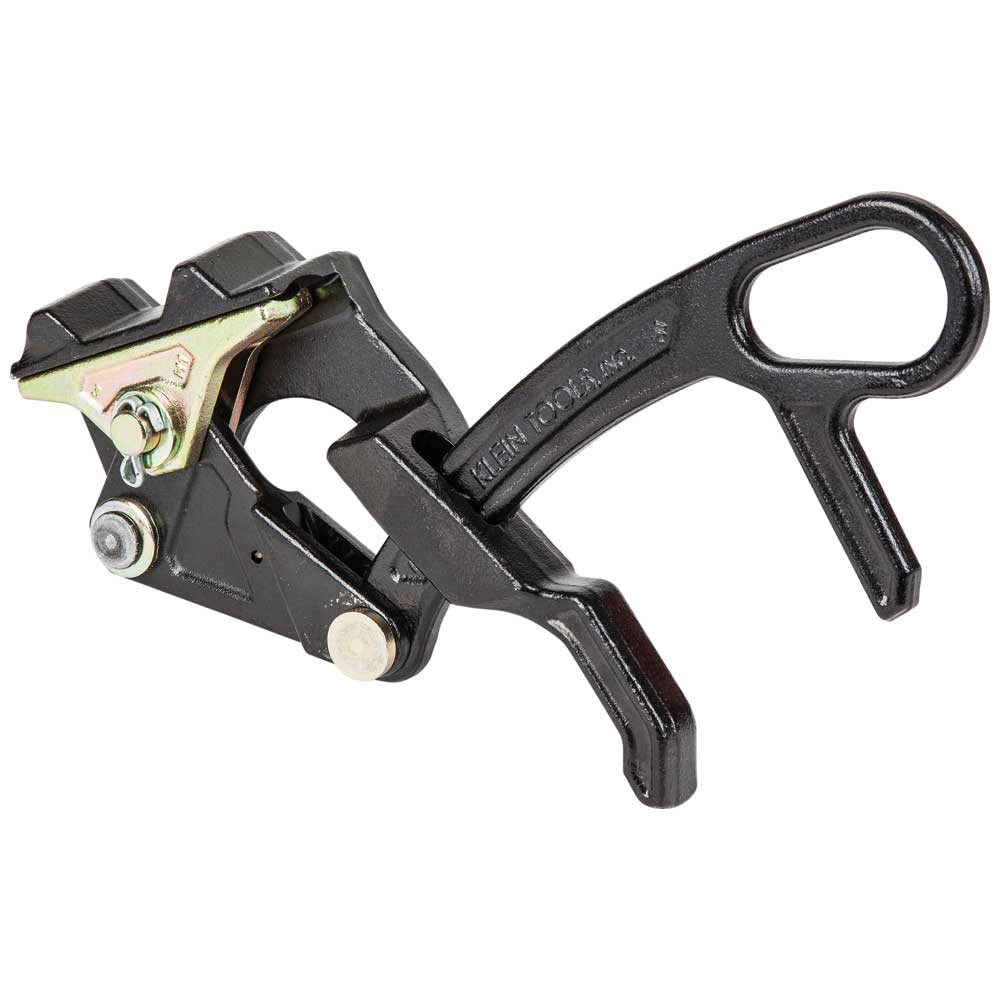

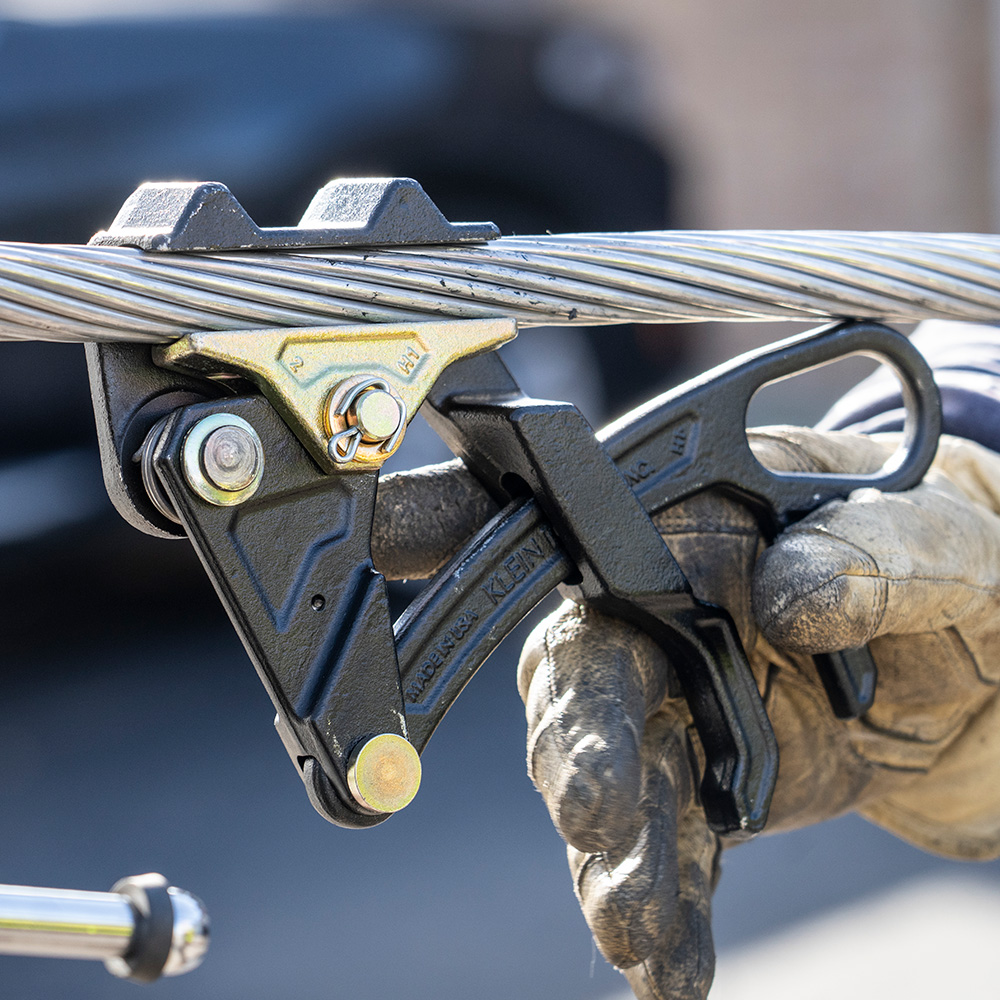

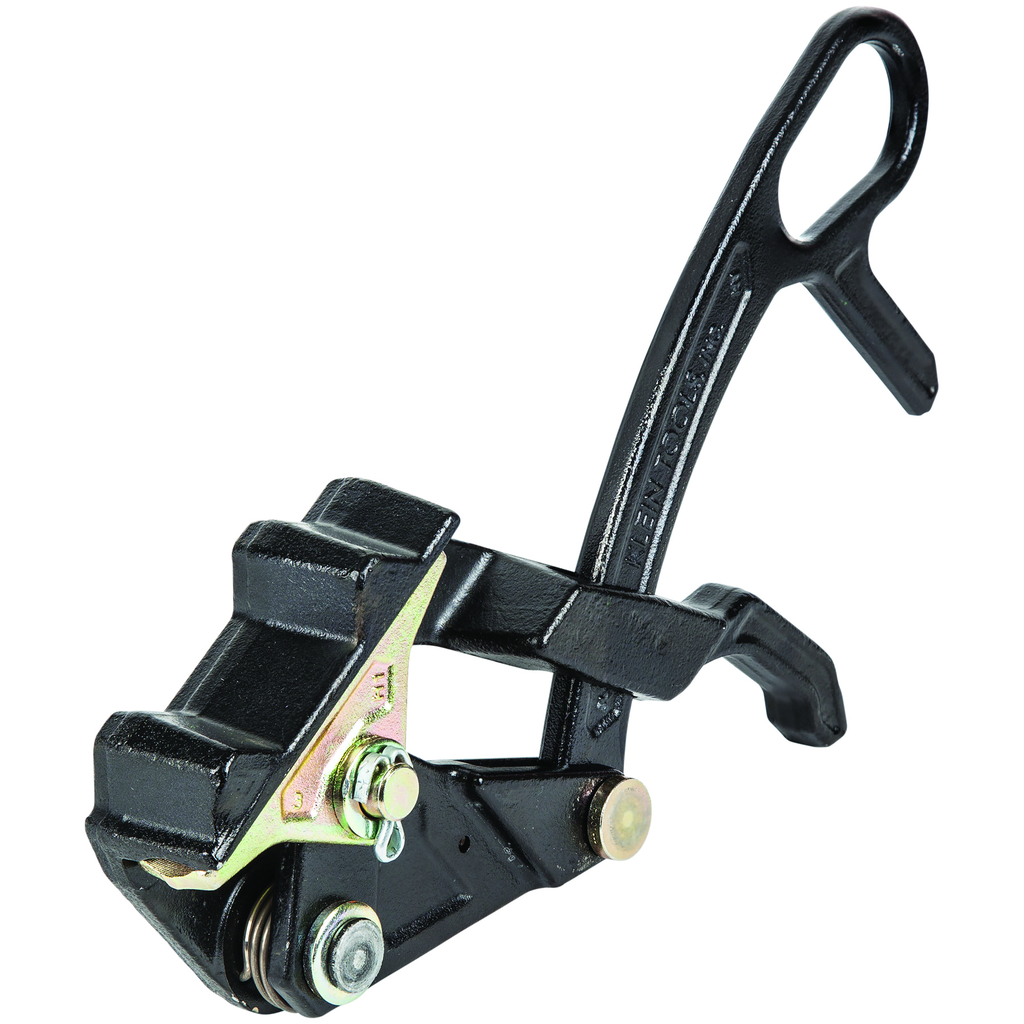

Wide Range Distribution Grip

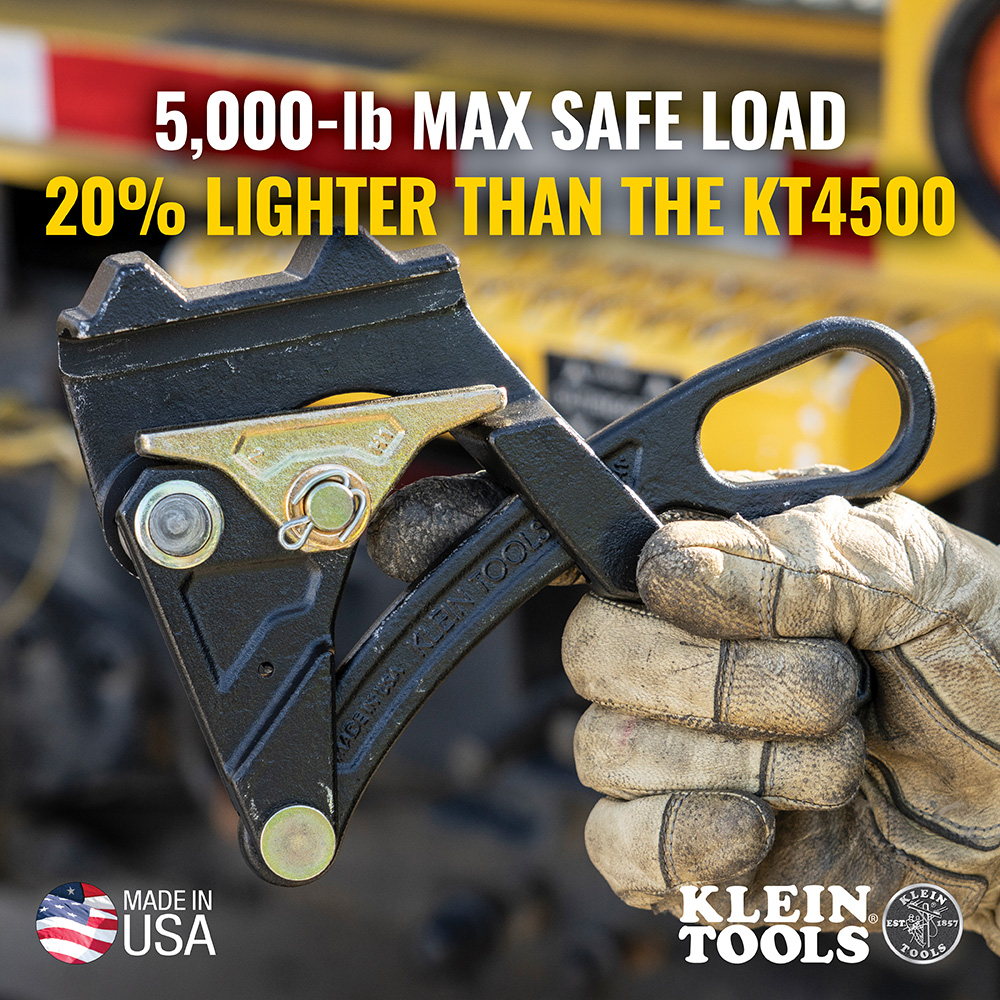

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.

Features

• Patent pending design

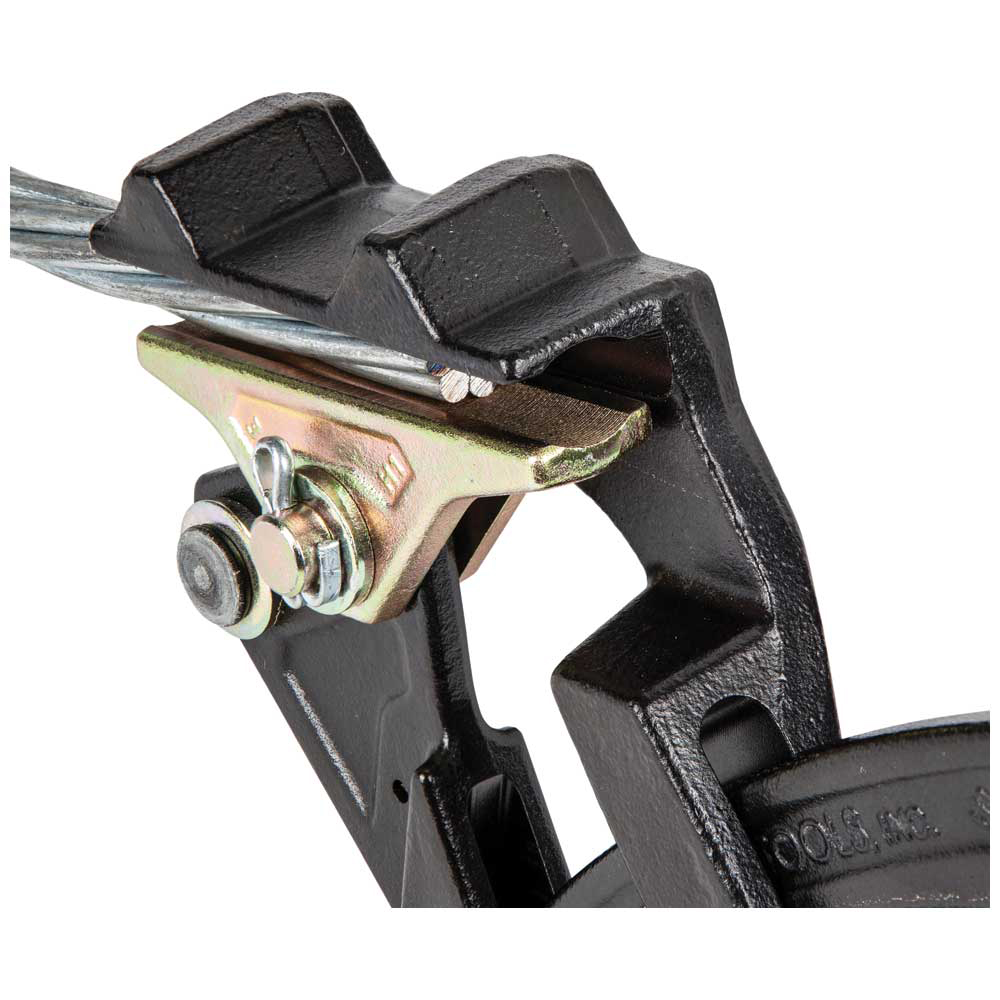

• Spring closes grip on cable to hold the initial position
• 20-Percent lighter than the Cat. No. KT4500 grip
• One-handed design makes for easier actuation

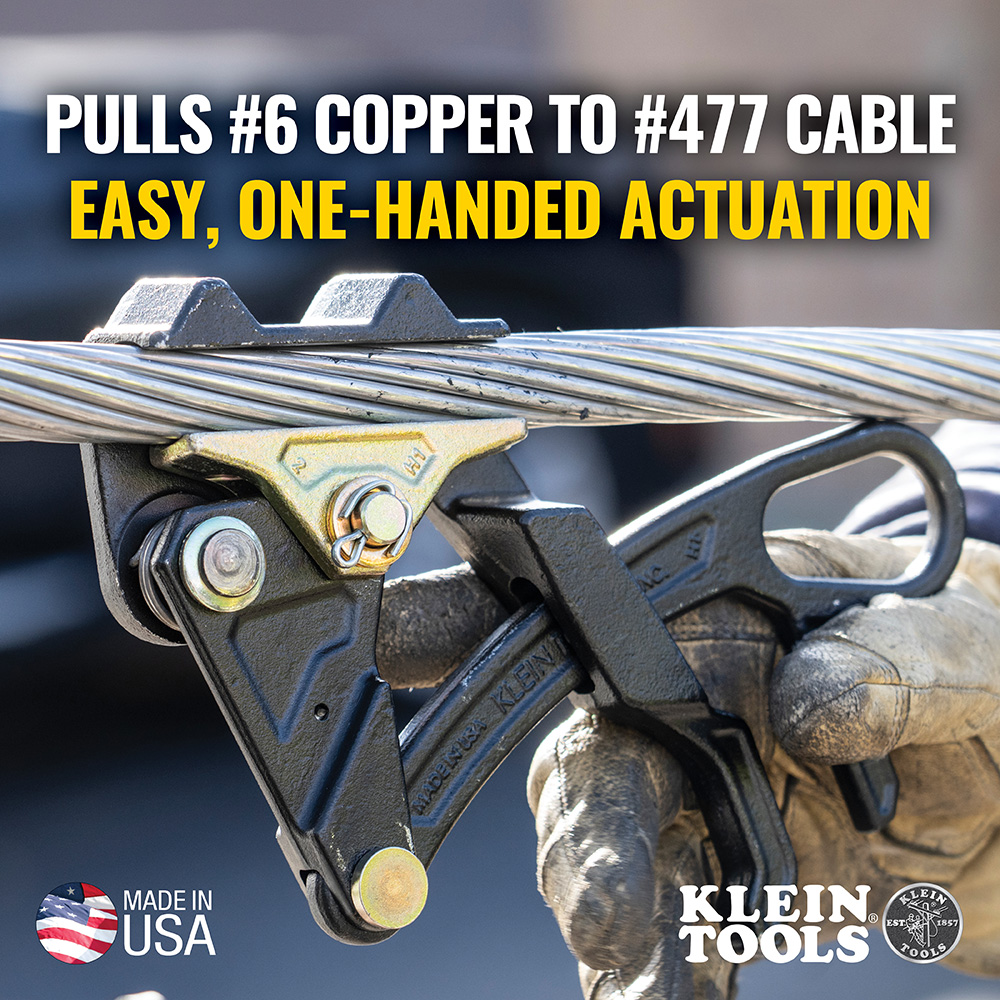

• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
• One-Handed Grip
• Made in the USA

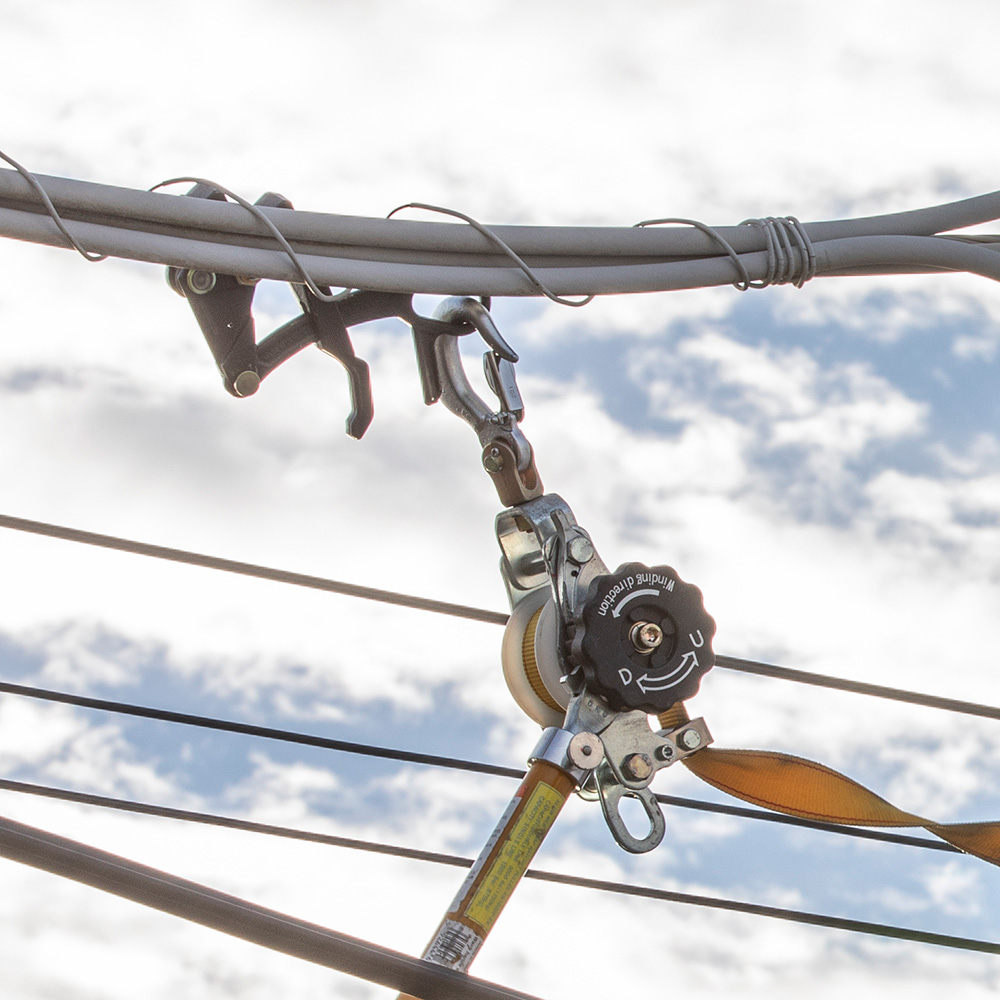

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

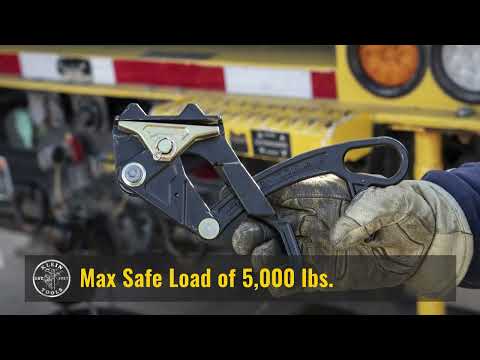

• Max Safe Load of 5000-Pound (2268 kg)

Specifications

• Weight (kg): 1.3
• Locking Handle: No
• Maximum Safe Load (kg): 2268
• Application: Wire Pulling
• Spring: Yes
• Height: 1.2500 in
• Weight: 2.9000 lbs
• Material: Steel
• Overall Height (cm): 3.2
• Overall Width (cm): 16.5
• Width: 6.5000 in
• Jaw Length (cm): 8.4
• Jaw Type: Round
• Overall Width (Inch): 6.5
• Teeth Type: Fine
• Hot Latch: No
• Weight (lb): 2.9
• Maximum Safe Load (lb): 5000
• Swing Latch: No
• Overall Length (cm): 25.4
• Cable Diameter: 0.162 to 0.883" (4.11 to 22.42 mm)
• Depth: 10.0000 in
• Overall Height (Inch): 1.25
• Overall Length (Inch): 10
• Jaw Length (Inch): 3.31
• Cable Type: Copper, AAC, ACSR
• Type: Parallel Jaw Grip
