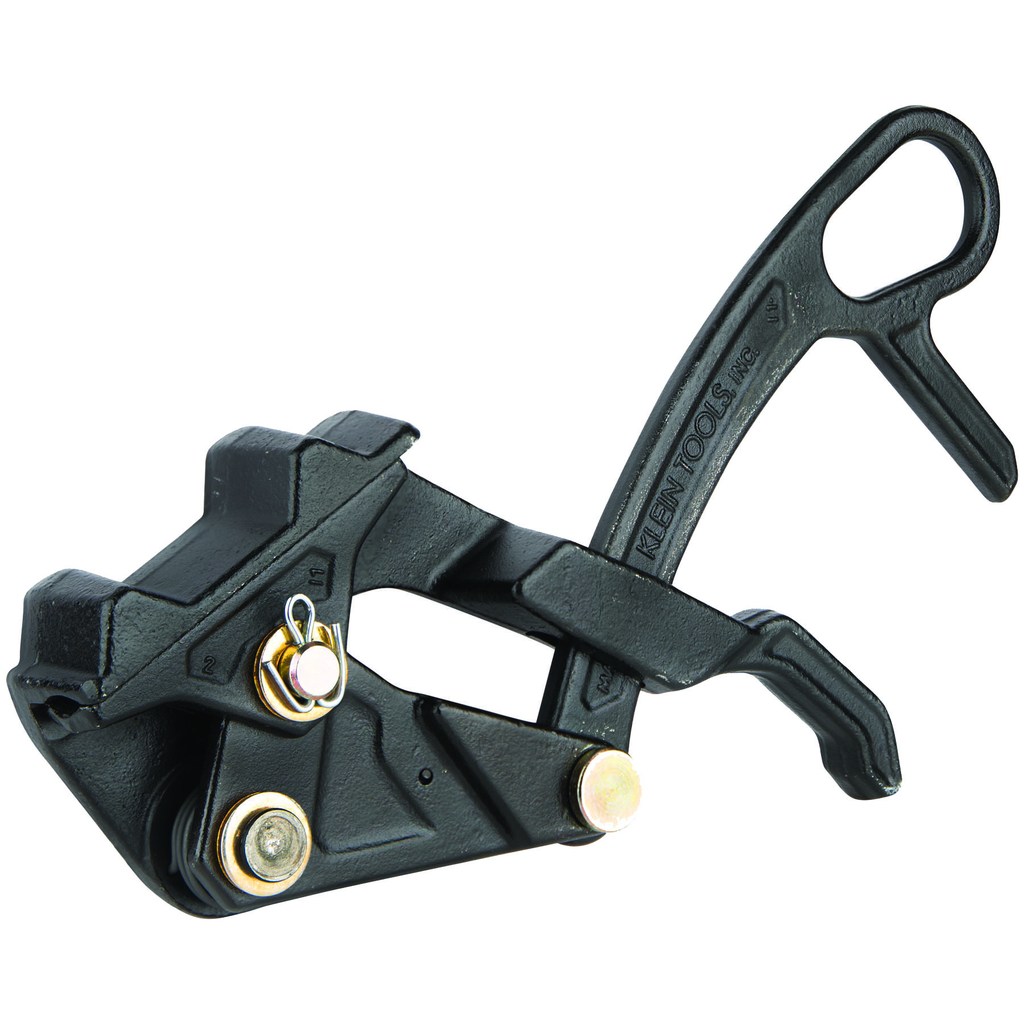

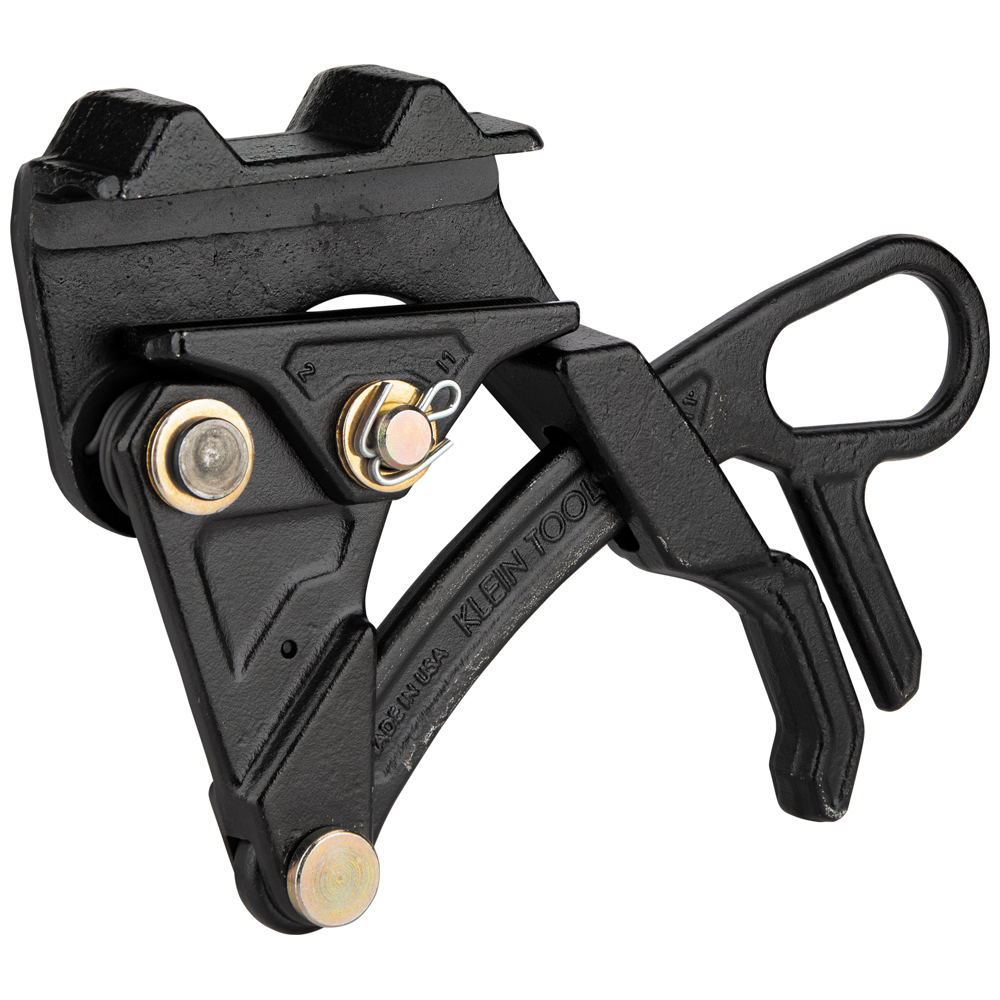

Wide Range Distribution Grip, EHS Wire

Klein Tools' Wide Range Distribution Grip with EHS Jaw holds a wide range of cable from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm). This versatile, one-handed actuation grip is 50-Percent lighter than the Klein's KT4600 grip. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Warnings

• Do not exceed rated capacity.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• EHS Jaw holds a wide range of cable from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm)
• Made in the USA

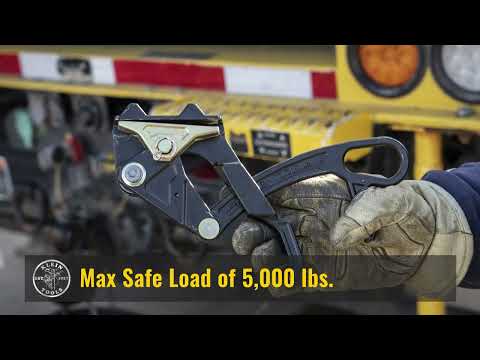

• Max Safe Load of 5000-Pound (2268 kg)
• Spring closes grip on cable to hold the initial position
• One-Handed Grip
• Patent pending design
• 50-Percent lighter than the KT4600 grip
• One-handed design makes for easier actuation
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

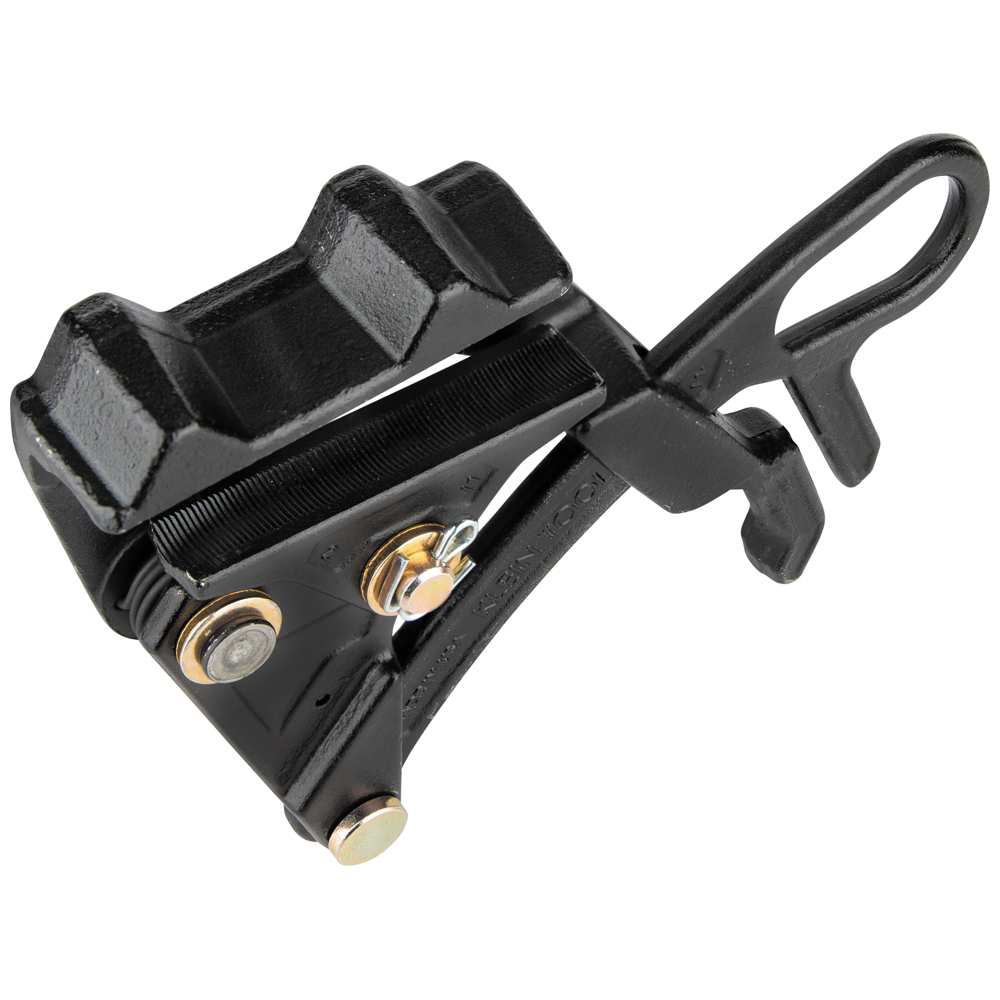

• Alternating sawtooth jaw geometry provides greater grip strength

Specifications

• Weight (lb): 2.9
• Spring: Yes
• Cable Diameter: 0.162 to 0.883" (4.11 to 22.42 mm)
• Overall Width (Inch): 1.75
• Overall Height (Inch): 8
• Jaw Length (cm): 8.4
• Locking Handle: No
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Overall Height (cm): 20.3
• Width: 6.5000 in
• Weight: 1.3600 lbs
• Swing Latch: No
• Height: 1.2500 in
• Jaw Length (Inch): 3.31
• Maximum Safe Load (kg): 2268
• Hot Latch: No
• Weight (kg): 1.3
• Depth: 10.0000 in
• Jaw Type: Round
• Overall Width (cm): 4.4
• Overall Length (cm): 26
• Application: Wire Pulling
• Overall Length (Inch): 10.25
• Teeth Type: Coarse
• Type: Parallel Jaw Grip
• Maximum Safe Load (lb): 5000
