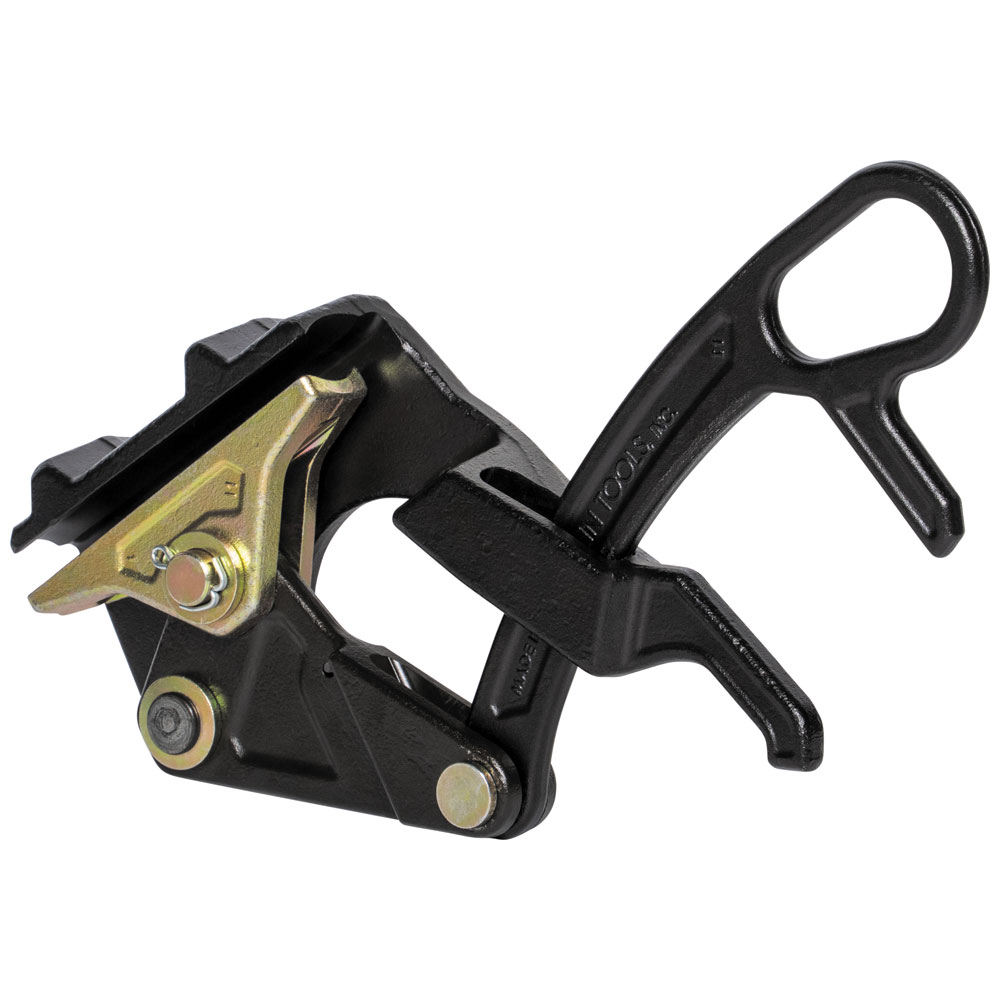

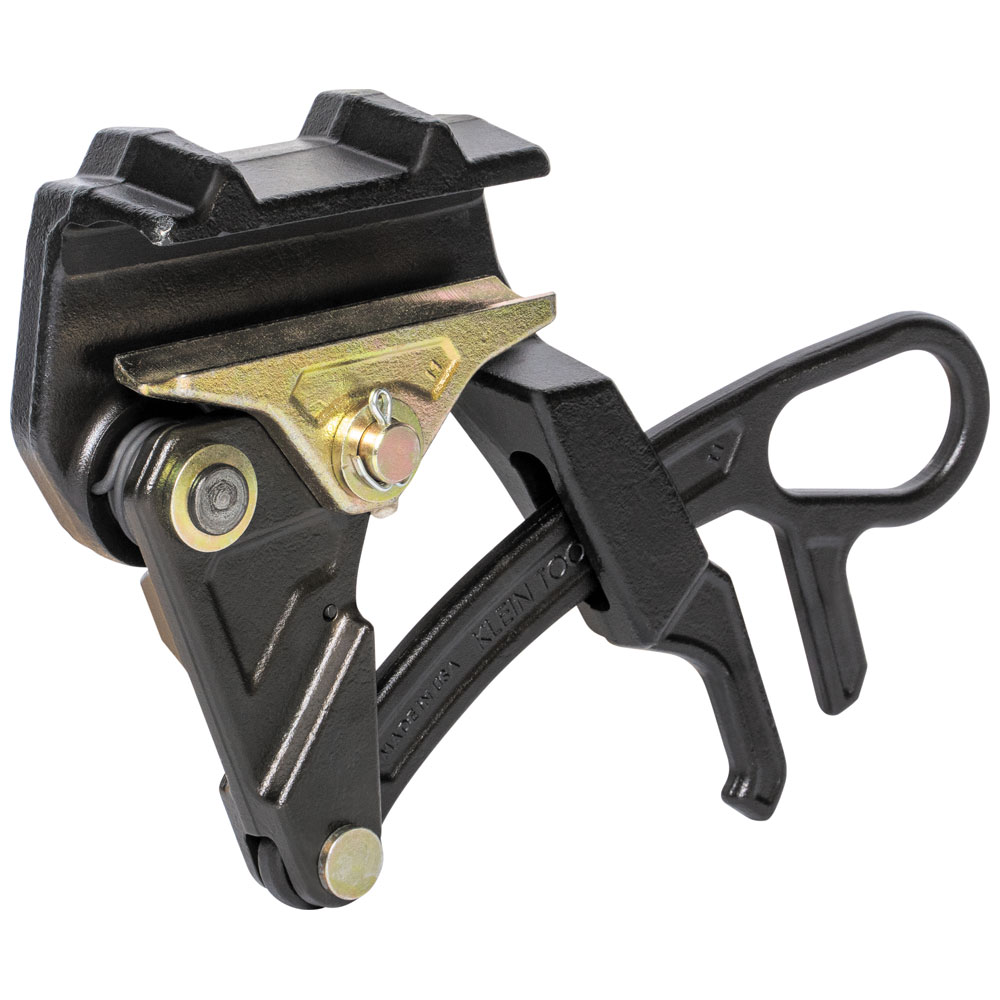

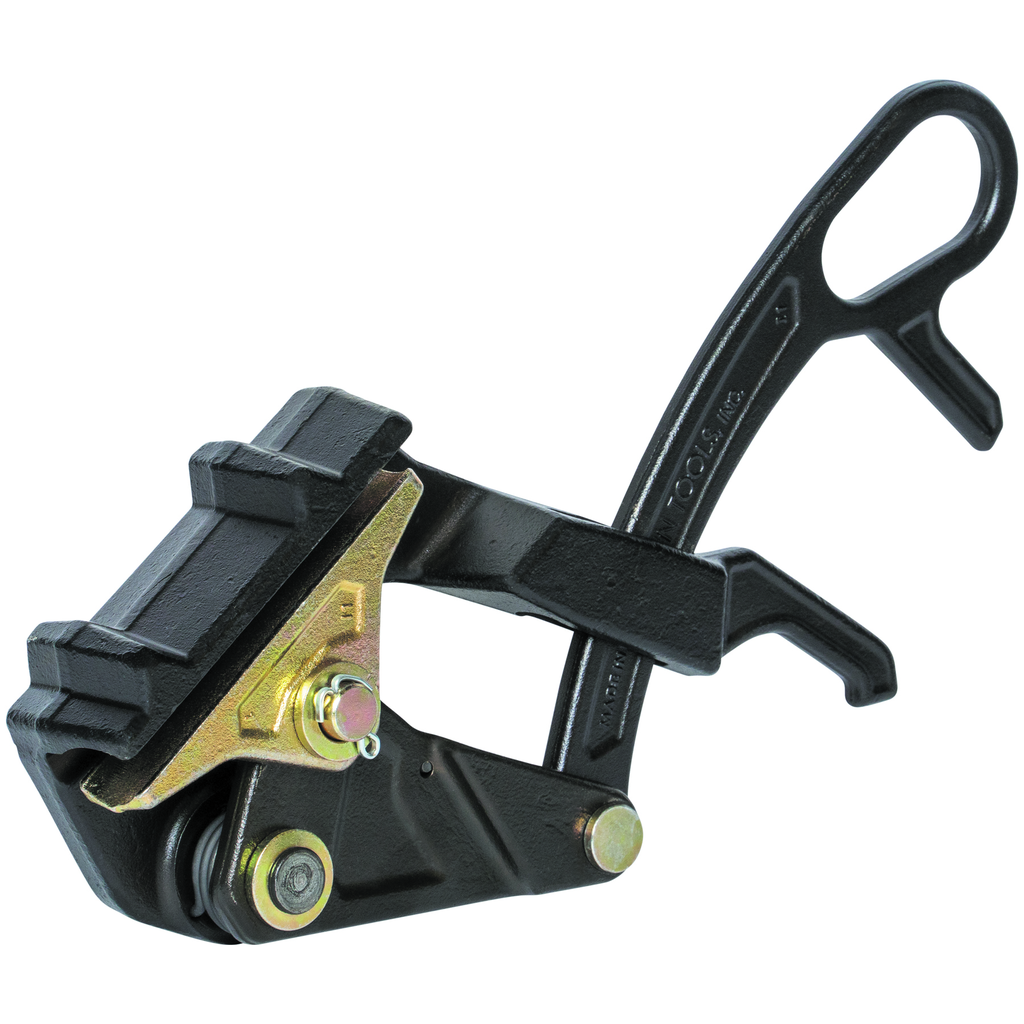

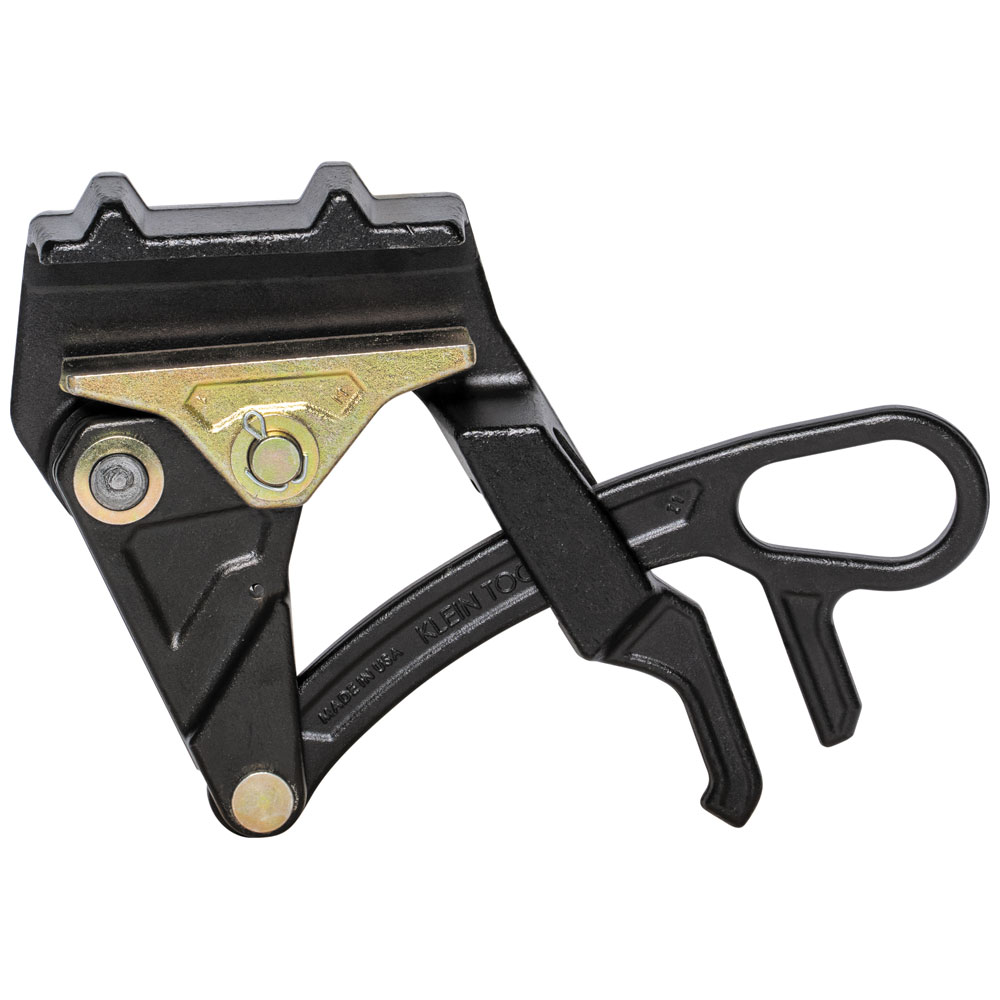

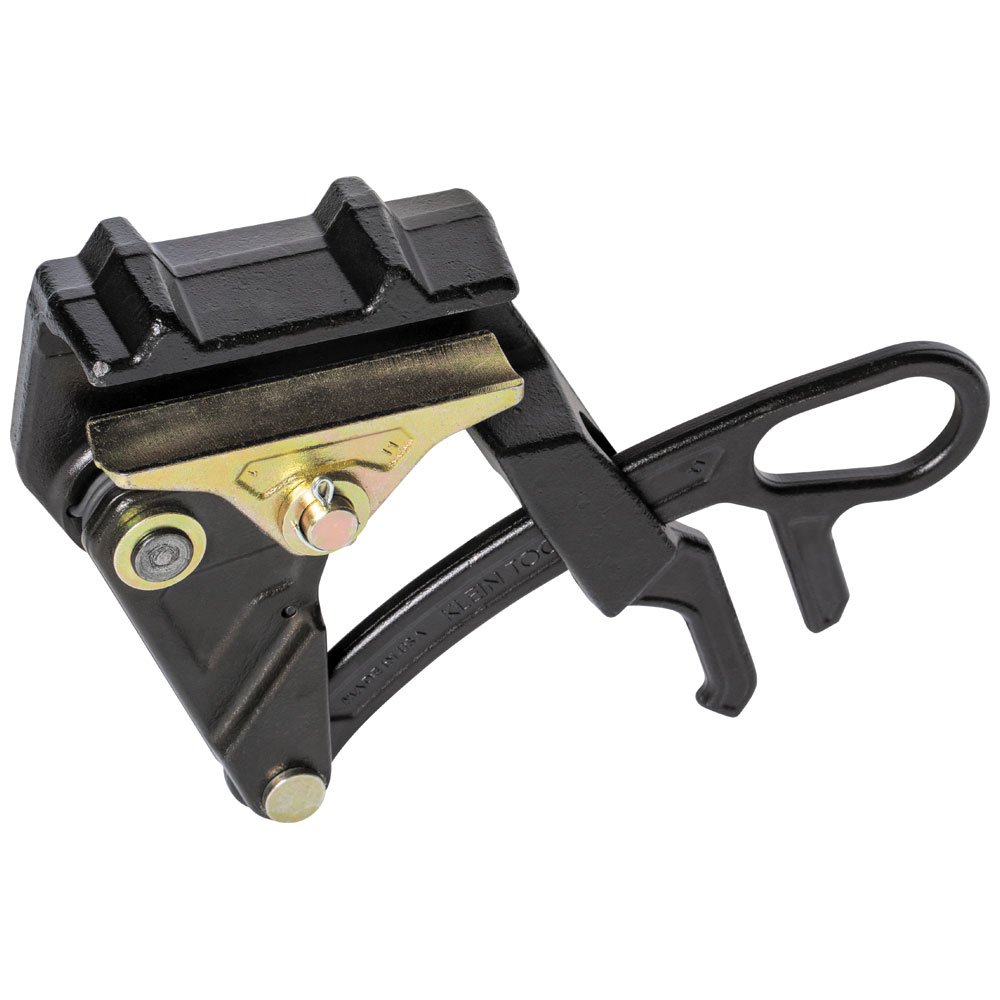

Wide Range Transmission Grip

The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).

Features

• Securely pulls ACSR, AAC and bare copper cables

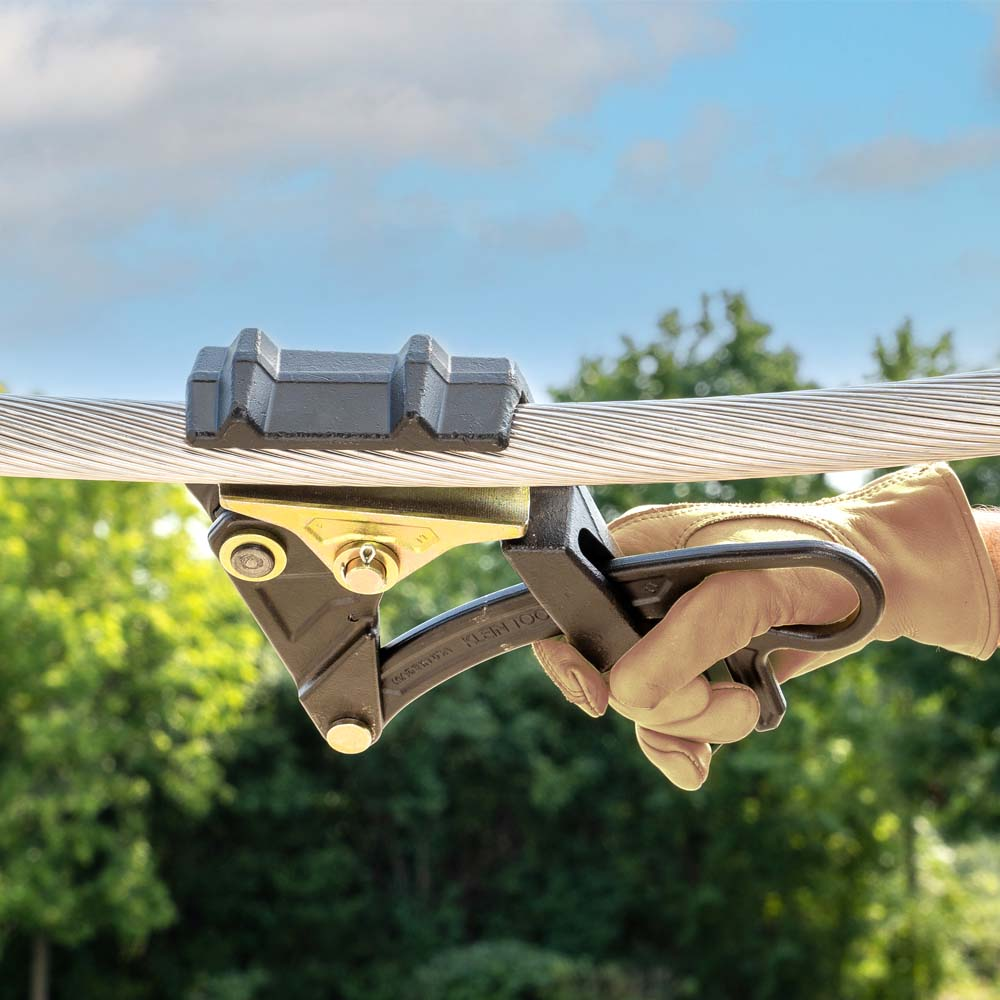

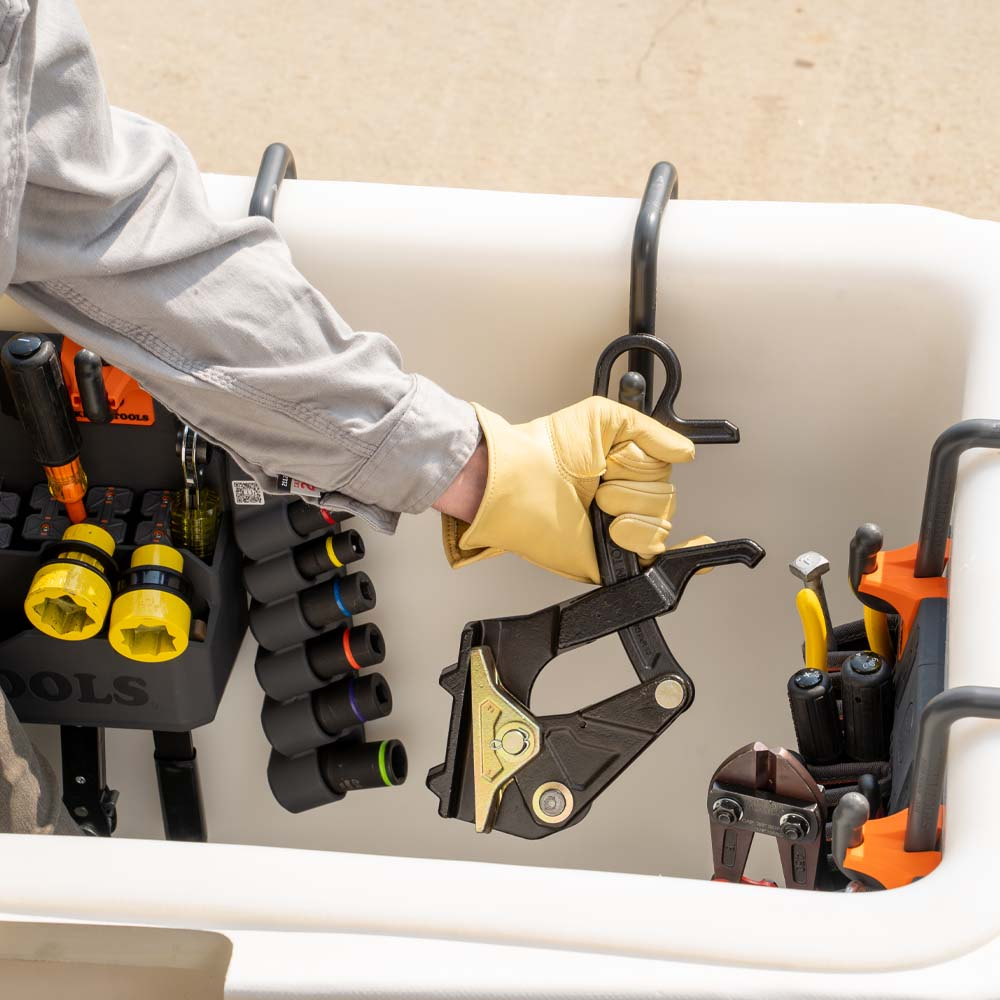

• One-Handed Grip
• Made in the USA

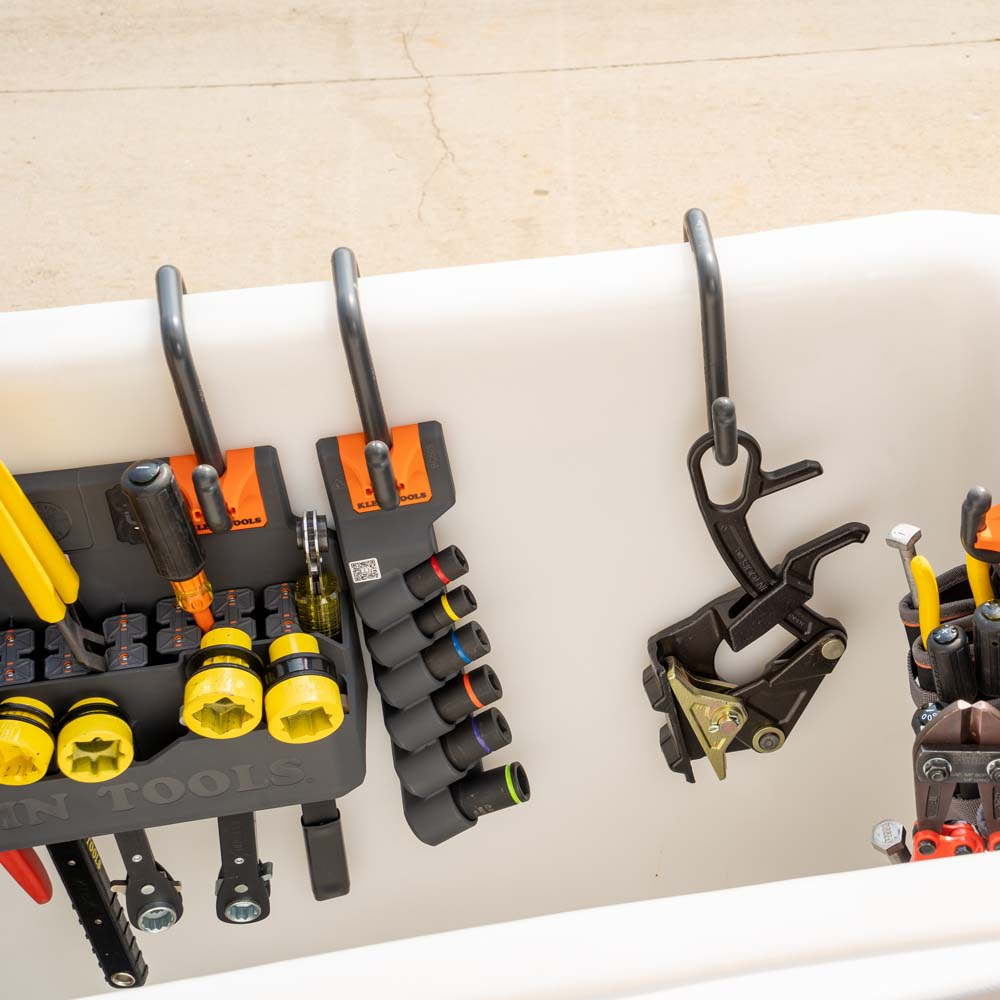

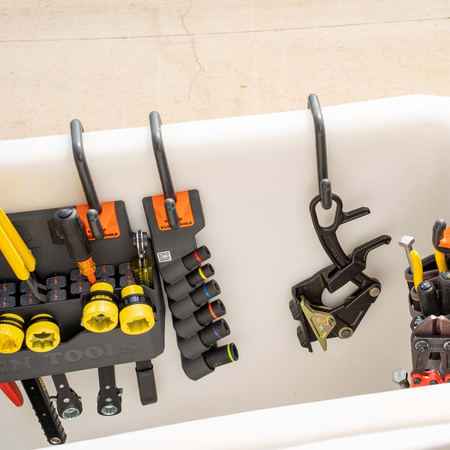

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

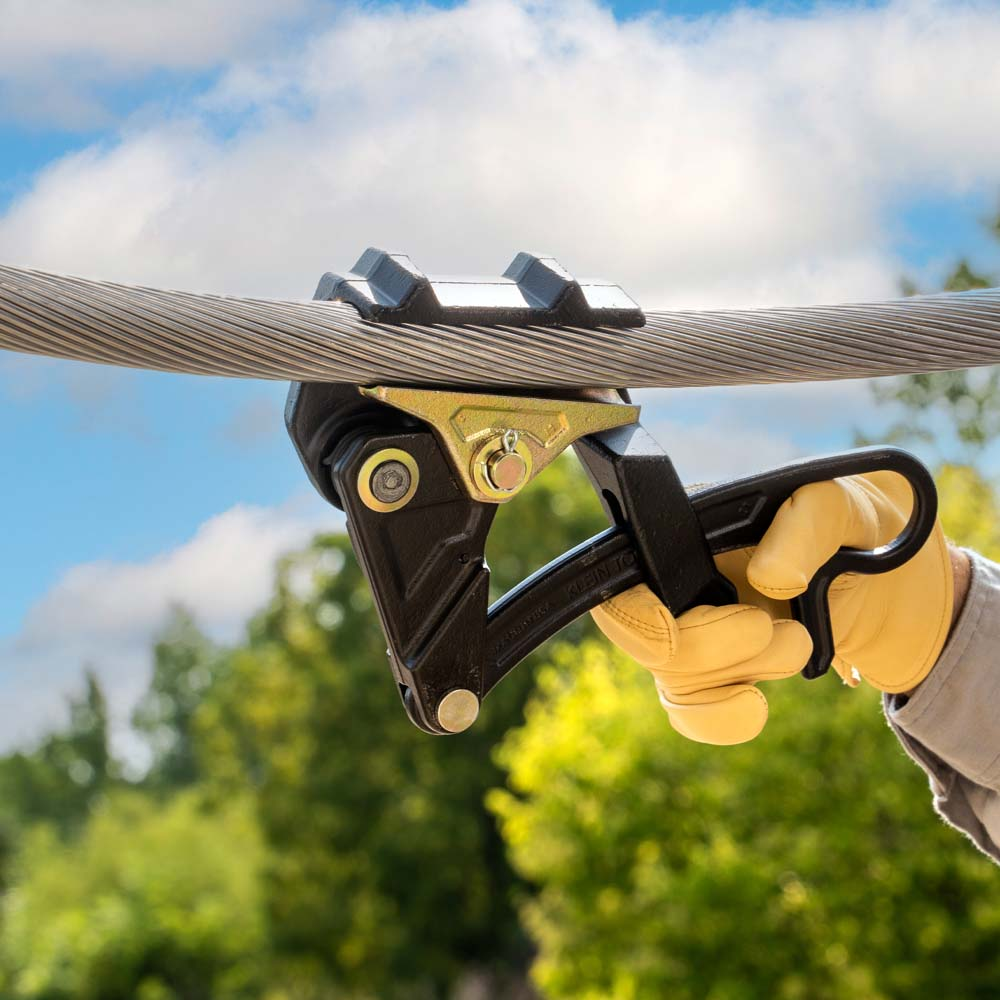

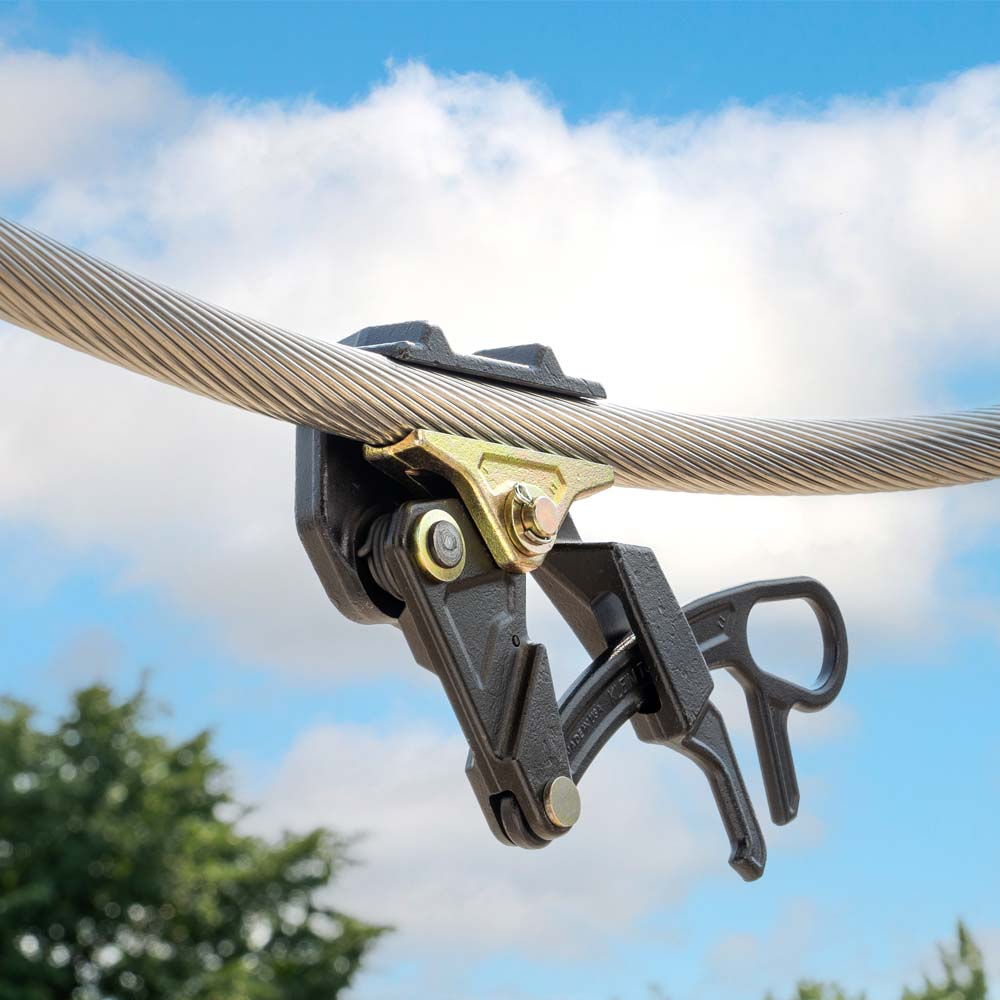

• Spring closes grip on cable to hold the initial position
• Max Safe Load of 12,000-Pound (5443 kg)
• Fine Sawtooth jaw geometry provides greater grip strength
• Patent pending design

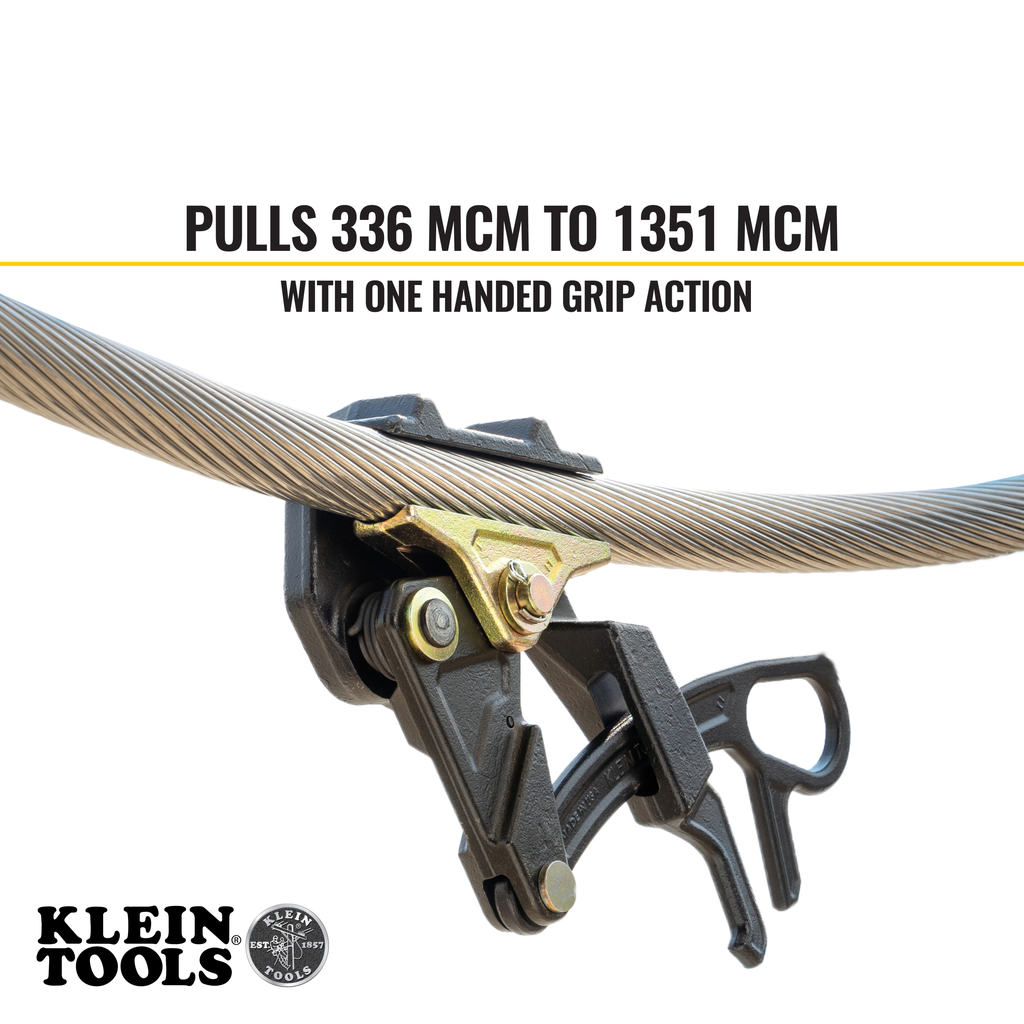

• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)

Warnings

• Always match proper size and type of grip to application.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Swing Latch: No
• Hot Latch: No
• Overall Length (Inch): 13.1
• Weight (lb): 8.1
• Locking Handle: Yes
• Maximum Safe Load (lb): 12000
• Type: Parallel Jaw Grip
• Overall Height (cm): 20.6
• Cable Diameter: 0.68" to 1.42" (17.3 to 36.1 mm)
• Application: Wire Pulling
• Spring: Yes
• Overall Width (cm): 6.1
• Weight (kg): 3.7
• Cable Type: ACSR, AAC, Copper
• Height: 2.4000 in
• Jaw Type: Round
• Jaw Length (Inch): 4.85
• Teeth Type: Fine
• Overall Height (Inch): 8.1
• Overall Length (cm): 33.3
• Depth: 13.3300 in
• Width: 8.0000 in
• Material: Steel
• Maximum Safe Load (kg): 5443.1
• Jaw Length (cm): 12.3
• Weight: 7.7000 lbs
• Overall Width (Inch): 2.4
