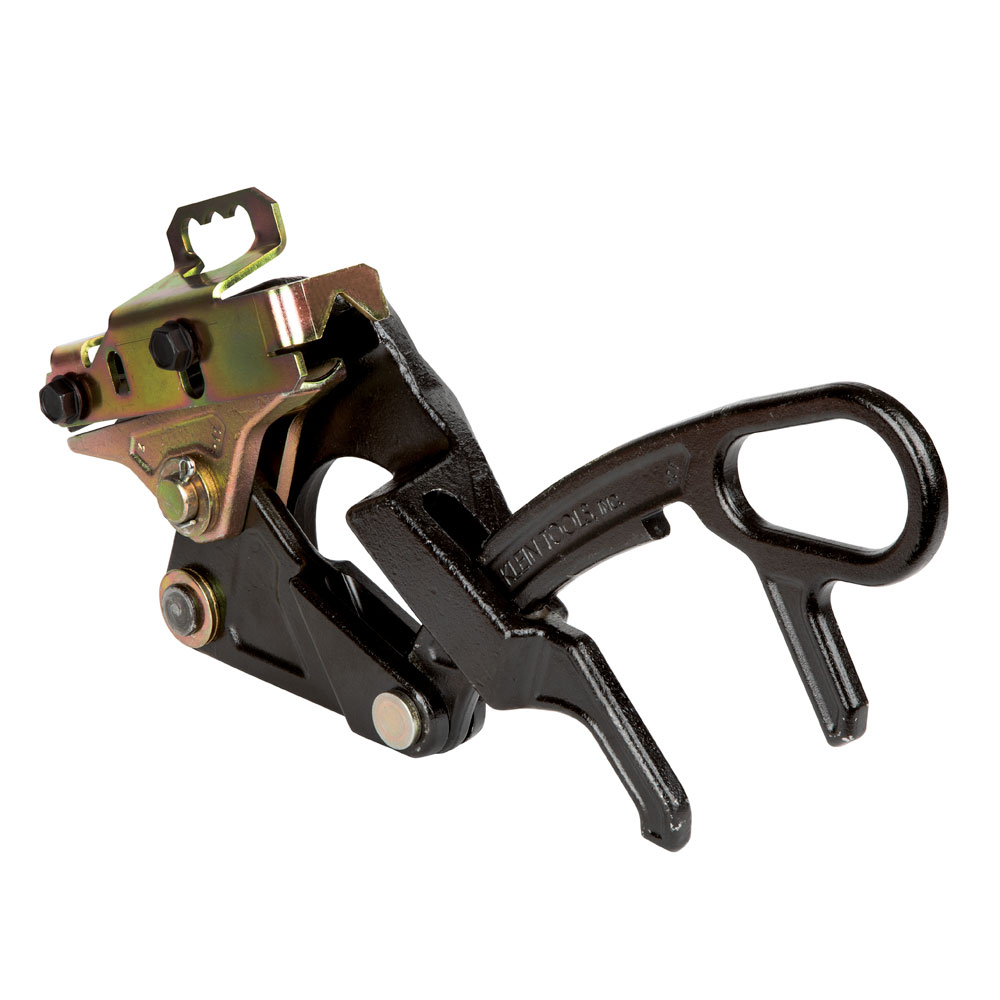

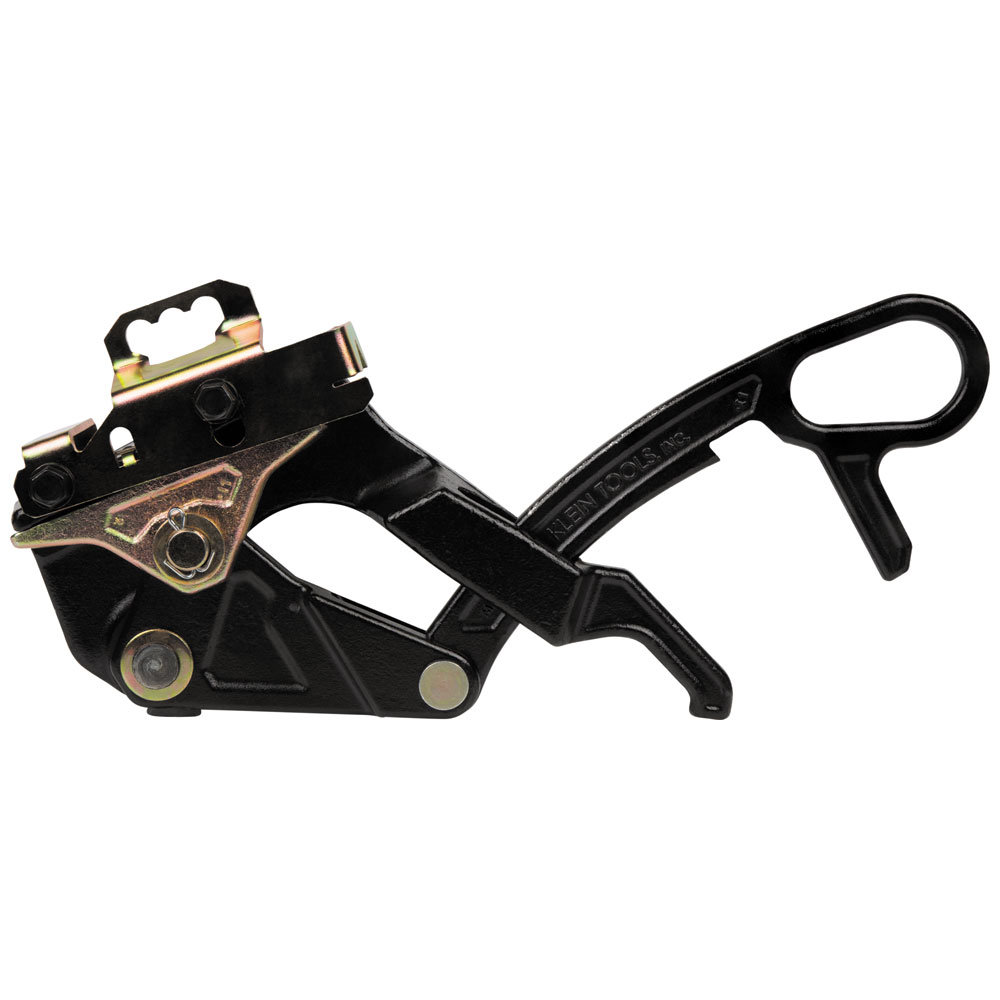

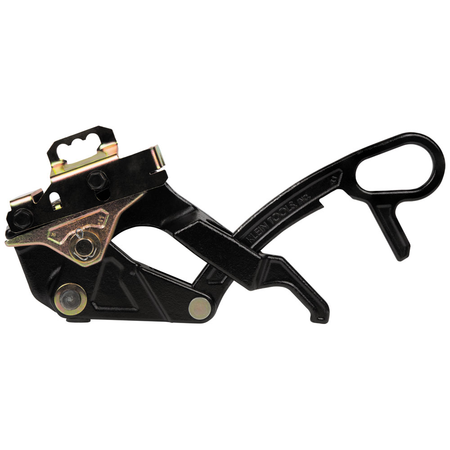

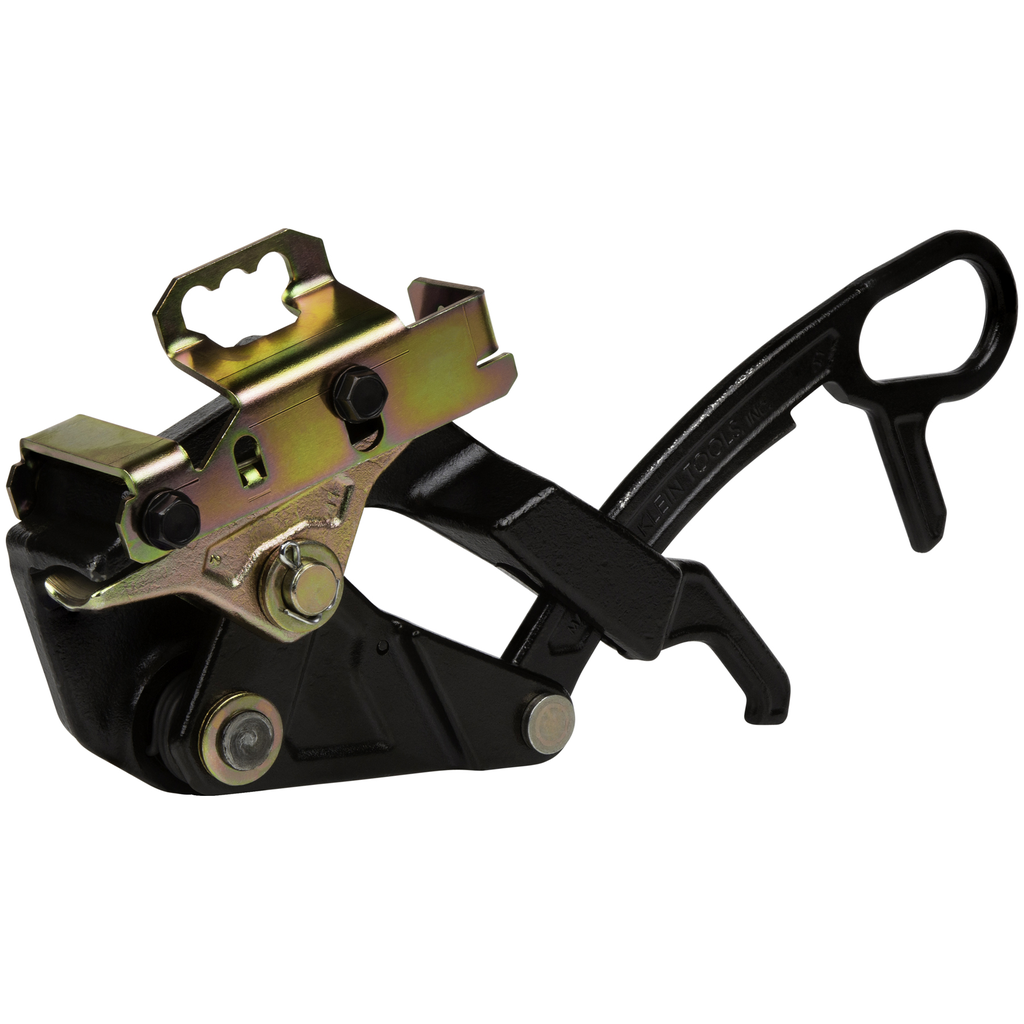

Wide Range Transmission Grip with Hot Latch

The Klein Tools Wide Range Transmission Grip with Hot Latch was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 to 36.1 mm). This grip has a maximum safe load of 12,000-Pound.

Features

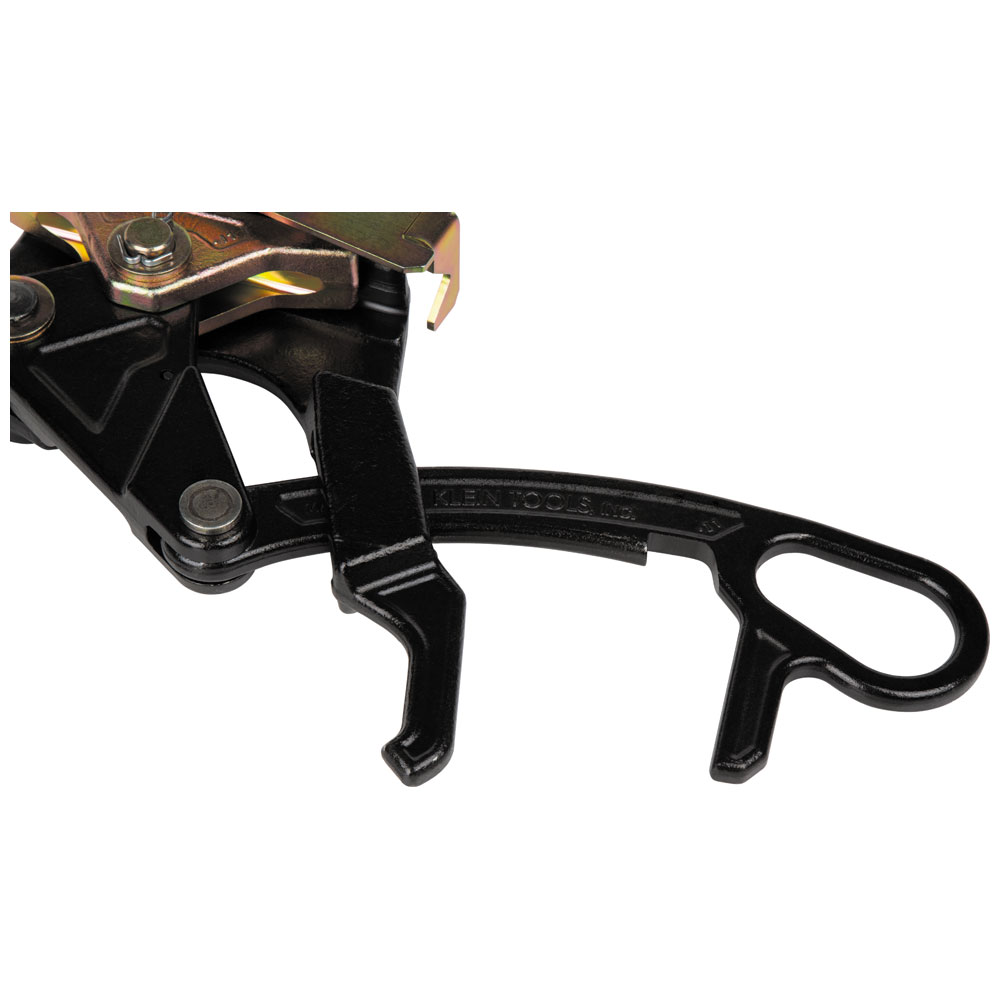

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Spring closes grip on cable to hold the initial position
• Includes a latch to help maintain cable position in the grip jaw
• Max Safe Load of 12000-Pound (5443 kg)
• Patent pending design

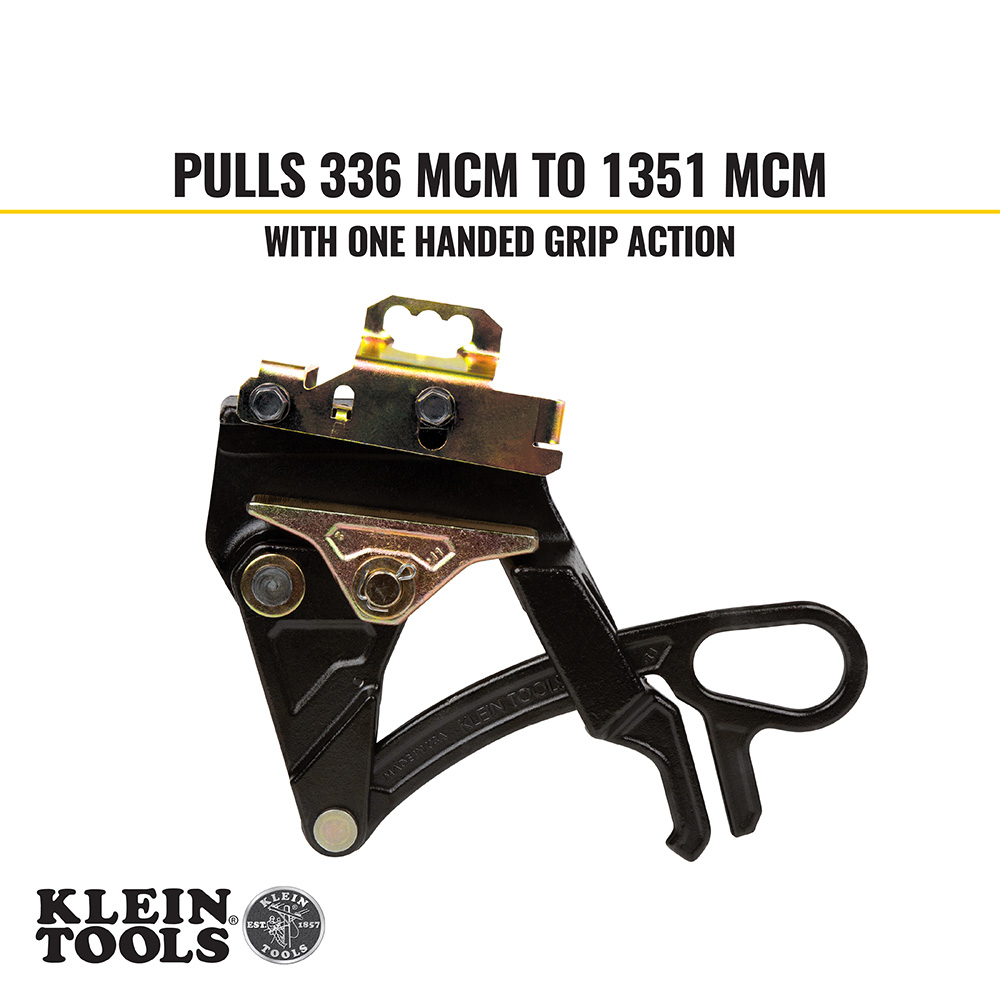

• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 to 36.1 mm)
• Cable pulling grip securely pulls ACSR, AAC and bare copper cables
• Made in the USA
• Fine tooth jaw geometry provides greater grip strength

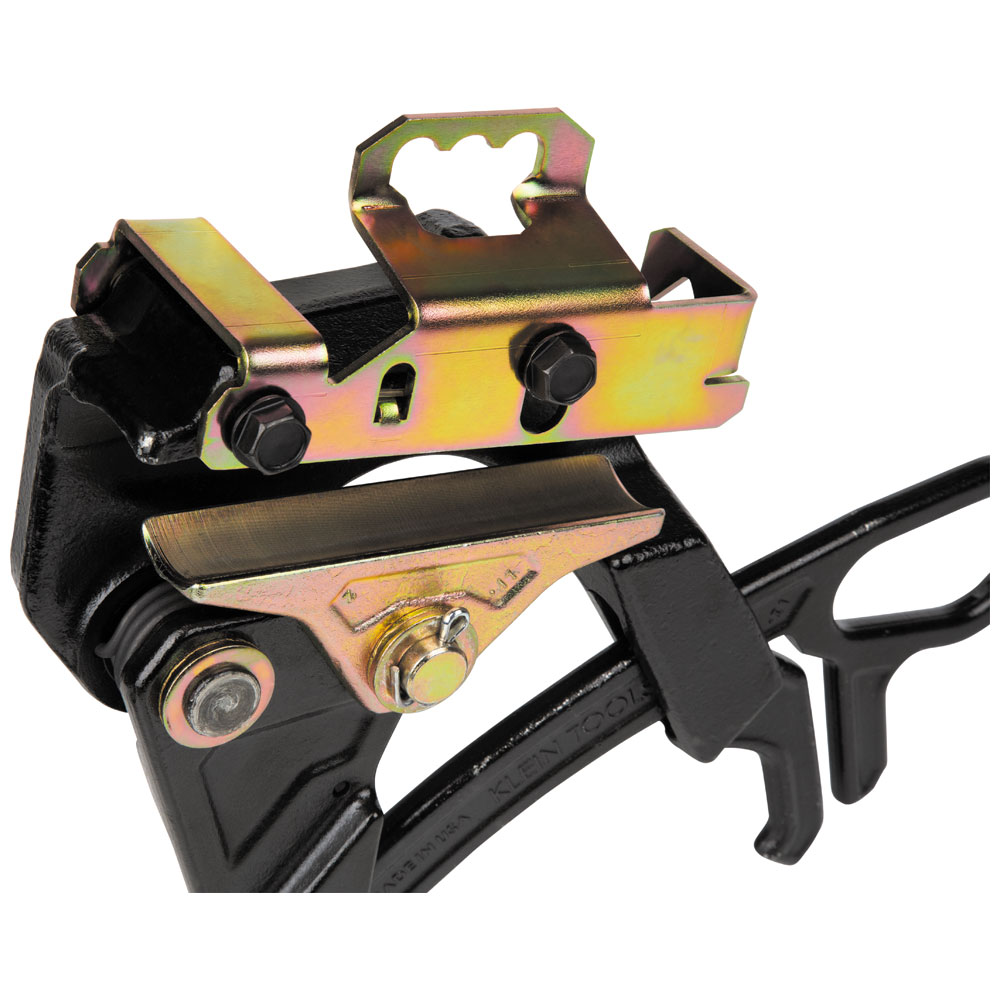

• Innovative hot latch with V-notch centers cable
• Hot Latch, One-Handed Grip

Warnings

• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Specifications

• Overall Width (cm): 7.8
• Type: Parallel Jaw Grip
• Maximum Safe Load (kg): 5443.1
• Maximum Safe Load (lb): 12000
• Weight: 8.2000 lbs
• Height: 3.1600 in
• Application: Wire Pulling
• Teeth Type: Fine
• Overall Height (Inch): 9.3
• Cable Diameter: 0.68" to 1.42" (17.3 to 36.1 mm)
• Jaw Length (Inch): 4.85
• Overall Length (Inch): 13.1
• Swing Latch: No
• Locking Handle: Yes
• Overall Height (cm): 23.6
• Weight (kg): 3.8
• Spring: Yes
• Cable Type: ACSR, AAC, Copper
• Overall Width (Inch): 3.06
• Weight (lb): 8.3
• Width: 9.2700 in
• Material: Steel
• Hot Latch: Yes
• Overall Length (cm): 33.3
• Jaw Type: Round
• Depth: 11.7900 in
• Jaw Length (cm): 12.3
