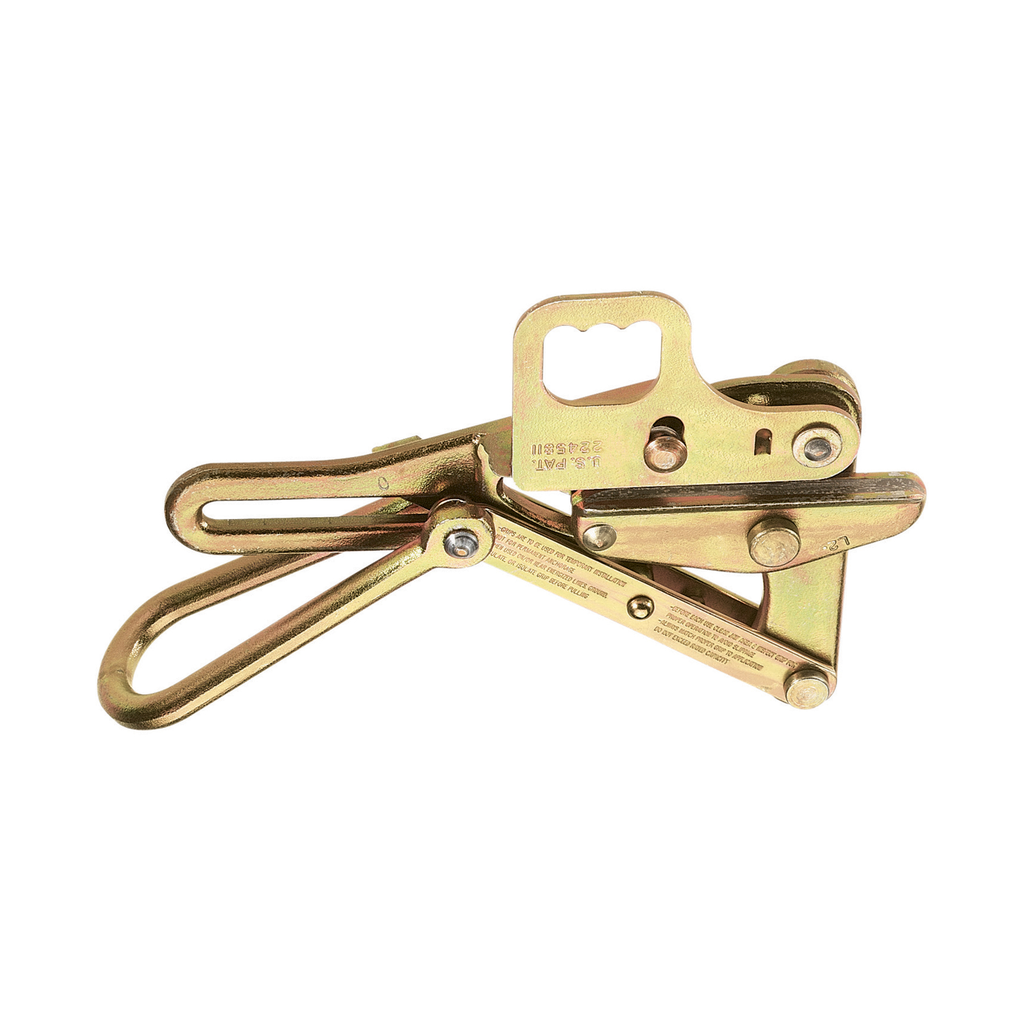

Chicago Grip w/Latch, Bare Conductors to 0.4-Inch

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. This grip also has a hot-line latch designed for placing a grip on a cable with a hot-line stick. The three notches in the hot-line latch adjust the balance of the grip to better match the direction of the cable sag. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.

Features

• When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)
• Made in USA
• Standard hot-line grips are not supplied with springs or lock-open features
• Hot-line grips for both bare and insulated conductors
• Grip may be placed on wire with hot-line stick
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire

Specifications

• Material: Steel
• Weight (lb): 3.15
• Overall Width (Inch): 2.13
• Spring: No
• Jaw Length (cm): 10.2
• Height: 2.2500 in
• Hot Latch: Yes
• Width: 6.0000 in
• Cable Diameter: 0.2" to 0.4" (5.08 to 10.16 mm)
• Cable Type: Copper, ACSR, AAC
• Locking Handle: Yes
• Swing Latch: No
• Maximum Safe Load (kg): 2041.2
• Depth: 8.0000 in
• Jaw Length (Inch): 4
• Overall Length (Inch): 12.5
• Jaw Type: Round
• Application: Wire Pulling
• Weight (kg): 1.4
• Weight: 0.1000 lbs
• Maximum Safe Load (lb): 4500
• Overall Width (cm): 5.4
• Overall Length (cm): 31.8
• Teeth Type: Smooth
• Type: Chicago Grip
