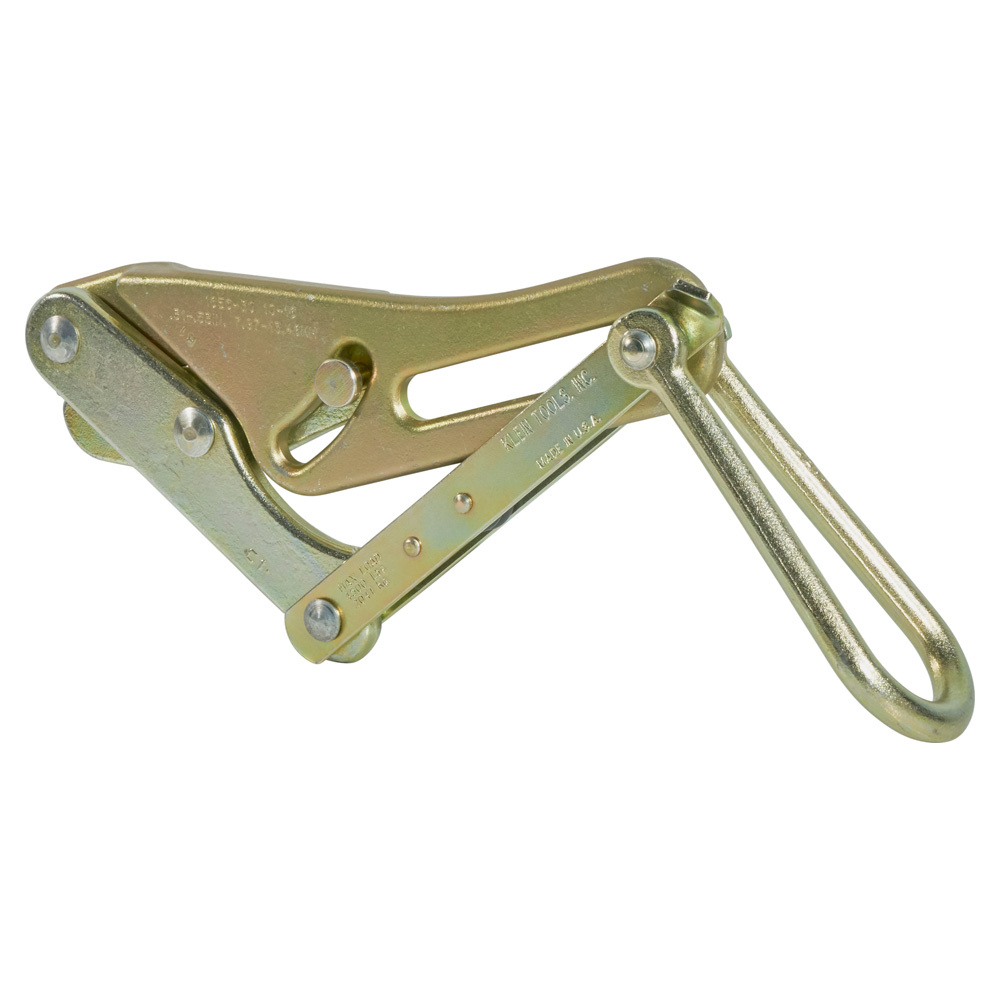

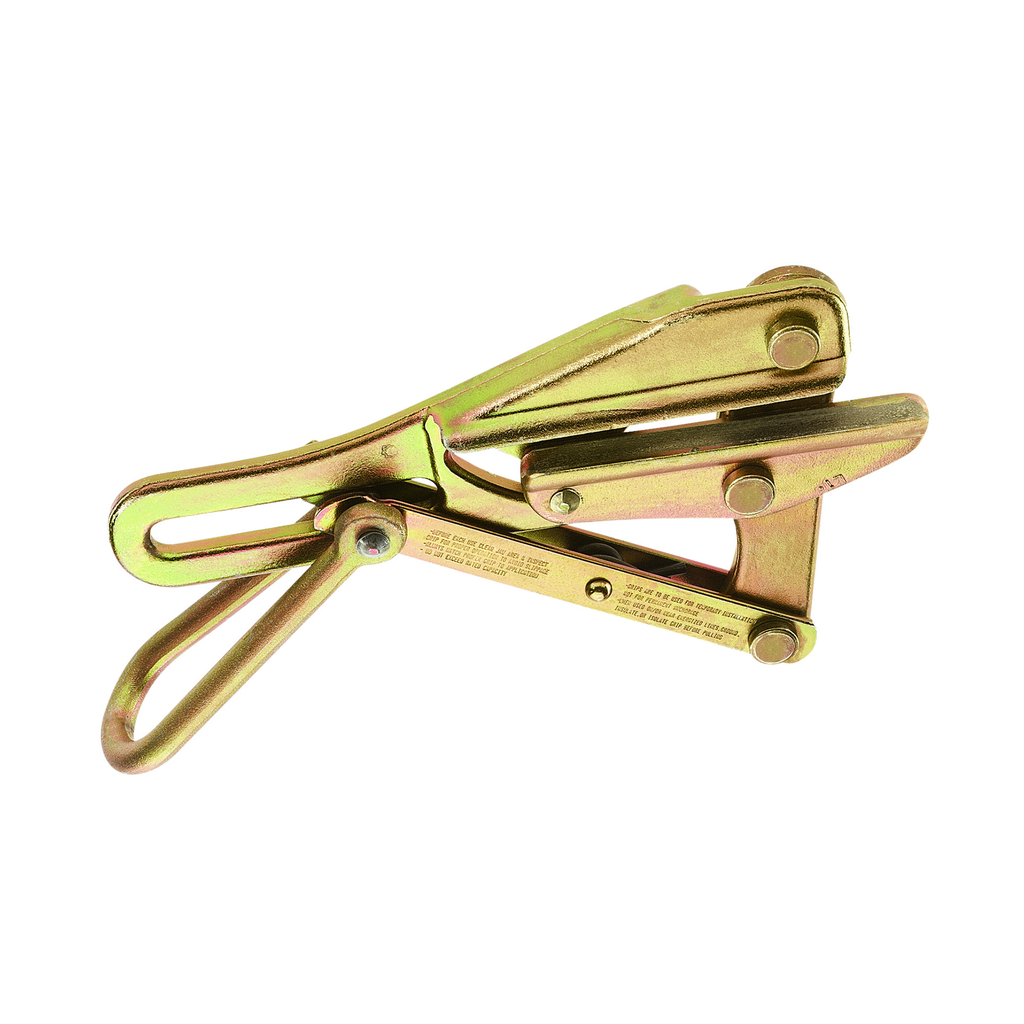

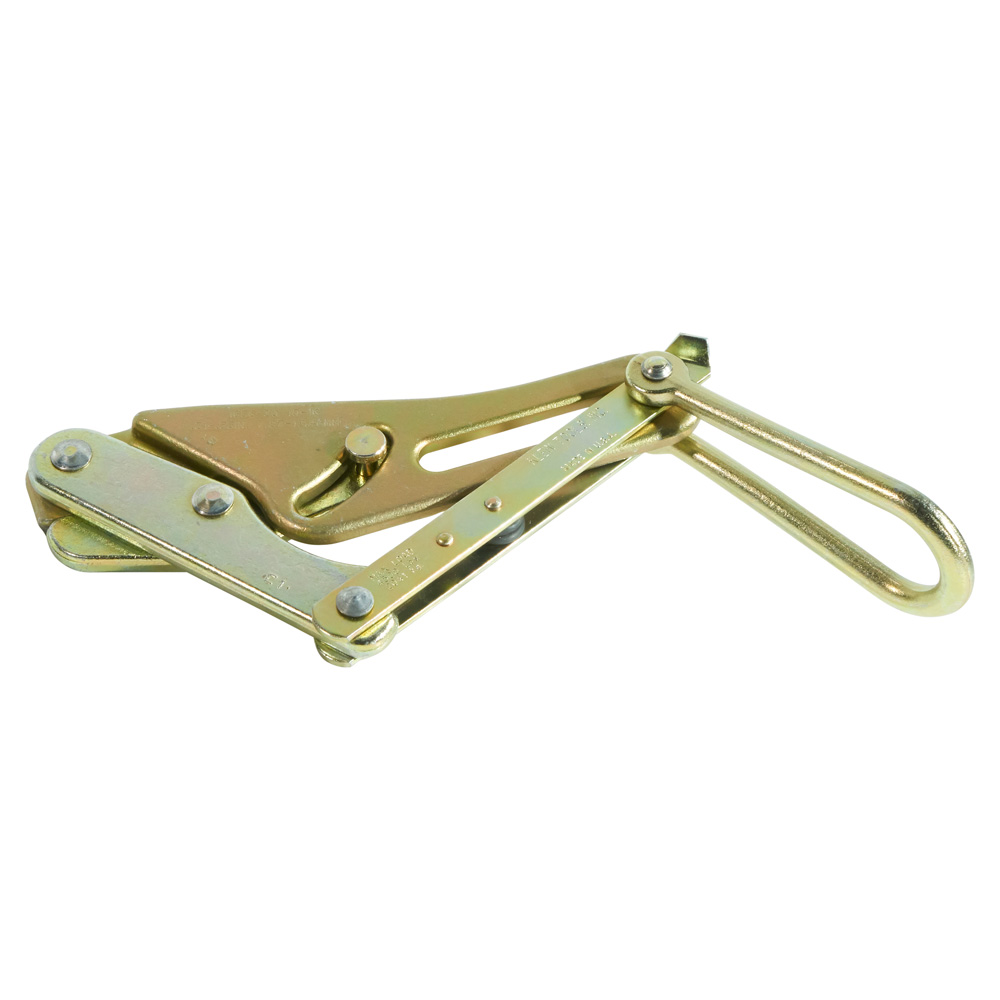

Chicago® Grip for Bare Wire 0.31 to 0.53-Inch

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Features

• Manufactured from drop-forged, heat-treated steel for excellent durability
• Jaw design helps reduce slippage to make pulling cables easier
• Made in USA
• Smooth jaws grip with maximum contact and are less likely to damage conductors
• Round, smooth inside jaw contour on this series of grips is ideal for bare ACSR, aluminum, and stranded-copper cables

Specifications

• Weight (lb): 3.4
• Type: Chicago Grip
• Cable Diameter: 0.31" to 0.53" (7.87 to 13.46 mm)
• Cable Type: Copper, ACSR, AAC
• Jaw Length (Inch): 4.75
• Material: Steel
• Jaw Type: Round
• Jaw Length (cm): 12.1
• Spring: No
• Weight (kg): 1.5
• Height: 1.8000 in
• Teeth Type: Smooth
• Swing Latch: No
• Width: 3.6000 in
• Depth: 8.1000 in
• Locking Handle: Yes
• Maximum Safe Load (kg): 2041.2
• Weight: 3.3480 lbs
• Maximum Safe Load (lb): 4500
• Application: Wire Pulling
• Hot Latch: No
