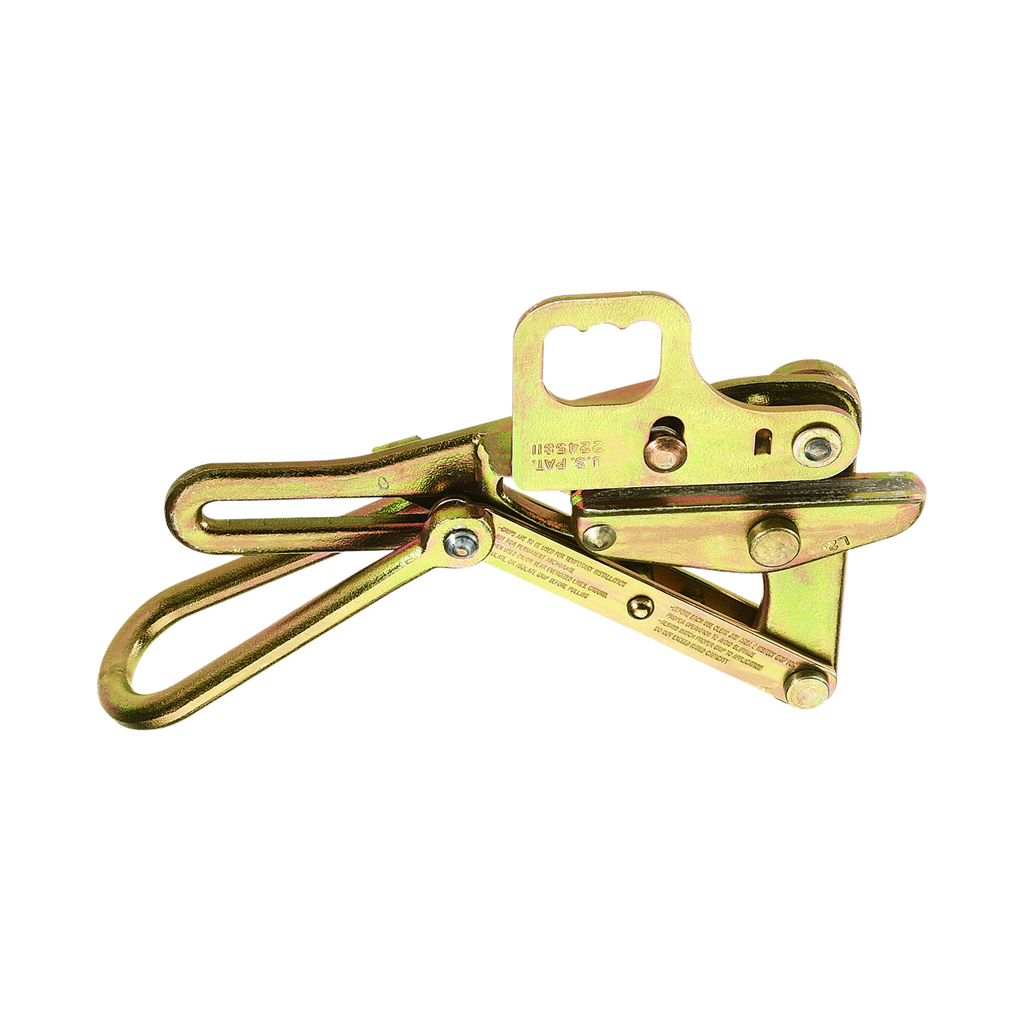

Chicago® Grip with Latch 0.53-Inch Capacity

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. This grip also has a hot-line latch designed for placing a grip on a cable with a hot-line stick. The three notches in the hot-line latch adjust the balance of the grip to better match the direction of the cable sag. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Features

• When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)
• Standard hot-line grips are not supplied with springs or lock-open features
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
• Grip may be placed on wire with hot-line stick
• Hot-line grips for both bare and insulated conductors
• Made in USA

Specifications

• Jaw Length (Inch): 4.75
• Weight: 0.1000 lbs
• Height: 2.0000 in
• Hot Latch: Yes
• Width: 6.0000 in
• Teeth Type: Smooth
• Weight (lb): 3.95
• Weight (kg): 1.8
• Cable Diameter: 0.31" to 0.53" (7.87 to 13.46 mm)
• Application: Wire Pulling
• Cable Type: Copper, ACSR, AAC
• Maximum Safe Load (lb): 4500
• Material: Steel
• Swing Latch: No
• Jaw Type: Round
• Maximum Safe Load (kg): 2041.2
• Spring: No
• Type: Chicago Grip
• Jaw Length (cm): 12.1
• Depth: 9.0000 in
• Locking Handle: Yes
