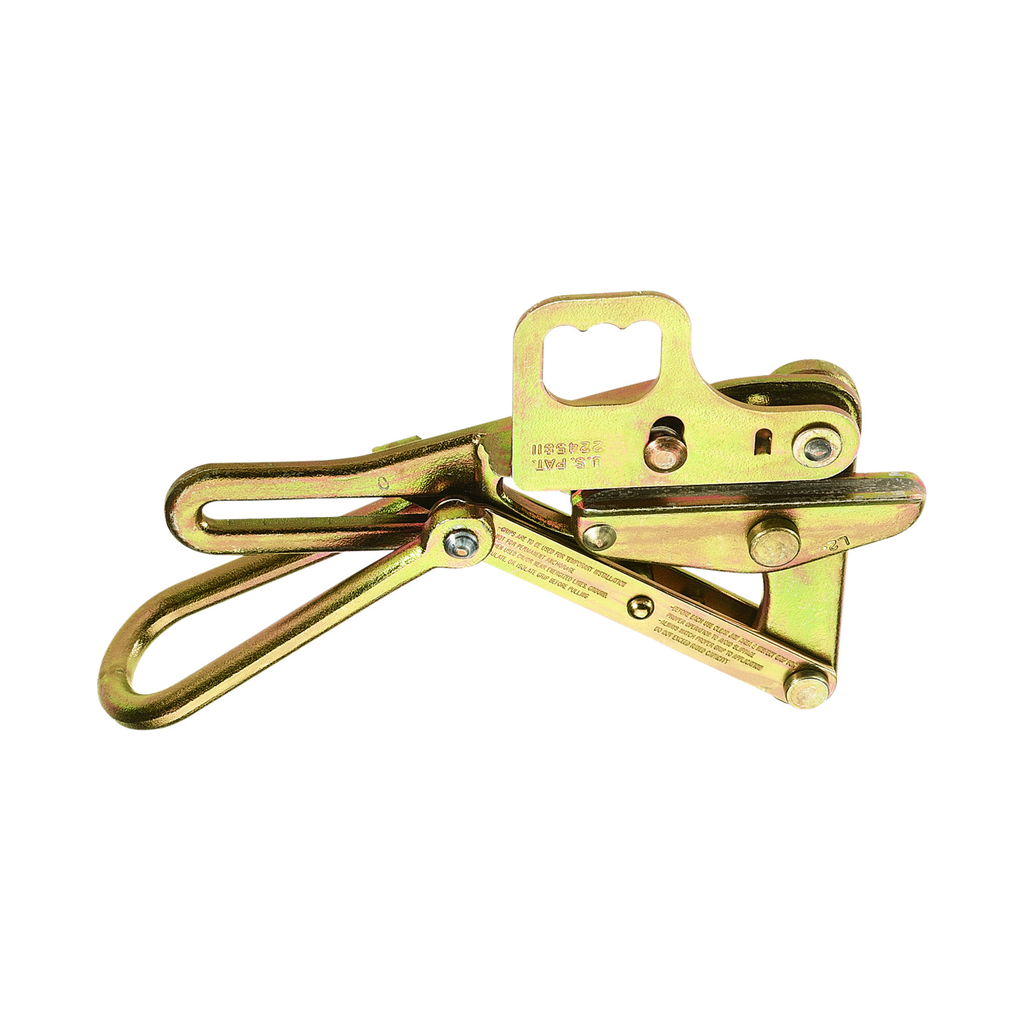

Chicago® Grip with Latch 0.96-Inch Capacity

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. This grip also has a hot-line latch designed for placing a grip on a cable with a hot-line stick. The three notches in the hot-line latch adjust the balance of the grip to better match the direction of the cable sag. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.

Features

• Grip may be placed on wire with hot-line stick
• Hot-line grips for both bare and insulated conductors
• Standard hot-line grips are not supplied with springs or lock-open features
• When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
• Made in USA

Specifications

• Locking Handle: Yes
• Height: 2.0000 in
• Jaw Length (cm): 14
• Application: Wire Pulling
• Swing Latch: No
• Maximum Safe Load (kg): 3628.7
• Weight (lb): 8.4
• Depth: 12.5000 in
• Material: Steel
• Weight: 0.1000 lbs
• Cable Diameter: 0.86" to 0.96" (21.84 to 24.38 mm)
• Spring: No
• Hot Latch: Yes
• Jaw Type: Round
• Weight (kg): 3.8
• Type: Chicago Grip
• Maximum Safe Load (lb): 8000
• Cable Type: ACSR, AAC, Copper
• Width: 7.7500 in
• Jaw Length (Inch): 5.5
• Teeth Type: Smooth
