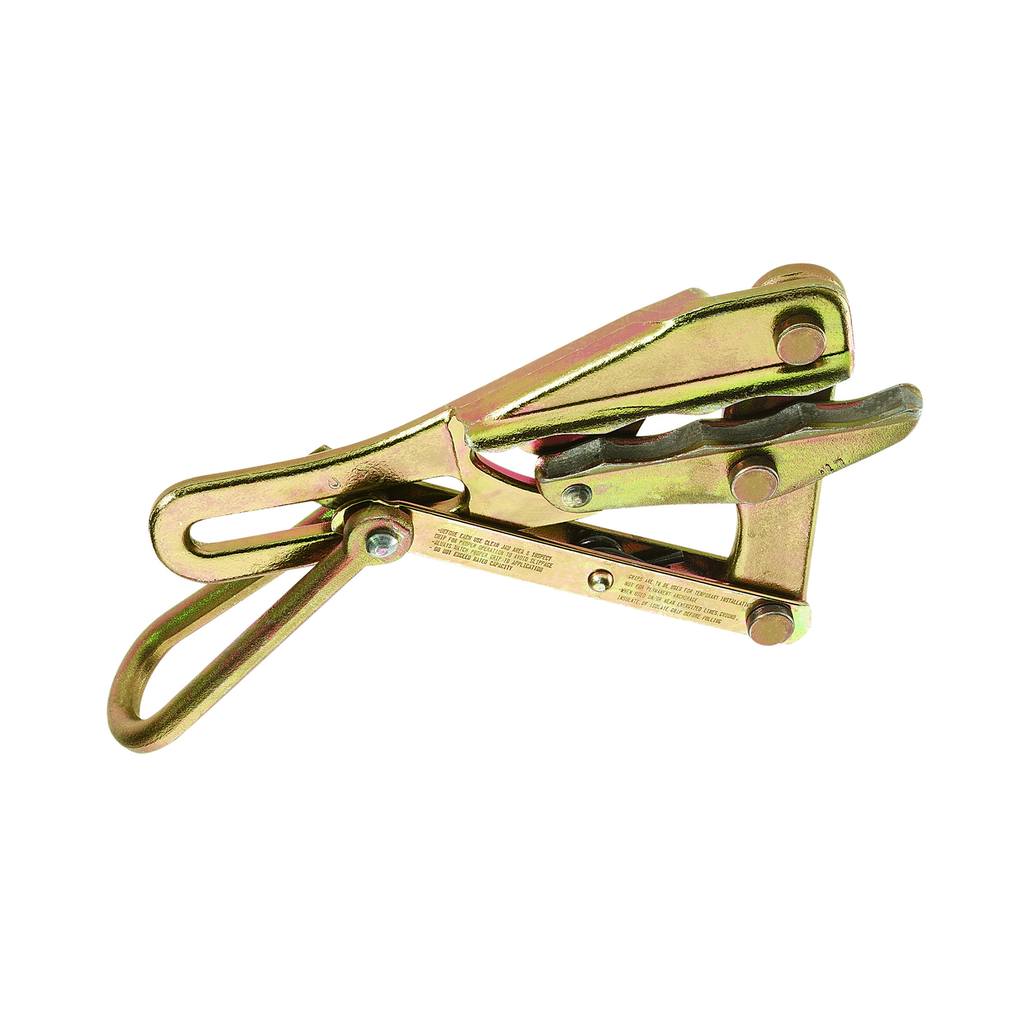

Chicago Grip for PVC-Covered Conductors 0.5-Inch

The Klein Tools 1659 Series PVC-Covered Chicago Grips have a specially machined serpentine jaw which allows an insulated conductor to be inserted through the jaws. This eliminates the need to strip insulation from the conductor first. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.

Features

• Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
• Eliminates necessity of stripping insulation from conductor
• Made in USA
• Round inside-jaw contour
• Manufactured from drop-forged, heat-treated steel for excellent durability
• (NOT HDPE)

Specifications

• Cable Type: PVC-Coated
• Teeth Type: Serpentine
• Jaw Length (Inch): 4.75
• Maximum Safe Load (lb): 4500
• Weight: 3.2580 lbs
• Material: Steel
• Weight (kg): 1.5
• Maximum Safe Load (kg): 2041.2
• Jaw Length (cm): 12.1
• Depth: 8.5500 in
• Height: 1.9170 in
• Width: 3.8250 in
• Application: Wire Pulling
• Cable Diameter: 0.31" to 0.5" (7.87 to 12.7 mm)
• Type: Chicago Grip
• Hot Latch: No
• Jaw Type: Round
• Spring: Yes
• Locking Handle: Yes
• Swing Latch: No
• Weight (lb): 3.3
