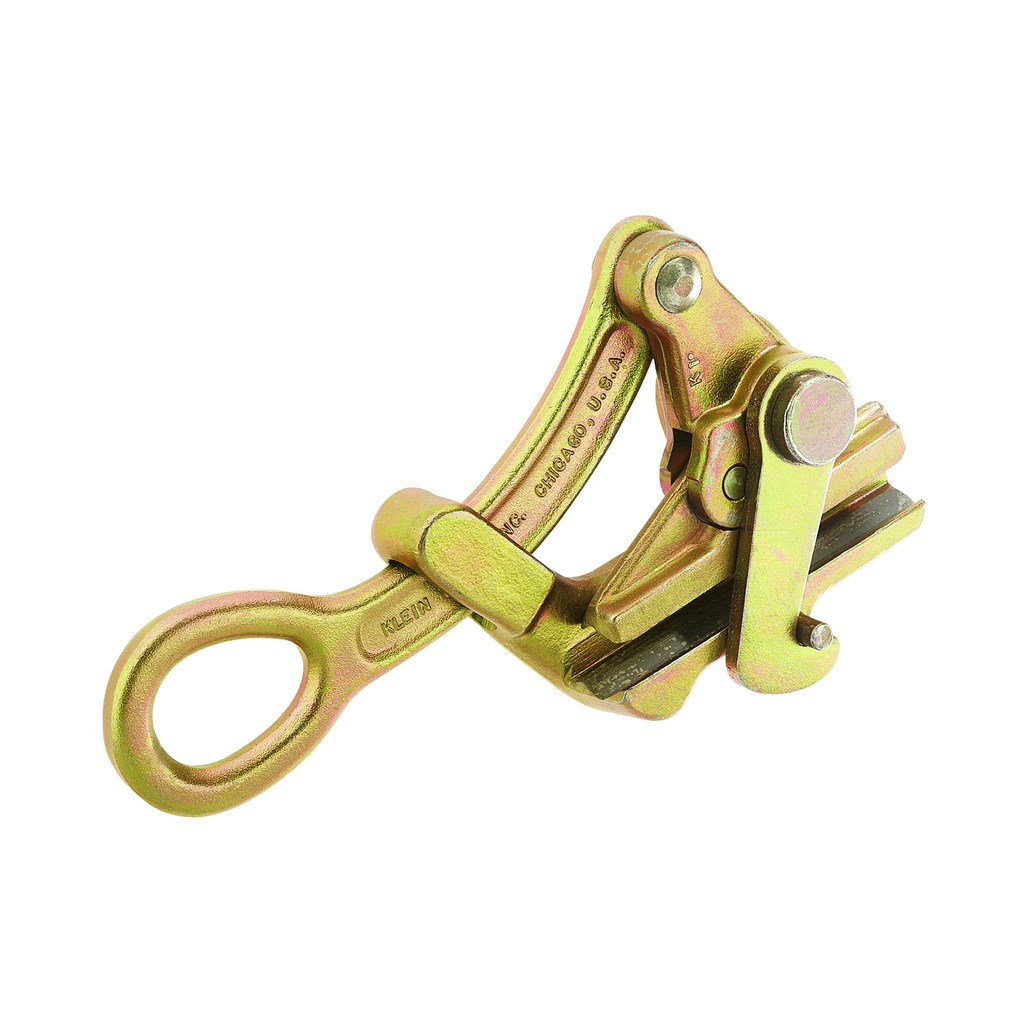

Parallel Jaw Grip, 0.75-Inch Cable Capacity

The Klein Tools 1671-10 Parallel Jaw Grip works with a wide range of cable types and sizes. The longer jaws provide a firm hold on the cable, reducing the possibility of slippage and deformation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.

Features

• When latch is closed, it helps maintain cable position in grip jaws
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Made in USA
• Longer jaws achieve a firm hold, reducing possibility of slippage and damage to cable
• Extended Jaw
• Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks

Specifications

• Spring: No
• Hot Latch: No
• Weight (kg): 2
• Jaw Type: Double V
• Swing Latch: Yes
• Jaw Length (Inch): 4.375
• Depth: 10.3500 in
• Maximum Safe Load (lb): 10000
• Cable Diameter: 0.37" to 0.75" (9.4 to 19.05 mm)
• Width: 4.7250 in
• Cable Type: Aircraft, Messenger, Guy Strand
• Locking Handle: No
• Weight: 4.3200 lbs
• Material: Steel
• Height: 1.8000 in
• Type: Parallel Jaw Grip
• Jaw Length (cm): 11.1
• Application: Wire Pulling
• Teeth Type: Smooth
• Maximum Safe Load (kg): 4535.9
• Weight (lb): 4.3
