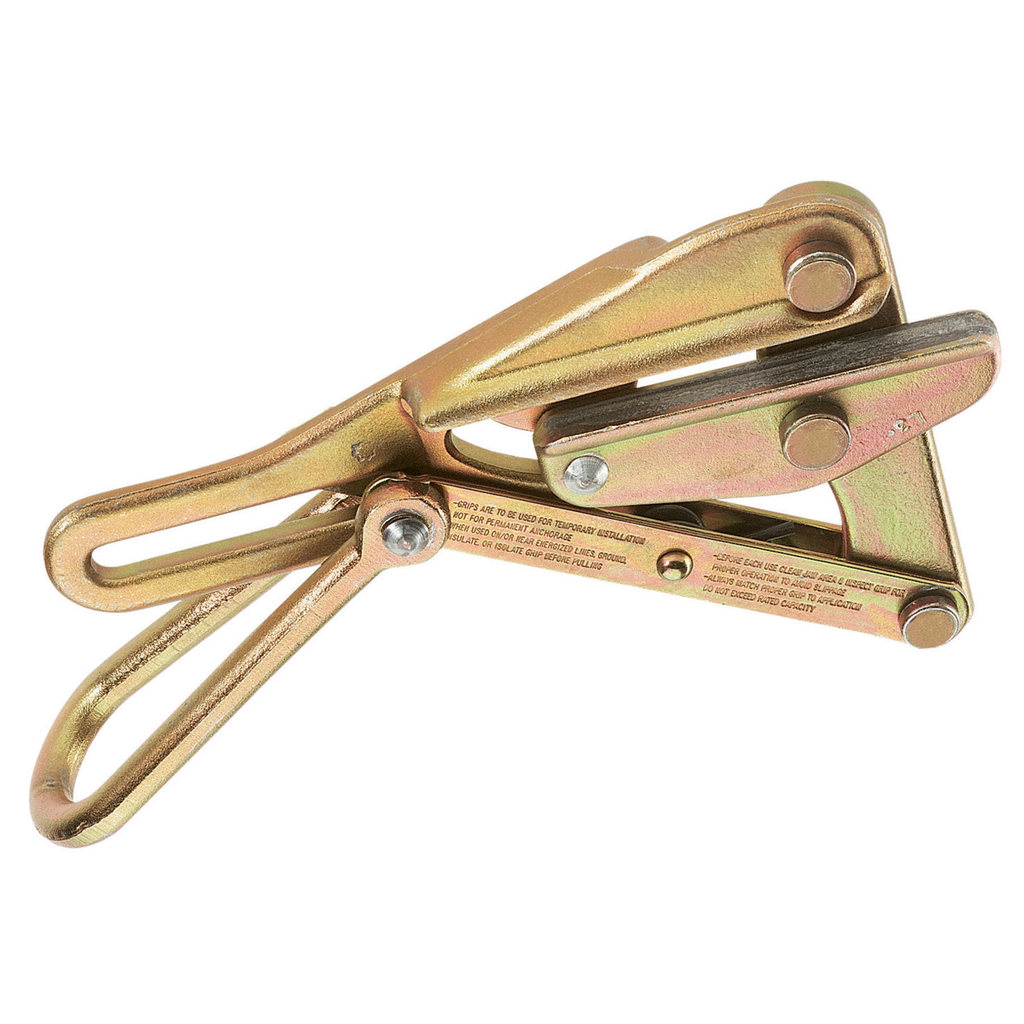

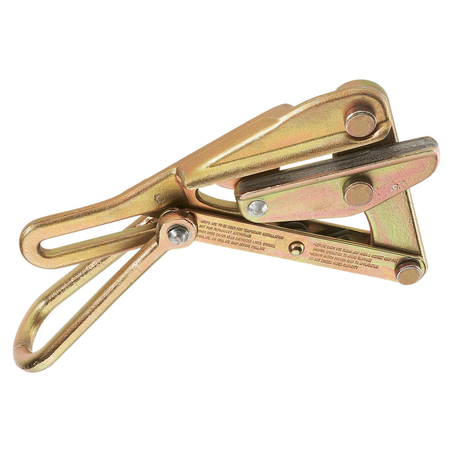

Grip for High Strength Cables 0.55-Inch

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.5 to 13.9 mm). Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Warnings

• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Designed for cable sizes from 0.218 to 0.55-Inch (5.5 to 13.9 mm) with Max Safe Load of 8000-Pound (3629 kg)
• Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Made in USA
• Locking handle keeps jaw open while grip is placed on cable with a hot stick

Specifications

• Maximum Safe Load (lb): 8000
• Spring: Yes
• Height: 1.5840 in
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Overall Height (cm): 6.4
• Overall Length (Inch): 13.3
• Depth: 8.5500 in
• Material: Steel
• Overall Height (Inch): 2.5
• Type: Chicago Grip
• Locking Handle: Yes
• Overall Width (Inch): 7.6
• Weight (kg): 2.6
• Jaw Type: Double V
• Maximum Safe Load (kg): 3628.7
• Application: Wire Pulling
• Weight: 5.7600 lbs
• Hot Latch: No
• Jaw Length (Inch): 5
• Teeth Type: Smooth
• Swing Latch: No
• Overall Length (cm): 33.8
• Jaw Length (cm): 12.7
• Width: 6.0750 in
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Weight (lb): 5.8
• Overall Width (cm): 19.3
