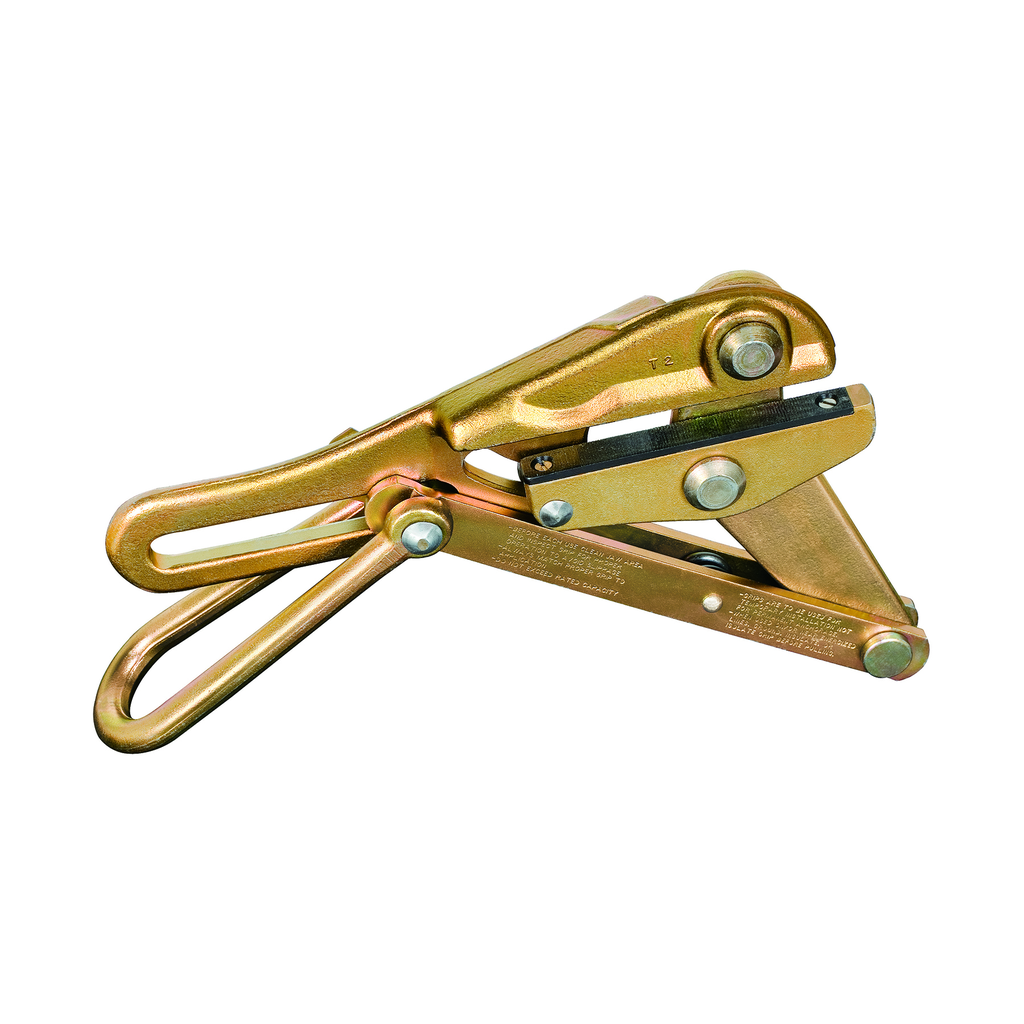

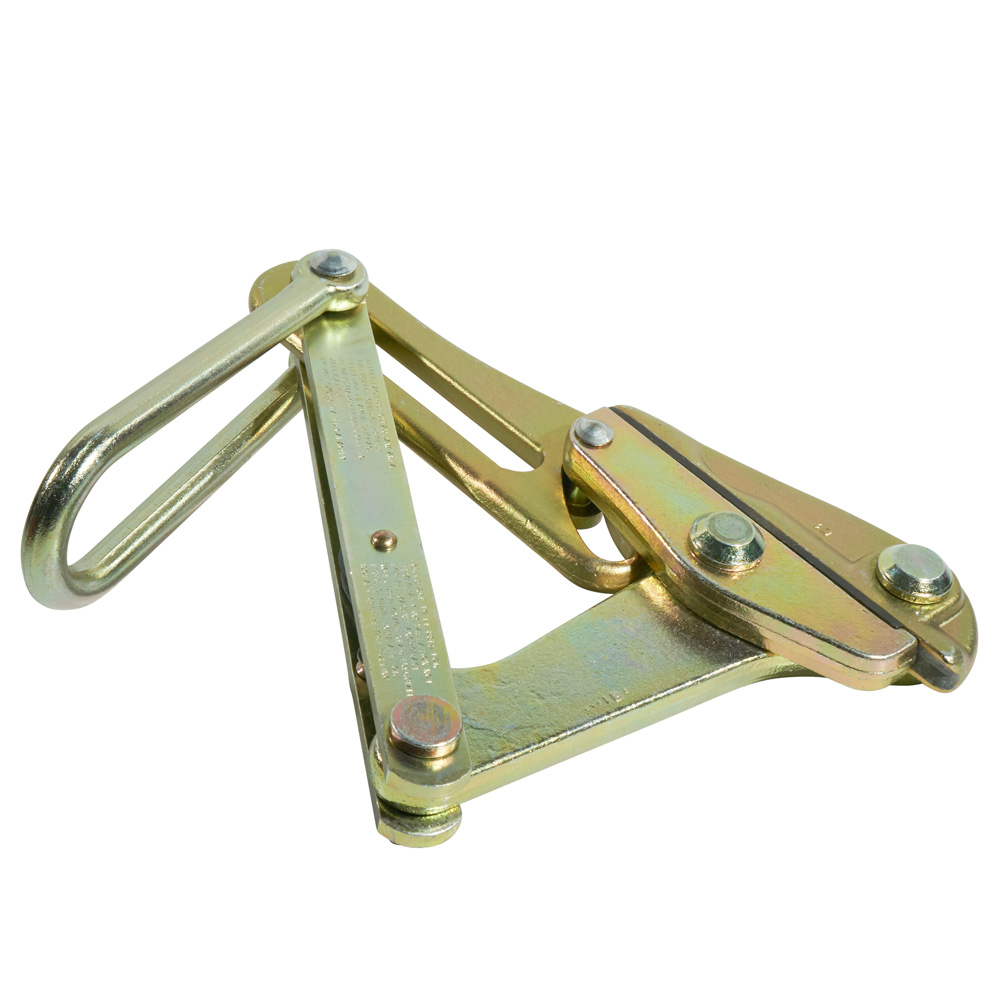

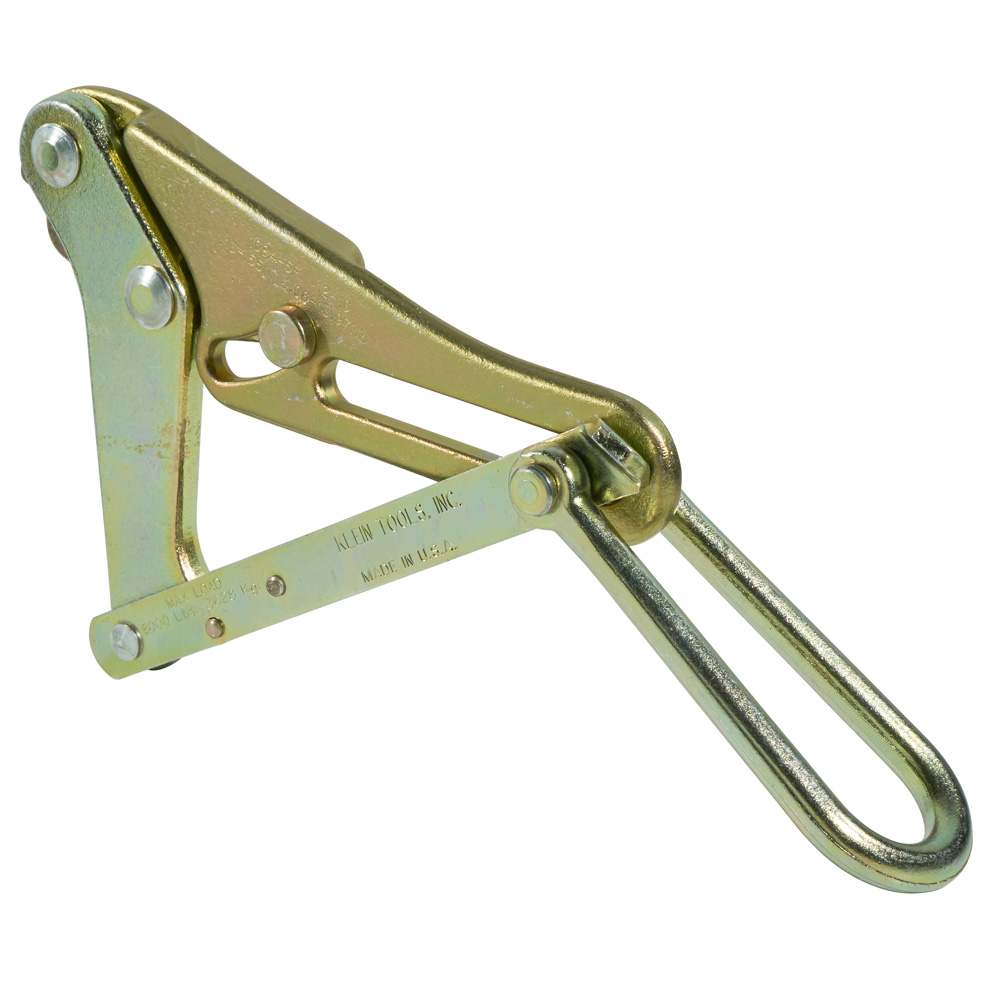

Grip for High Strength Cable

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Features

• Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573)
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Made in USA
• Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
• For larger conductors, see our grips with round inside-jaw contour
• Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

Specifications

• Weight (kg): 2.9
• Type: Chicago Grip
• Overall Length (cm): 33.8
• Overall Height (Inch): 2.5
• Hot Latch: No
• Width: 6.5000 in
• Jaw Type: Single V
• Overall Width (Inch): 7.6
• Jaw Length (cm): 12.7
• Application: Wire Pulling
• Jaw Length (Inch): 5
• Overall Height (cm): 6.4
• Material: Steel
• Height: 1.7600 in
• Depth: 9.2500 in
• Weight: 6.3750 lbs
• Locking Handle: Yes
• Maximum Safe Load (kg): 3628.7
• Weight (lb): 6.4
• Overall Width (cm): 19.3
• Overall Length (Inch): 13.3
• Maximum Safe Load (lb): 8000
• Cable Diameter: 0.16" to 0.55" (4.06 to 13.97 mm)
• Swing Latch: No
• Spring: Yes
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Teeth Type: File Insert
