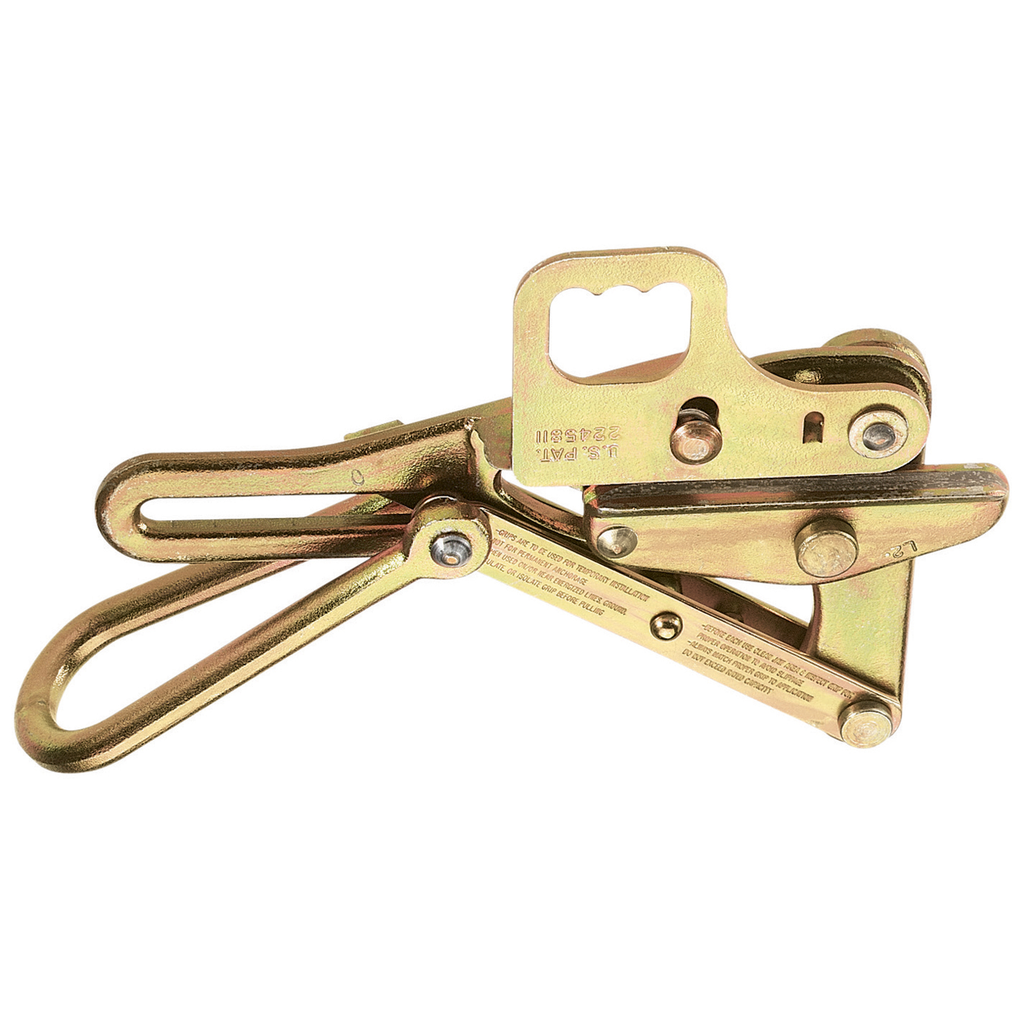

Chicago® Grip with Latch 0.37-Inch Cable

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Hot-line grips for both bare and insulated conductors. Grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire. Standard hot-line grips are not supplied with springs or lock-open features.

Features

• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
• Made in USA
• Standard hot-line grips are not supplied with springs or lock-open features
• Hot-line grips for steel stranded cable
• Grip may be placed on wire with hot-line stick

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Specifications

• Application: Wire Pulling
• Depth: 10.0000 in
• Type: Chicago Grip
• Material: Steel
• Weight (kg): 2.9
• Spring: No
• Weight: 0.1000 lbs
• Locking Handle: Yes
• Jaw Length (cm): 12.7
• Overall Length (cm): 37.5
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Overall Length (Inch): 14.75
• Weight (lb): 6.5
• Maximum Safe Load (kg): 3628.7
• Swing Latch: No
• Overall Width (Inch): 2.38
• Overall Height (cm): 21.9
• Overall Width (cm): 6
• Maximum Safe Load (lb): 8000
• Hot Latch: Yes
• Jaw Length (Inch): 5
• Overall Height (Inch): 8.63
• Width: 8.0000 in
• Teeth Type: Smooth
• Jaw Type: Double V
• Height: 1.7600 in
