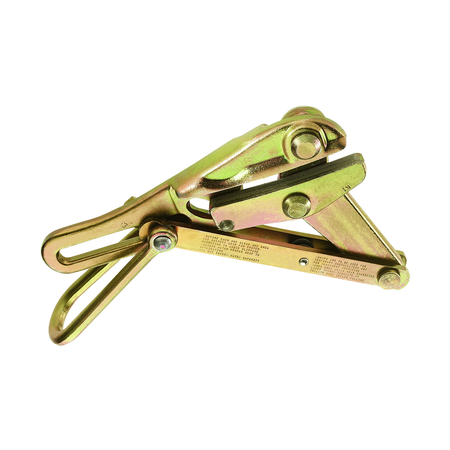

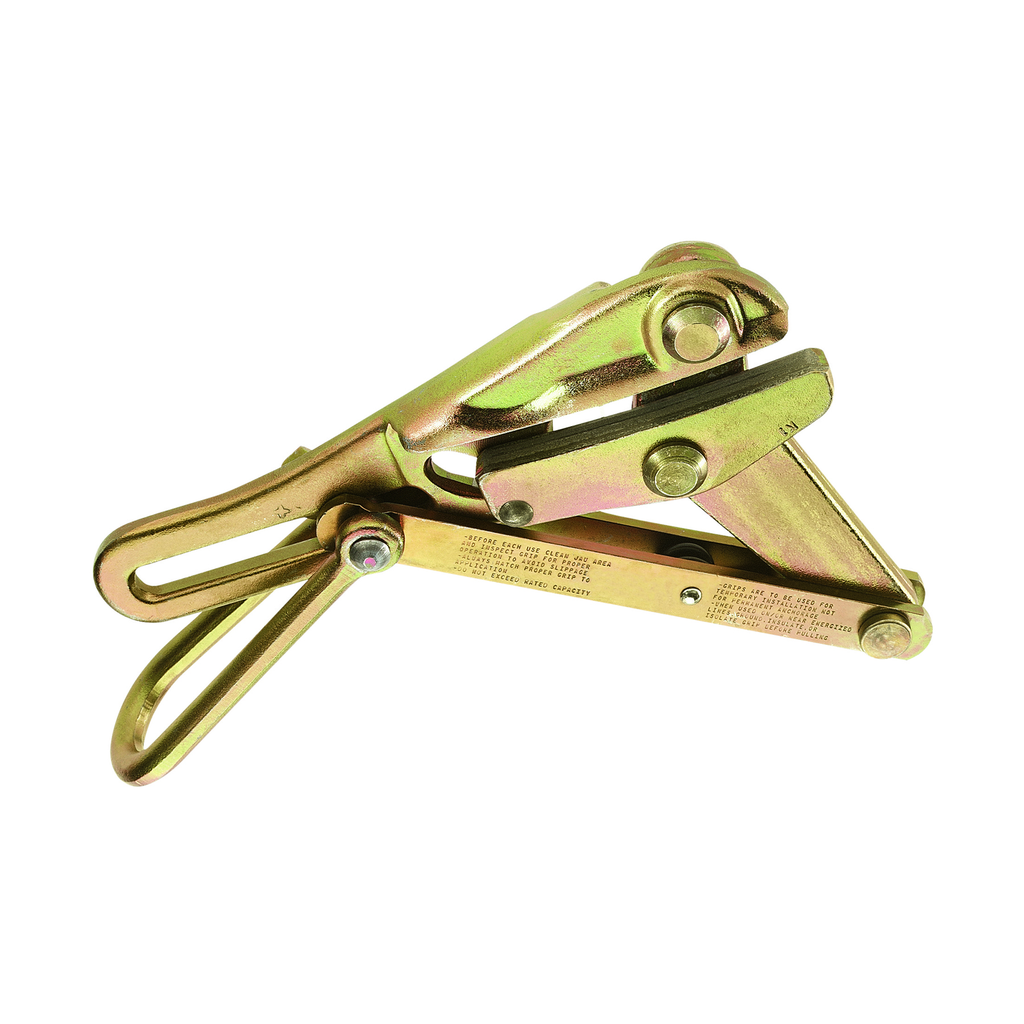

Chicago® Grip for EHS Cable, Curved Jaw

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.

Features

• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip
• Made in USA
• For use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand
• To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double V contour

Warnings

• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Jaw Length (cm): 12.7
• Jaw Type: Double V
• Hot Latch: No
• Weight (kg): 2.5
• Type: Chicago Grip
• Weight (lb): 5.6
• Swing Latch: No
• Maximum Safe Load (lb): 8000
• Application: Wire Pulling
• Maximum Safe Load (kg): 3628.7
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Teeth Type: Milled/Curved
• Jaw Length (Inch): 5
• Height: 1.5840 in
• Locking Handle: Yes
• Weight: 5.6250 lbs
• Width: 6.3000 in
• Spring: Yes
• Depth: 9.0000 in
