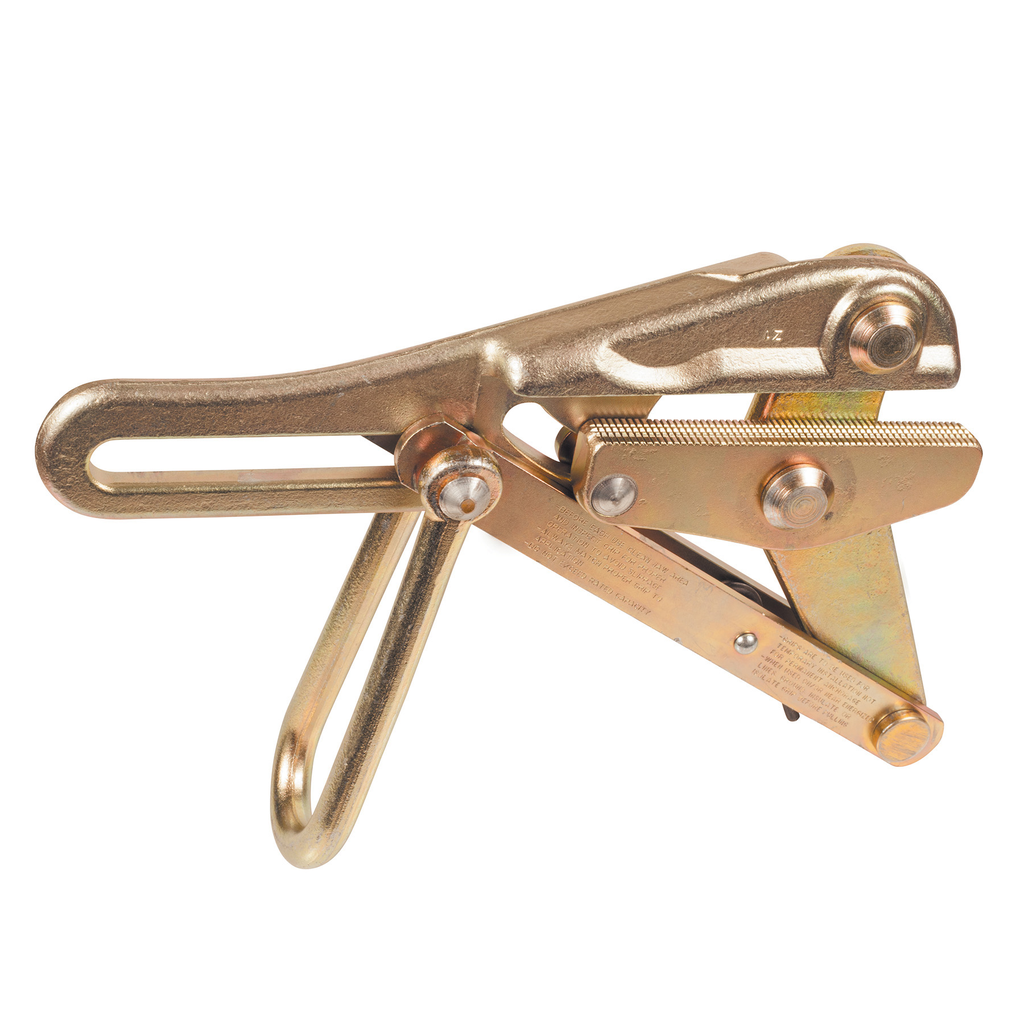

Chicago® Grip Coated Guy Wire

This Chicago Grip is designed specifically to work with coated guy wire. This authentic Klein Grip is manufactured, inspected and tested in the USA. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability.

Features

• Designed for cable sizes 0.218-Inch to 0.55-Inch (5.54 mm to 13.97 mm)
• Manufactured from drop-forged, heat-treated steel for excellent durability with a spring that closes grip on cable helping to maintain initial position

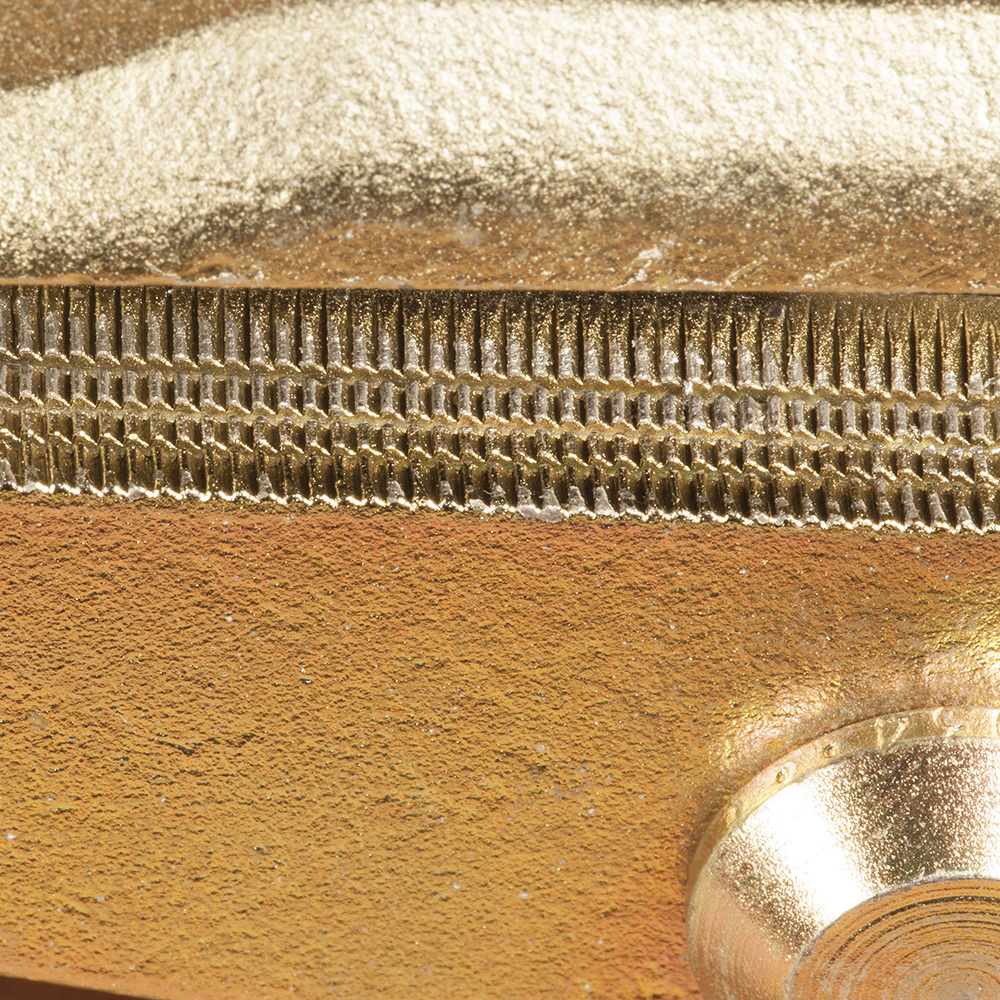

• Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
• Maximum Safe Load is 8000-Pound (3629 kg)
• Sawtooth Jaw Profile Resists Build-up
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• 5'' jaw length increases surface area contact with the cable, minimizing cable damage
• Made in USA

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Swing Latch: No
• Weight: 6.0000 lbs
• Type: Chicago Grip
• Overall Length (cm): 33.8
• Locking Handle: Yes
• Material: Steel
• Overall Width (cm): 19.3
• Jaw Type: Round
• Weight (lb): 6
• Overall Width (Inch): 7.6
• Height: 1.7600 in
• Spring: Yes
• Depth: 9.5000 in
• Application: Wire Pulling
• Overall Length (Inch): 13.3
• Hot Latch: No
• Jaw Length (Inch): 5
• Teeth Type: Aggressive
• Overall Height (Inch): 2.5
• Jaw Length (cm): 12.7
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Width: 6.7500 in
• Maximum Safe Load (kg): 3628.7
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Weight (kg): 2.7
• Overall Height (cm): 6.4
• Maximum Safe Load (lb): 8000
