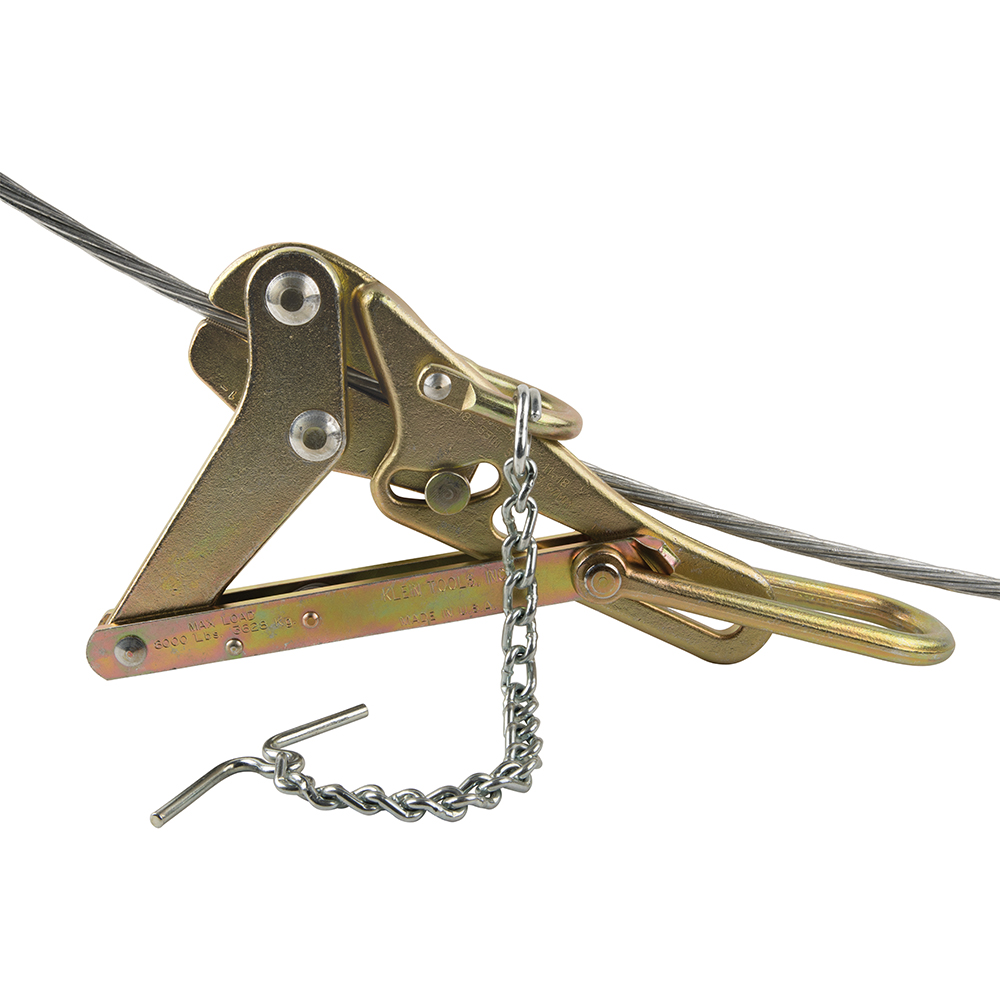

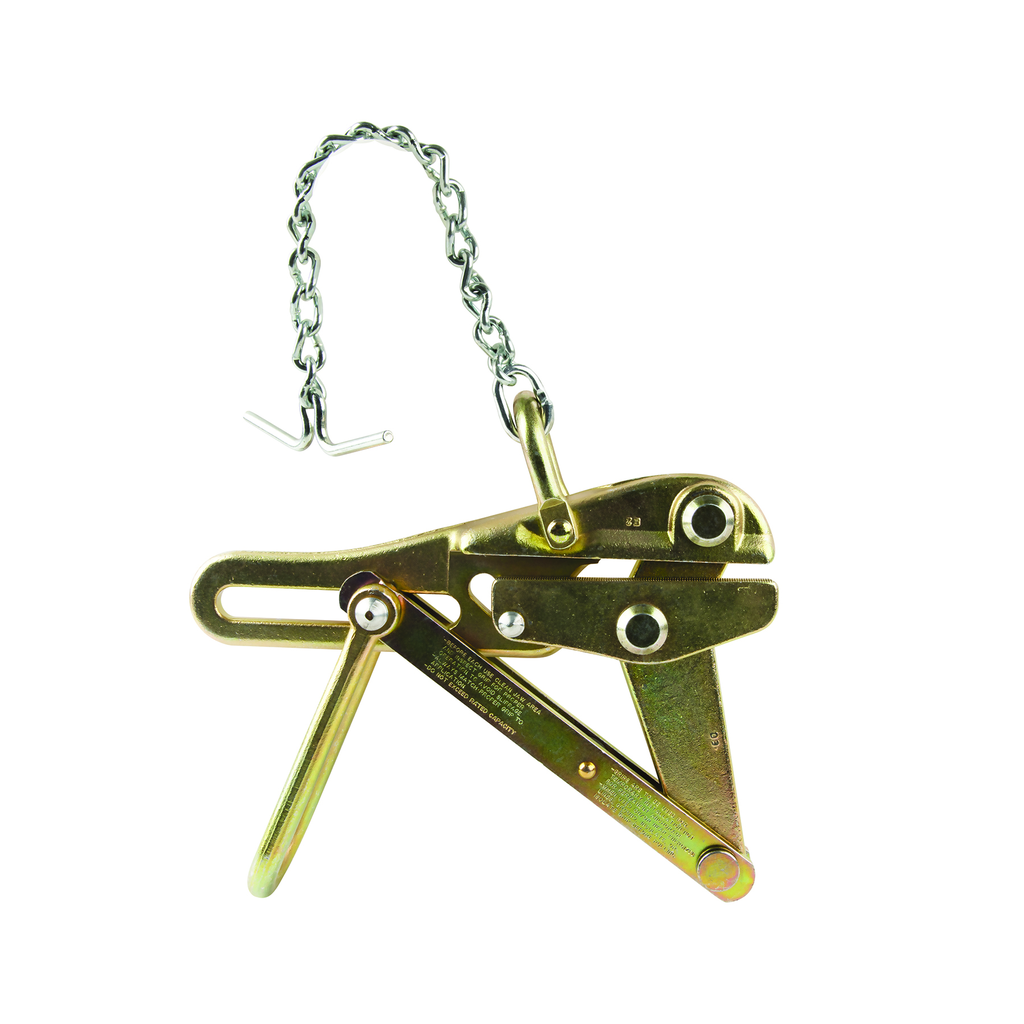

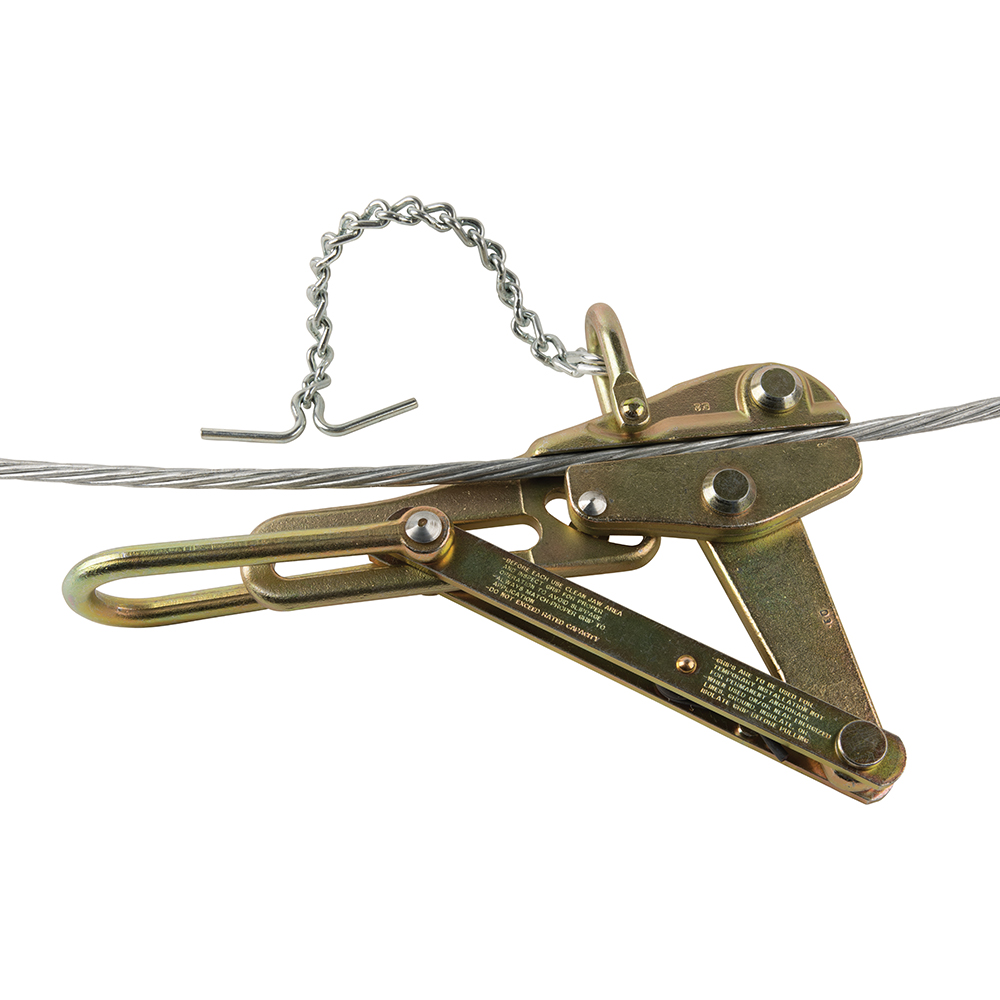

Chicago® Grip Coated Guy Wire with Chain

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep the grip from falling off the cable. The 5-Inch jaw length increases the surface area contact with the cable minimizing cable damage. The sawtooth jaw profile resists galvanization build-up.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Features

• Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm)
• Made in USA
• Equipped With a Chain, Toggle and Shackle
• Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Equipped with chain, toggle and shackle to keep grip from falling off the cable
• 5-Inch (127 mm) jaw length for extra gripping area on stranded cable and spring that closes grip on cable helping to maintain initial position
• Maximum Safe Load is 8000-Pound (3629 kg)

Specifications

• Overall Height (cm): 6.4
• Material: Steel
• Maximum Safe Load (kg): 3628.7
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Maximum Safe Load (lb): 8000
• Jaw Length (Inch): 5
• Overall Width (cm): 19.3
• Overall Length (Inch): 13.3
• Locking Handle: Yes
• Jaw Type: Round
• Overall Width (Inch): 7.6
• Width: 7.6000 in
• Overall Height (Inch): 2.5
• Weight: 6.0000 lbs
• Hot Latch: No
• Depth: 13.3000 in
• Weight (lb): 6.9
• Weight (kg): 3.1
• Overall Length (cm): 33.8
• Swing Latch: No
• Spring: Yes
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Height: 2.5000 in
• Jaw Length (cm): 12.7
• Teeth Type: Aggressive
• Application: Wire Pulling
• Type: Chicago Grip
