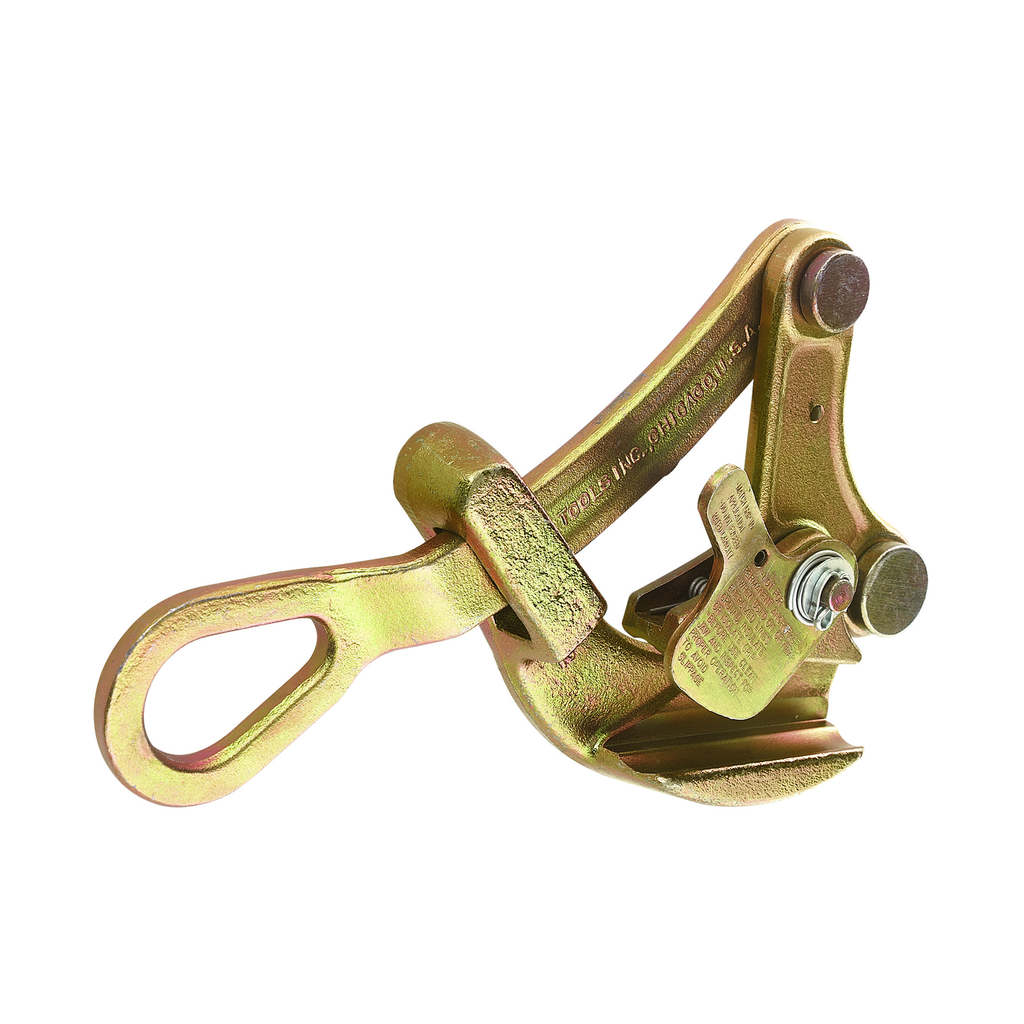

Parallel Jaw Grip 2-1/2-Inch Length

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

Warnings

• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
• Spring
• Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
• Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
• Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
• Made in USA

Specifications

• Cable Type: Messenger, EHS, Coated
• Jaw Length (cm): 6.4
• Overall Width (Inch): 1.22
• Maximum Safe Load (lb): 4500
• Teeth Type: Coarse
• Weight (lb): 2.6
• Cable Diameter: 0.157" to 0.875" (3.98 to 22.22 mm)
• Material: Steel
• Weight: 2.6280 lbs
• Height: 1.4670 in
• Type: Parallel Jaw Grip
• Overall Width (cm): 3.1
• Locking Handle: No
• Width: 3.9420 in
• Weight (kg): 1.2
• Overall Length (Inch): 9.52
• Jaw Length (Inch): 2.5
• Depth: 10.3500 in
• Hot Latch: No
• Maximum Safe Load (kg): 2041.2
• Spring: Yes
• Jaw Type: Round
• Swing Latch: No
• Overall Length (cm): 24.2
• Overall Height (Inch): 5.31
• Overall Height (cm): 13.5
• Application: Wire Pulling
