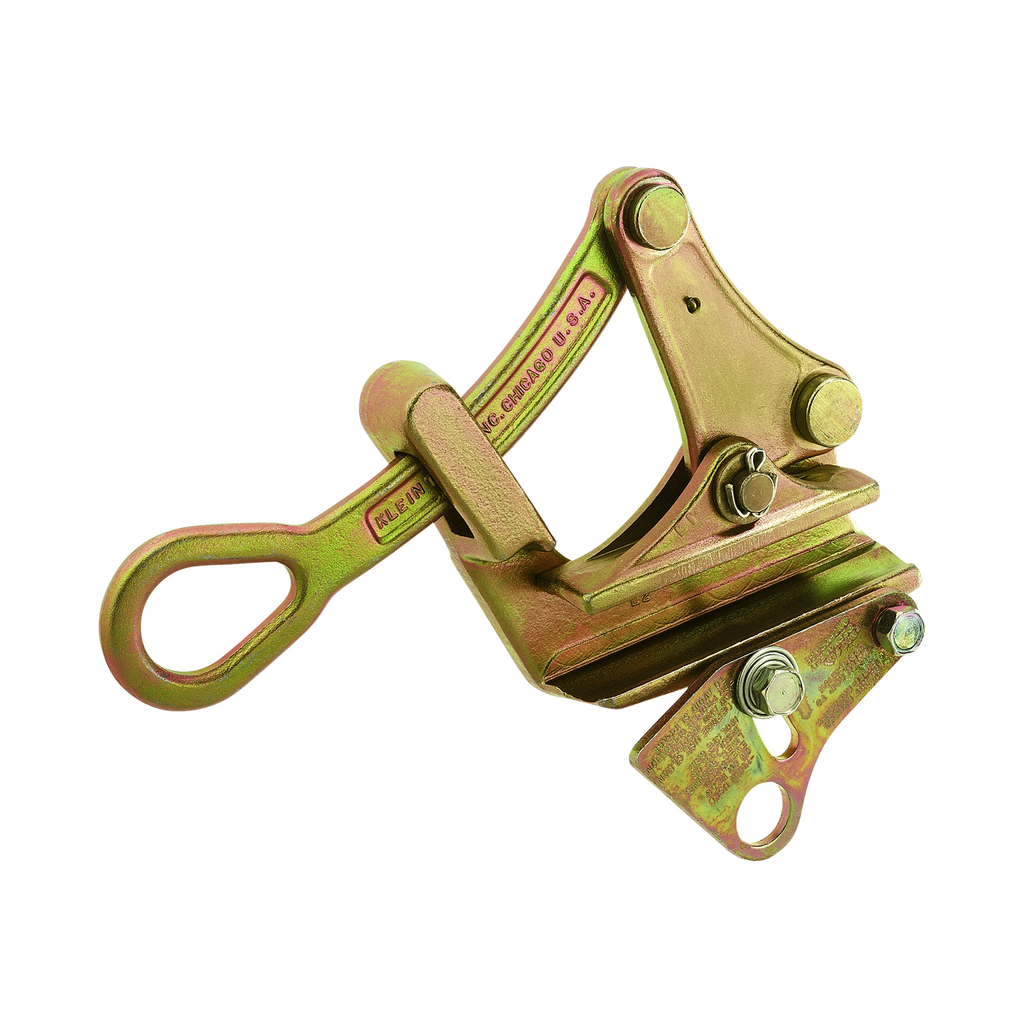

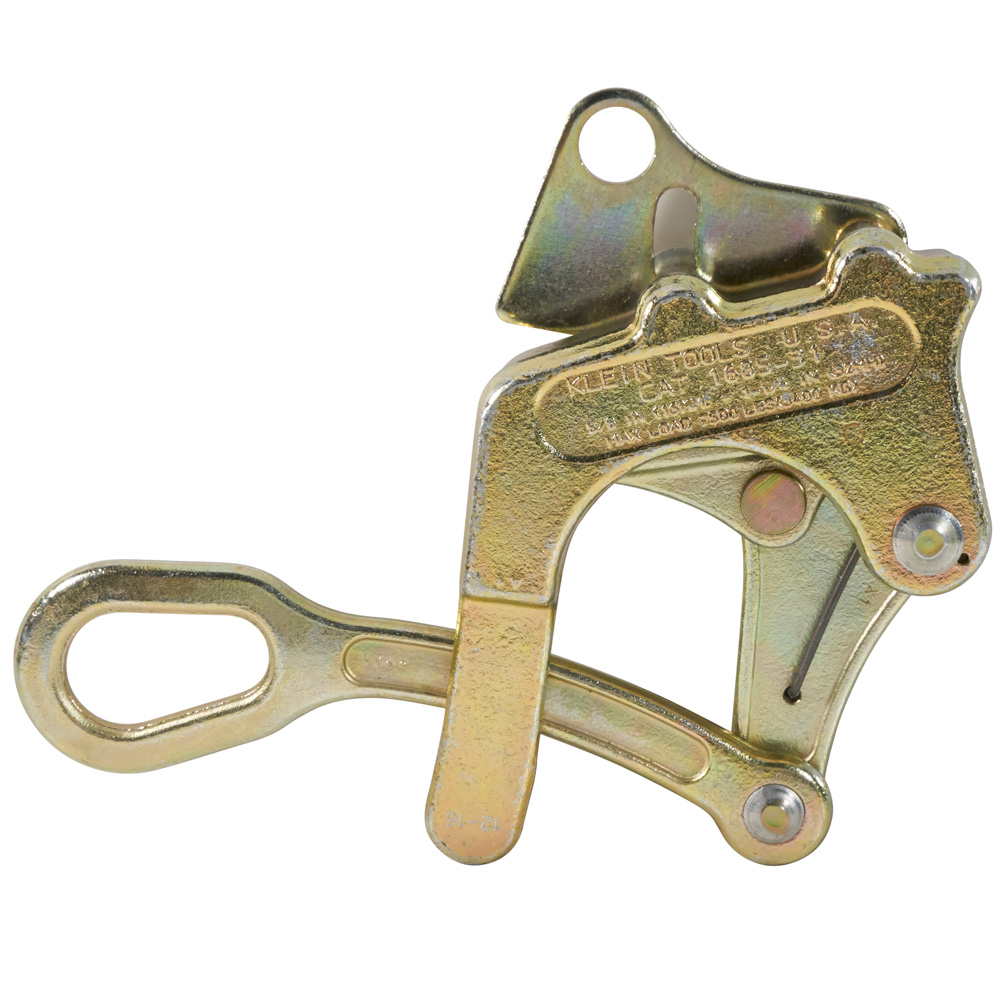

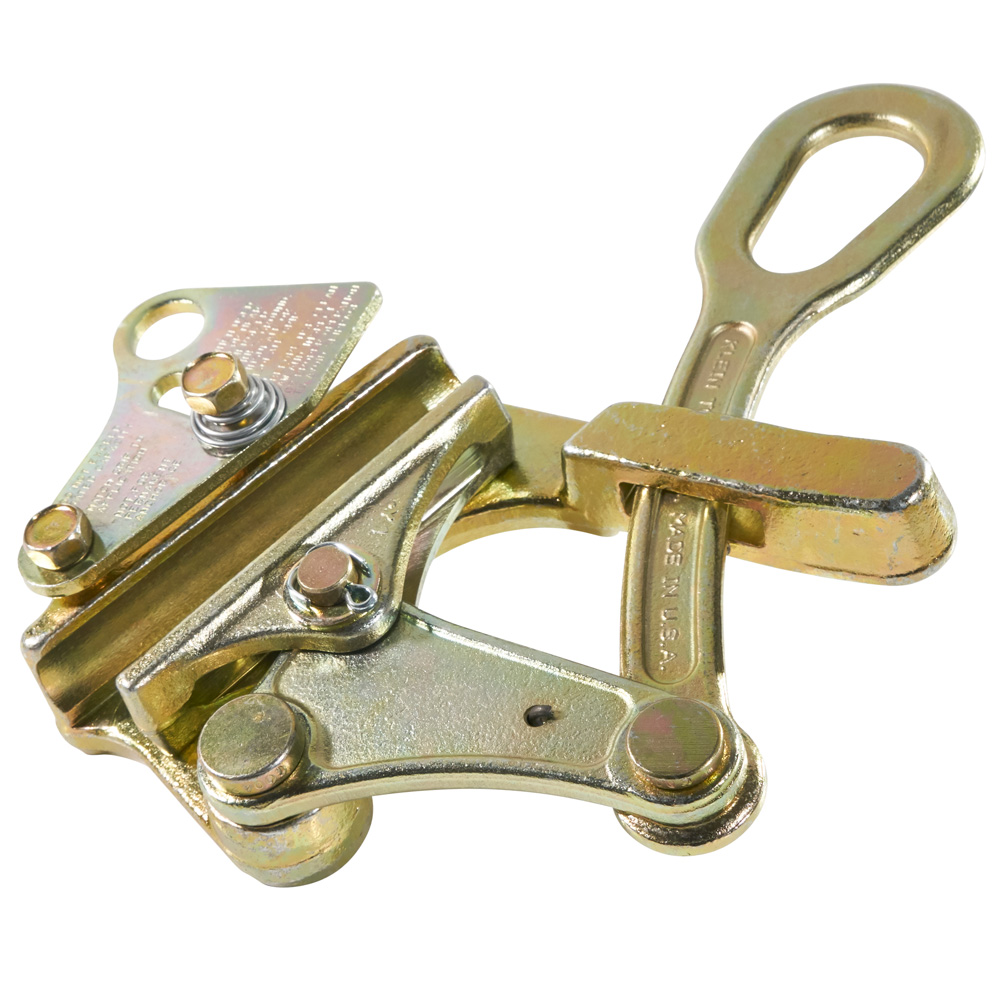

Parallel Jaw Grip 4-1/2-Inch Length

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.

Features

• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
• Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
• Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
• Made in USA
• Hot Latch, Spring
• Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable

Specifications

• Locking Handle: No
• Type: Parallel Jaw Grip
• Hot Latch: Yes
• Overall Height (cm): 16.3
• Teeth Type: Coarse
• Maximum Safe Load (lb): 7500
• Material: Steel
• Spring: Yes
• Weight: 4.8240 lbs
• Depth: 11.7000 in
• Weight (kg): 2.2
• Overall Width (Inch): 2.4
• Cable Type: Messenger, EHS, Guy Strand
• Swing Latch: No
• Jaw Length (Inch): 4.5
• Cable Diameter: 0.625" to 1.25" (15.87 to 31.75 mm)
• Maximum Safe Load (kg): 3401.9
• Width: 4.5000 in
• Application: Wire Pulling
• Overall Height (Inch): 6.4
• Jaw Length (cm): 11.4
• Jaw Type: Round
• Overall Length (Inch): 11.7
• Weight (lb): 4.8
• Overall Width (cm): 6.1
• Overall Length (cm): 29.7
• Height: 1.8000 in
