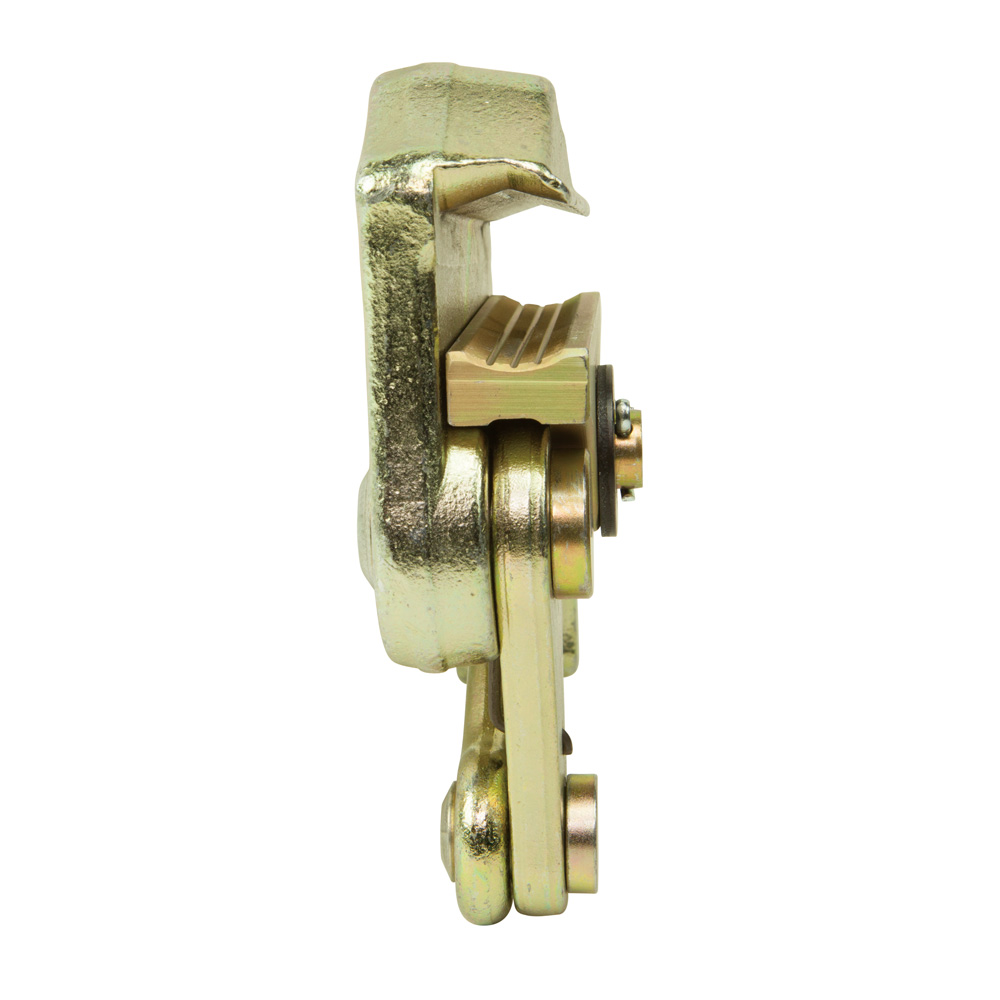

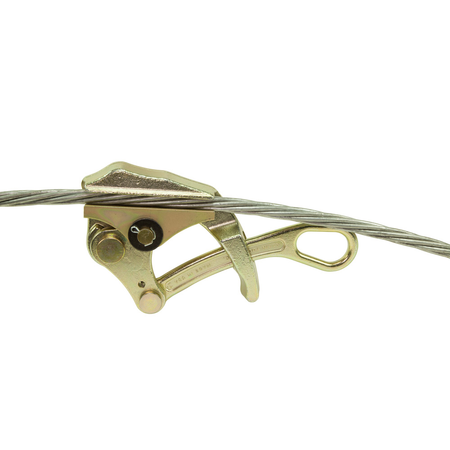

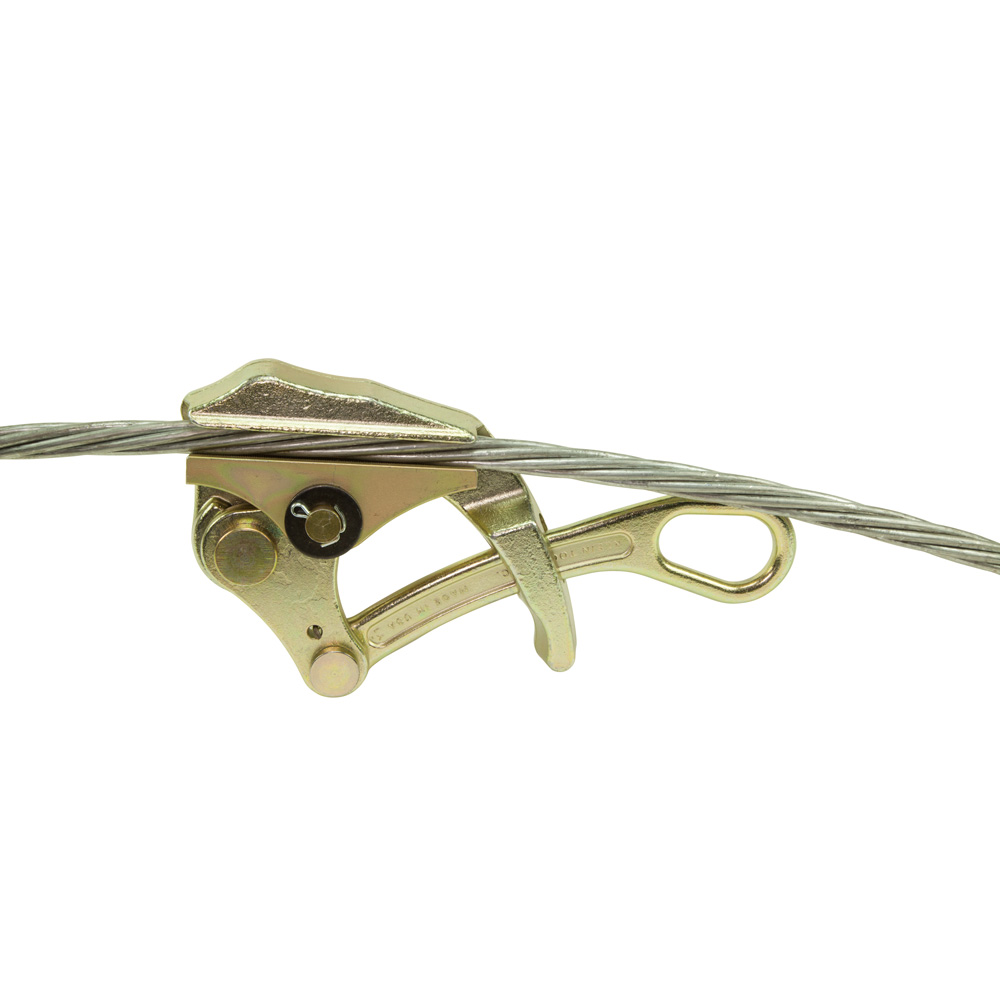

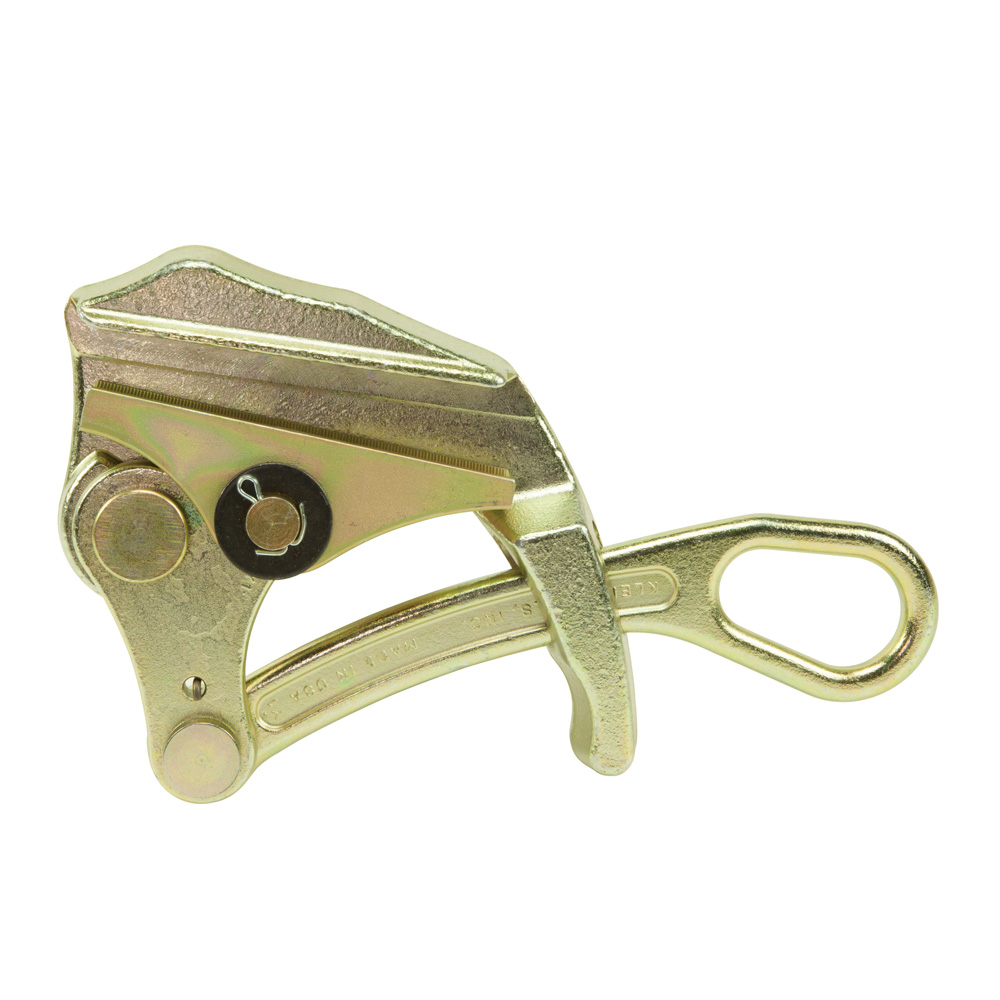

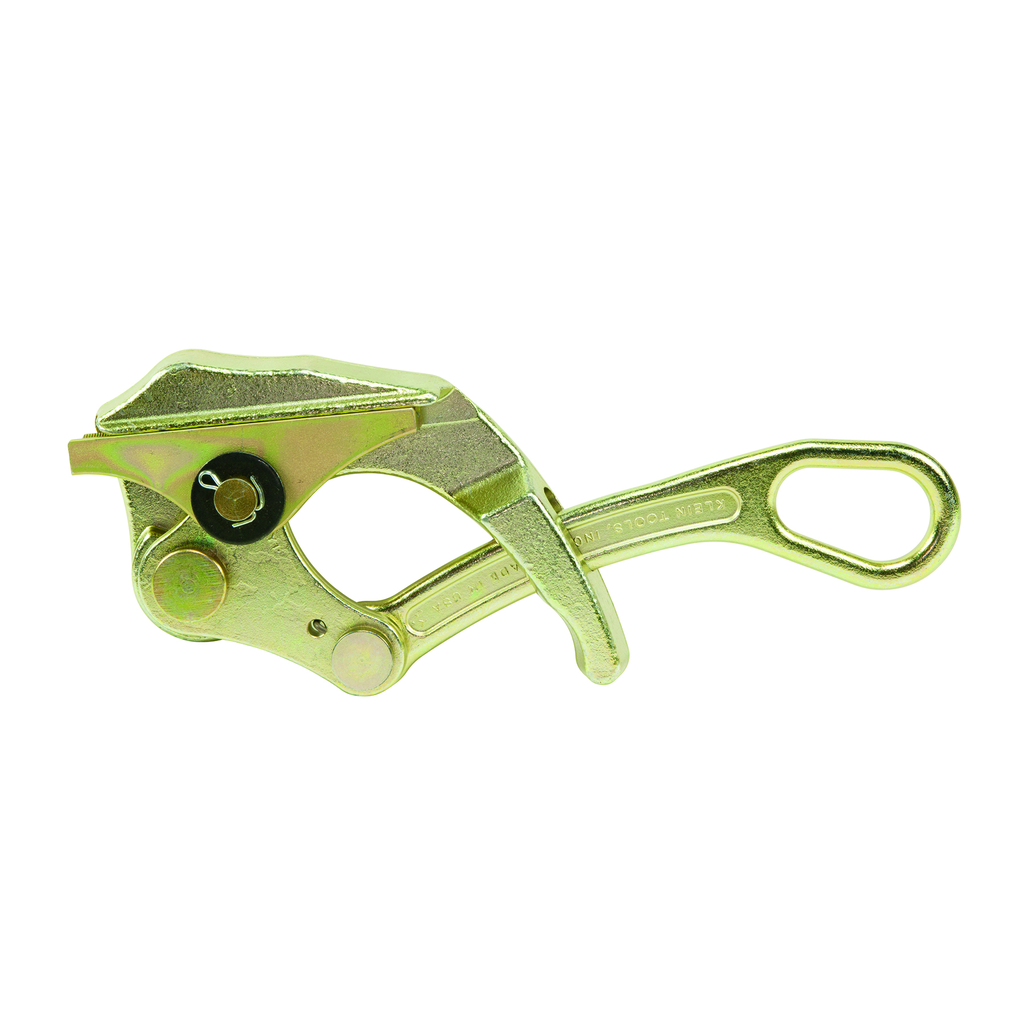

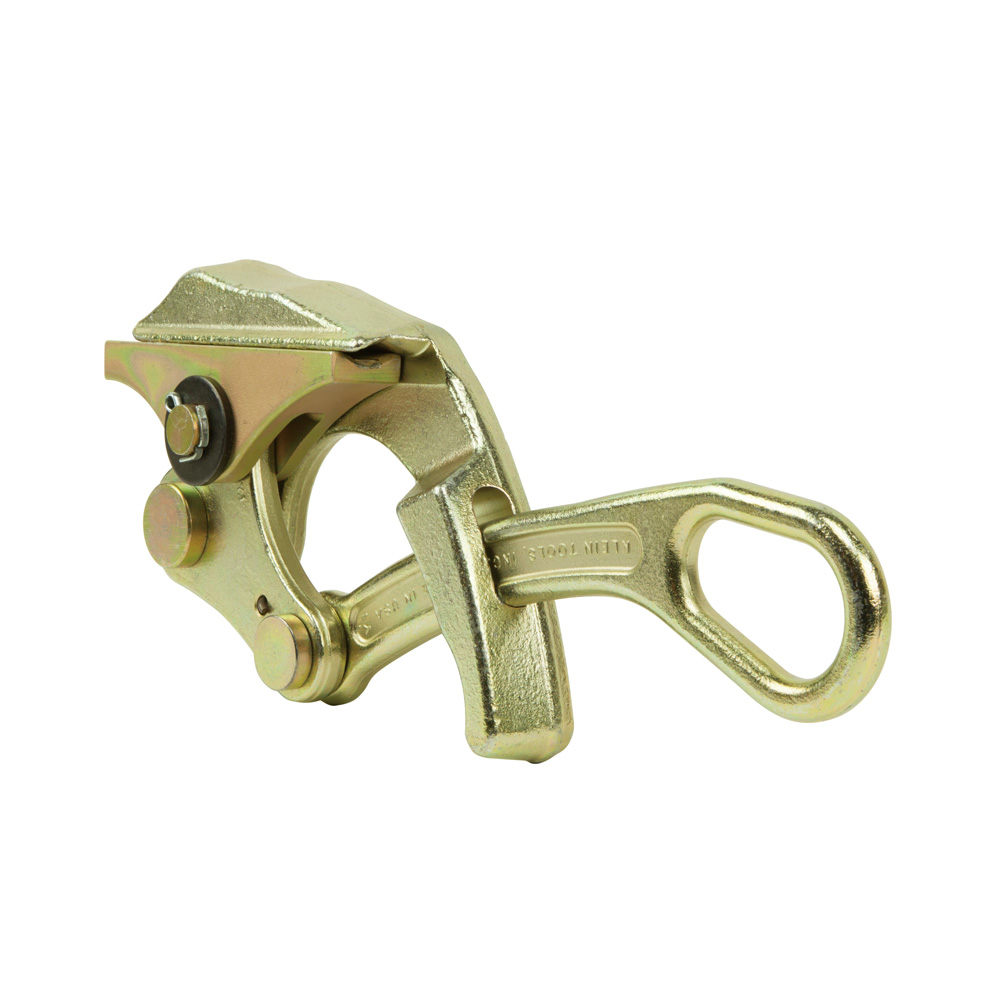

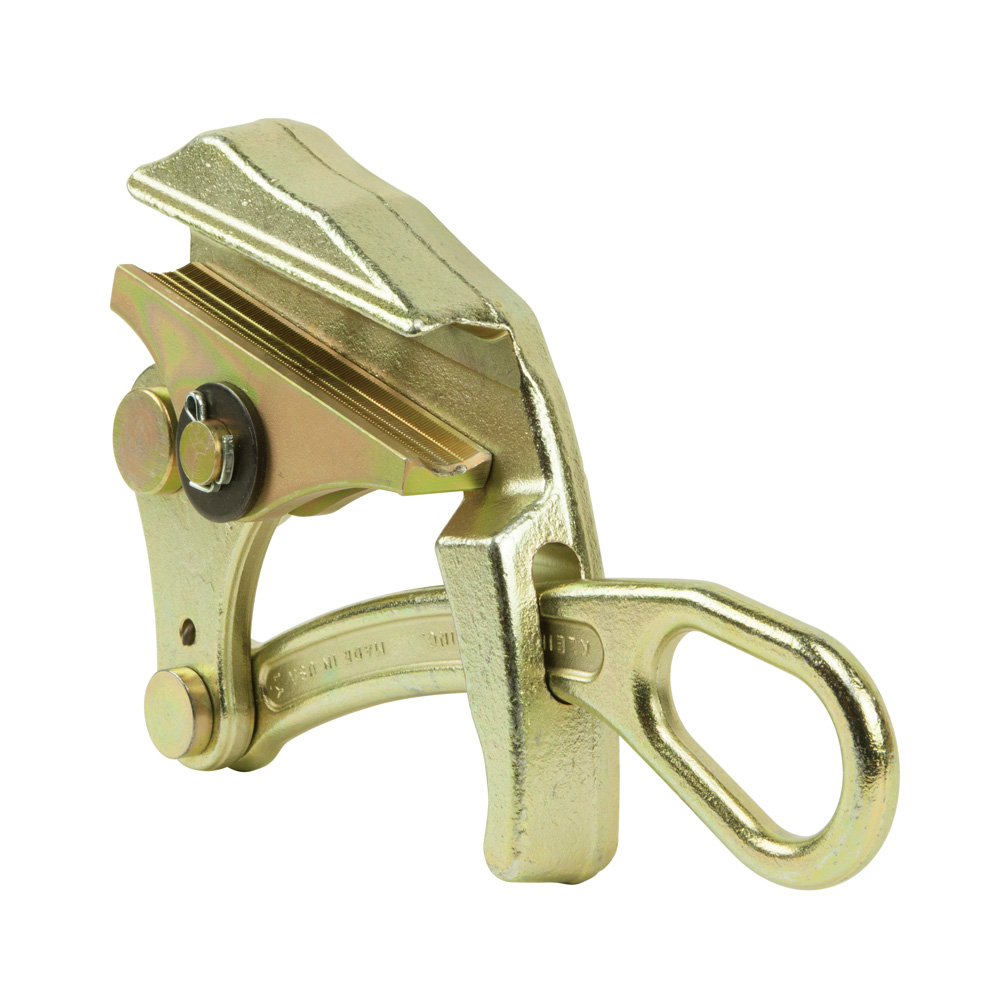

Parallel Jaw Grip for Coated Guy Strand

This lightweight, compact grip pulls guy strand and EHS cable sizes from 0.3-Inch to 0.8-Inch (8 to 20 mm). Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. The aggressive jaw prevents slipping on guy strand. Spring-loaded for easy one-handed operation.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• 5-Inch (127 mm) jaw length increases surface area contact with the cable
• Made in USA
• For use on guy strand and EHS cable sizes from 0.3 to 0.8 inches (8 - 20 mm)
• Round Inside-jaw Contour
• Pulls 5/16-Inch to 3/4-Inch steel cables
• Sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables and spring helps maintain cable position in grips jaw

Specifications

• Weight (kg): 3.2
• Application: Wire Pulling
• Jaw Length (cm): 12.7
• Type: Parallel Jaw Grip
• Swing Latch: No
• Width: 6.4330 in
• Teeth Type: Coarse
• Locking Handle: No
• Material: Steel
• Jaw Type: Round
• Hot Latch: No
• Weight: 7.0000 lbs
• Maximum Safe Load (lb): 10000
• Overall Length (cm): 28.9
• Cable Type: Guy Strand, EHS, Coated, Messenger
• Height: 2.0150 in
• Jaw Length (Inch): 5
• Maximum Safe Load (kg): 4535.9
• Depth: 11.3650 in
• Overall Length (Inch): 11.365
• Weight (lb): 7
• Spring: Yes
• Cable Diameter: 0.3" to 0.8" (7.62 to 20.3 mm)
