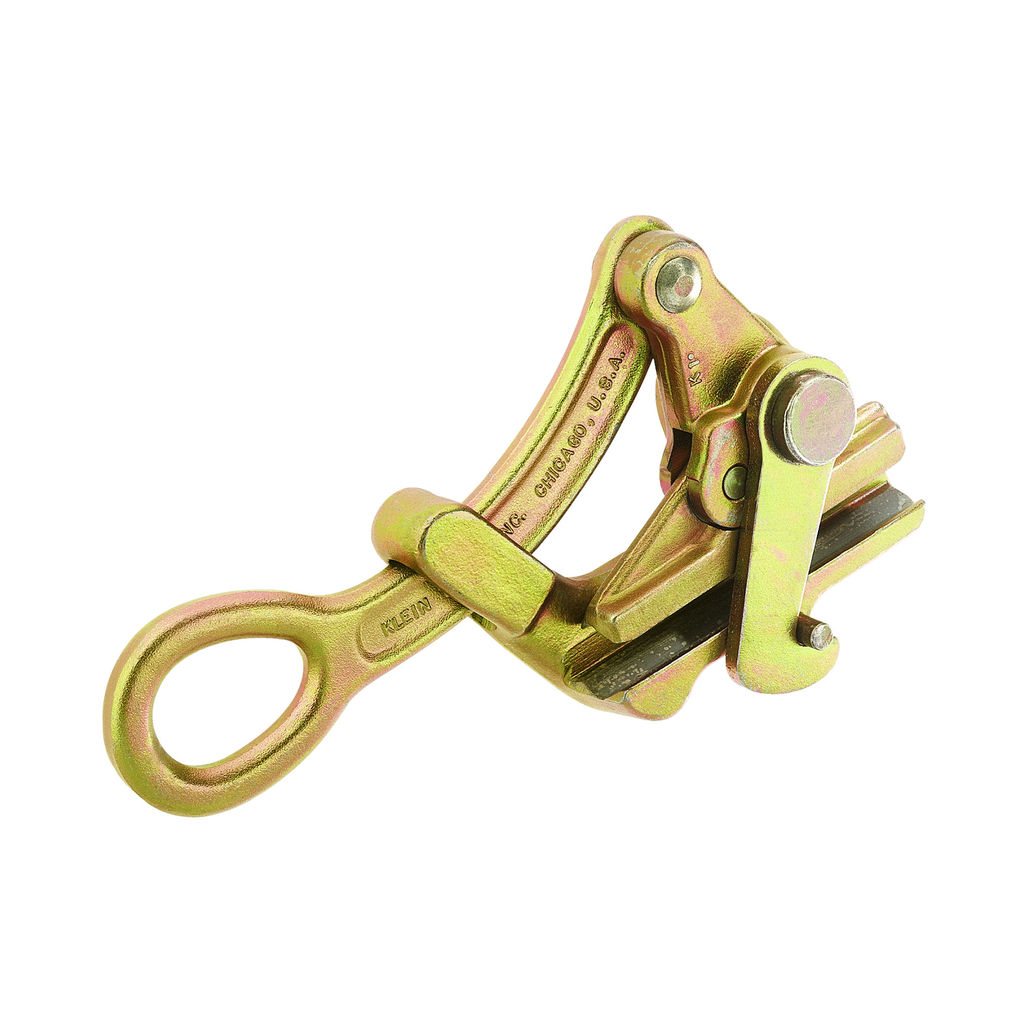

Parallel Jaw Grip, 4-3/8-Inch Length

Longer jaws achieve a firm hold, reducing possibility of slippage and damage to cable. Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks. When latch is closed, it helps maintain cable position in grip jaws.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Longer Jaw and Large Diameter Eye
• Longer jaws achieve a firm hold, reducing possibility of slippage and damage to cable
• When latch is closed, it helps maintain cable position in grip jaws
• Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks
• Made in USA
• Manufactured from drop-forged, heat-treated steel for excellent durability

Specifications

• Overall Length (Inch): 7.2
• Maximum Safe Load (lb): 10000
• Height: 1.8000 in
• Cable Diameter: 0.2" to 0.4" (5.08 to 10.16 mm)
• Material: Steel
• Hot Latch: No
• Spring: No
• Jaw Length (Inch): 4.375
• Teeth Type: Smooth
• Width: 4.5000 in
• Cable Type: Aircraft, Messenger, Guy Strand
• Weight: 4.6350 lbs
• Locking Handle: No
• Overall Length (cm): 18.3
• Maximum Safe Load (kg): 4535.9
• Swing Latch: No
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Weight (kg): 2.1
• Depth: 7.2000 in
• Jaw Length (cm): 11.1
• Weight (lb): 4.6
• Jaw Type: Double V
