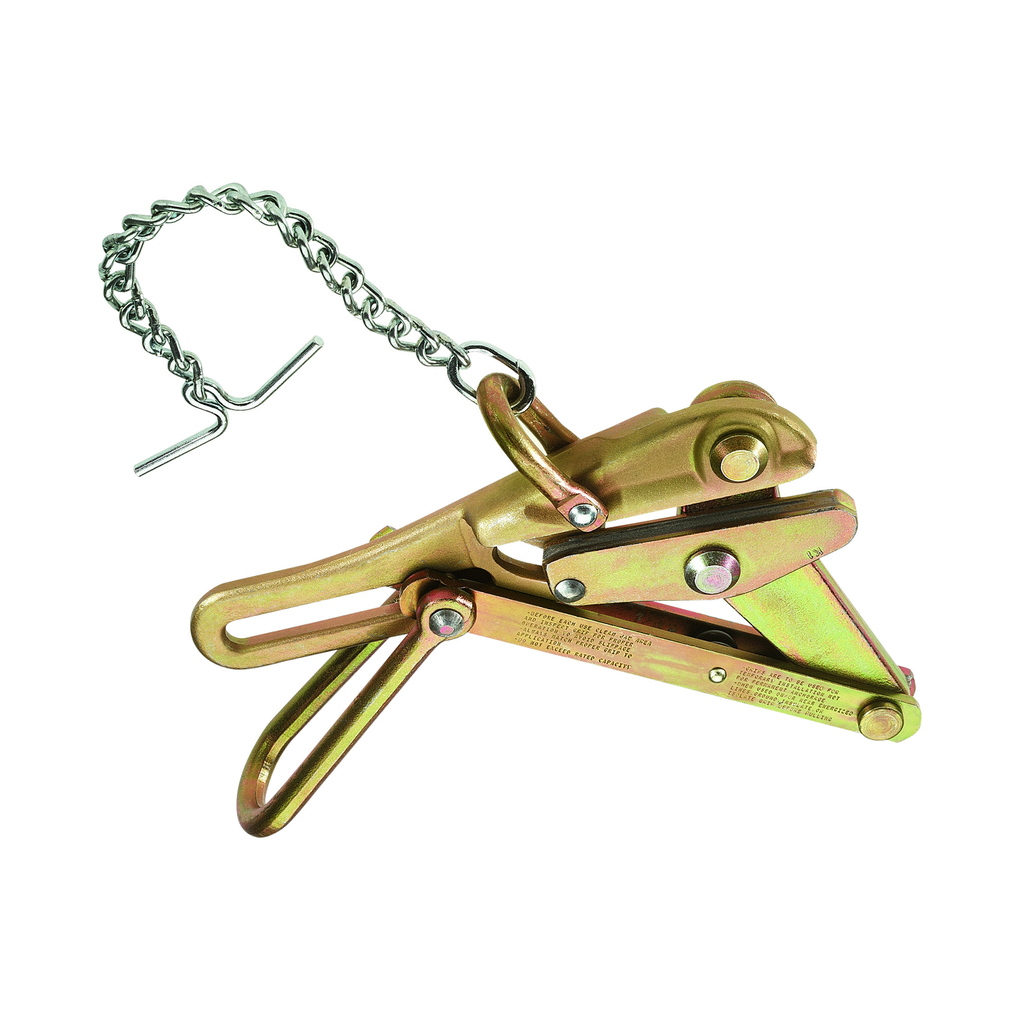

Chicago® Grip Bell-System Type Grip

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Equipped with chain, toggle and shackle. For support wire 0.134-Inch and larger, refer to 1659 series. Outside diameter of support wire includes thickness of polyethylene coating.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

Features

• For support wire 0.134 and larger, refer to 1659 series
• For 0.218 to 0.550-Inch (5.54 to 13.97 mm) diameter cable range with Max Safe Load of 8000-Pound (3629 kg)
• Equipped with chain, toggle and shackle to keep grip from falling off the cable
• Outside diameter of support wire includes thickness of polyethylene coating
• Made in USA

Specifications

• Weight: 0.1000 lbs
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Hot Latch: No
• Weight (kg): 3
• Depth: 10.0000 in
• Locking Handle: Yes
• Swing Latch: No
• Cable Type: Messenger, Guy Strand
• Spring: Yes
• Width: 5.0000 in
• Jaw Length (cm): 12.7
• Height: 2.0000 in
• Maximum Safe Load (kg): 3628.7
• Maximum Safe Load (lb): 8000
• Weight (lb): 6.6
• Jaw Type: Double V
• Type: Chicago Grip
• Jaw Length (Inch): 5
• Teeth Type: Smooth
• Application: Wire Pulling
• Material: Steel
