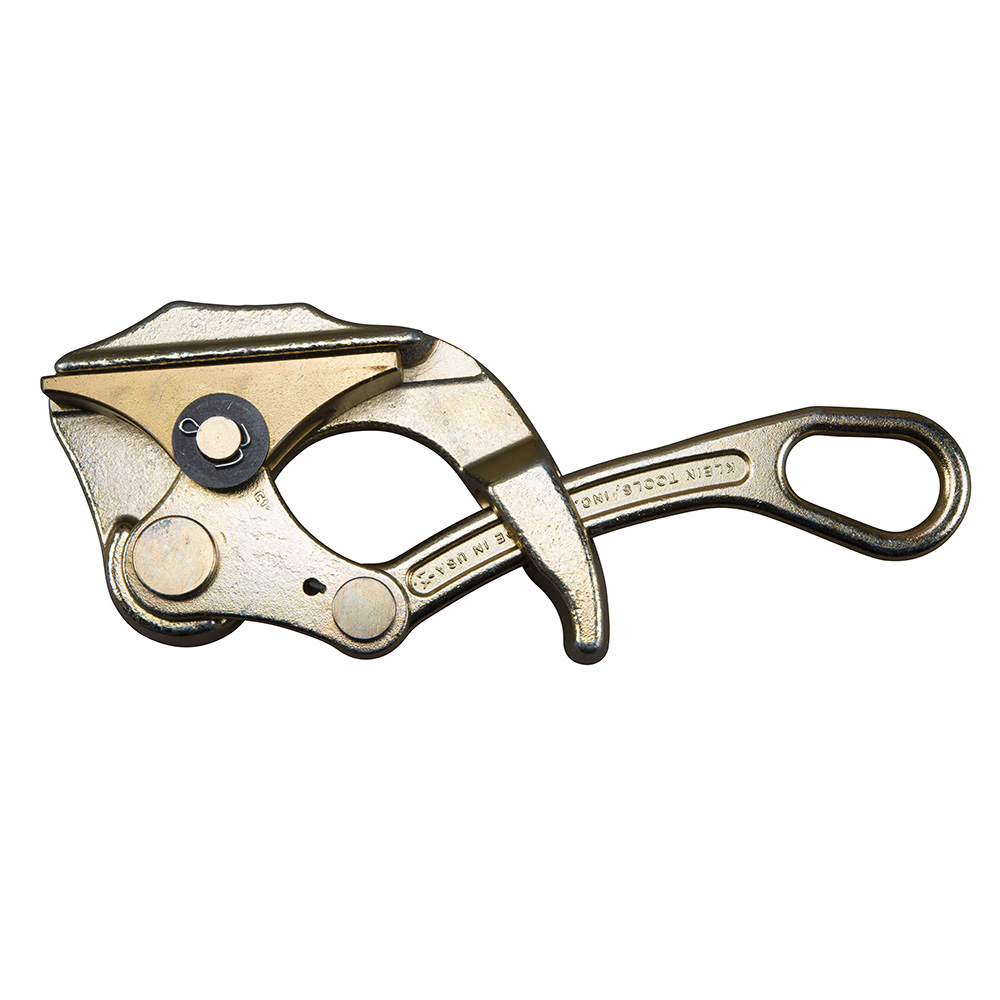

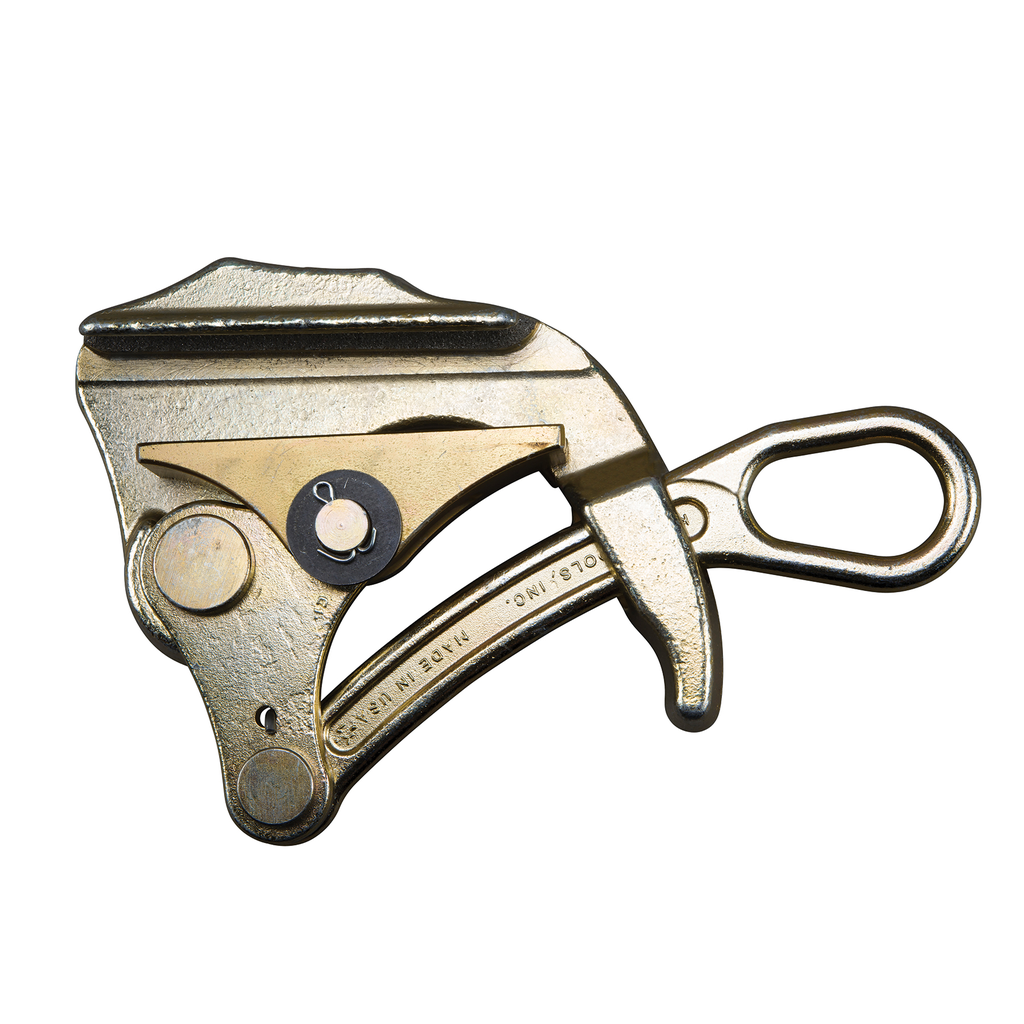

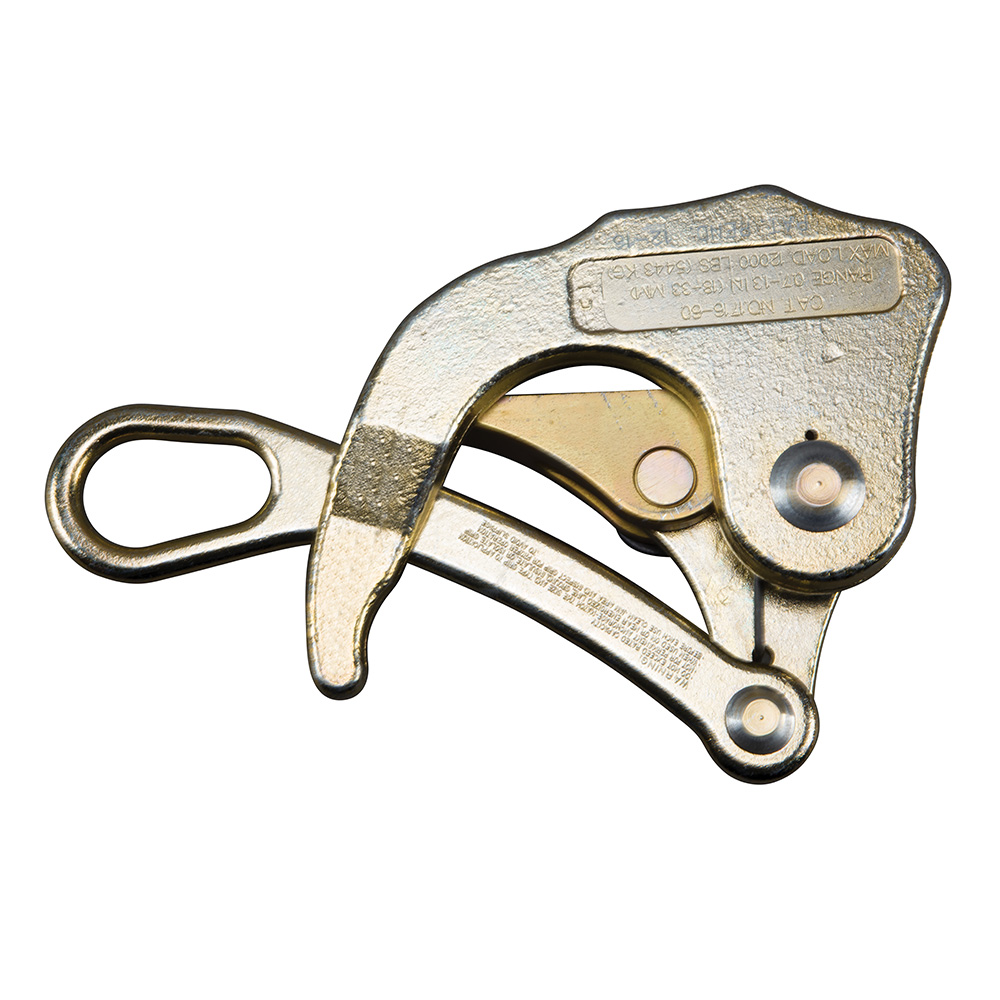

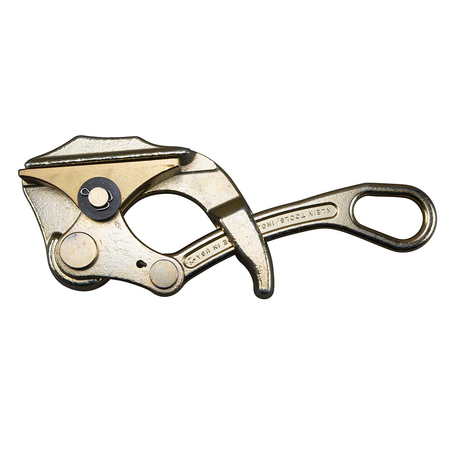

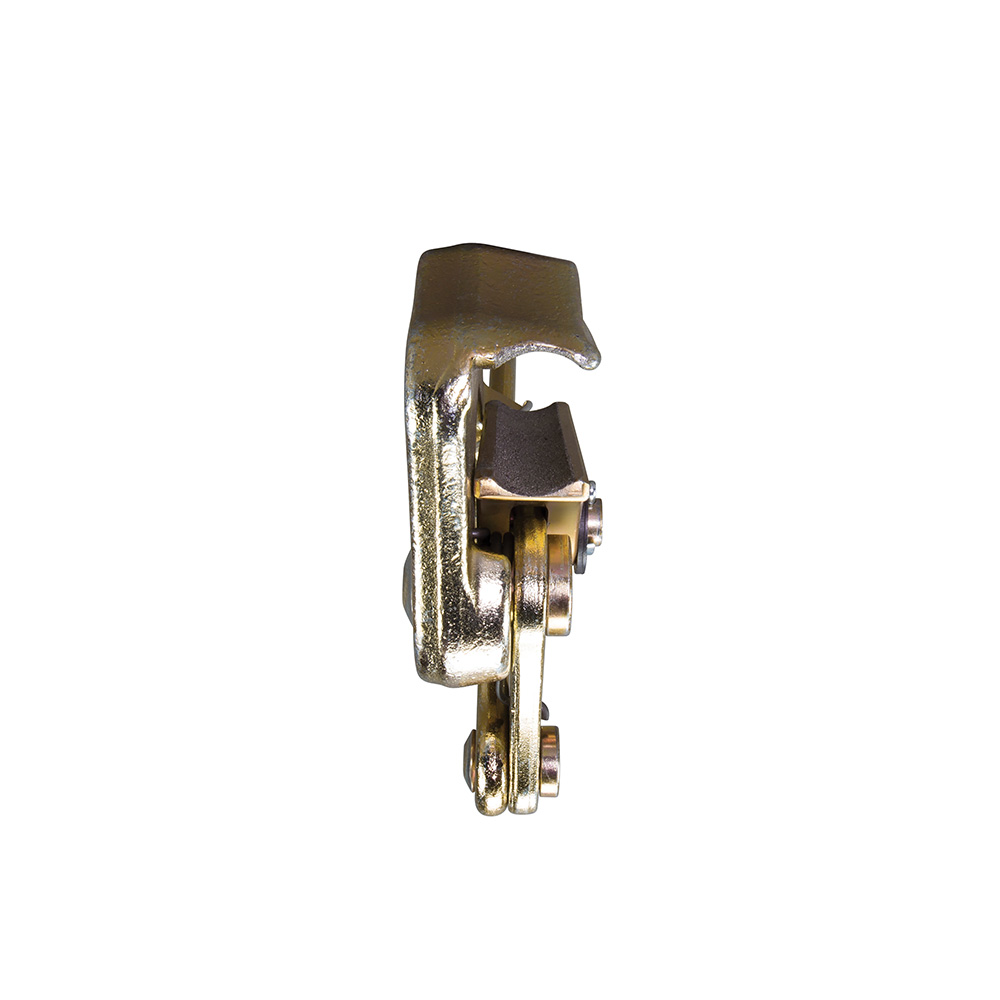

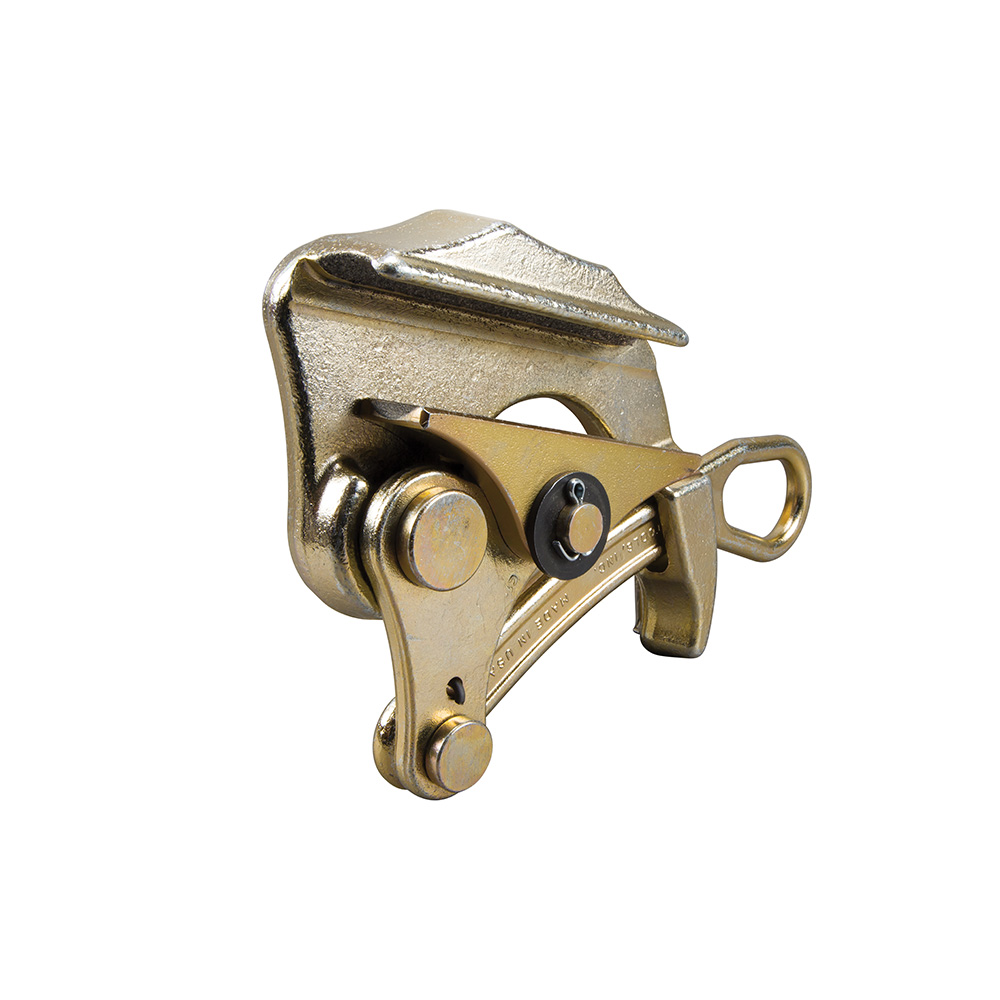

Parallel Jaw Grip, 0.7 to 1.3-Inch HDPE Wire

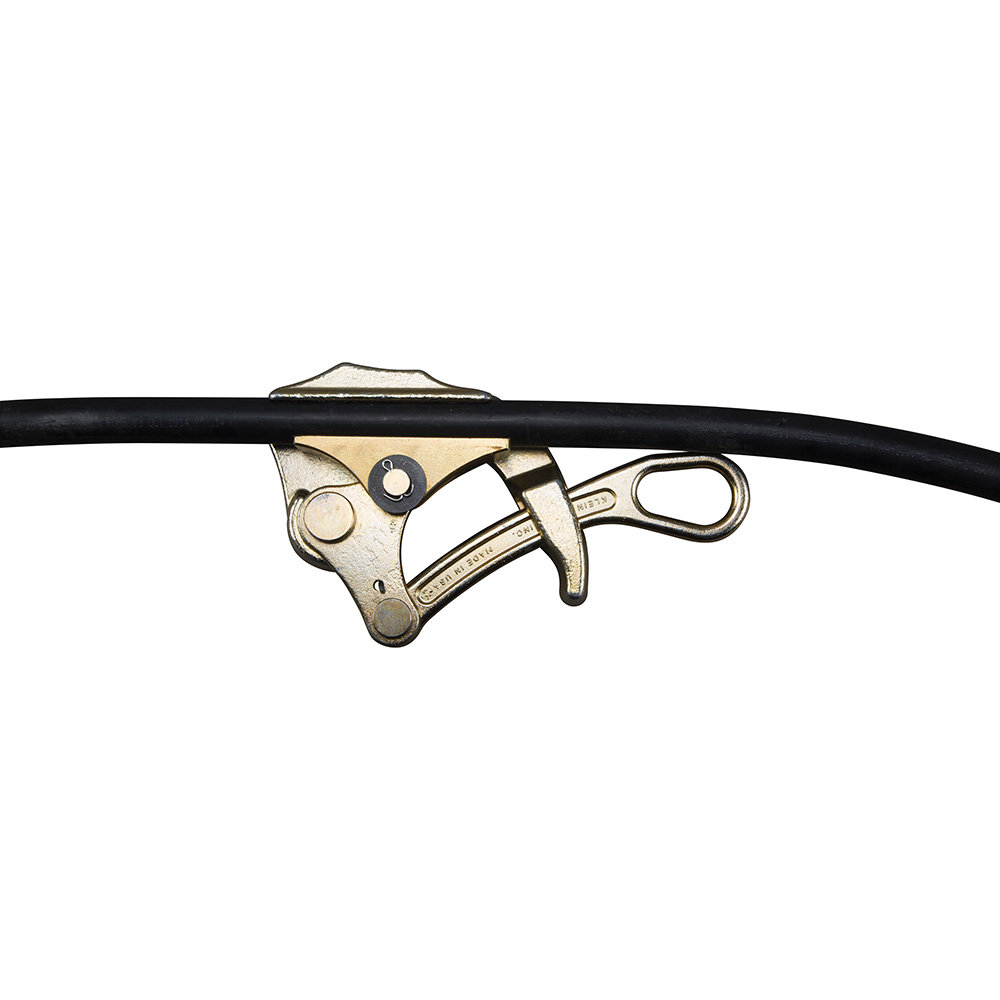

This Parallel Jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Features

• Hendrix® is a registered trademark of Marmon Utility, LLC
• Innovative high-traction surface grips the cable without damaging the outer jacket; pulls cable diameters 0.7 to 1.3-Inch (1.8 to 3.3 cm)
• Southwire® is a registered trademark of Southwire Company, LLC
• Spring-loaded for one-handed operation and easy placement on the conductor
• Made in USA
• Common tree wire cable types include General Cable, Hendrix® aerial systems, Rite Lite BLL conductor and Southwire S2 covered cable
• Securely pulls HDPE-coated cable commonly known as tree wire
• Tough carbide grit technology withstands even the harshest jobsite conditions

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Maximum Safe Load (lb): 12000
• Locking Handle: No
• Height: 2.9250 in
• Cable Diameter: 0.7" to 1.3" (17.78 to 33.02 mm)
• Weight: 8.1000 lbs
• Teeth Type: Grit
• Application: Wire Pulling
• Jaw Length (Inch): 5.125
• Weight (kg): 3.7
• Depth: 13.0500 in
• Maximum Safe Load (kg): 5443.1
• Material: Steel
• Width: 6.9750 in
• Jaw Length (cm): 13
• Cable Type: HDPE-Coated
• Spring: Yes
• Weight (lb): 8.1
• Jaw Type: Round
• Type: Parallel Jaw Grip
• Swing Latch: No
• Hot Latch: No
