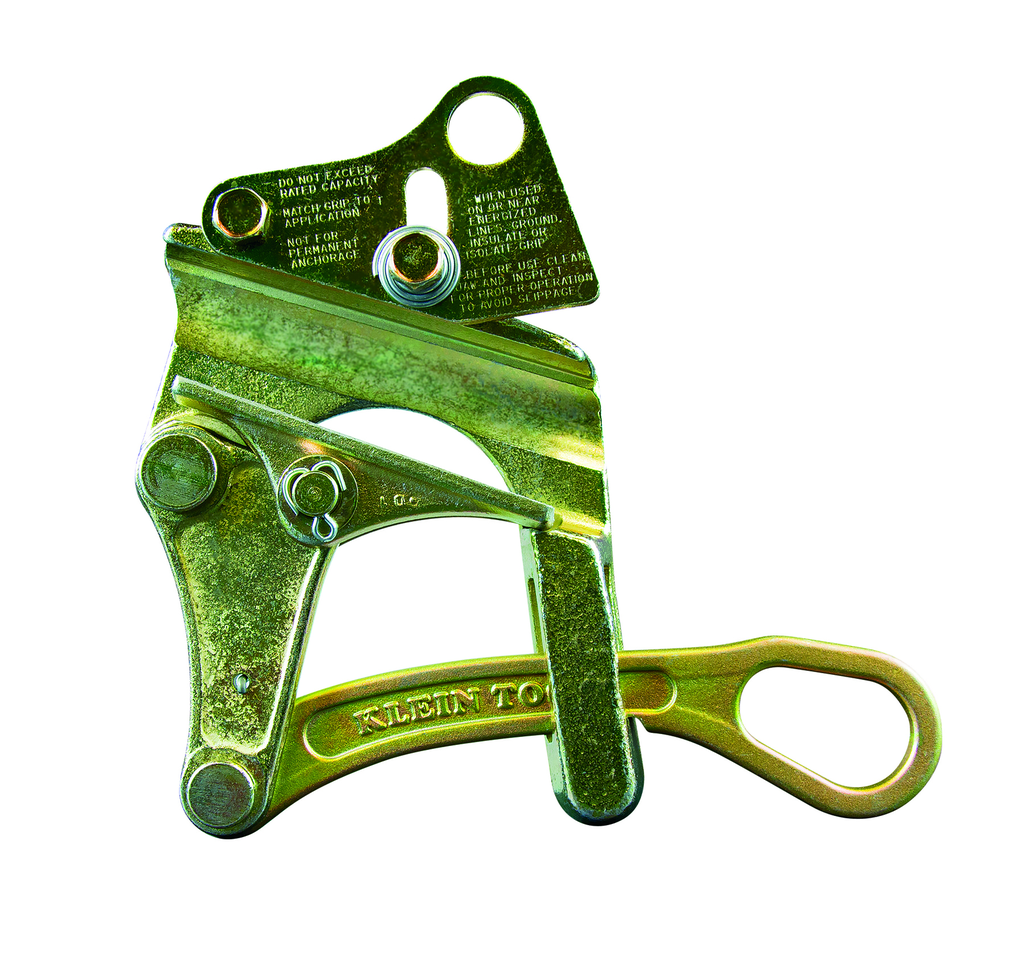

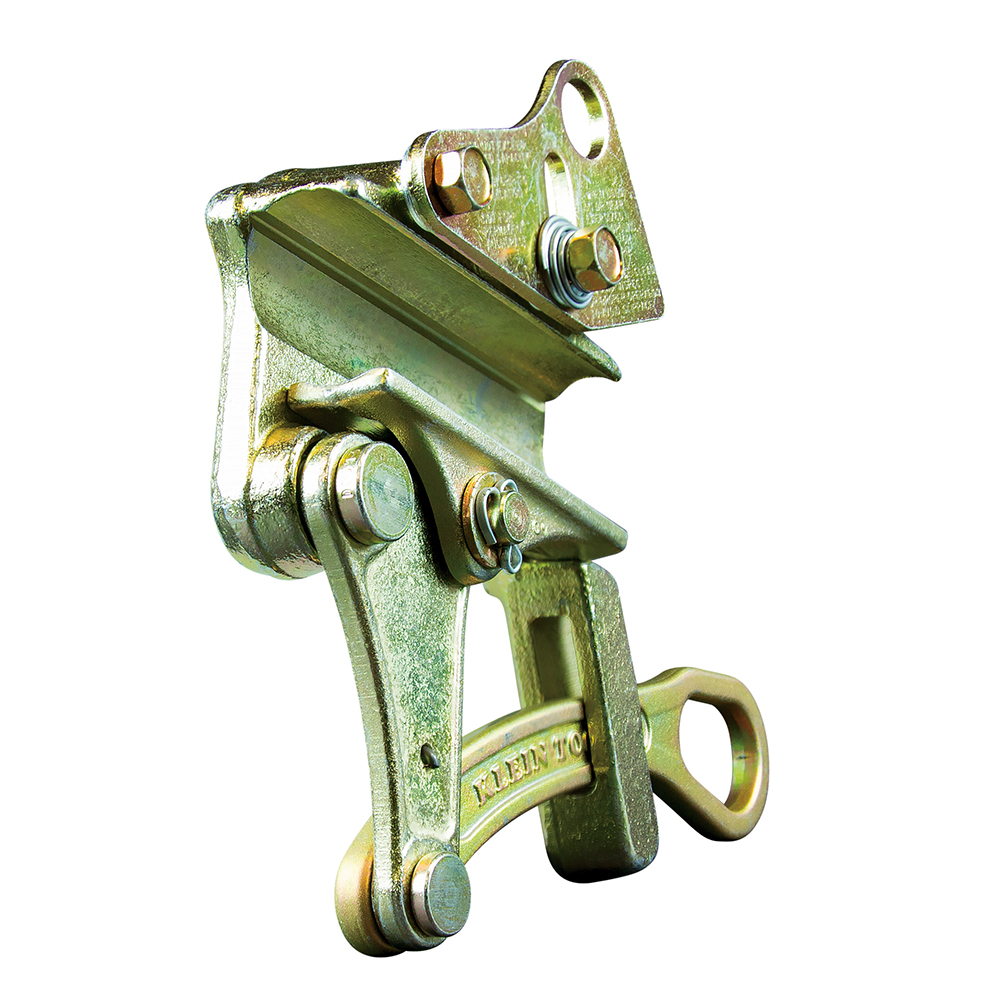

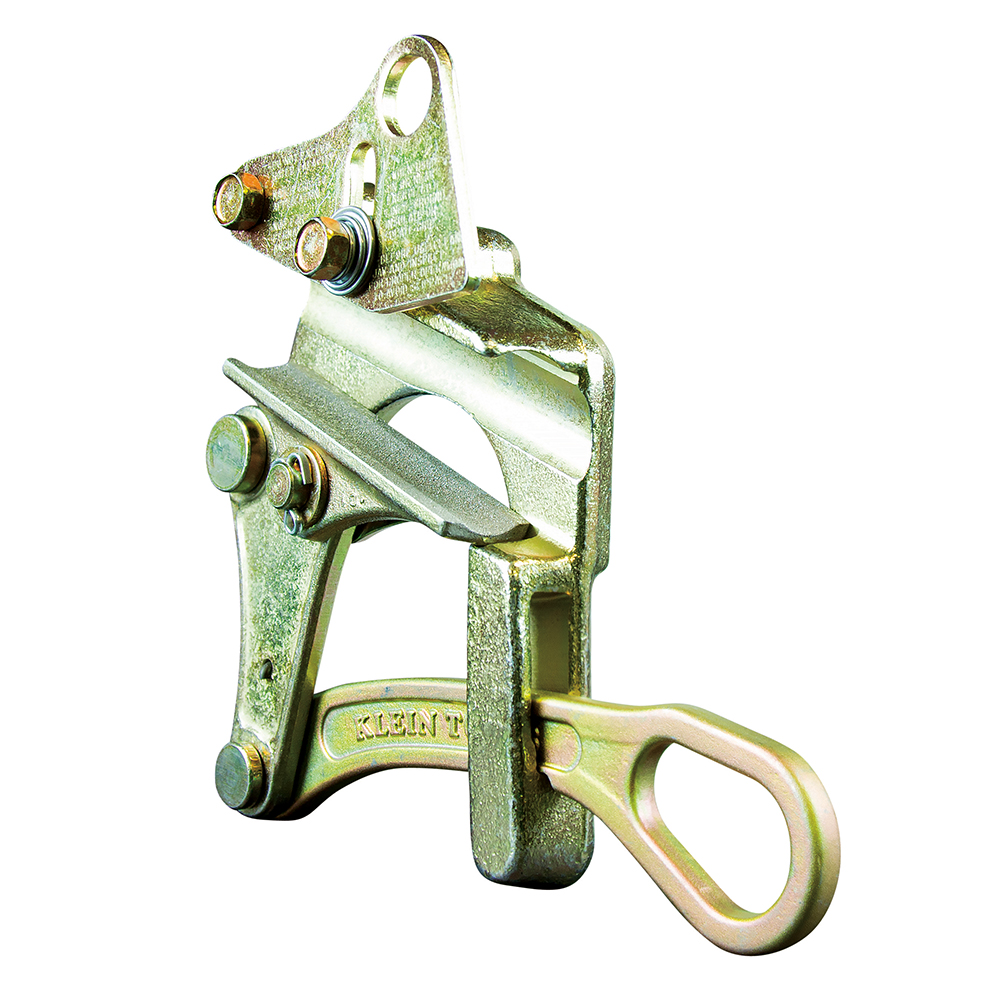

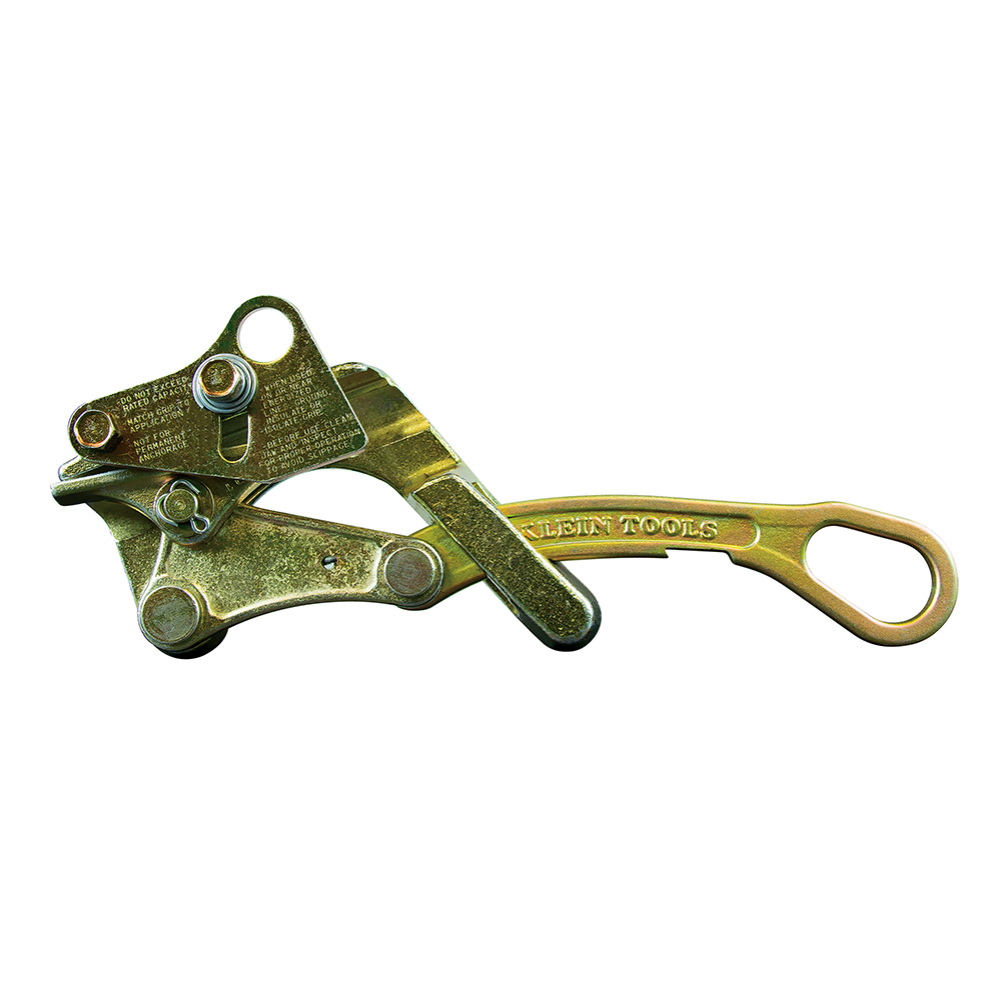

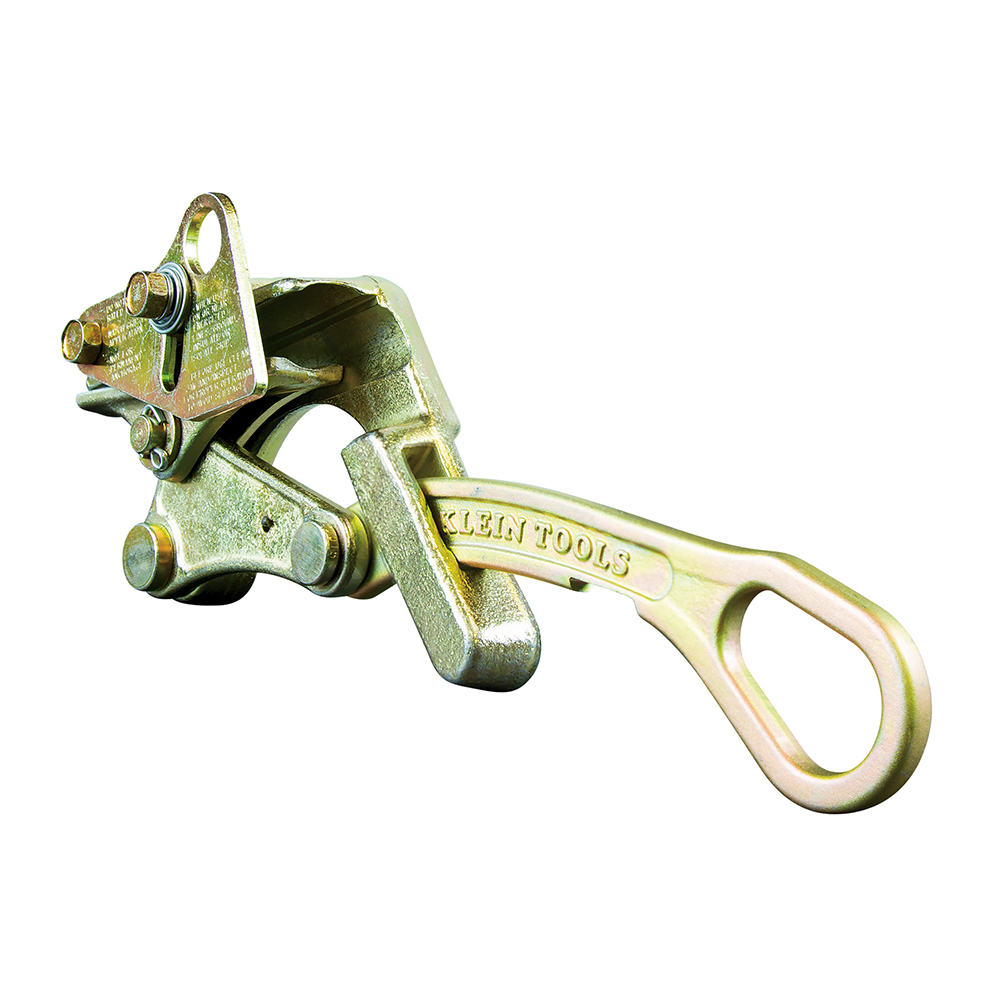

Parallel Jaw Grip - Lock, HDPE Wire to 1.362-Inch

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Features

• Tough carbide grit technology withstands even the harshest jobsite conditions
• Hendrix® is a registered trademark of Marmon Utility, LLC

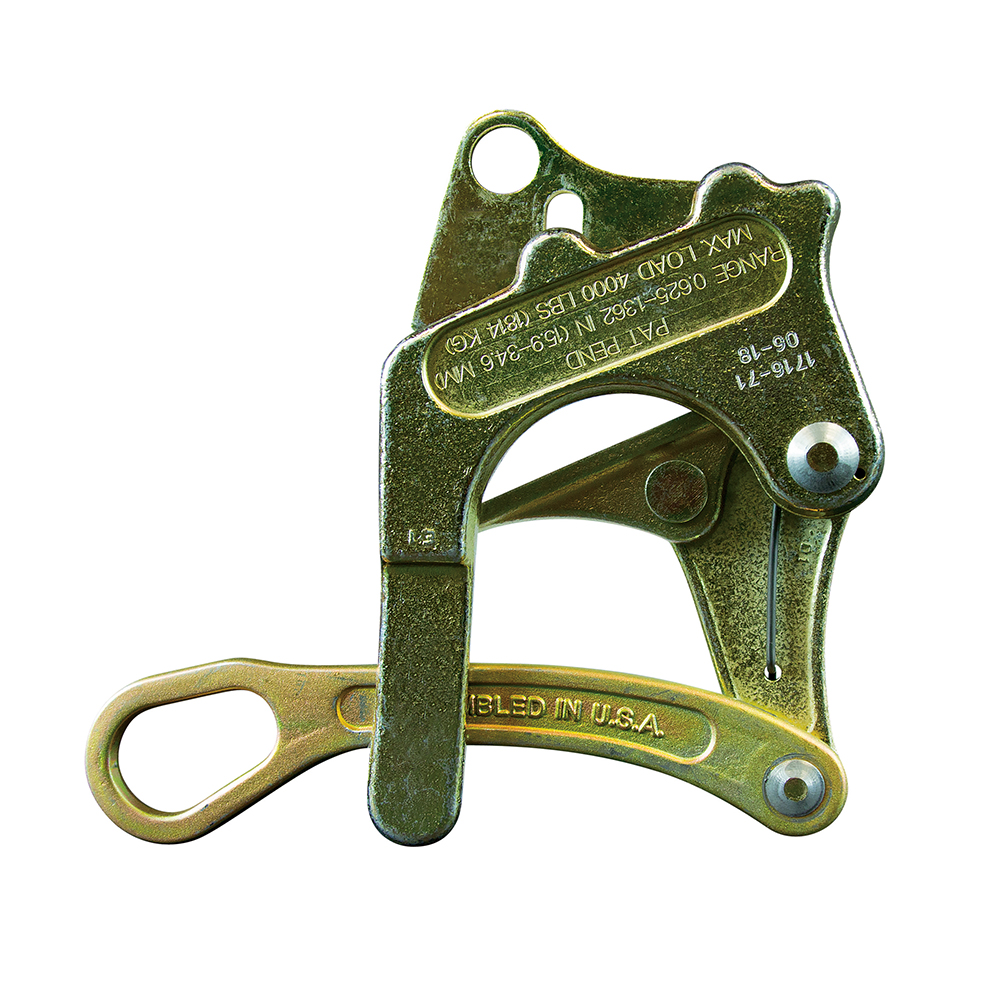

• 4,000-Pound (1814 kg) maximum safe load

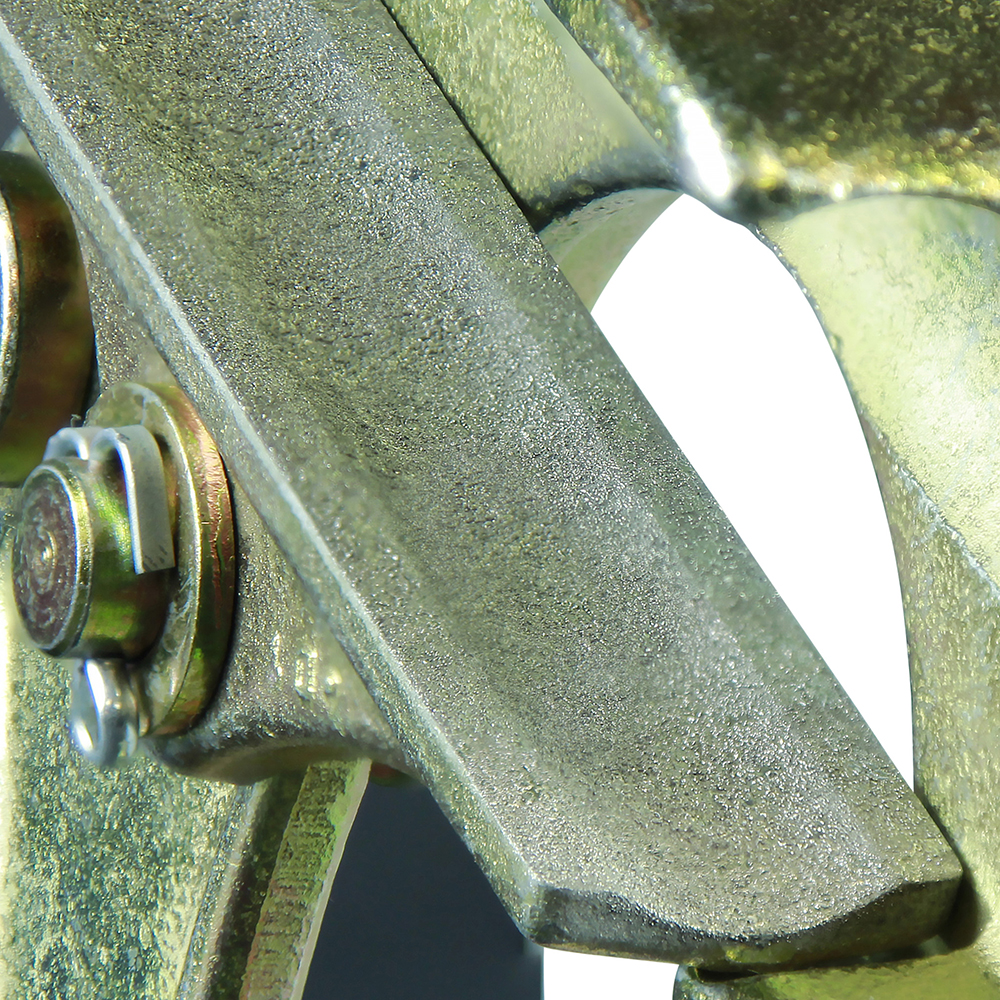

• Innovative high-traction surface grips the cable without damaging the outer jacket
• Spring-loaded for one-handed operation and easy placement on the conductor

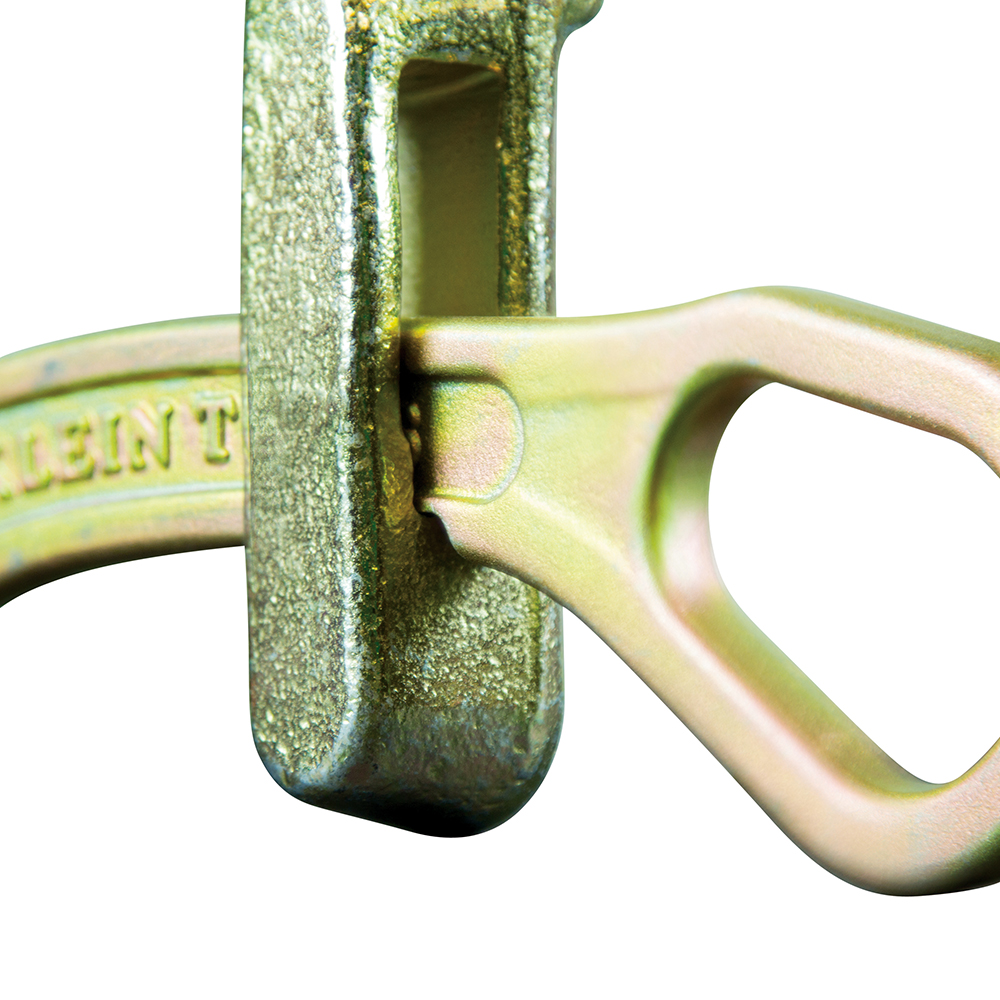

• Locking handle keeps jaw open while using hot stick to place grip on cable
• Securely pulls HDPE-coated cable commonly known as tree wire
• Pulls cable diameters 0.625-Inch to 1.362-Inches (15.9 to 35.0 mm)
• High Traction Grip Surface, Lock
• Common tree wire cable types include general cable, Hendrix® aerial systems, rite lite BLL conductor and Southwire® S2 covered cable
• Southwire® is a registered trademark of Southwire Company, LLC

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Locking Handle: Yes
• Hot Latch: Yes
• Jaw Length (Inch): 4.5
• Height: 2.9250 in
• Overall Width (cm): 17.7
• Maximum Safe Load (lb): 4000
• Overall Width (Inch): 6.975
• Spring: Yes
• Jaw Type: Round
• Weight: 5.0750 lbs
• Overall Length (cm): 33.1
• Overall Height (cm): 21.6
• Overall Length (Inch): 13.05
• Material: Steel
• Weight (lb): 5.1
• Cable Type: HDPE-Coated
• Teeth Type: Grit
• Overall Height (Inch): 8.5
• Width: 6.9750 in
• Cable Diameter: 0.625" to 1.362" (15.9 to 34.6 mm)
• Standard: OSHA
• Jaw Length (cm): 11.4
• Type: Parallel Jaw Grip
• Weight (kg): 2.3
• Depth: 13.0500 in
• Swing Latch: No
• Application: Wire Pulling
• Maximum Safe Load (kg): 1814.4
