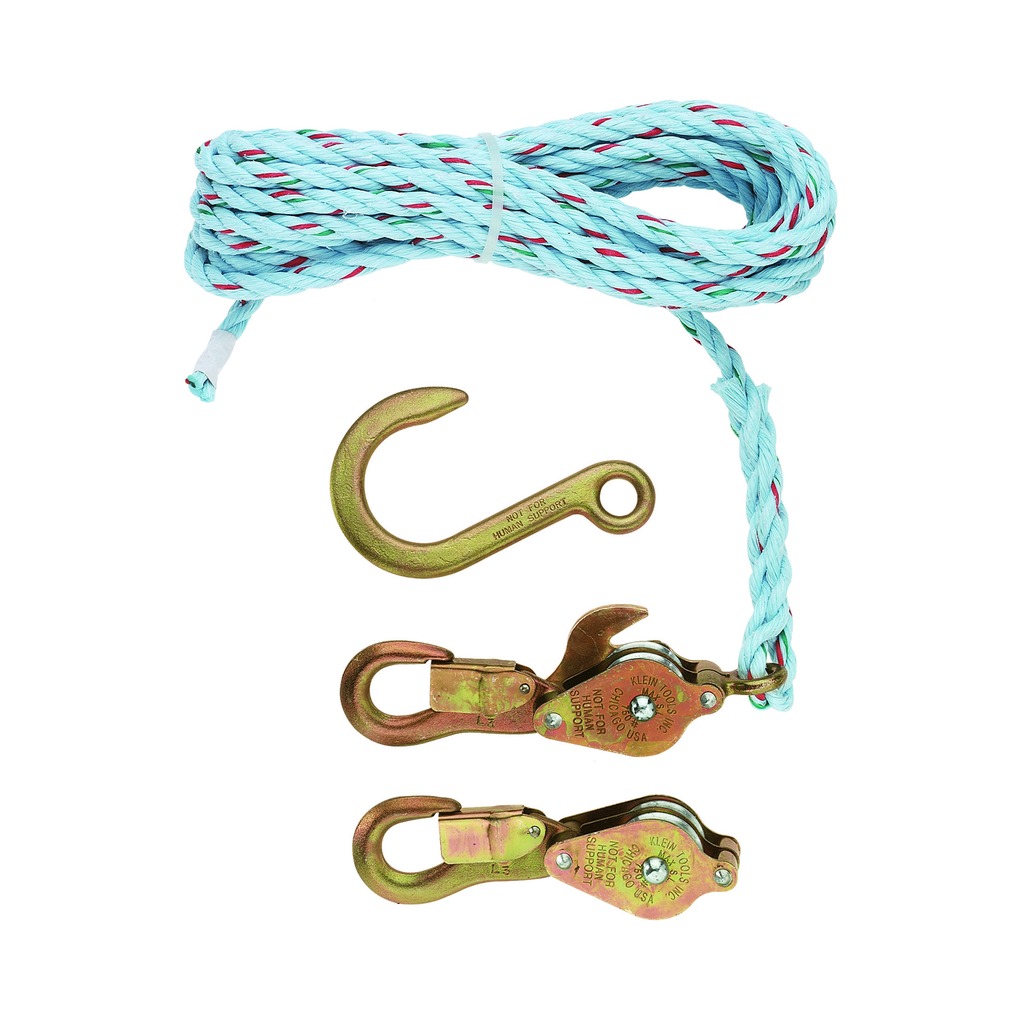

Block and Tackle Spliced to Cat. No. 268 Block

Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings. Available with standard snap hooks or guarded snap hooks (with snap hook nose lengthened to extend over the latch or keeper).

Features

• Made in USA
• Catalog numbers followed by S/R have rope spliced to block
• Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
• Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
• All Klein block and tackle use high-quality, 3/8-Inch (10 mm) diameter rope
• Maximum safe load is 750-pound (340 kg)
• 25-Foot (7.62 m) rope length
• Forged hook Cat. No. 258
• These are NOT occupational protective hooks. NOT for human support
• Hooks fit under insulator and engage pin on cross arm

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

Specifications

• Weight (lb): 2.8
• Maximum Safe Load (kg): 340.2
• Weight (kg): 1.3
• Overall Length (Inch): 12.096
• Rope Length (Feet): 25
• Maximum Safe Load (lb): 750
• Overall Height (cm): 13.2
• Overall Height (Inch): 5.189
• Overall Width (Inch): 4.5
• Width: 4.5000 in
• Rope Diameter: 3/8" (9.53 mm)
• Rope Length (m): 7.6
• Overall Length (cm): 30.7
• Height: 5.1890 in
• Rope Material: Nylon
• Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
• Overall Width (cm): 11.4
• Hook Type: Standard
• Included: 268 Block; 258 Hook; 3/8" (10 mm) Diameter 25' (7.6 m) Rope
• Depth: 12.0960 in
• Weight: 2.7500 lbs
