Block and Tackle 259 Anchor Hook Spliced

All Klein block and tackle use high-quality, 3/8-Inch (10 mm) diameter rope. Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. This package features two blocks with a swivel Klein hook Cat. No. 259 with a maximum safe load of 750-pound (340 kg).

Features

• 3/8-Inch (10 mm) diameter rope, 25-Foot (7.62 m) rope length
• Maximum safe load is 750-pound (340 kg)
• Hooks fit under insulator and engage pin on cross arm
• These are NOT occupational protective hooks. NOT for human support
• Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
• Swivel hook Cat. No. 259
• Made in USA
• Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

Specifications

• Weight (lb): 2.8
• Maximum Safe Load (kg): 340.2
• Overall Height (cm): 12.6
• Hook Type: Standard
• Height: 4.9500 in
• Depth: 12.1500 in
• Weight (kg): 1.3

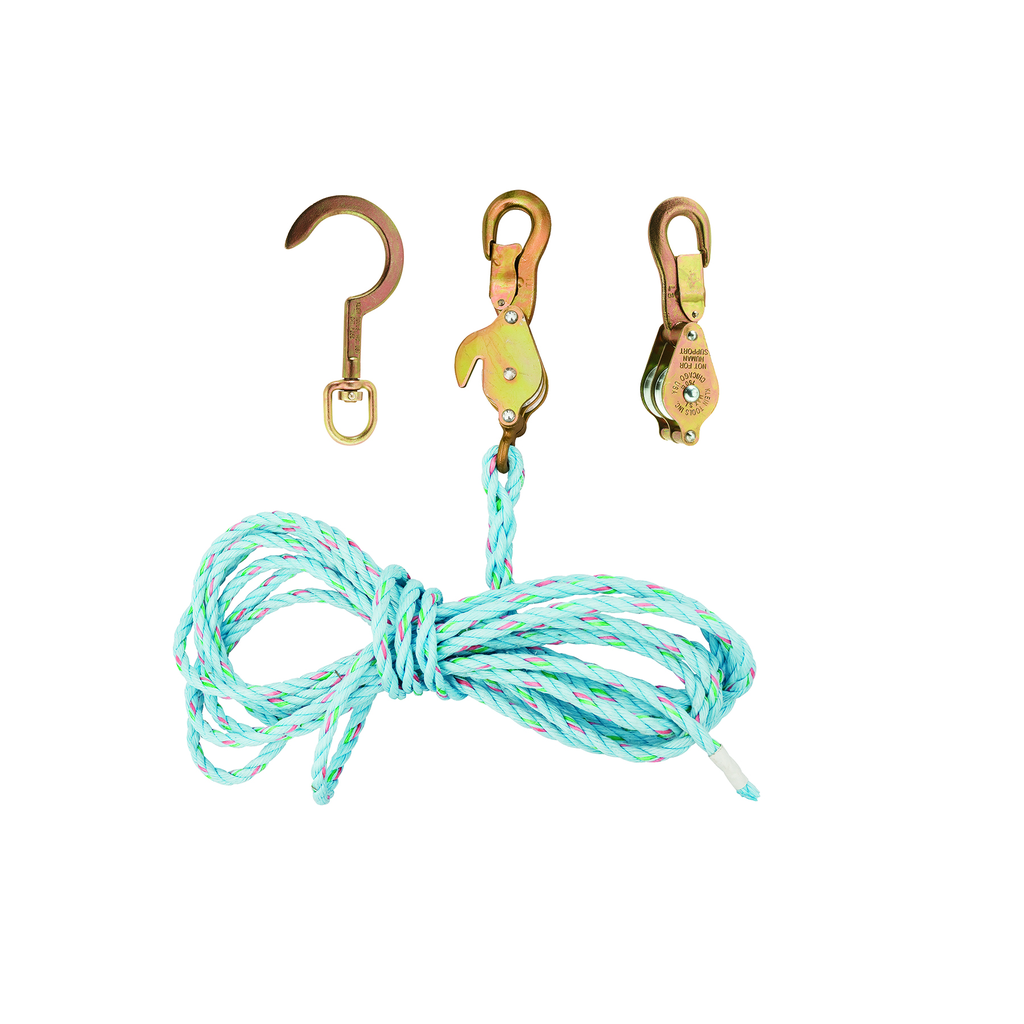

• Included: 268 Block; 259 Swivel Hook; 3/8" (10 mm) Diameter 25' (7.6 m) Rope
• Overall Height (Inch): 4.95
• Overall Length (Inch): 12.15
• Rope Length (m): 7.6
• Rope Length (Feet): 25
• Overall Width (cm): 11.4
• Weight: 2.7500 lbs
• Maximum Safe Load (lb): 750
• Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
• Width: 4.5000 in
• Overall Width (Inch): 4.5
• Overall Length (cm): 30.9
• Rope Diameter: 3/8" (9.53 mm)
• Rope Material: Nylon
