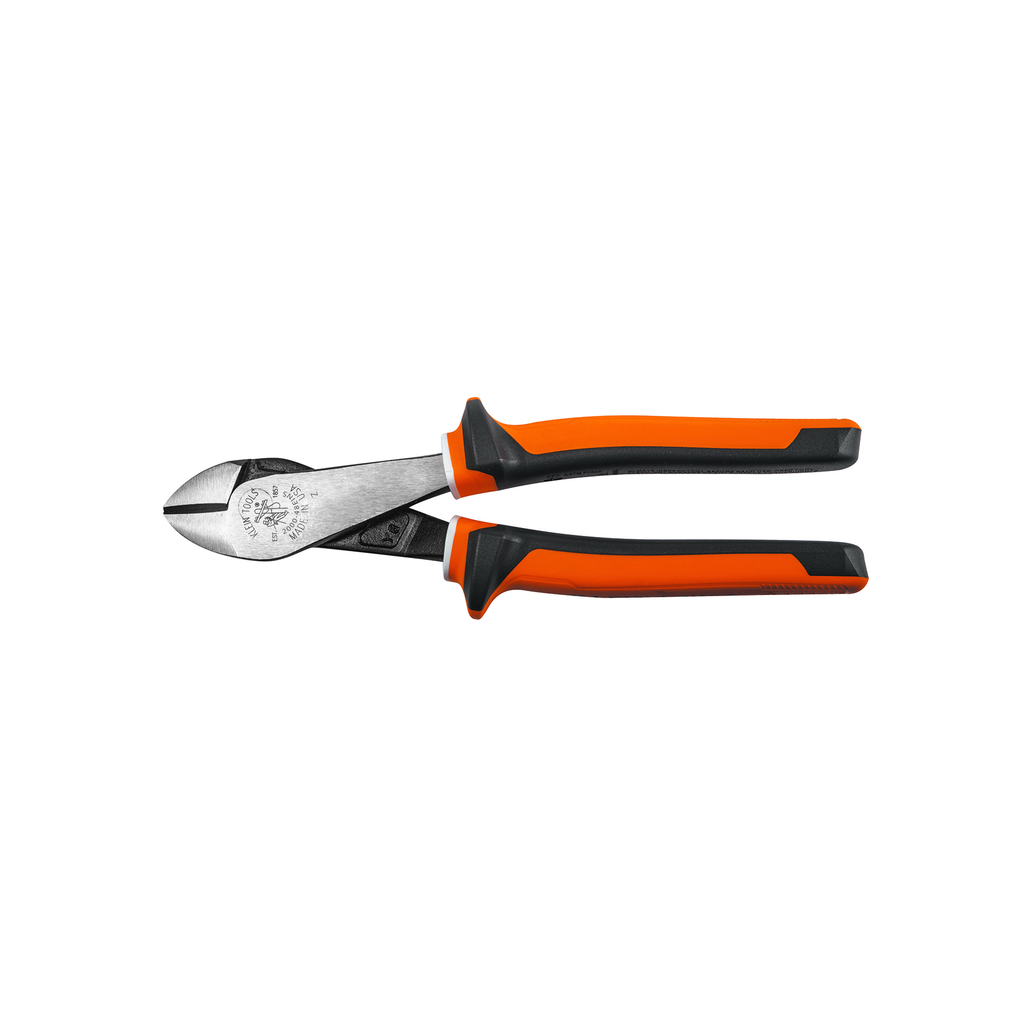

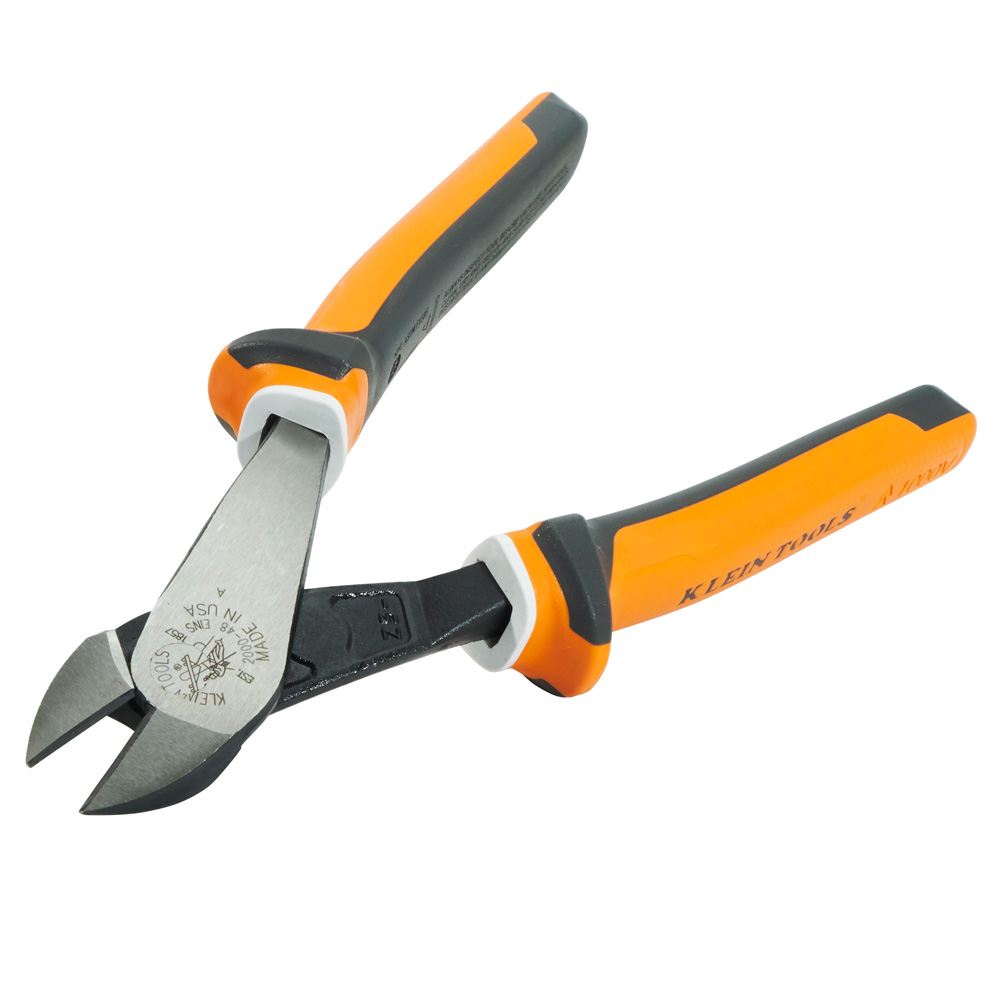

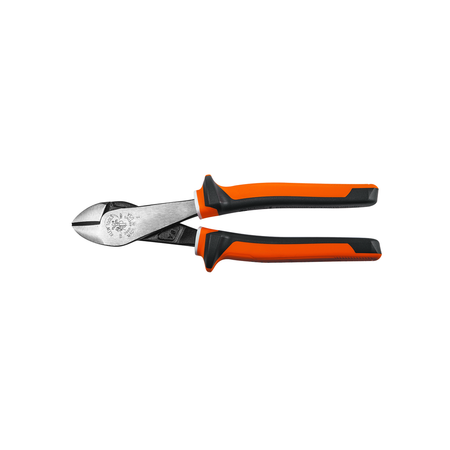

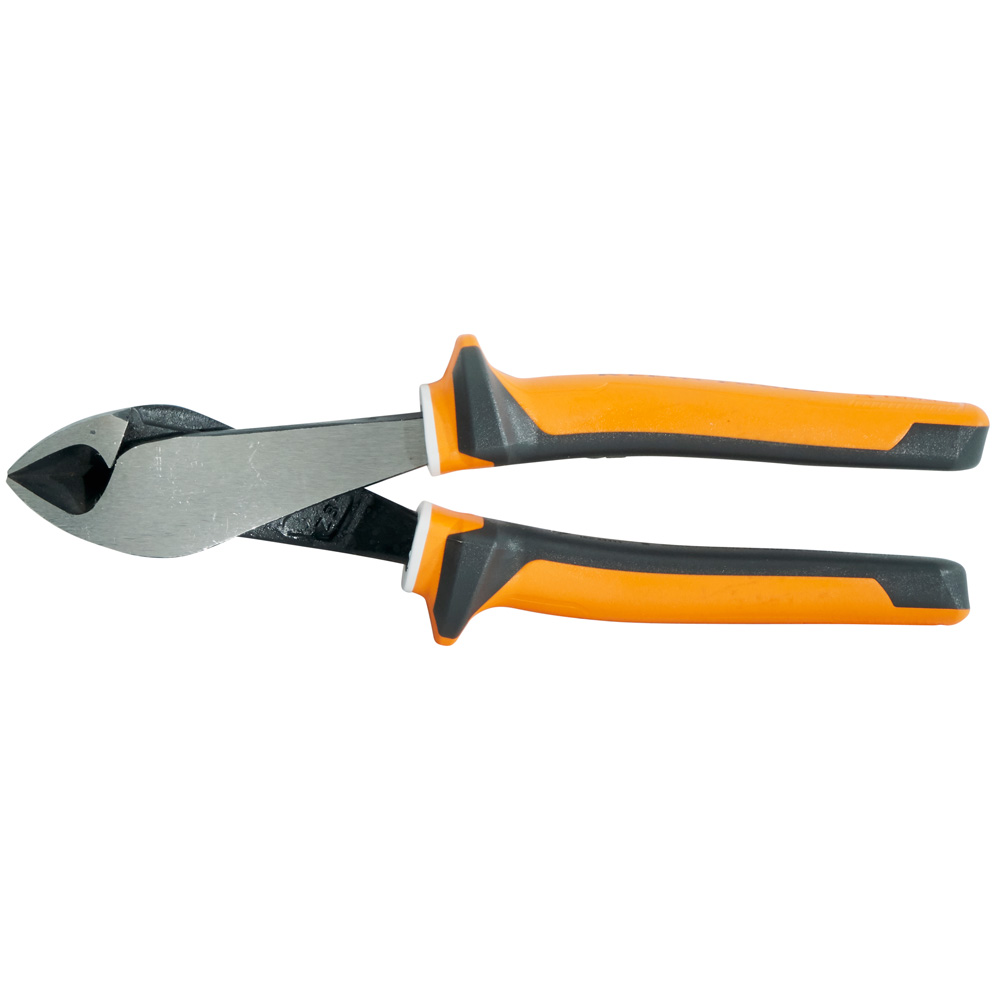

Diagonal Cutting Pliers, Insulated, Angled Head, 8-Inch

Klein Tools 200048EINS Pliers are Electrician's Insulated High-Leverage Diagonal-Cutting pliers with 1000V rated grips and VDE certification for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Features

• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt
• Induction hardened for long life
• Flame Retardant and Impact Resistant Handle
• Hot-riveted joint for smooth action and no handle wobble
• Cuts ACSR, screws, nails and most hardened wire. Induction hardened for long life
• Made in USA

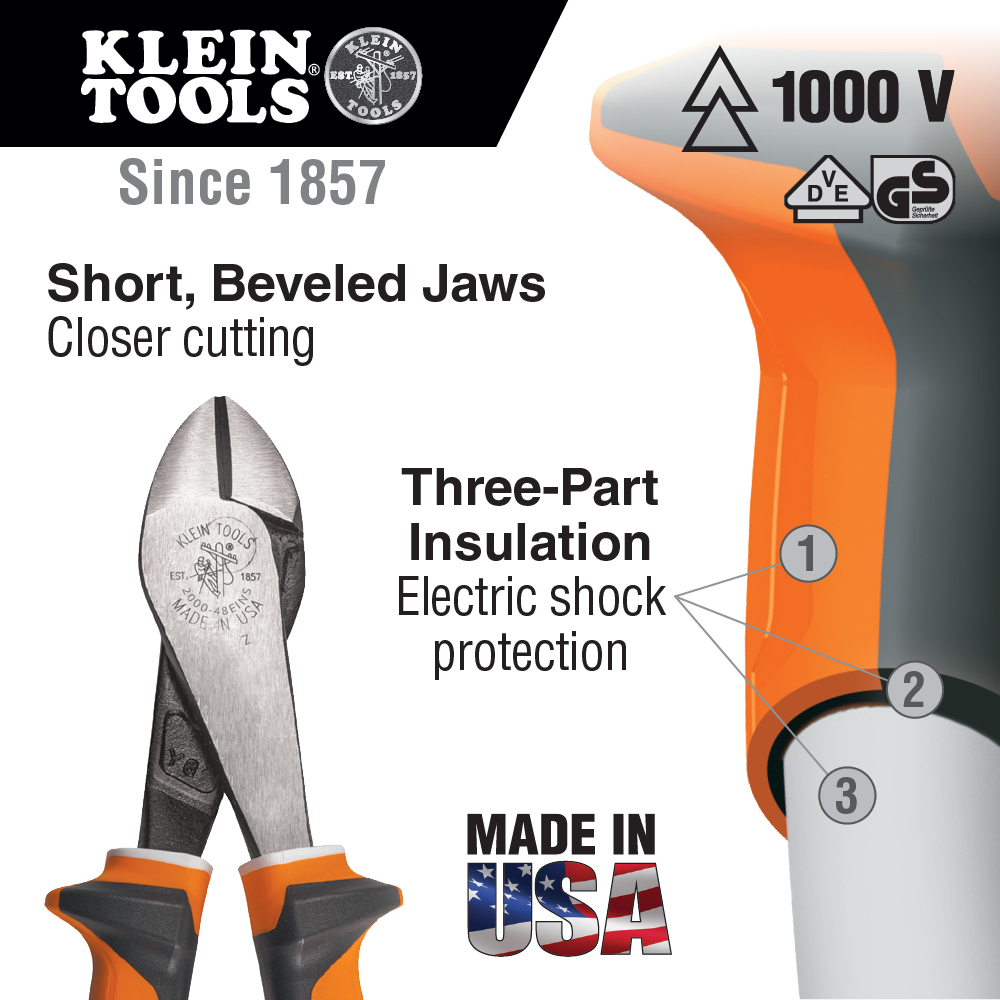

• Insulated pliers are 1000V Rated for safety on the job and VDE Certified with unique three-part insulation with white underlayer that provides a warning sign when insulation may be compromised
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always inspect your tools before use.
• Destroy tool if the insulation is damaged in any way.
• Always wear approved eye protection.

Specifications

• Material: Induction Hardened Steel
• Overall Length (cm): 20.7
• Weight (g): 318
• Nose Type: Angled
• Application: ACSR, Screws, Nails and Most Hardened Wire
• Handle Color: Orange/Gray
• Handle Length (cm): 12.2
• Jaw Thickness (Inch): 0.48
• Weight (oz): 11.2
• Handle Length (Inch): 4.8
• Depth: 8.2500 in
• Jaw Width (Inch): 1.25
• Cut Style: Diagonal-Cutting
• Standard: IEC 60900 and ASTM F1505
• Cutting Knives: Standard
• Type: Diagonal Cutting Pliers
• Jaw Length (cm): 2.1
• Insulated: Yes
• Jaw Width (cm): 3.2
• Jaw Thickness (cm): 1.2
• Overall Length (Inch): 8.15
• Weight: 0.7000 lbs
• Width: 2.0000 in
• Jaw Length (Inch): 0.813
• Handle Finish: 3-Layer Insulation
• Joint Type: Hot-Riveted
• Height: 0.4380 in
