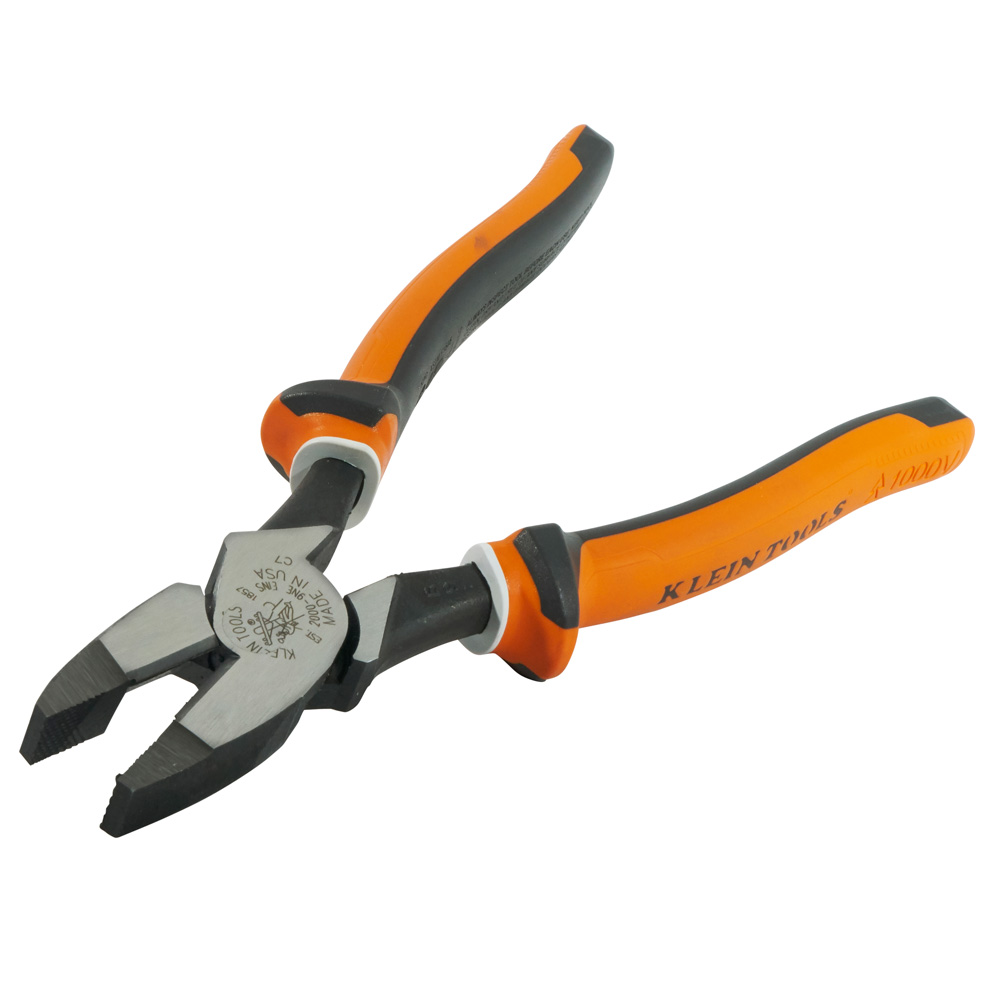

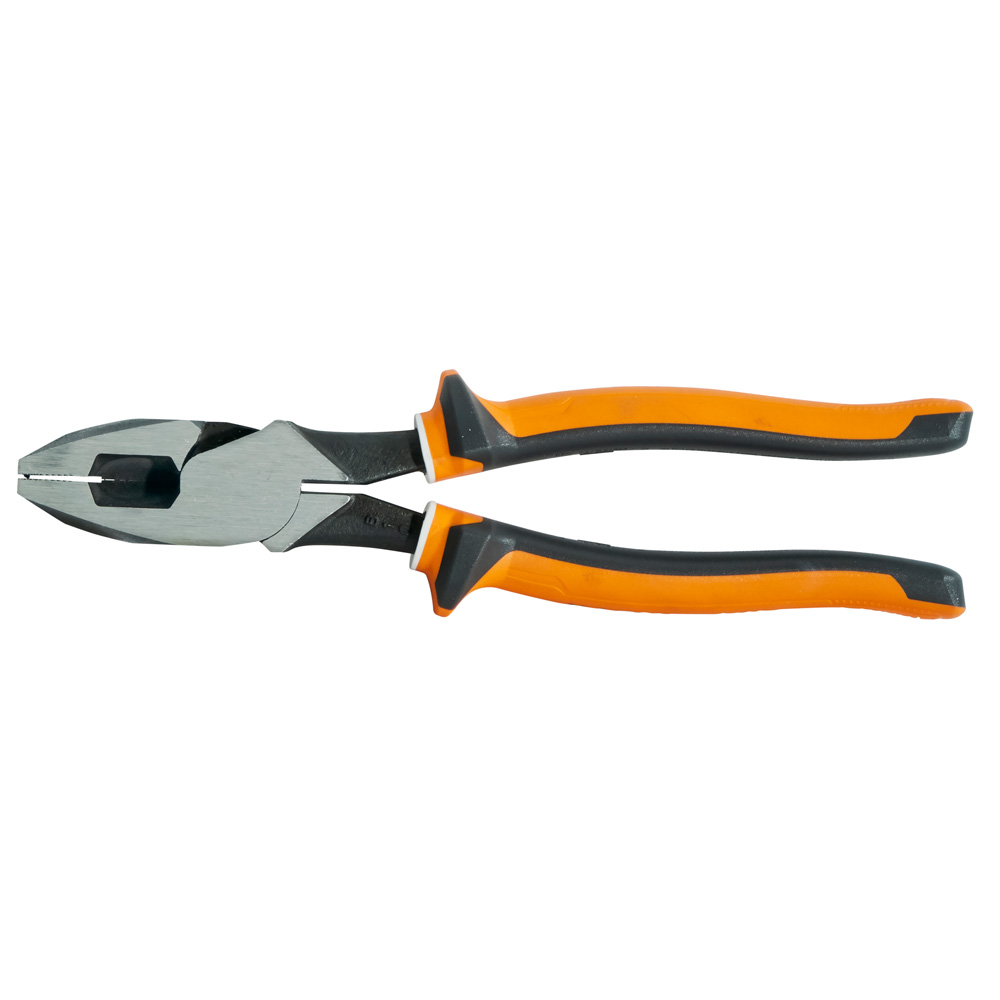

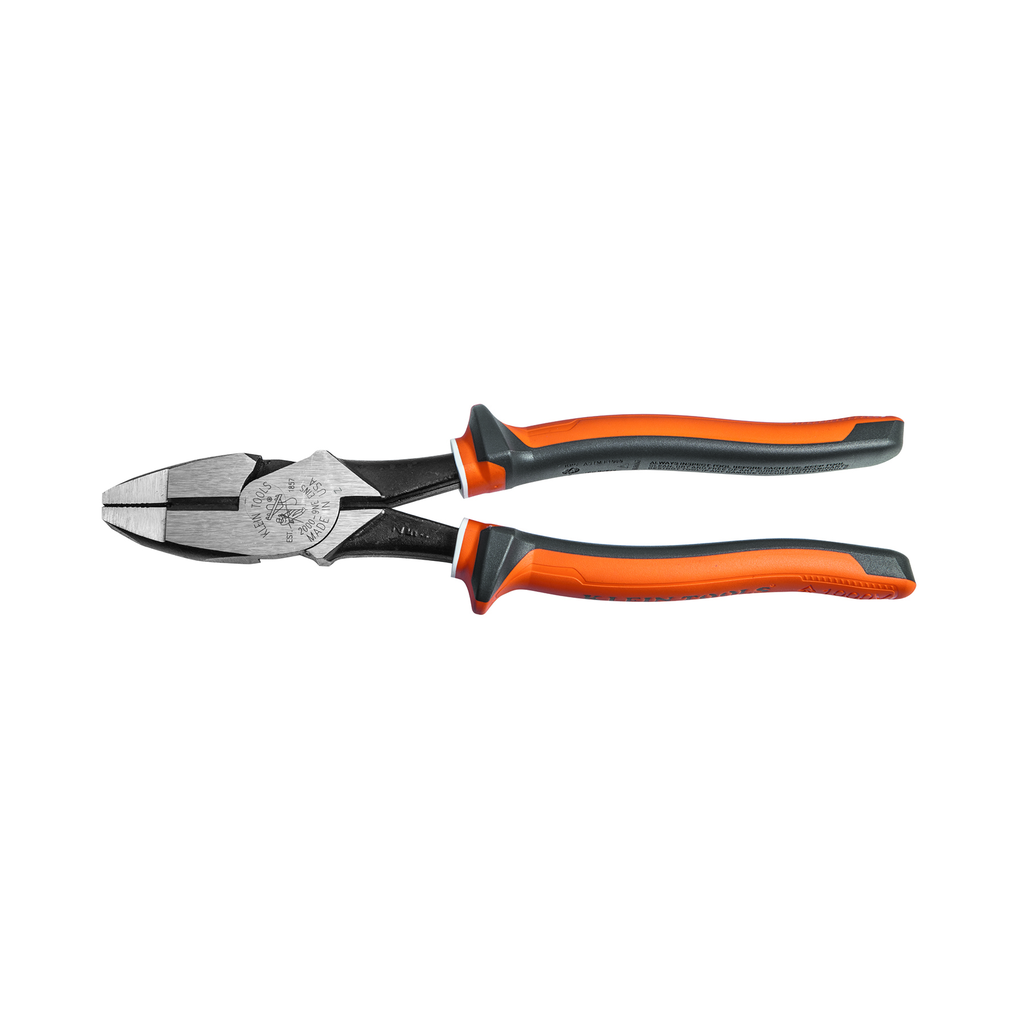

Heavy Duty Side Cutting Pliers Insulated

Klein Tools Electrician's Insulated High-Leverage Side-Cutting pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Features

• Streamlined design with sure-gripping, cross-hatched knurled jaws
• Made in USA
• Cuts ACSR, screws, nails and most hardened wires
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Integral Guards Help Prevent Hand Contact With Conductive Parts
• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
• Insulated pliers are 1000V Rated for safety on the job and VDE Certified with unique three-part insulation with white underlayer that provides a warning sign when insulation may be compromised
• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt

Warnings

• Always inspect your tools before use.
• Destroy tool if the insulation is damaged in any way.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Always wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.

Specifications

• Handle Finish: 3-Layer Insulation
• Weight (g): 590
• Jaw Length (Inch): 1.594
• Jaw Width (cm): 3.2
• Material: Induction Hardened Steel
• Weight: 1.2500 lbs
• Nose Type: New England
• Insulated: Yes
• Overall Length (cm): 24.2
• Handle Color: Orange/Gray
• Jaw Thickness (Inch): 0.613
• Handle Length (Inch): 5.58
• Jaw Width (Inch): 1.25
• Type: Side Cutting Pliers
• Jaw Length (cm): 4
• Cut Style: Side-Cutting
• Overall Length (Inch): 9.53
• Depth: 9.6250 in
• Width: 4.5000 in
• Knife Length (Inch): 0.797
• Weight (oz): 20.8
• Standards: IEC 60900 and ASTM F1505
• Handle Length (cm): 14.2
• Jaw Thickness (cm): 1.6
• Height: 0.6250 in
• Application: ACSR, Screws, Nails and Most Hardened Wires
• Joint Type: Hot-Riveted
• Knife Length (cm): 2
