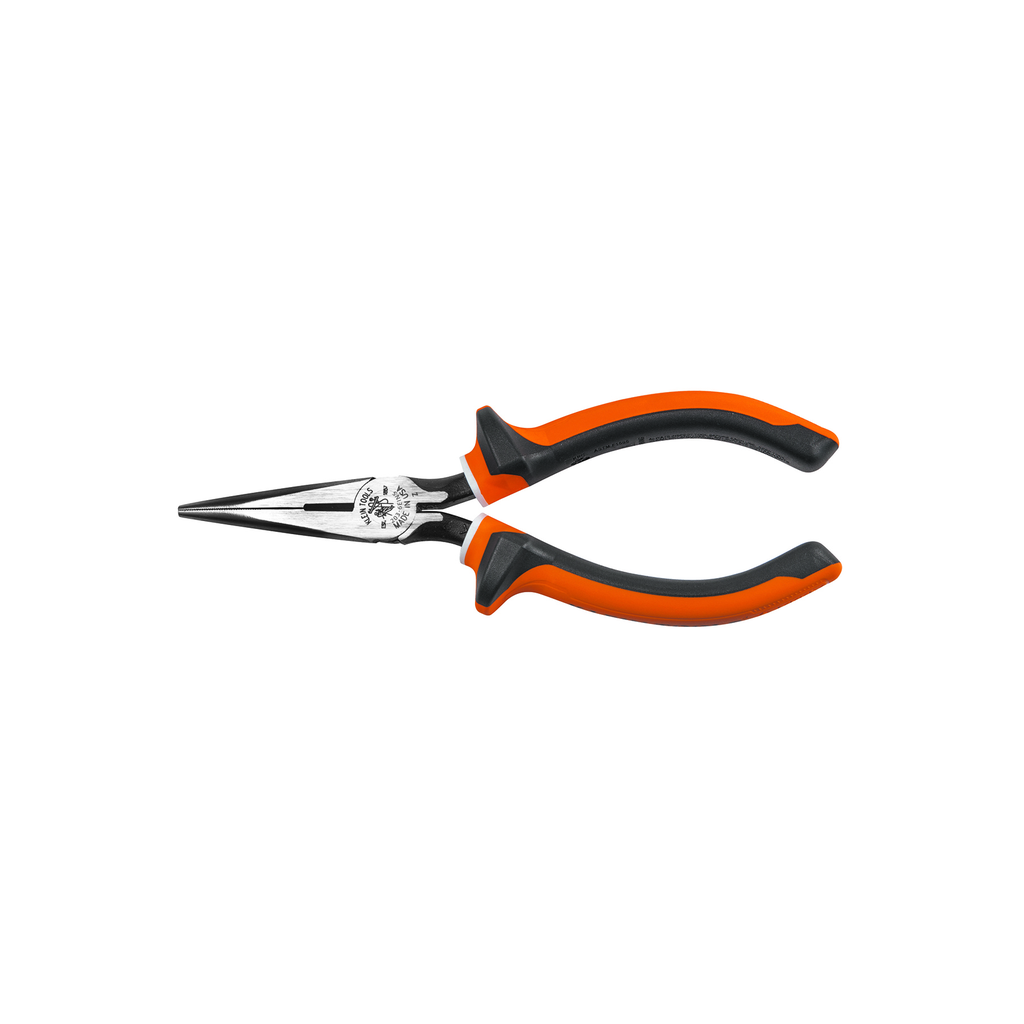

Long Nose Side Cutter Pliers 6-Inch Slim Insulated

Klein Tools Electrician's Insulated Long Nose Side-Cutting pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Destroy tool if the insulation is damaged in any way.
• Keep tool clean, dry and free of any surface contaminants.
• Always inspect your tools before use.
• Always wear approved eye protection.

Features

• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt
• Extended handles provide added reach and leverage

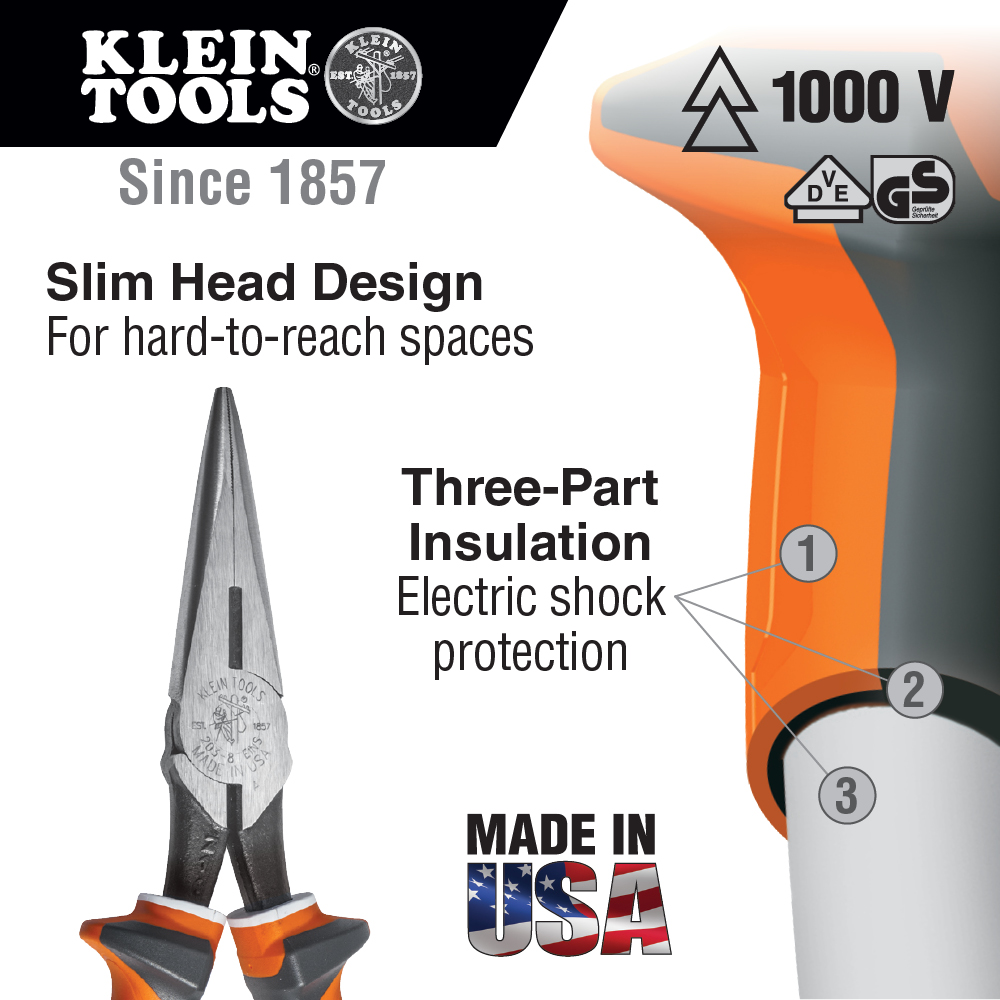

• Insulated pliers are 1000V Rated for safety on the job and VDE Certified with unique three-part insulation with white underlayer that provides a warning sign when insulation may be compromised
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Induction hardened cutting knives for long life
• Forged in the USA with custom, US-made tool steel for maximum durability
• Flame Retardant and Impact Resistant Handle
• Knurled jaws for sure wrapping and looping

Specifications

• Weight: 0.3000 lbs
• Point Diameter (Inch): 0.094
• Handle Length (cm): 9.7
• Handle Finish: 3-Layer Insulation
• Overall Length (Inch): 6.9
• Type: Long Nose Side Cutting Pliers
• Insulated: Yes
• Material: Induction Hardened Steel
• Knife Length (cm): 1.5
• Depth: 6.8750 in
• Knife Length (Inch): 0.572
• Weight (oz): 4.8
• Jaw Width (cm): 1.7
• Handle Length (Inch): 3.8
• Jaw Width (Inch): 0.688
• Point Diameter (cm): 0.2
• Overall Length (cm): 17.5
• Weight (g): 136
• Jaw Capacity (cm): 4.4
• Cut Style: Side-Cutting
• Jaw Capacity (Inch): 1.72
• Application: For Work Near Energized Sources
• Handle Color: Orange/Gray
• Width: 2.2500 in
• Jaw Thickness (cm): 1
• Joint Type: Hot-Riveted
• Height: 0.3750 in
• Jaw Thickness (Inch): 0.375
• Jaw Length (Inch): 1.9
• Standard: IEC 60900 and ASTM F1506
• Jaw Length (cm): 4.8
