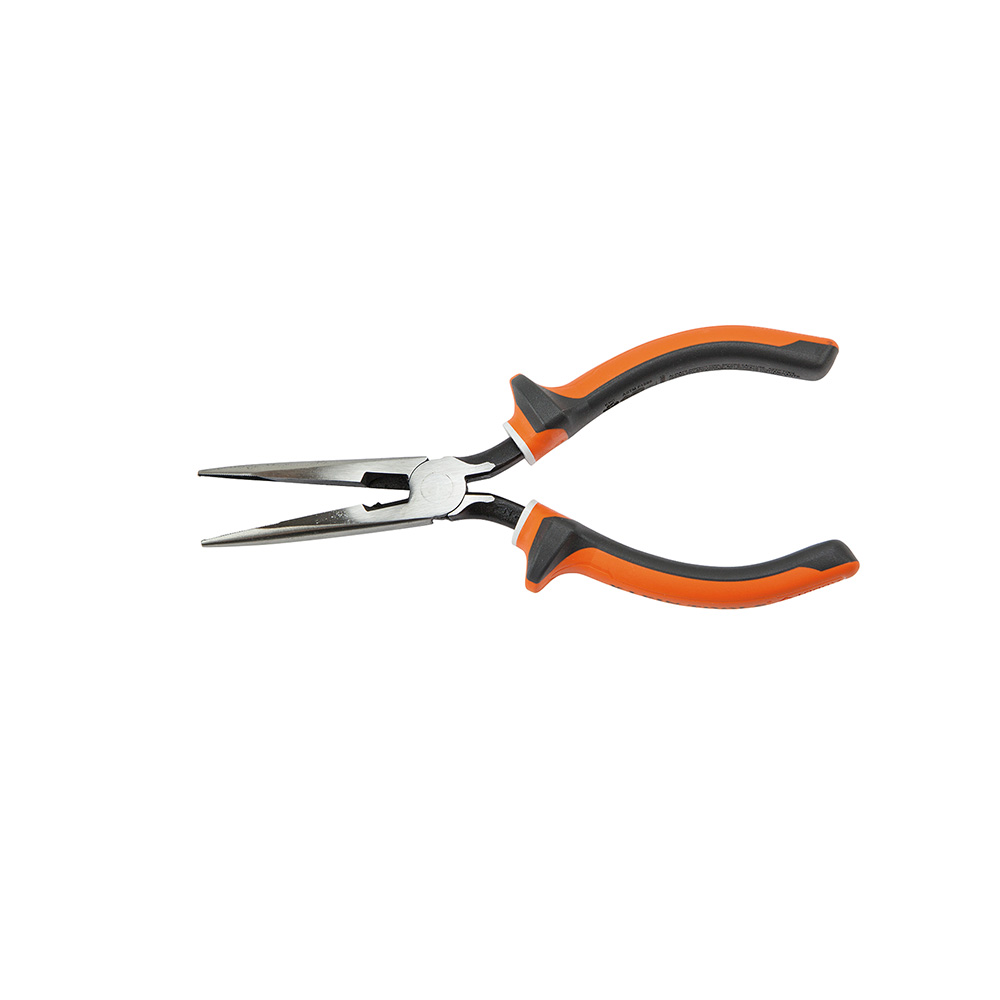

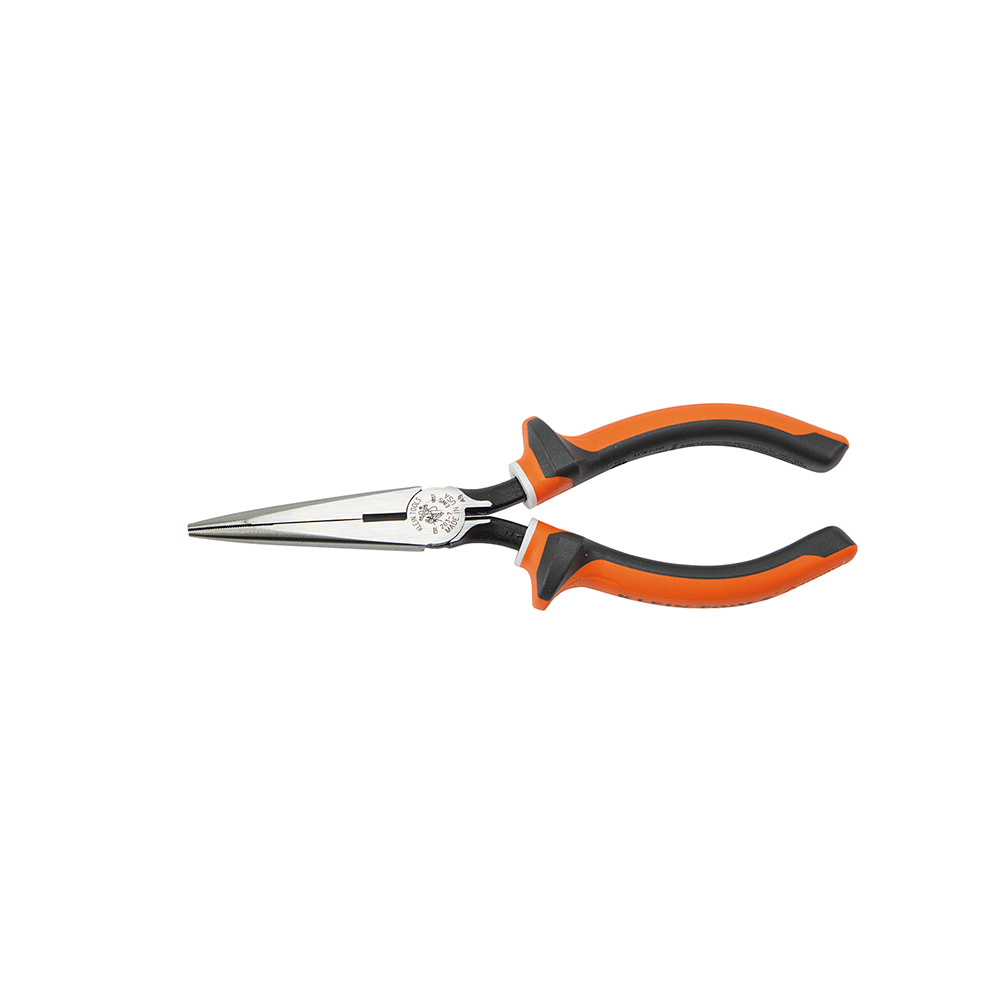

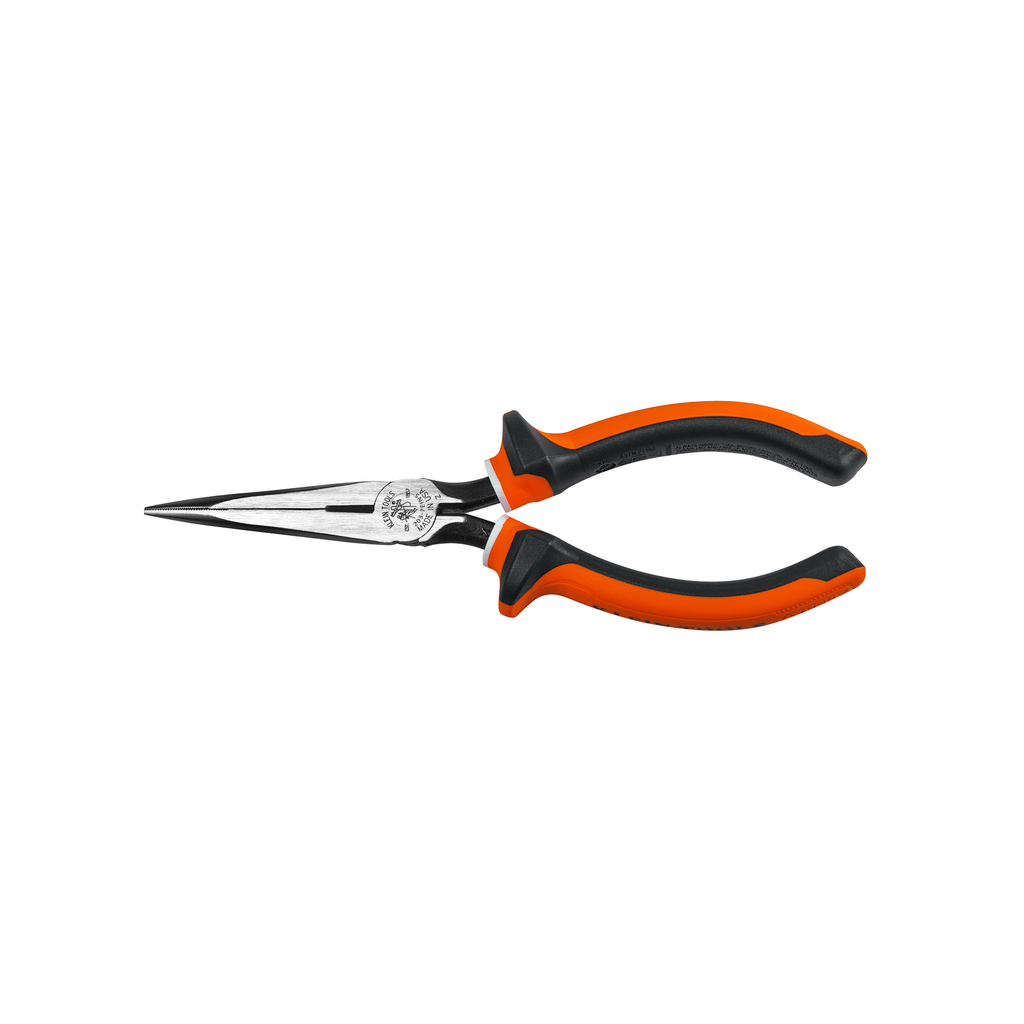

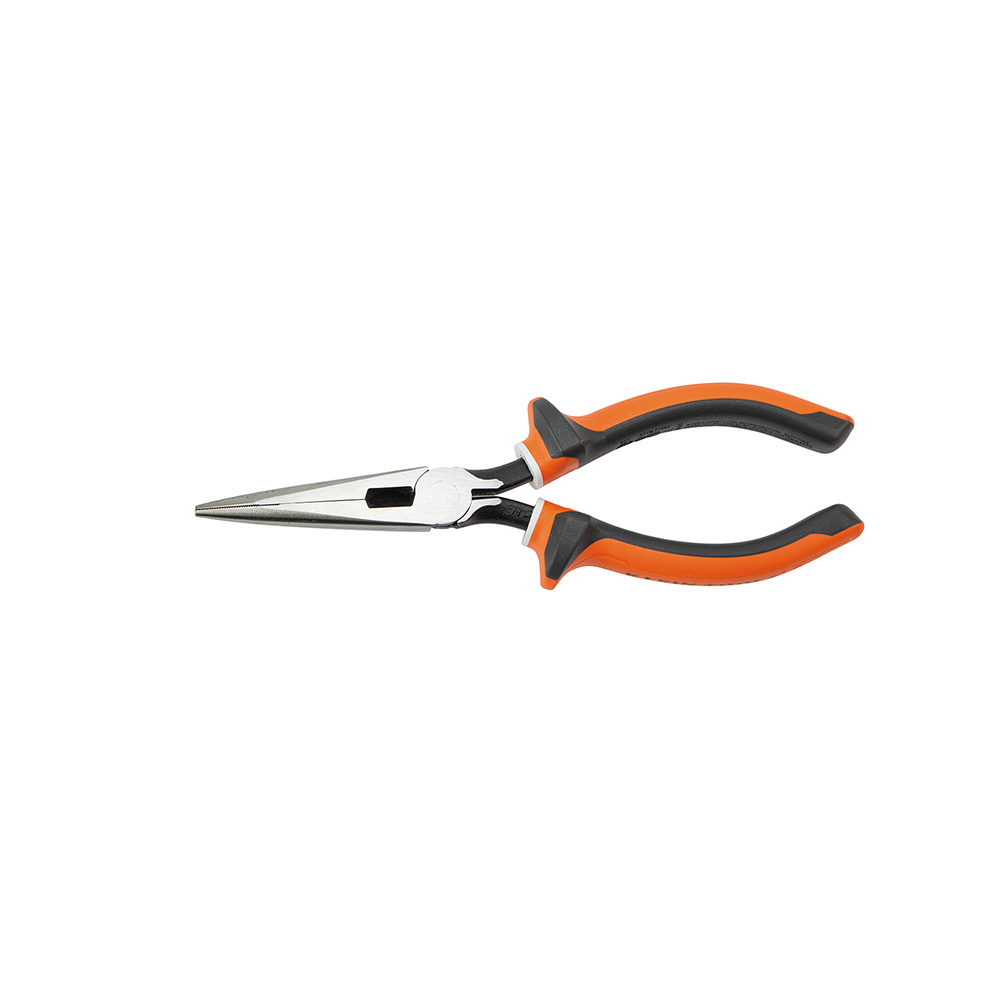

Long Nose Side Cut Pliers, 7-Inch Slim Insulated

Klein Tools Electrician's Insulated Long Nose Side-Cutting pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Destroy tool if the insulation is damaged in any way.
• Always inspect your tools before use.
• Always wear approved eye protection.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

Features

• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Flame Retardant and Impact Resistant Handle
• Forged in the USA with custom, US-made tool steel for maximum durability
• Hot-riveted joint for smooth action and no handle wobble
• Side-cutting knives at hinge
• Induction hardened cutting knives for long life
• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt
• Extended handles provide added reach and leverage

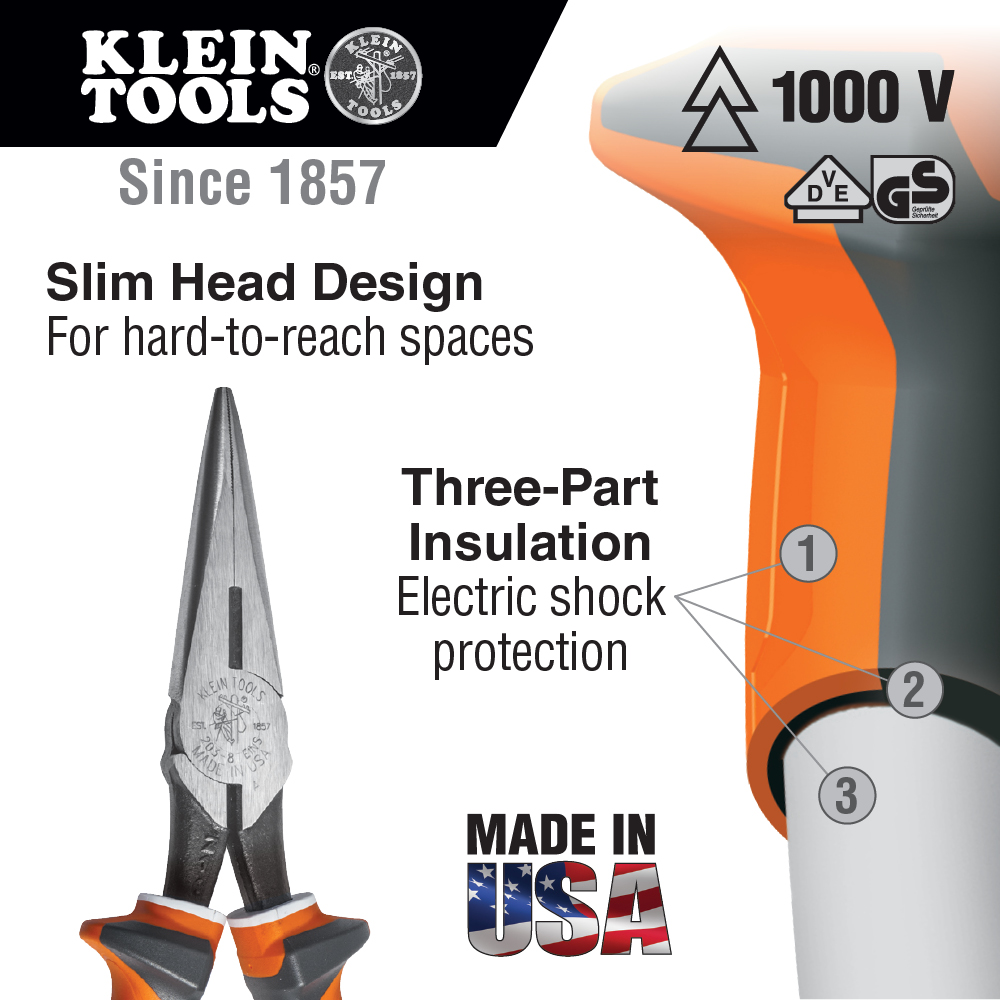

• Insulated pliers are 1000V Rated for safety on the job and VDE Certified with unique three-part insulation with white underlayer that provides a warning sign when insulation may be compromised

Specifications

• Jaw Length (Inch): 2.42
• Jaw Thickness (cm): 1
• Type: Long Nose Side Cutting Pliers
• Material: Induction Hardened Steel
• Point Diameter (Inch): 0.094
• Point Diameter (cm): 0.2
• Knife Length (cm): 1.5
• Jaw Width (cm): 1.7
• Insulated: Yes
• Jaw Width (Inch): 0.688
• Jaw Thickness (Inch): 0.375
• Standard: IEC 60900 and ASTM F1506
• Overall Length (cm): 18.9
• Height: 0.3750 in
• Handle Length (cm): 9.4
• Handle Length (Inch): 3.72
• Application: For Work Near Energized Sources
• Overall Length (Inch): 7.43
• Jaw Length (cm): 6.1
• Handle Color: Orange/Gray
• Handle Finish: 3-Layer Insulation
• Weight: 0.3000 lbs
• Cut Style: Side-Cutting
• Joint Type: Hot-Riveted
• Weight (g): 136
• Weight (oz): 4.8
• Knife Length (Inch): 0.572
• Width: 3.6000 in
• Depth: 7.3750 in
