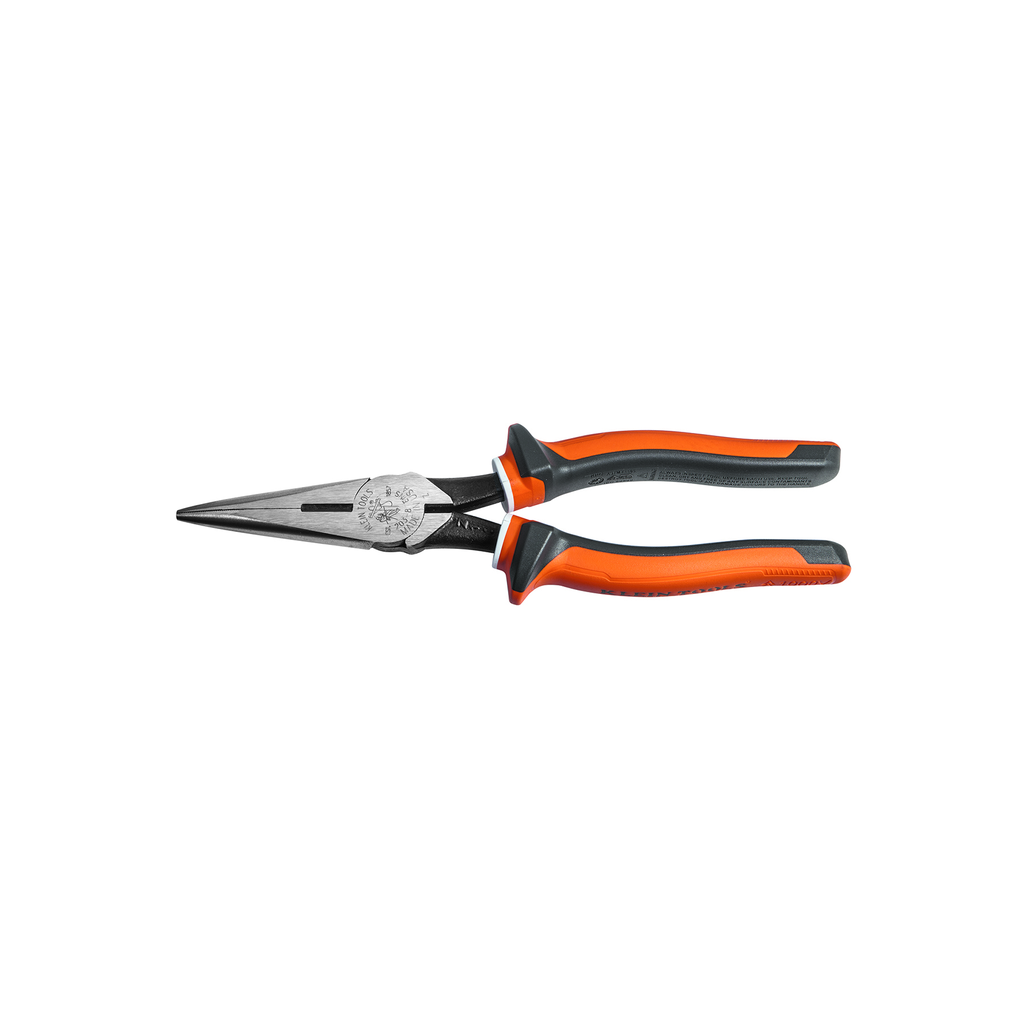

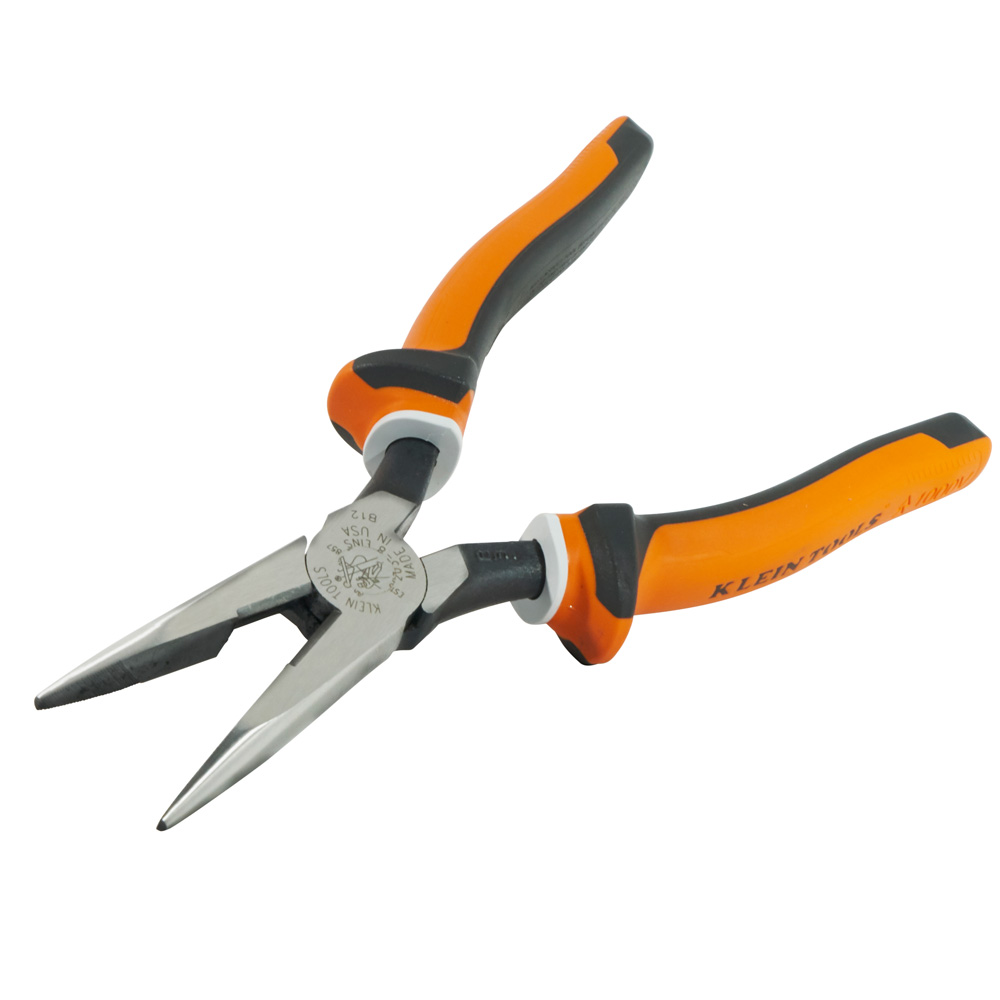

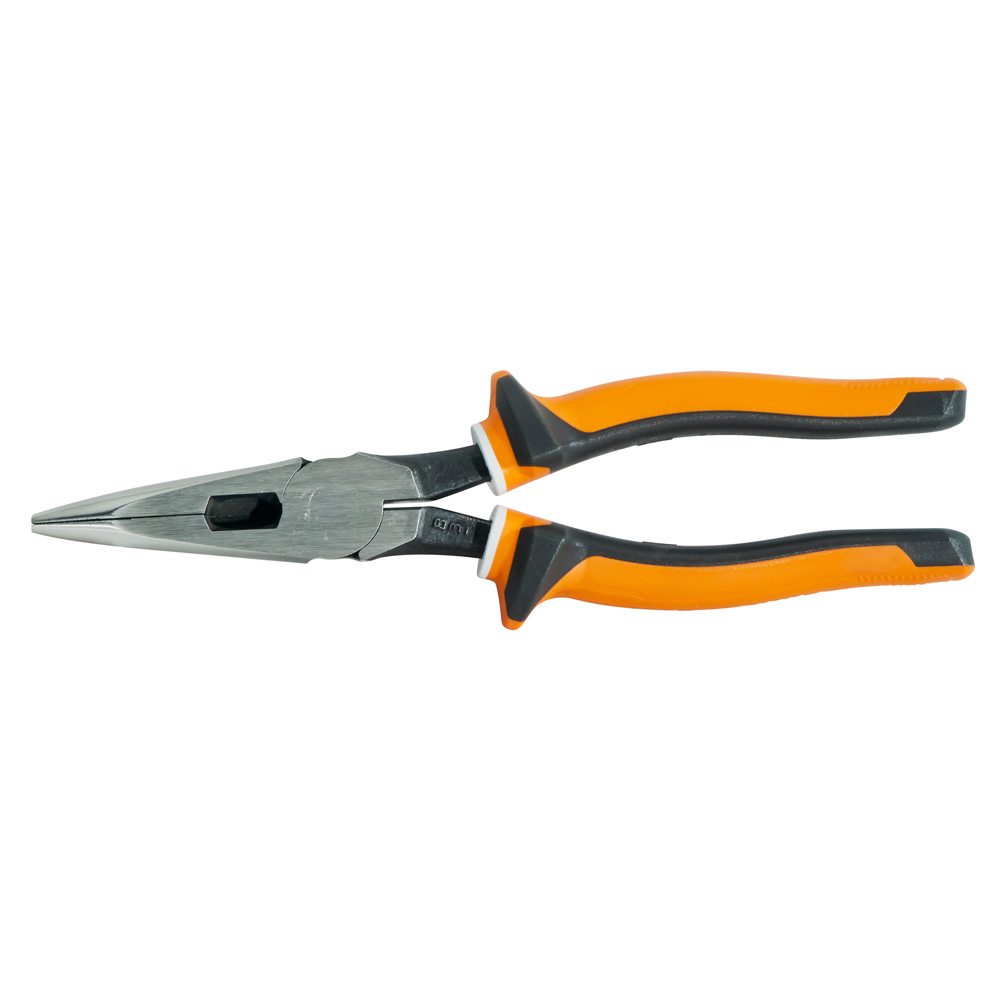

Long Nose Side Cutter Pliers, 8-In Slim Insulated

Klein Tools Electrician's Insulated Long Nose Side-Cutting pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Features

• Extended handles provide added reach and leverage
• Forged in the USA with custom, US-made tool steel for maximum durability
• Hot-riveted joint for smooth action and no handle wobble
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Flame Retardant and Impact Resistant Handle
• Side-cutting knives at hinge
• Induction hardened cutting knives for long life

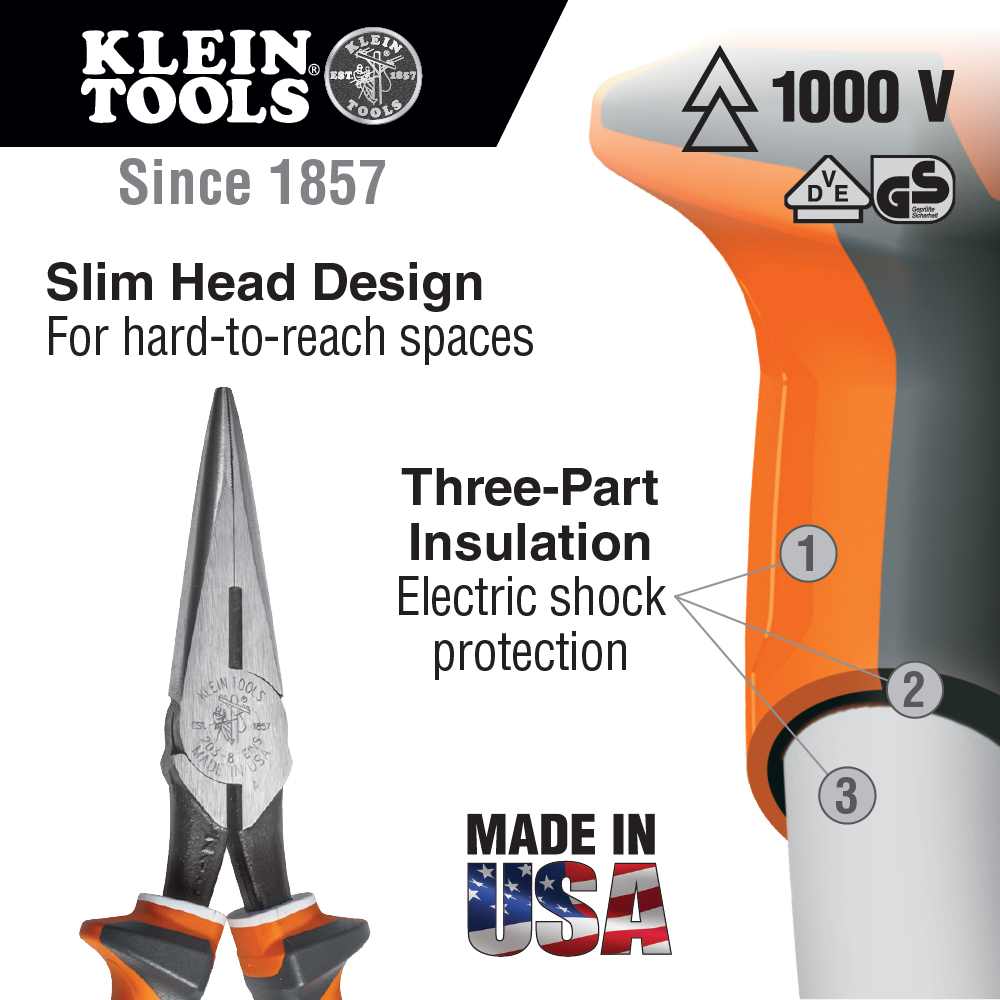

• Insulated pliers are 1000V Rated for safety on the job and VDE Certified with unique three-part insulation with white underlayer that provides a warning sign when insulation may be compromised
• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt

Warnings

• Destroy tool if the insulation is damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always inspect your tools before use.
• Always wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.

Specifications

• Jaw Length (Inch): 2.32
• Overall Length (Inch): 8.77
• Standard: IEC 60900 and ASTM F1506
• Material: Induction Hardened Steel
• Jaw Width (Inch): 1.02
• Application: For Work Near Energized Sources
• Handle Length (Inch): 4.67
• Jaw Length (cm): 5.9
• Point Diameter (Inch): 0.125
• Jaw Capacity (cm): 6
• Knife Length (Inch): 0.693
• Type: Long Nose Side Cutting Pliers
• Overall Length (cm): 22.3
• Weight (oz): 11.2
• Knife Length (cm): 1.8
• Jaw Thickness (Inch): 0.5
• Insulated: Yes
• Joint Type: Hot-Riveted
• Handle Length (cm): 11.9
• Point Diameter (cm): 0.3
• Jaw Width (cm): 2.6
• Jaw Capacity (Inch): 2.36
• Jaw Thickness (cm): 1.3
• Weight (g): 318
• Cut Style: Side-Cutting
• Handle Finish: 3-Layer Insulation
• Depth: 8.8750 in
• Width: 3.9000 in
• Height: 0.5000 in
• Handle Color: Orange/Gray
• Weight: 0.7000 lbs

Downloads

Instructions
