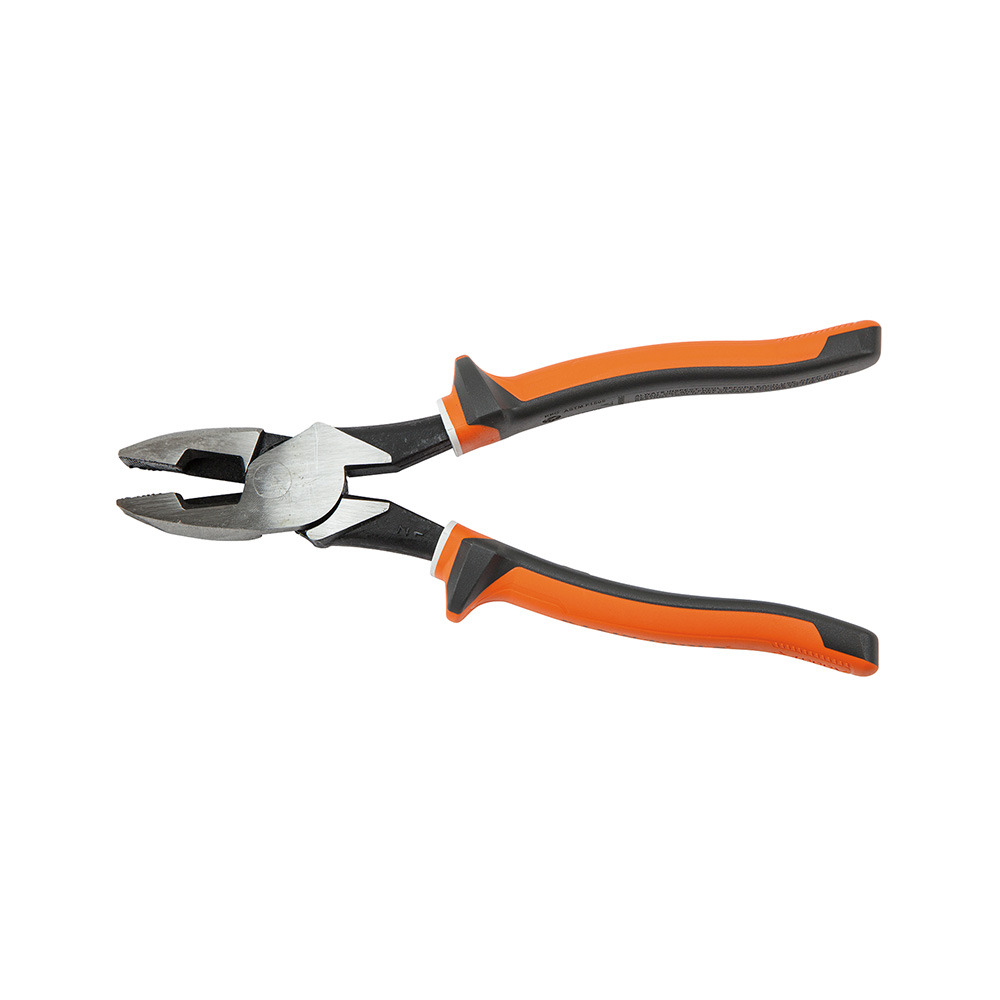

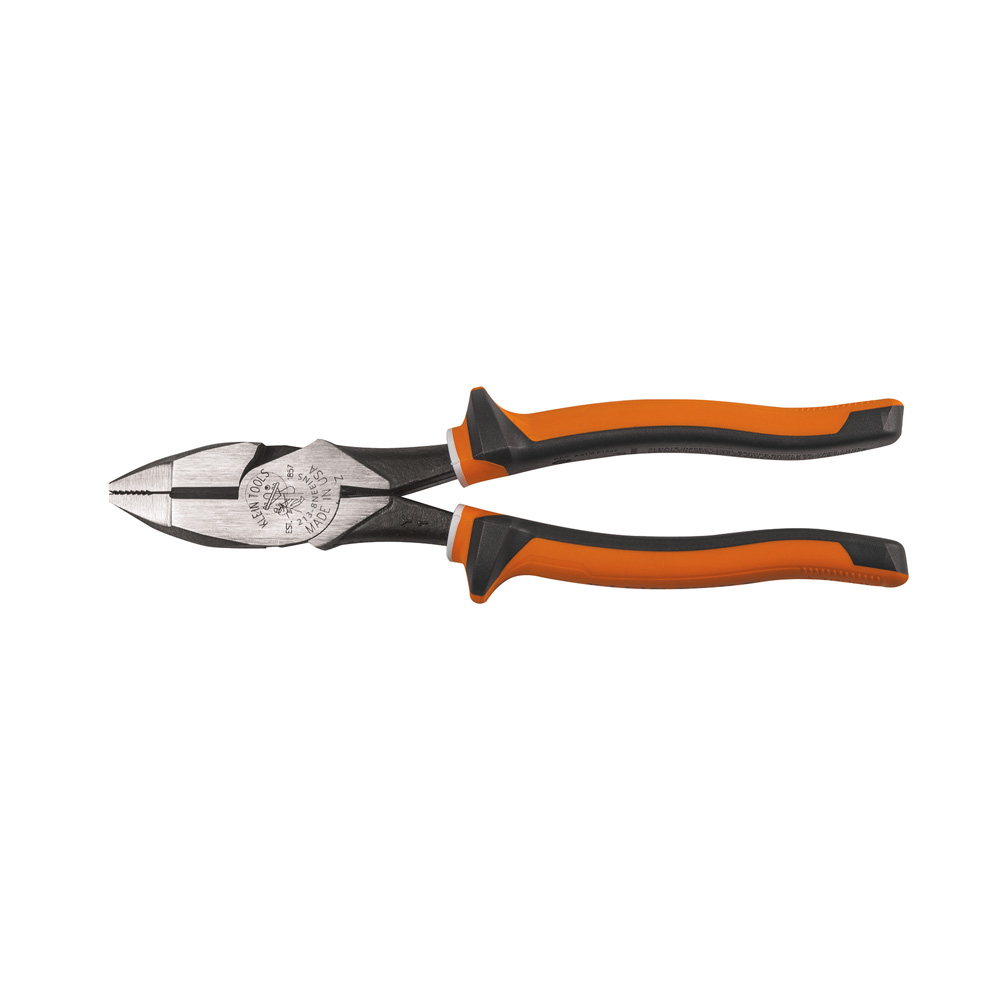

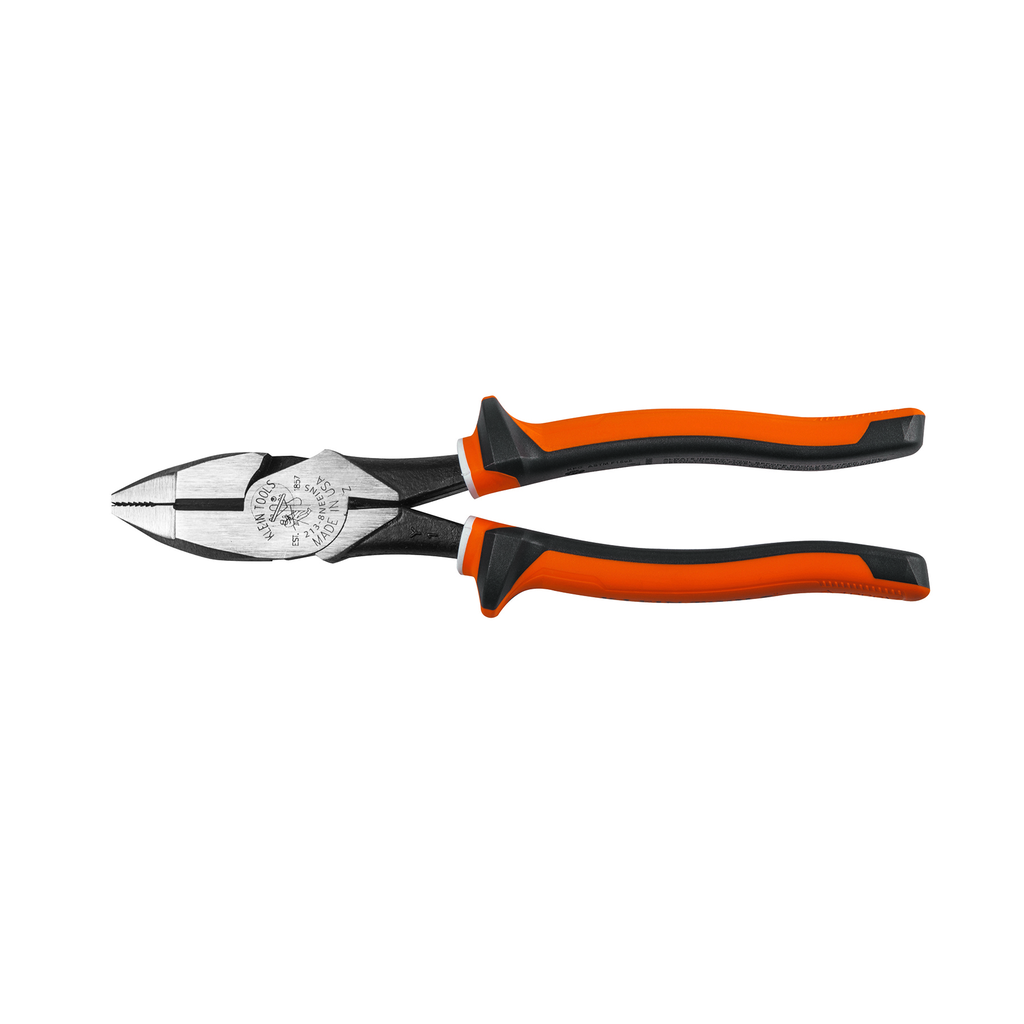

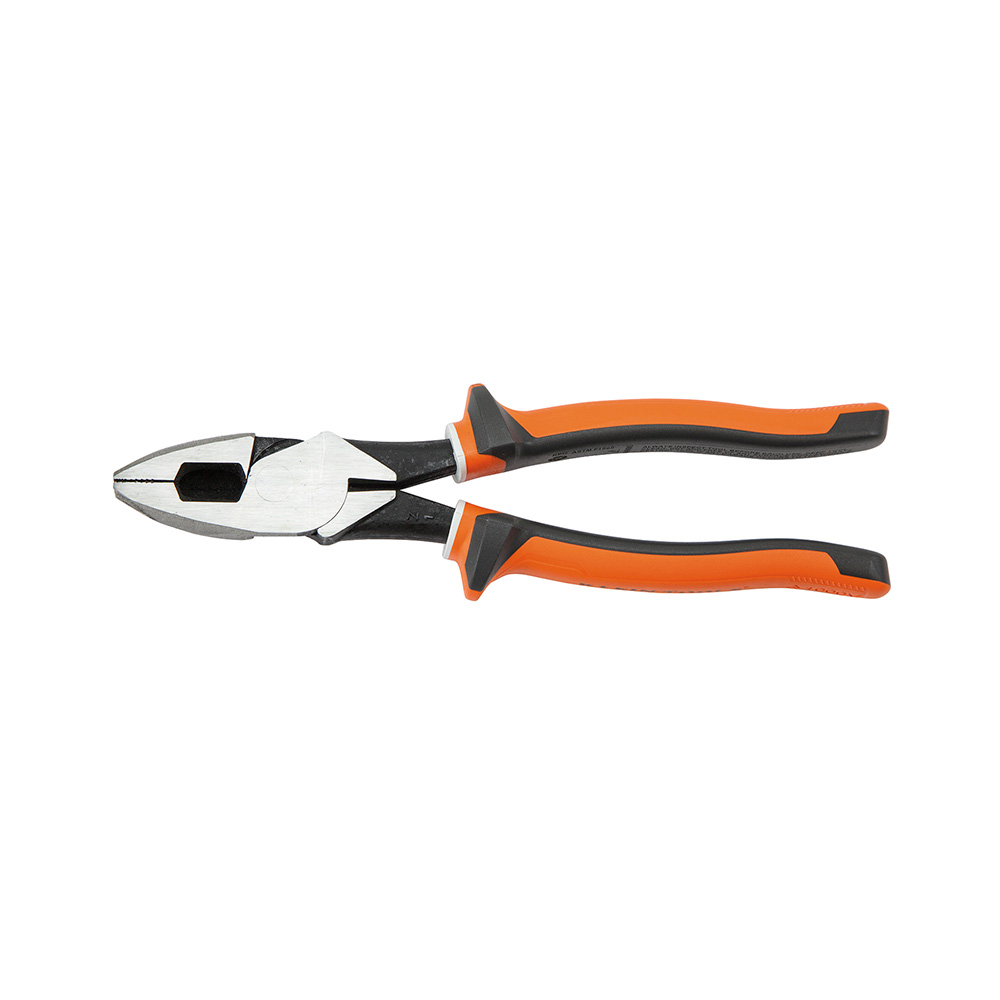

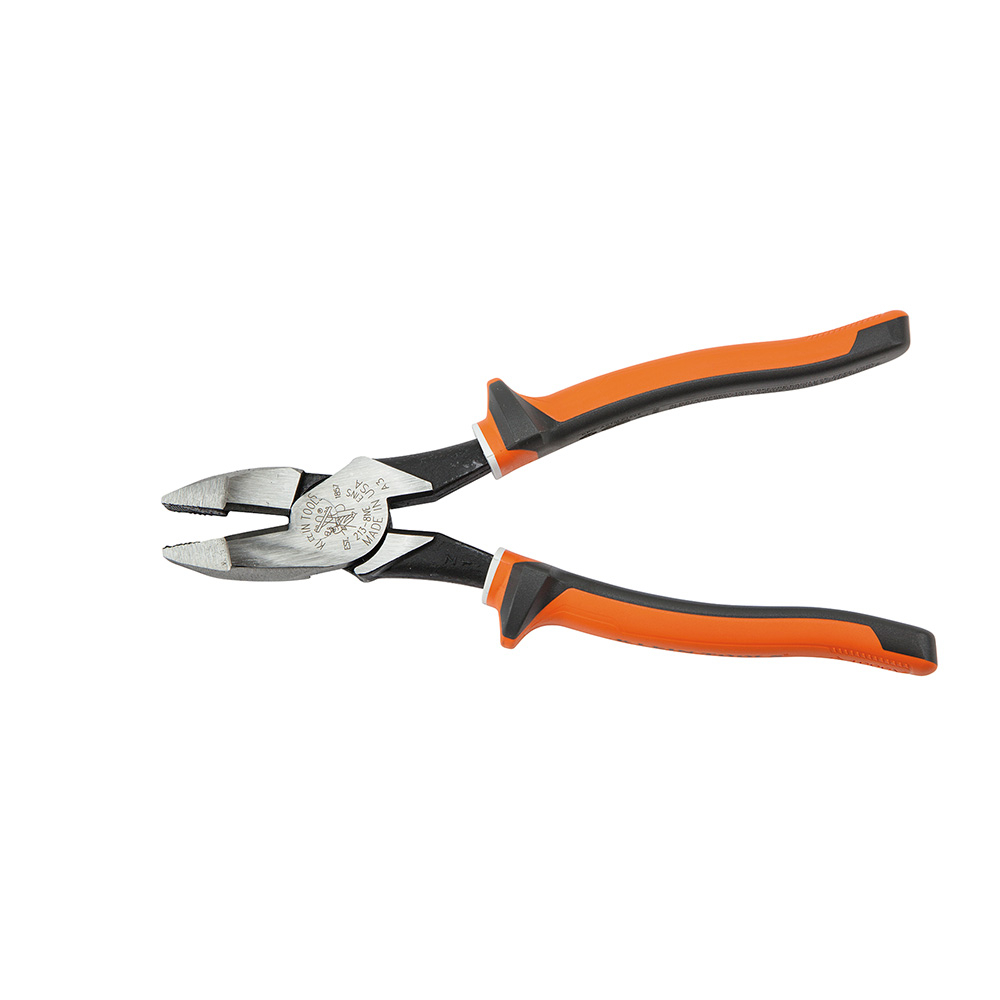

Insulated Pliers, Slim Handle Side Cutters, 8-Inch

Klein Tools Electrician's Insulated High-Leverage Side-Cutting pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised.

Warnings

• Always inspect your tools before use.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always wear approved eye protection.
• Destroy tool if the insulation is damaged in any way.

Features

• Integral Guards Help Prevent Hand Contact With Conductive Parts
• Weight: 1 pound
• Streamlined design with sure-gripping, cross-hatched knurled jaws
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• New England nose type
• Multi-color, sleek design with small thumbguards for ease of handling and easy storage in your tool belt
• Made in USA with custom US-made tool steel
• Forged in the USA with custom, US-made tool steel for maximum durability
• 1000 V Rated for safety on the job. VDE Certified with unique three-part insulation with white underlayer provides warning sign that insulation may be compromised
• Hot-riveted joint for smooth action
• Hot-riveted joint for smooth action with New England nose type
• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your tool belt

Specifications

• Handle Color: Orange/Gray
• Bolt Thread Holding: No
• Jaw Width: 1.22" (3.1 cm)
• Handle Length: 4.98" (12.6 cm)
• Knife Length: 0.75" (1.9 cm)
• Nominal Length: 8"
• Handle Finish: 3-Layer Insulation
• Item: Side-Cutting
• Depth: 8.8130 in
• Standards: IEC 60900 and ASTM F1505
• Jaw Thickness: 0.625" (1.6 cm)
• Insulated: Yes
• Standard: Yes
• Fish Tape Pulling: No
• Height: 0.6250 in
• Overall Length: 8.82" (22.4 cm)
• Nose Type: New England
• Country of Origin: United States
• Connector Crimping: No
• Width: 3.4920 in
• Weight: 1.0000 lbs
• Jaw Length: 1.438" (3.7 cm)
• Cut Style: Side-Cutting
• Type: Side Cutting Pliers
• Application: ACSR, Screws, Nails and Most Hardened Wires
• Material: Induction Hardened Steel
• Joint Type: Hot-Riveted
• Heavy Duty: No
