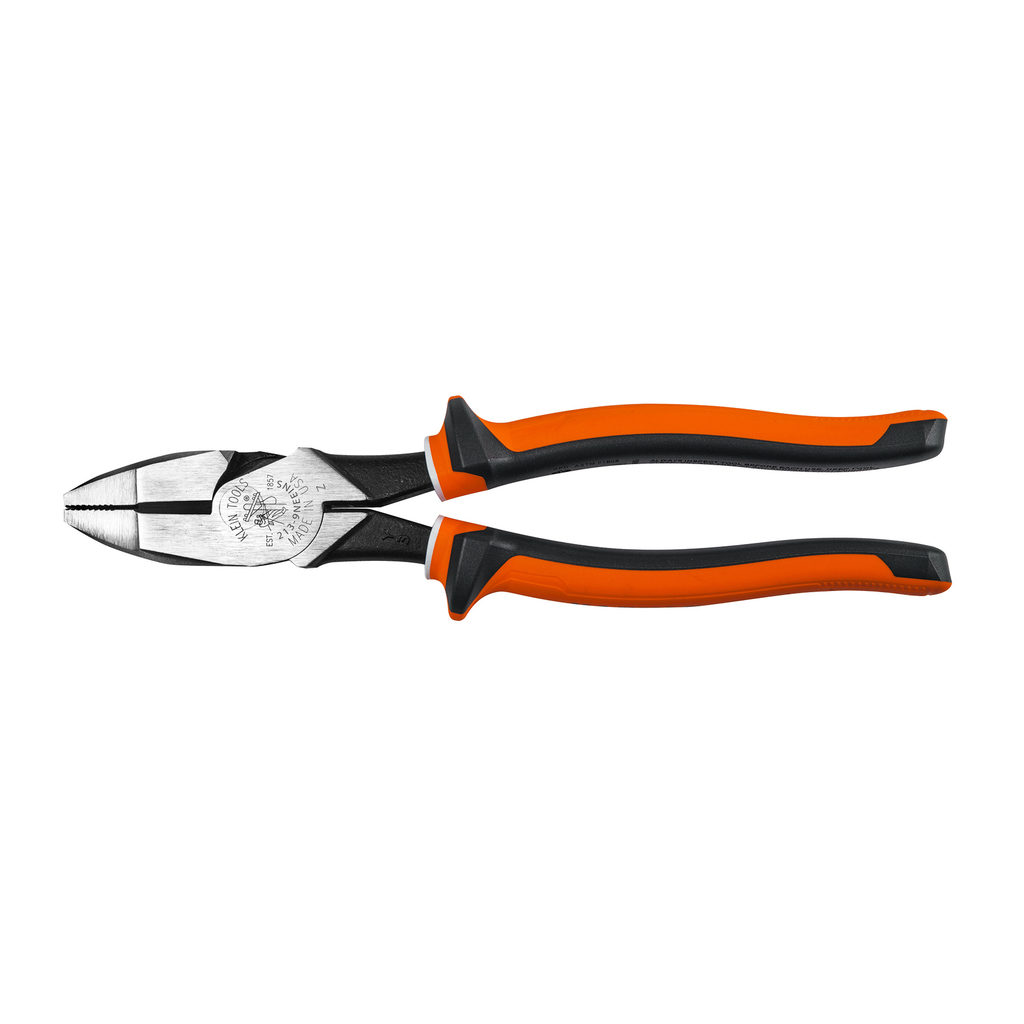

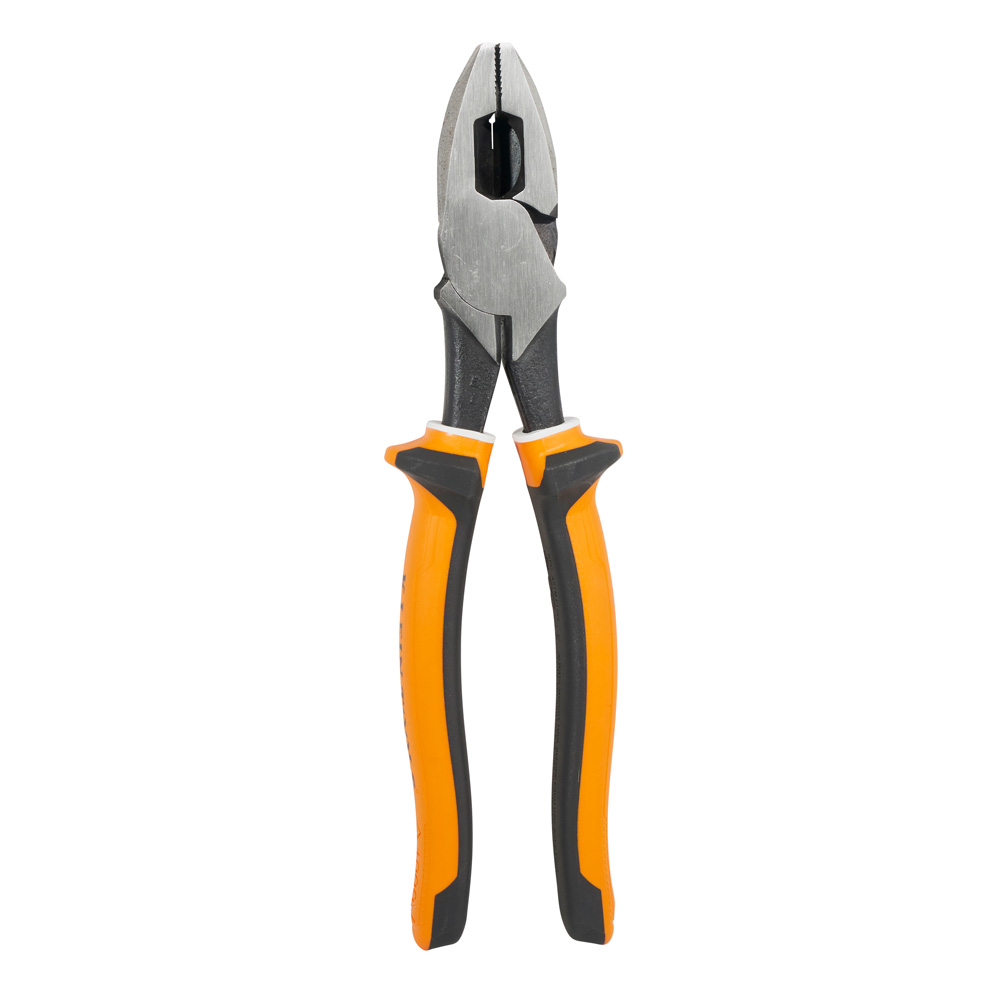

Insulated Pliers, Slim Handle Side Cutters, 9-Inch

Klein Tools Electrician's Insulated High-Leverage Side-Cutting pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Features

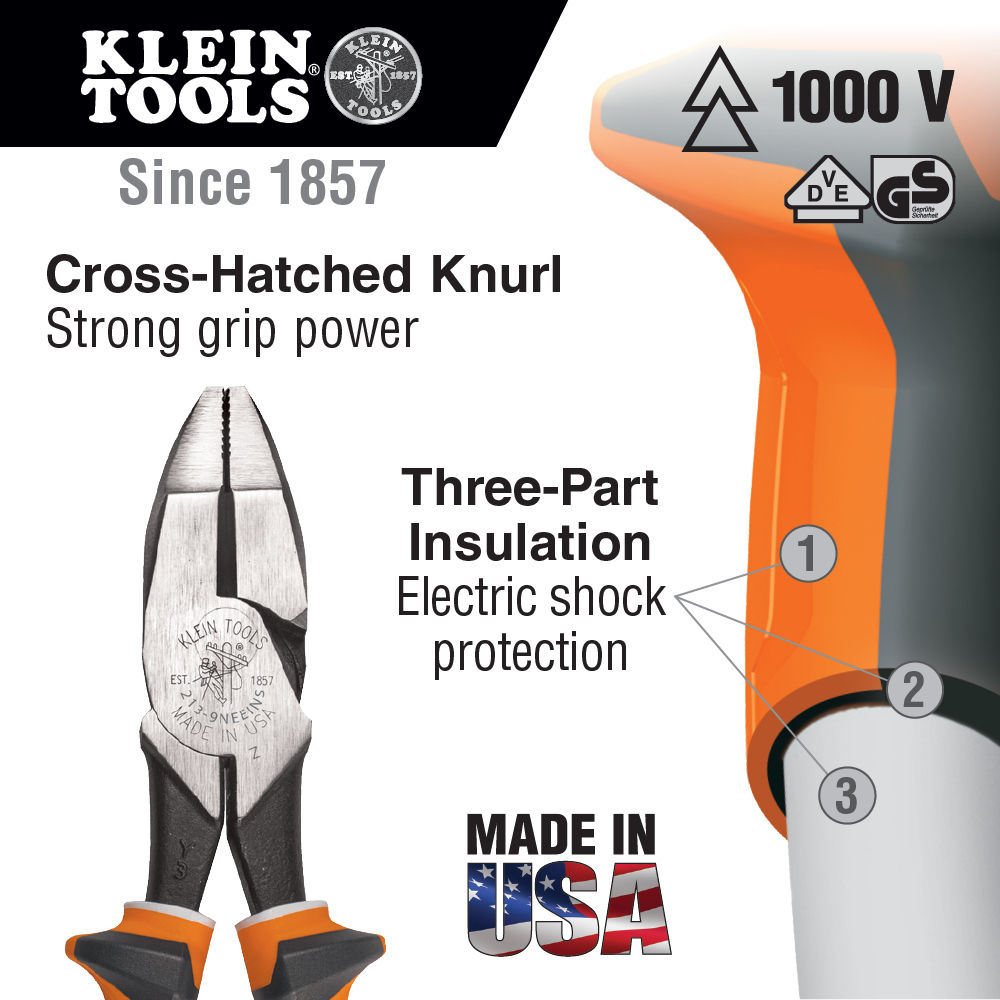

• 1000 V Rated for safety on the job. VDE Certified with unique three-part insulation with white underlayer provides warning sign that insulation may be compromised
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Made in USA with custom US-made tool steel

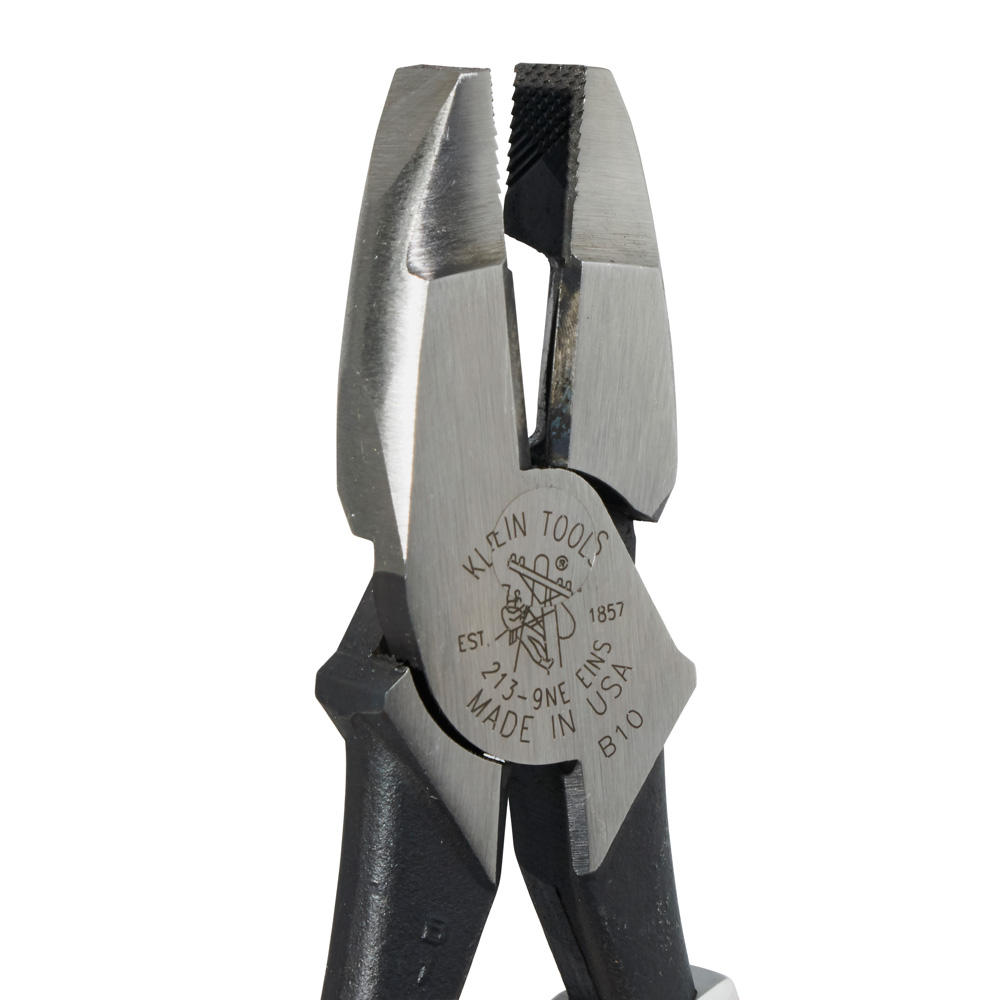

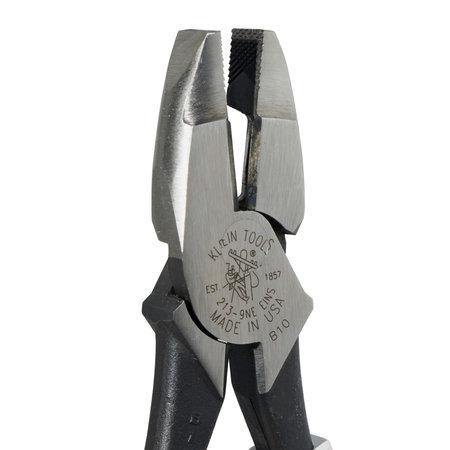

• Streamlined design with sure-gripping, cross-hatched knurled jaws

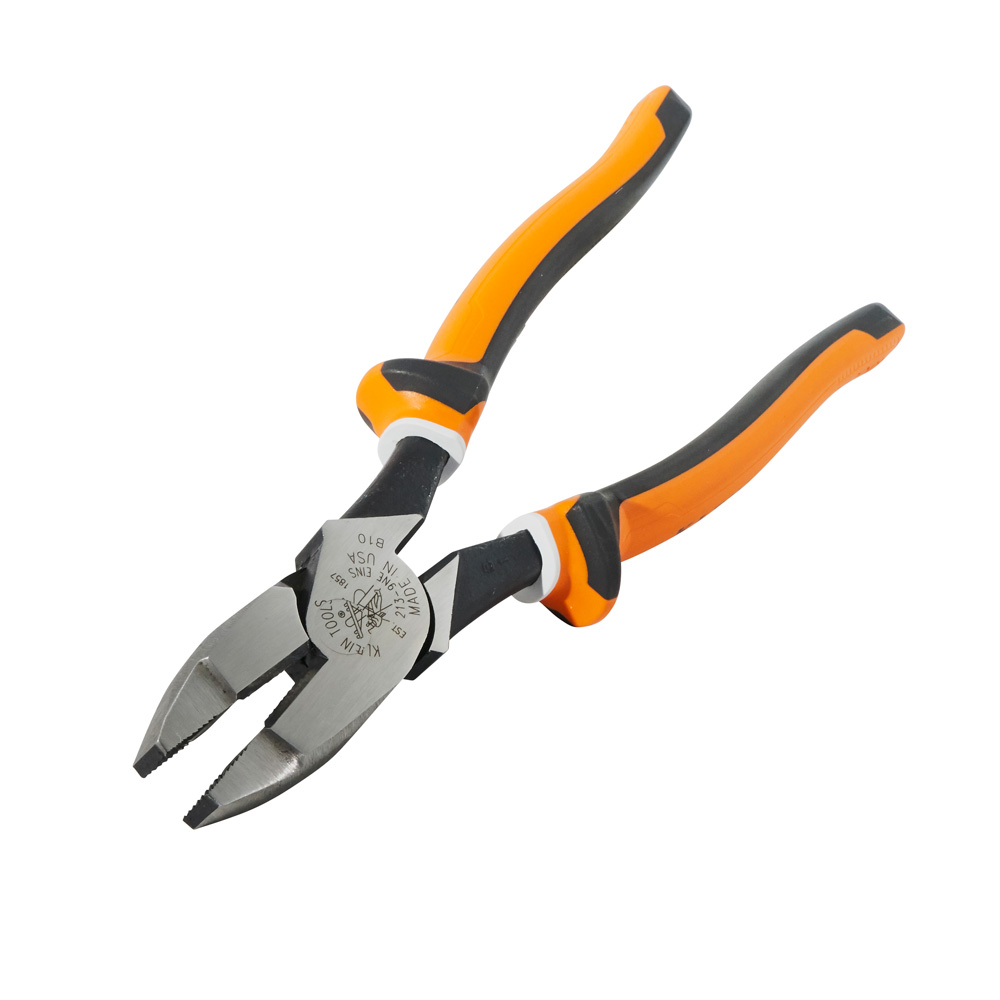

• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your tool belt

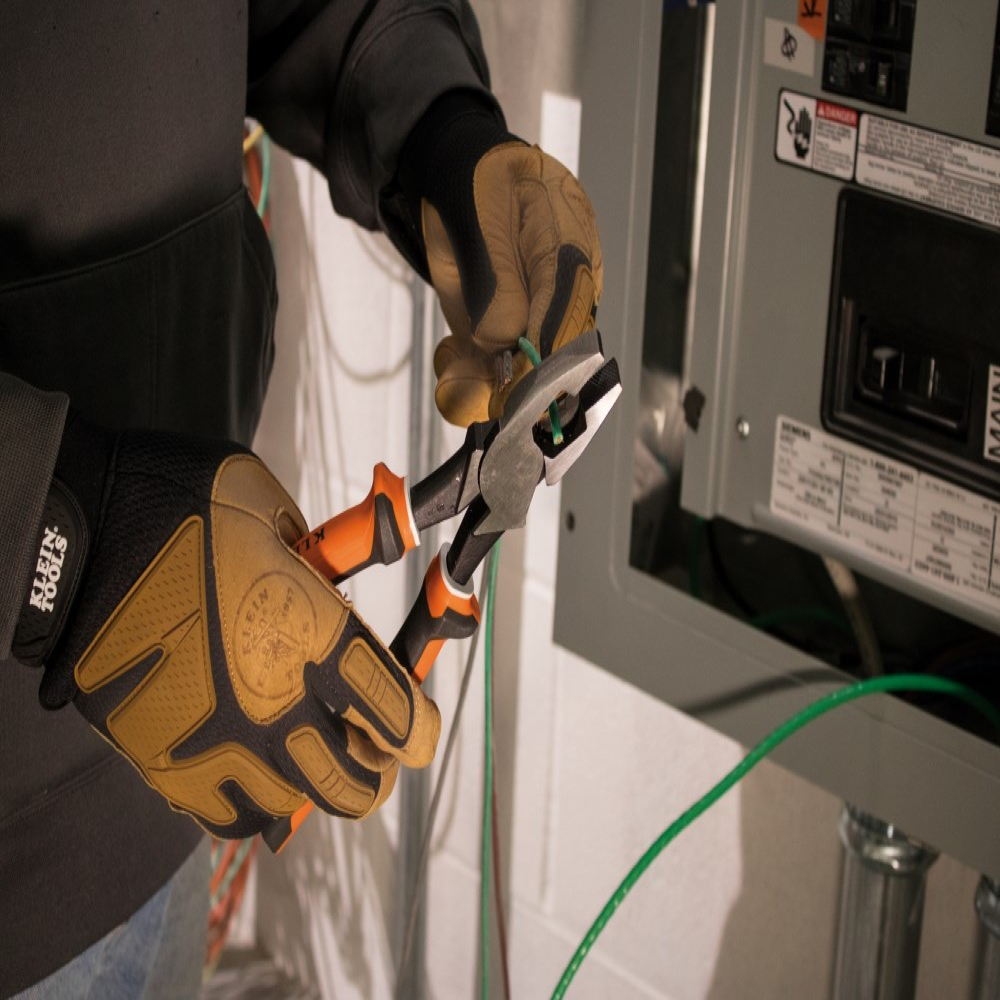

• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line

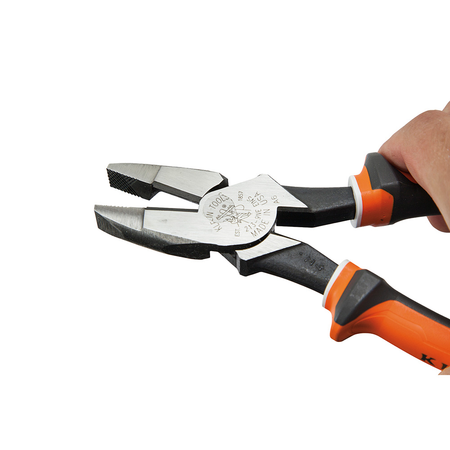

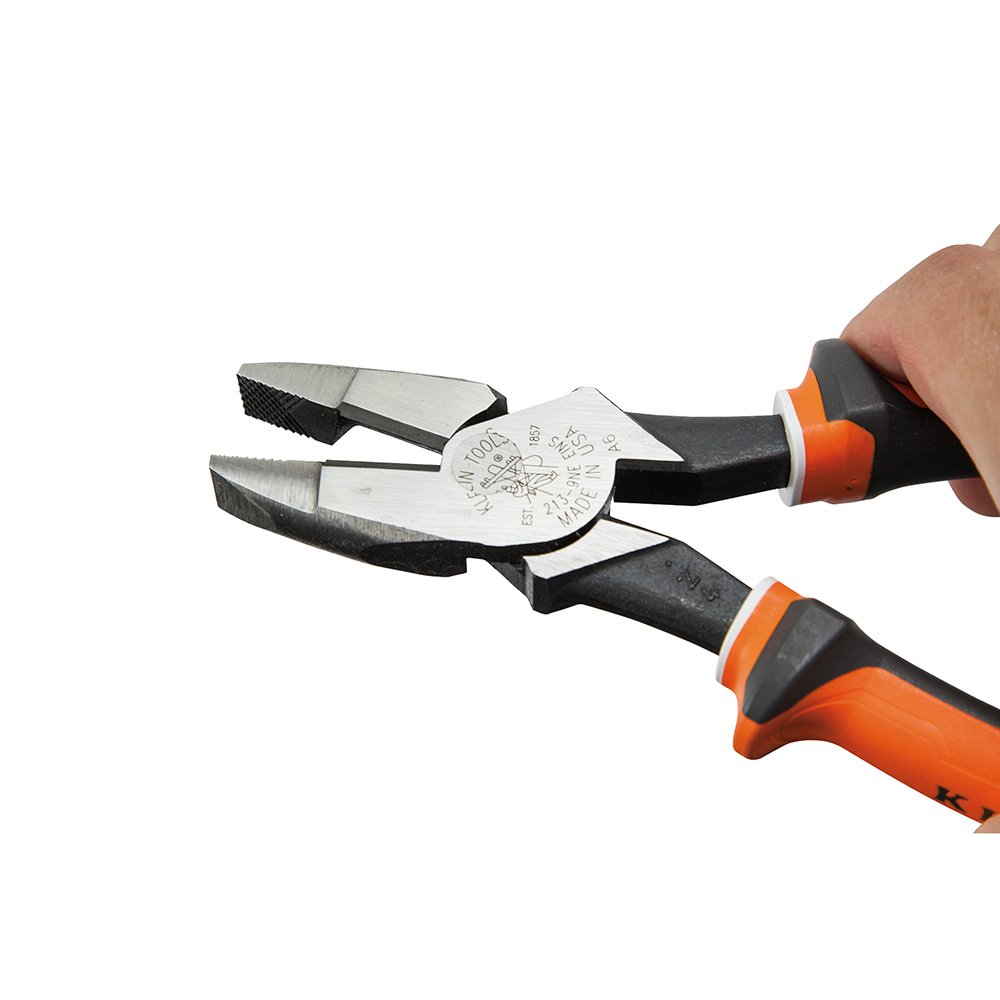

• Hot-riveted joint for smooth action with New England nose type
• Integral Guards Help Prevent Hand Contact With Conductive Parts

Warnings

• Wear approved eye protection.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Do NOT use to pry or chisel.
• Always inspect your tools before use.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Destroy tool if the insulation is damaged in any way.

Specifications

• Nose Type: New England
• Joint Type: Hot-Riveted
• Weight: 1.2500 lbs
• Jaw Width (cm): 3.2
• Jaw Width (Inch): 1.25
• Screw Shearing: No
• Jaw Thickness (cm): 1.6
• Application: Cuts ACSR, Screws, Nails and Most Hardened Wires
• Knife Length (cm): 2
• Cut Style: Side-Cutting
• Overall Length (cm): 24.2
• Overall Width (cm): 6.3
• Jaw Thickness (Inch): 0.62
• Jaw Capacity (cm): 3.5
• Height: 0.6250 in
• Standards: IEC 60900 and ASTM F1505
• Width: 5.0000 in
• Handle Color: Orange/Gray
• Depth: 9.6250 in
• Handle Length (Inch): 5.58
• Material: Induction Hardened Steel
• Handle Length (cm): 14.2
• Jaw Capacity (Inch): 1.375
• Weight (g): 590
• Weight (oz): 20.8
• Overall Width (Inch): 2.49
• Overall Length (Inch): 9.53
• Jaw Length (Inch): 1.91
• Knife Length (Inch): 0.781
• Jaw Length (cm): 4.9
• Handle Finish: 3-Layer Insulation
• Tether Capable: No
• Type: Side Cutting Pliers
• Cutting Knives: 1
• Insulated: Yes
