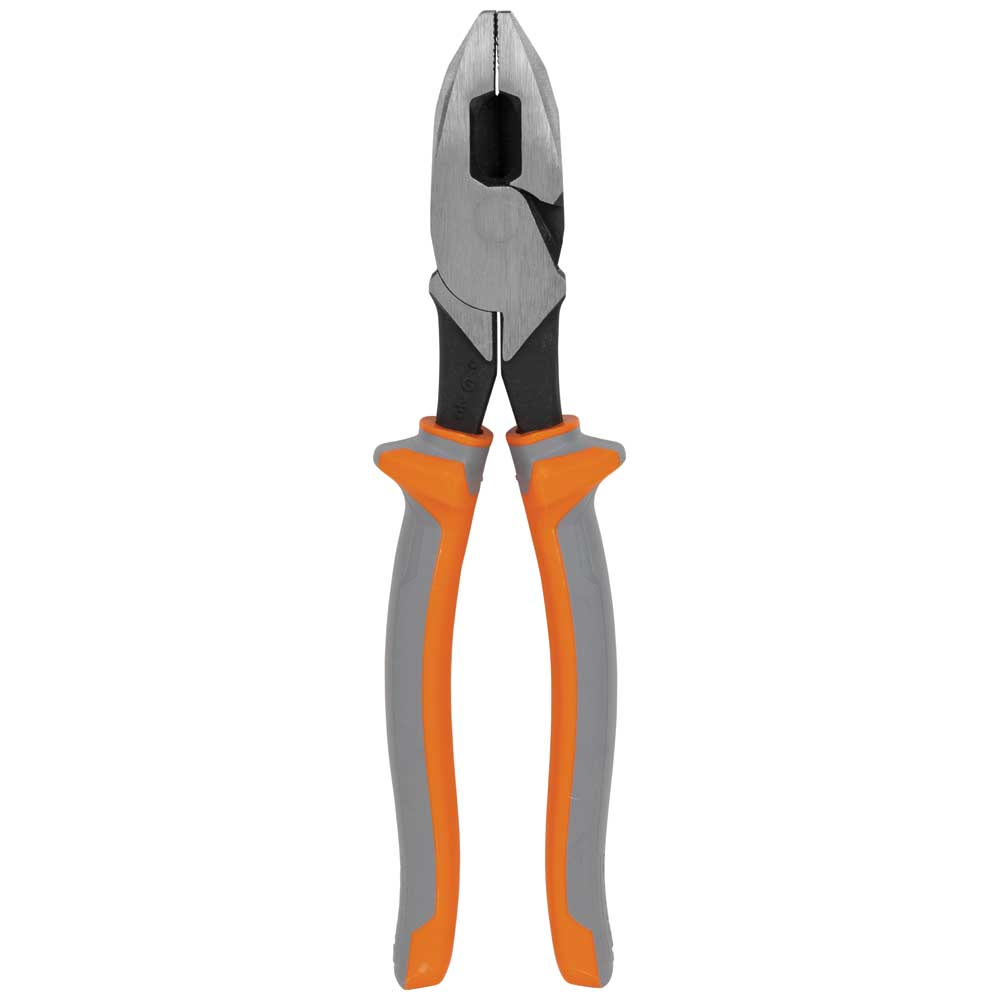

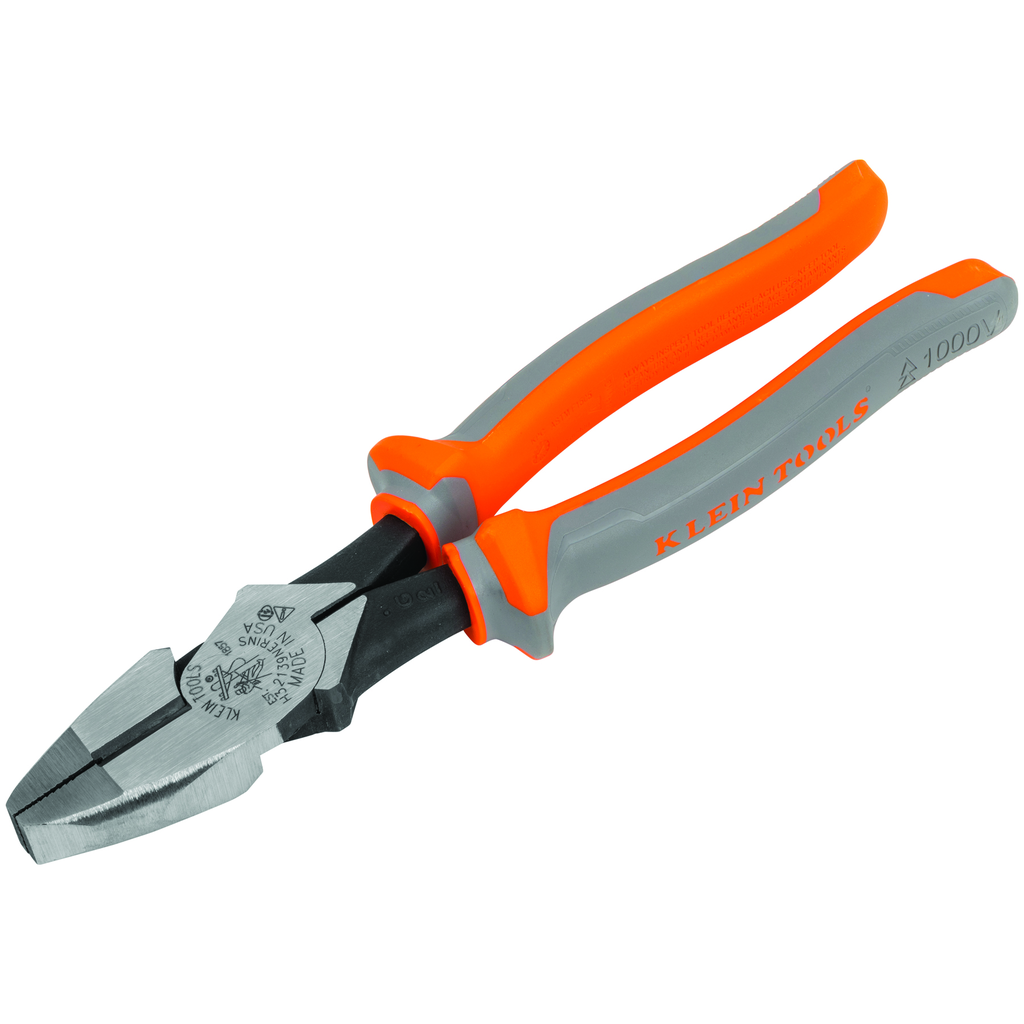

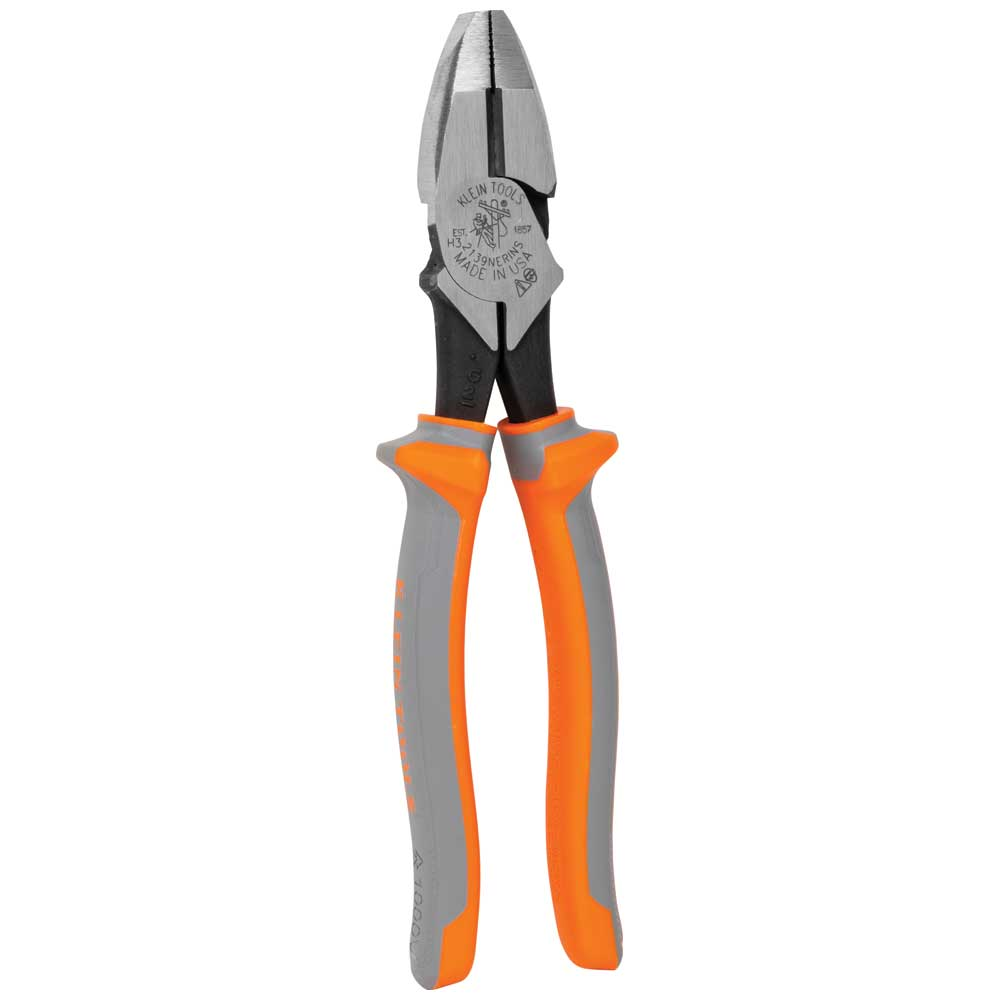

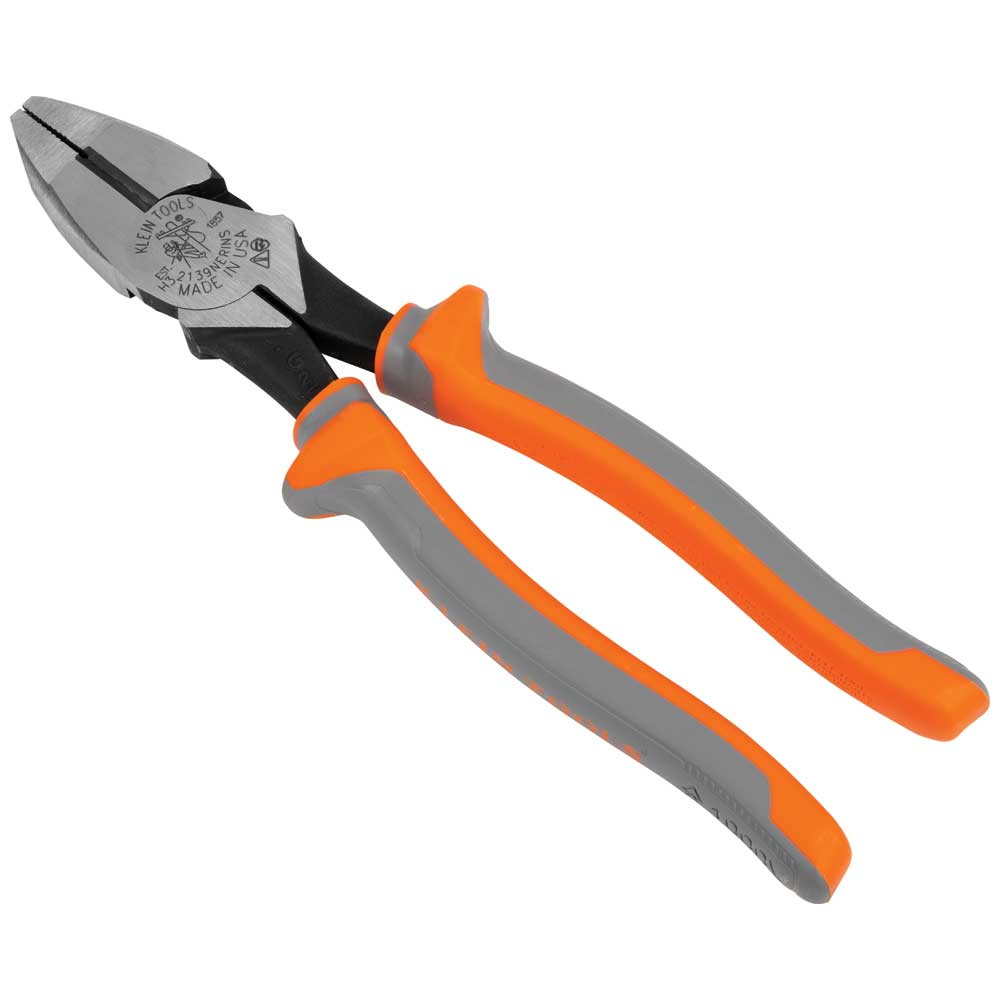

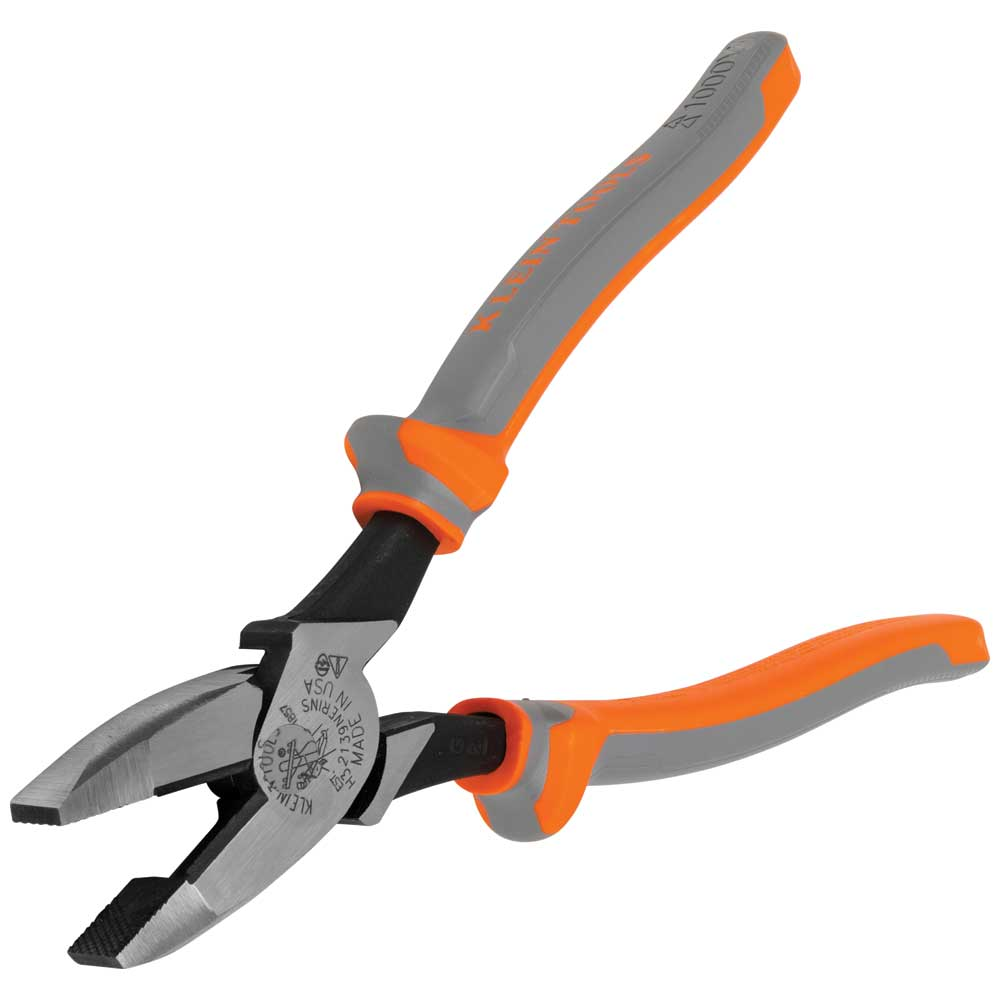

Insulated Pliers, Side Cutters, 9-Inch

Klein Tools Electrician's Insulated High-Leverage Side-Cutting pliers are 1000V rated for safety on the job. The multi-color, sleek design with small thumb guards provides comfort for all day use, while also making for easy handling and storage.

Features

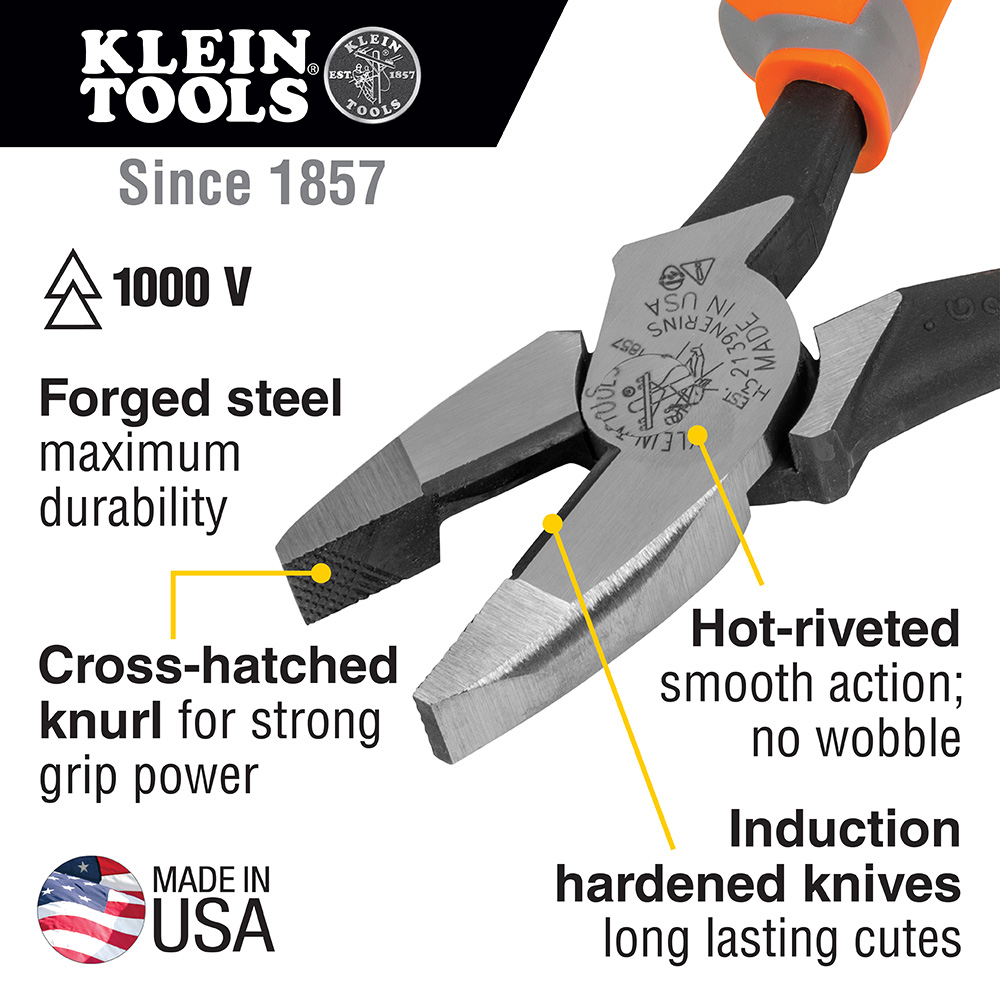

• Insulated Side-Cutting Pliers are 1000V rated for safety on the job

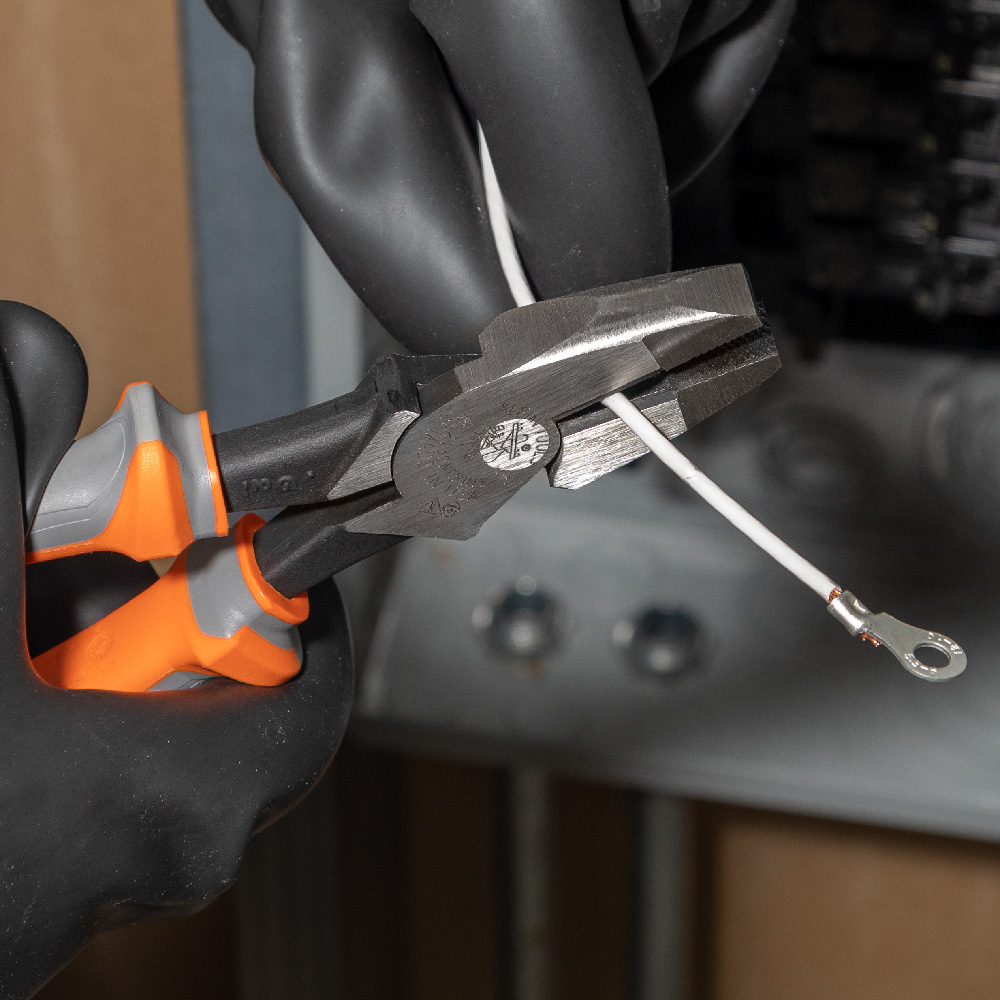

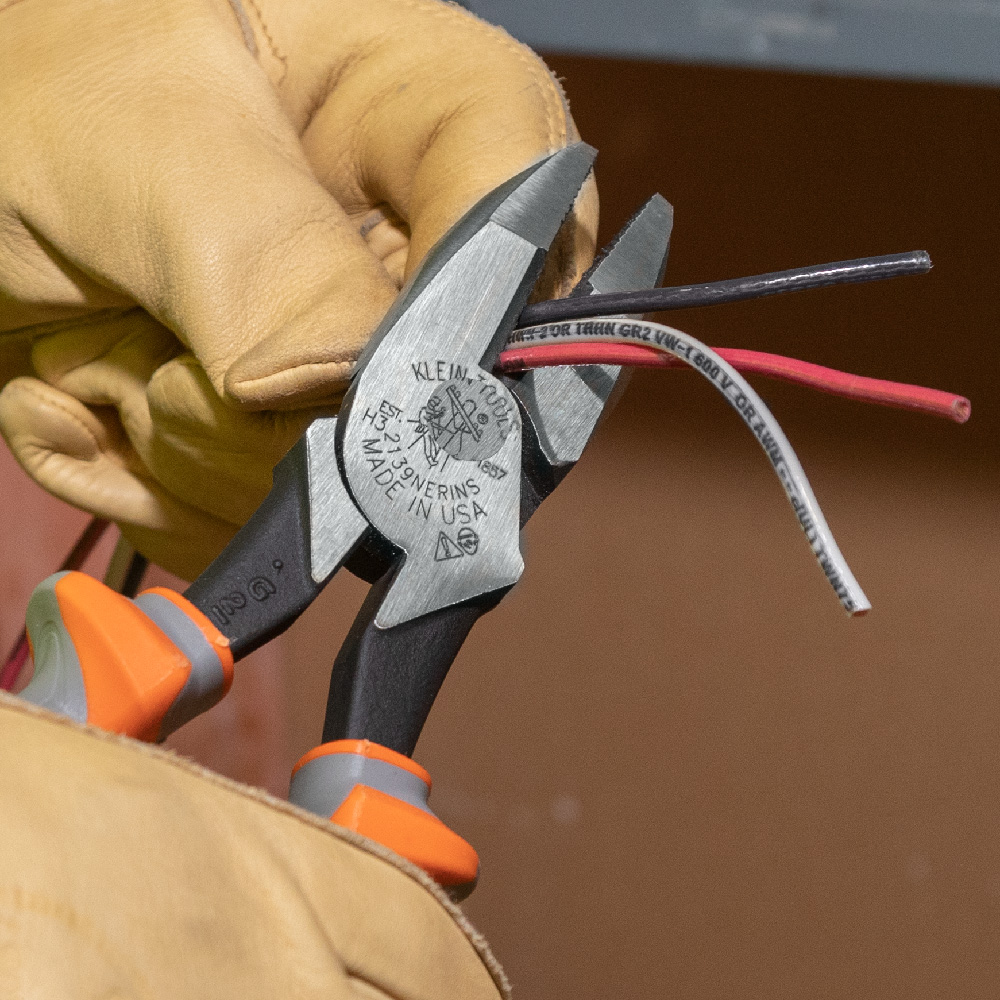

• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
• High-leverage design has 46-Percent greater cutting and gripping power than other plier designs

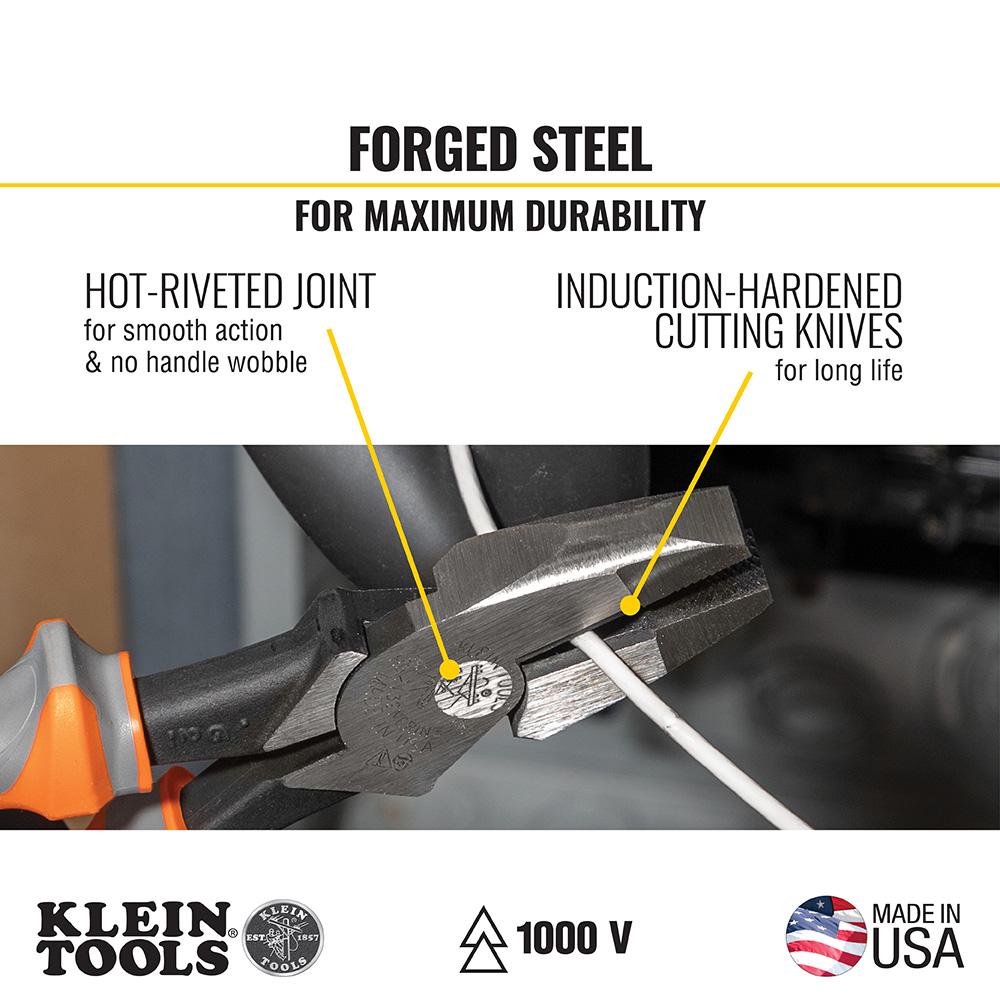

• Hot-riveted joint for smooth action and no handle wobble

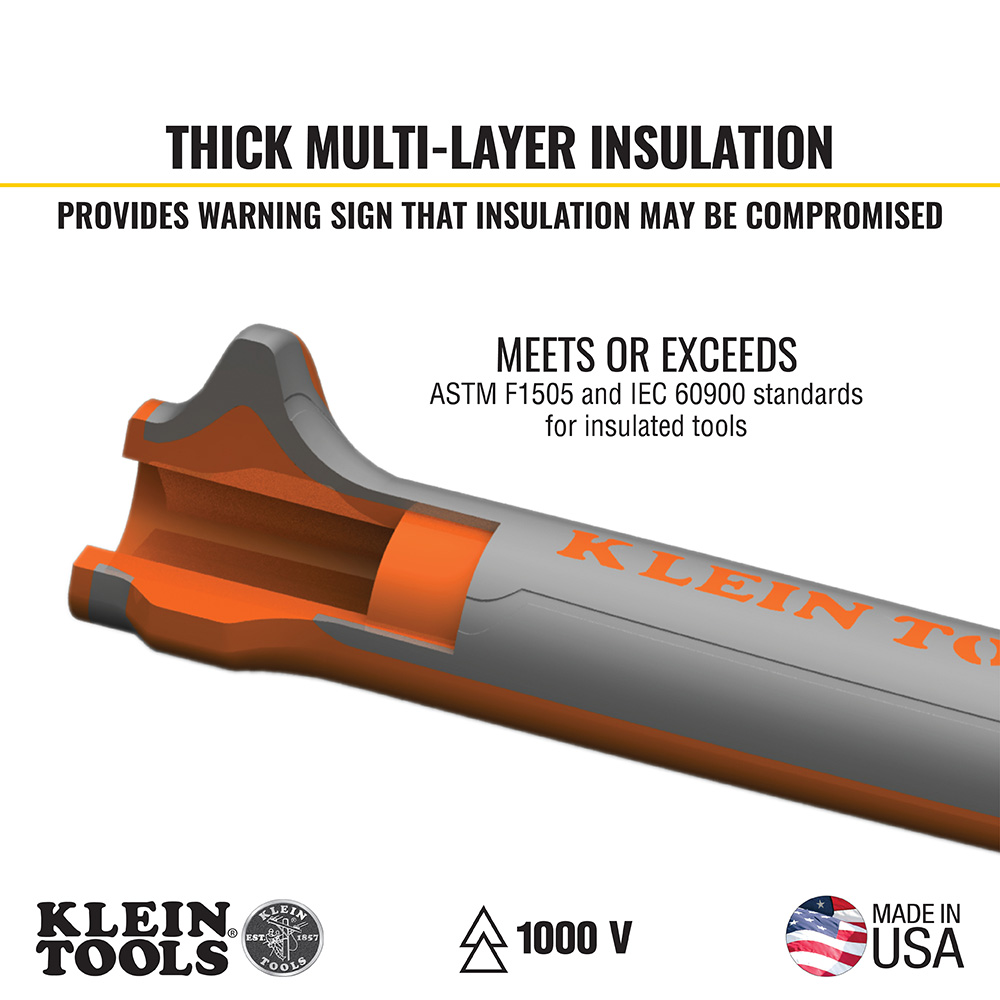

• Thick multi-layer grip design provides protection against electric shock

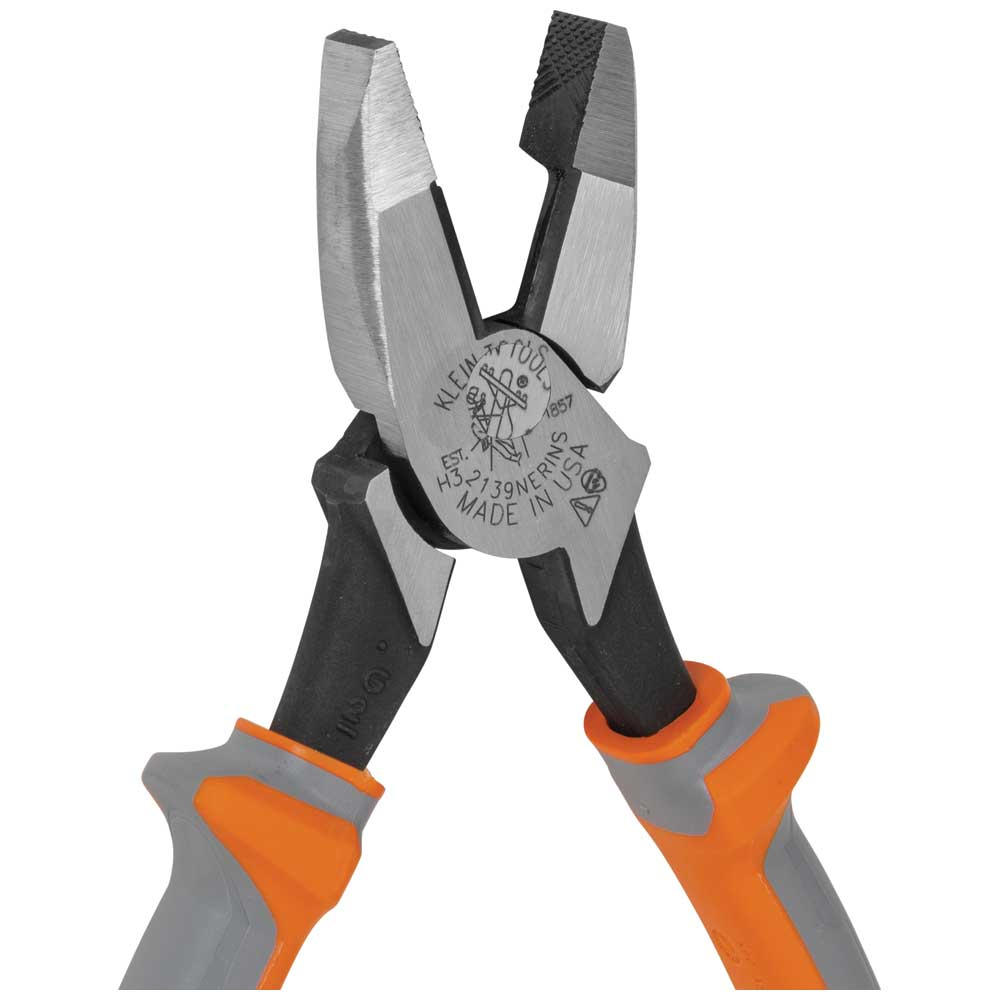

• Streamlined design with sure-gripping, cross-hatched knurled jaws
• Integral Guards Help Prevent Hand Contact With Conductive Parts
• Durable molded insulation meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools
• Made in the USA

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Destroy tool if the insulation is damaged in any way.
• Do NOT use to pry or chisel.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.
• Keep tool clean, dry and free of any surface contaminants.

Specifications

• Cutting Knives: 1
• Jaw Thickness (cm): 1.6
• Handle Color: Orange/Light Gray
• Overall Length (cm): 24.1
• Nose Type: New England
• Cut Style: Side-Cutting
• Application: #8 AWG Copper, Aluminum and Other Soft Metals
• Overall Height (Inch): 2
• Weight (oz): 20
• Height: 1.2500 in
• Depth: 9.4100 in
• Handle Finish: 2-Layer Insulation
• Overall Width (cm): 6.3
• Weight (g): 567
• Knife Length (Inch): 0.781
• Insulated: Yes
• Handle Length (Inch): 5.74
• Weight: 1.2500 lbs
• Handle Length (cm): 14.6
• Jaw Length (cm): 4.9
• Width: 2.5000 in
• Overall Length (Inch): 9.49
• Jaw Capacity (cm): 3.5
• Material: Induction Hardened Steel
• Jaw Thickness (Inch): 0.62
• Jaw Width (cm): 3.2
• Screw Shearing: No
• Overall Width (Inch): 2.49
• Standards: IEC 60900 and ASTM F1505
• Overall Height (cm): 5.1
• Jaw Length (Inch): 1.91
• Jaw Width (Inch): 1.25
• Knife Length (cm): 2
• Jaw Capacity (Inch): 1.375
• Type: Side Cutting Pliers
• Joint Type: Hot-Riveted
• Tether Capable: No
