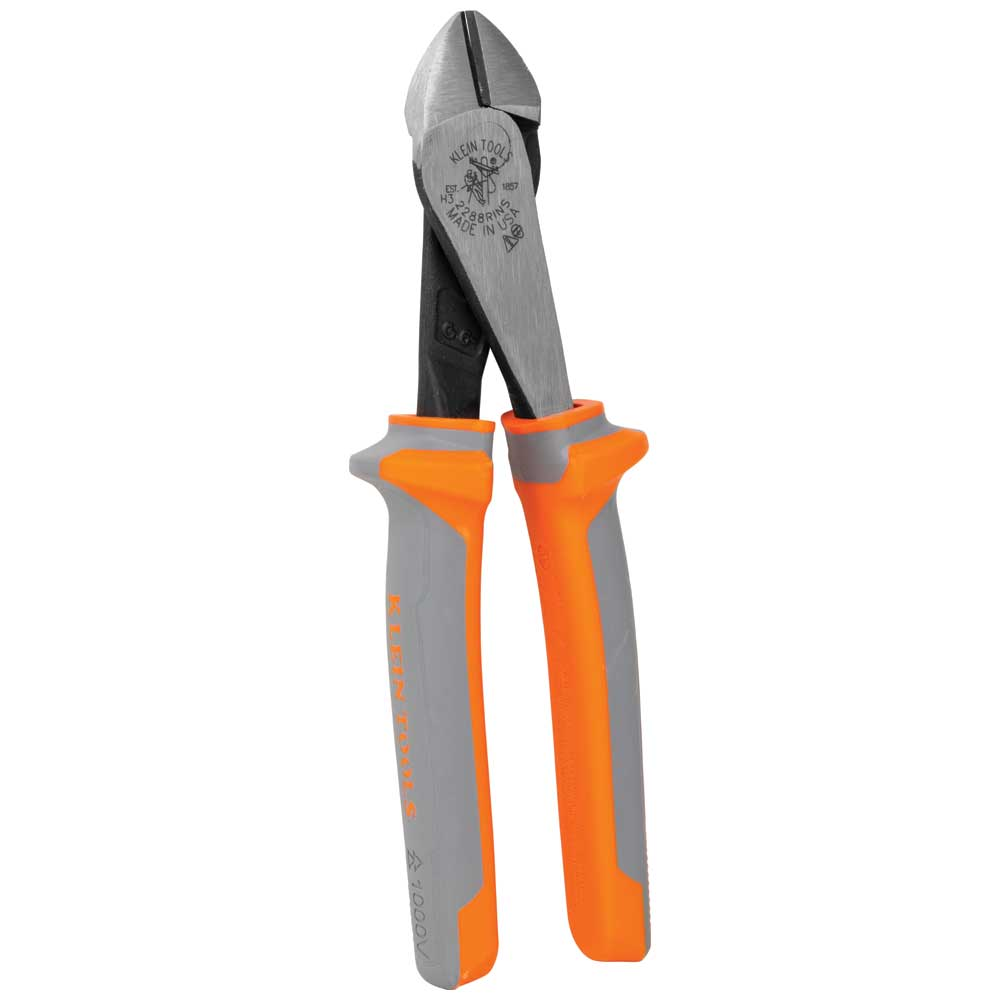

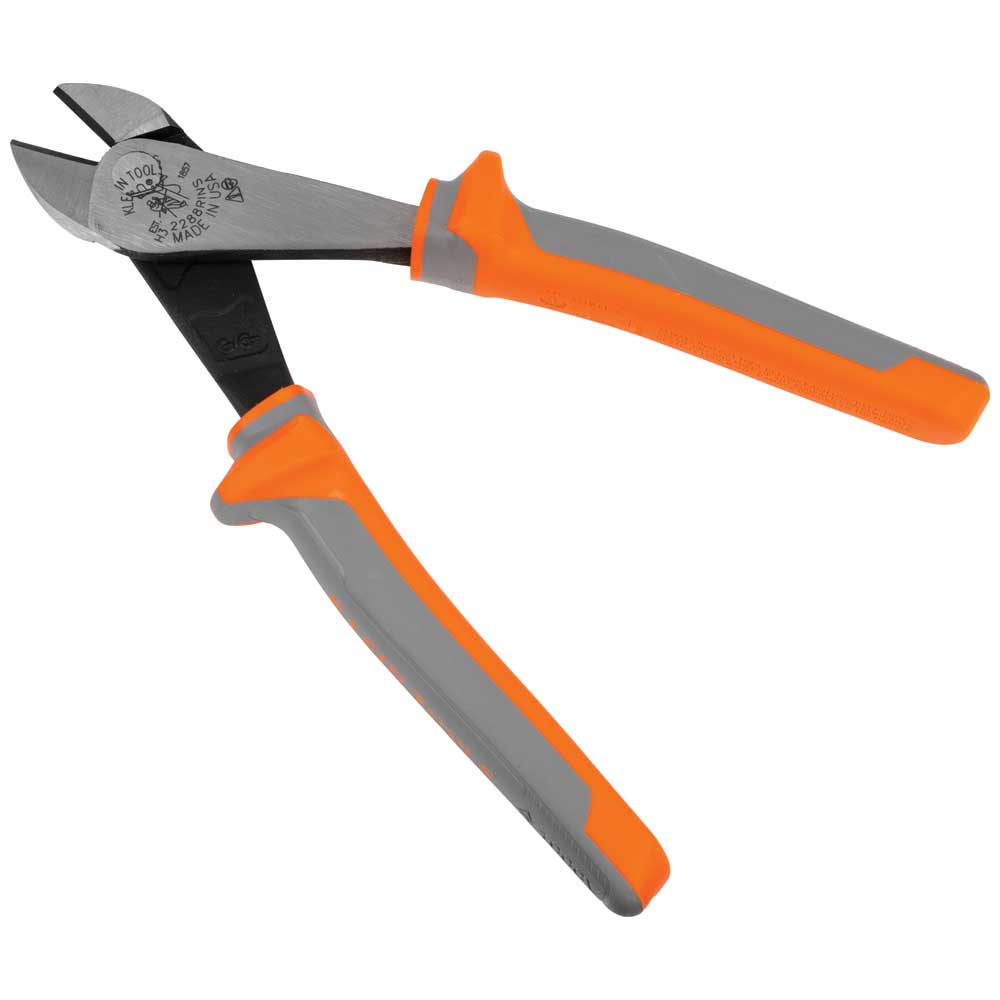

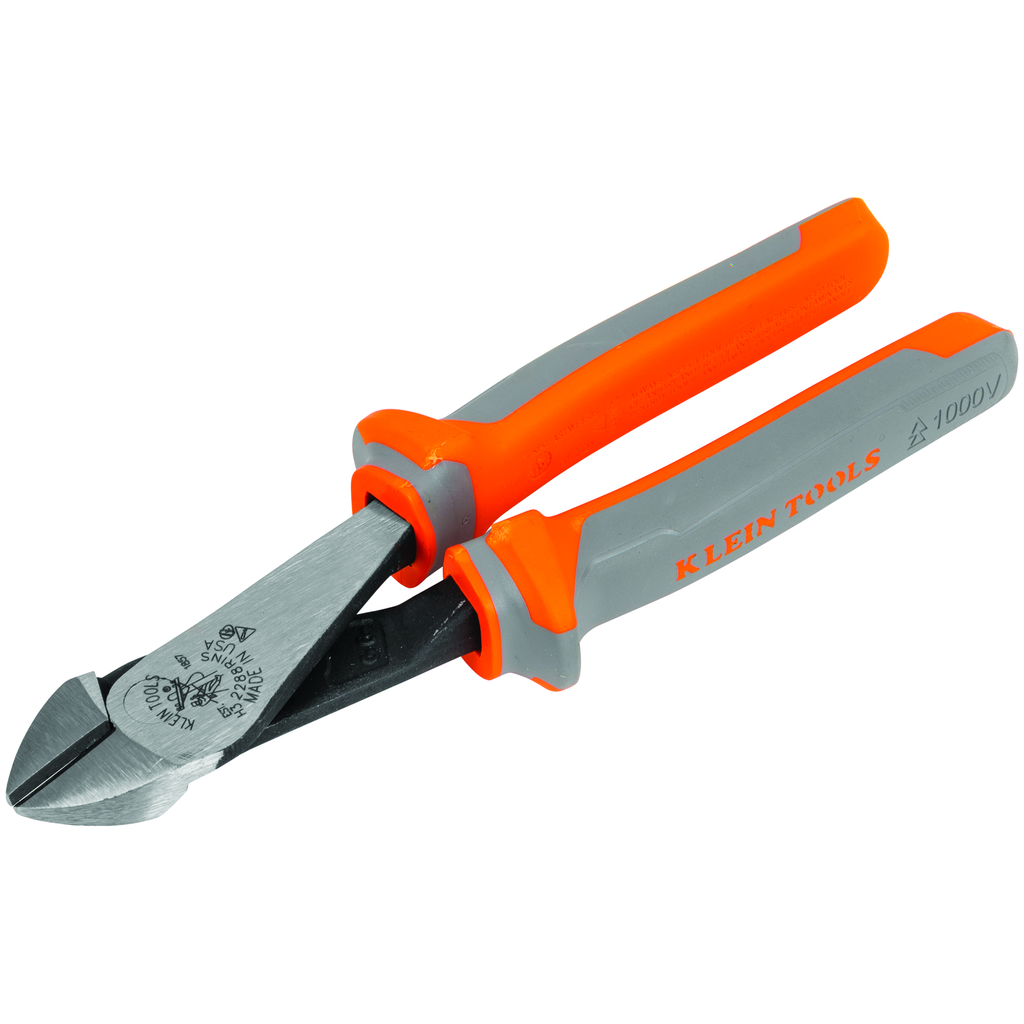

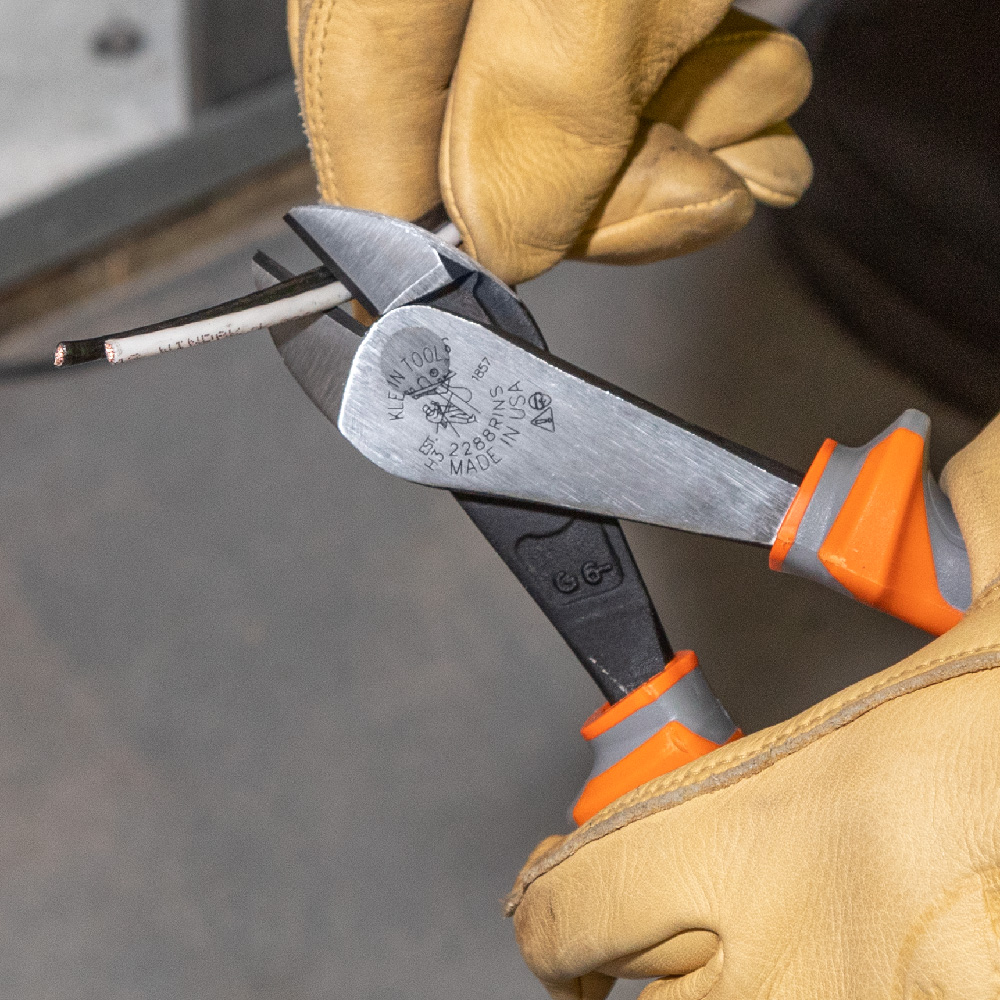

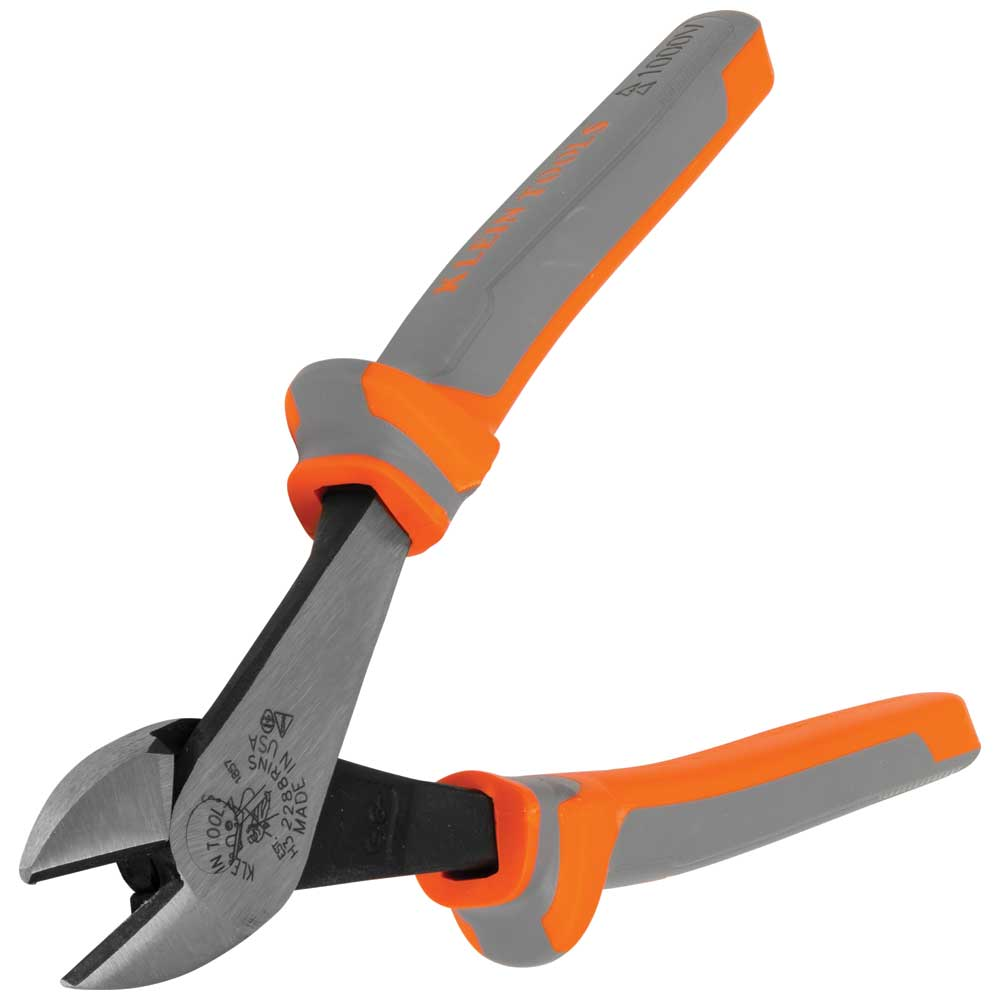

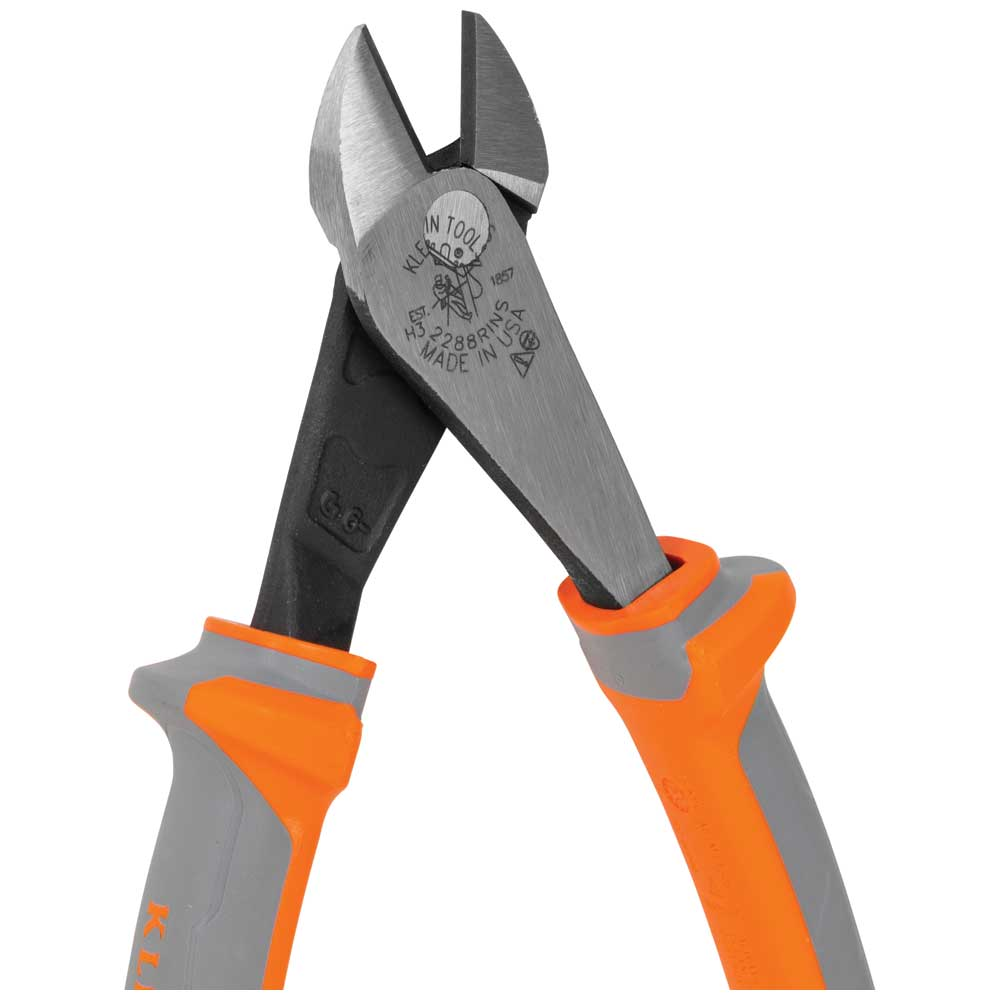

Diagonal Cutting Pliers, Insulated, High Leverage, 8-Inch

Guard against electric shock when working on live wires with the Klein Tools Insulated Diagonal Pliers. The thick multi-layer grips protect up to 1000V. Made in the USA, these Diagonal-Cutting Pliers have a high-leverage design to provide 36-Percent greater cutting power than other pliers. This professional grade tool with 1000V rated protection allows you to get the job done safely.

Features

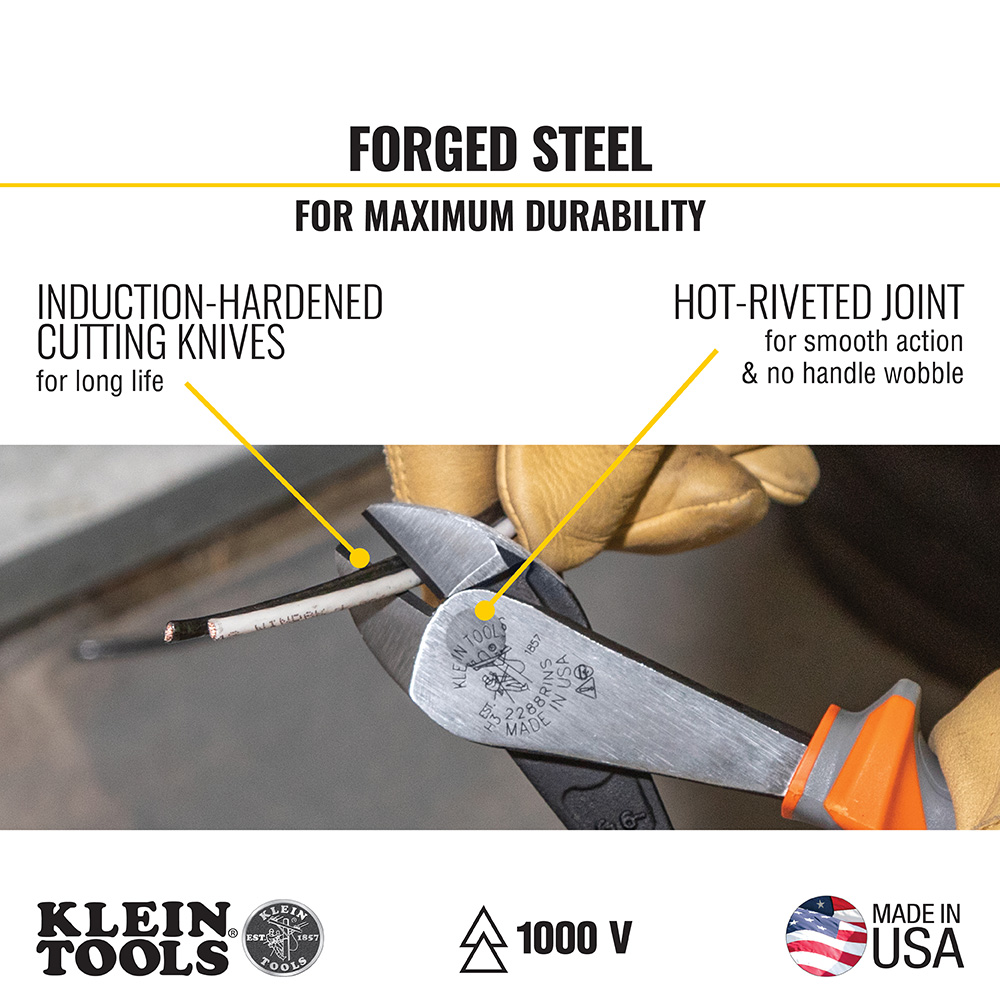

• Made of forged steel for maximum durability
• Made in the USA
• Integral guards help prevent hand contact with conductive parts
• Diagonal Cutting Pliers are individually tested to exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and clearly marked with the official 1000V rating symbol

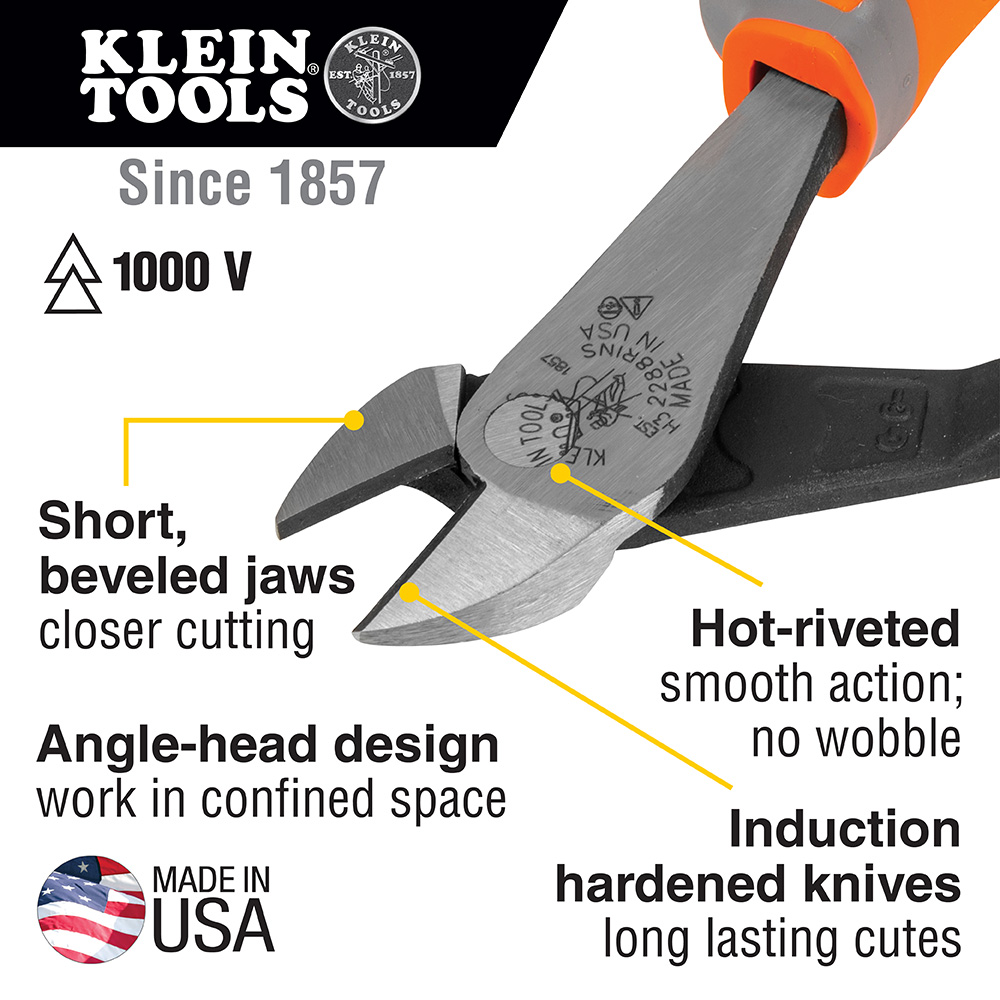

• Induction hardened cutting knives for long life

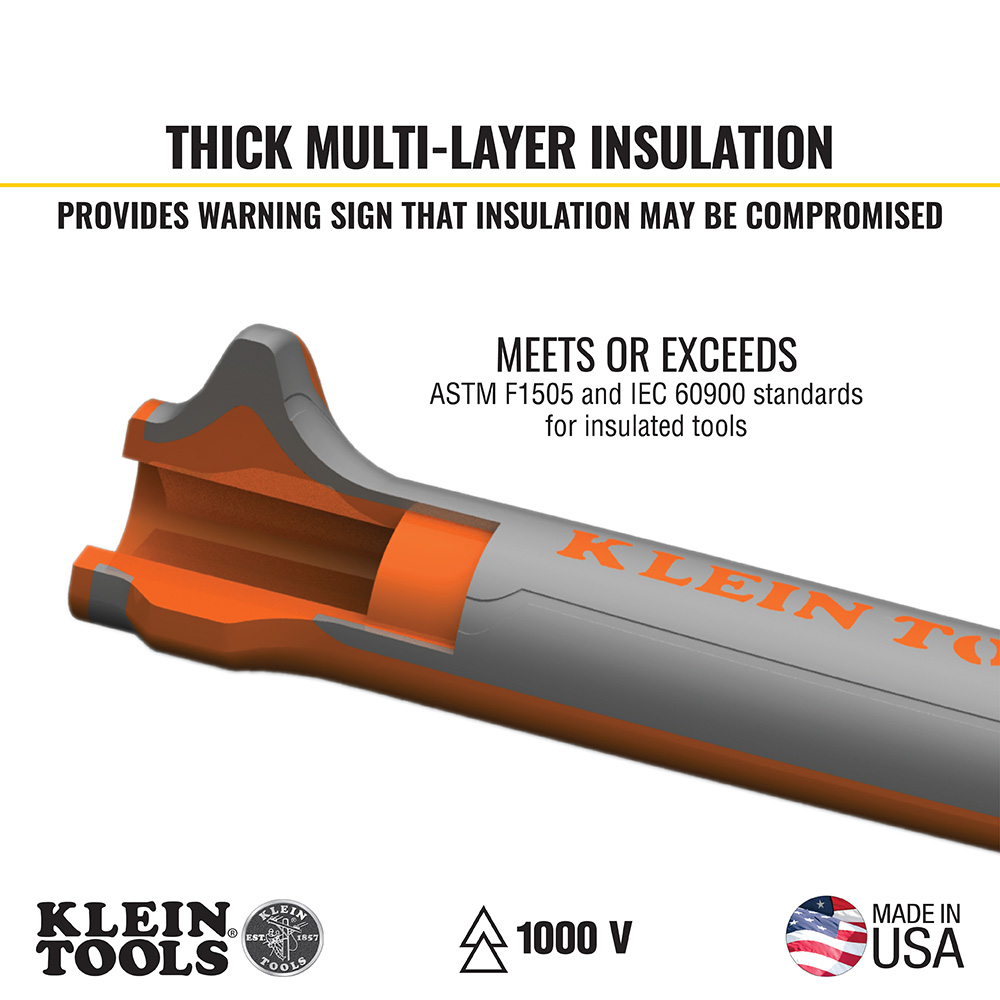

• Thick multi-layer grip design provides protection against electric shock
• High-leverage design. Rivet is closer to the cutting edge for 36-Percent greater cutting power than other plier designs
• Diagonal Cutting; Insulated
• Hot-riveted joint for smooth action and no handle wobble

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants. Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Jaw Thickness (Inch): 0.46
• Joint Type: Hot Riveted
• Handle Length (cm): 12.4
• Overall Height (Inch): 2
• Knife Length (cm): 2
• Handle Color: Orange/Light Gray
• Overall Length (Inch): 8.17
• Jaw Capacity (Inch): 1.019
• Depth: 8.1500 in
• Overall Height (cm): 5.1
• Height: 1.2500 in
• Weight: 0.7000 lbs
• Handle Length (Inch): 4.87
• Material: Hardened Steel
• Cut Style: Standard
• Application: Diagonal Cutting
• Jaw Width (Inch): 1.25
• Insulated: Yes
• Jaw Capacity (cm): 2.6
• Cutting Knives: Standard
• Handle Finish: Insulated
• Jaw Width (cm): 3.2
• Weight (oz): 11.2
• Tether Capable: No
• Type: Diagonal Cutting Plier
• Jaw Length (cm): 2
• Jaw Thickness (cm): 1.2
• Standard: IEC 60900 and ASTM F1505
• Knife Length (Inch): 0.8
• Overall Length (cm): 20.8
• Jaw Length (Inch): 0.78
• Weight (g): 318
• Width: 2.7400 in
