Step Bit Kit, Spiral Double-Fluted, VACO, 4-Piece

The All-Purpose Step Bit Kit features 4 commonly used step bits, with dual spiral fluting to help pull the step bit through material for faster cutting. Titanium Nitride coating extends the life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Kit comes in a rugged case that includes a convenient oil bottle for bit lubrication and longevity.

Features

• Titanium nitride coating dissipates heat for longer bit life

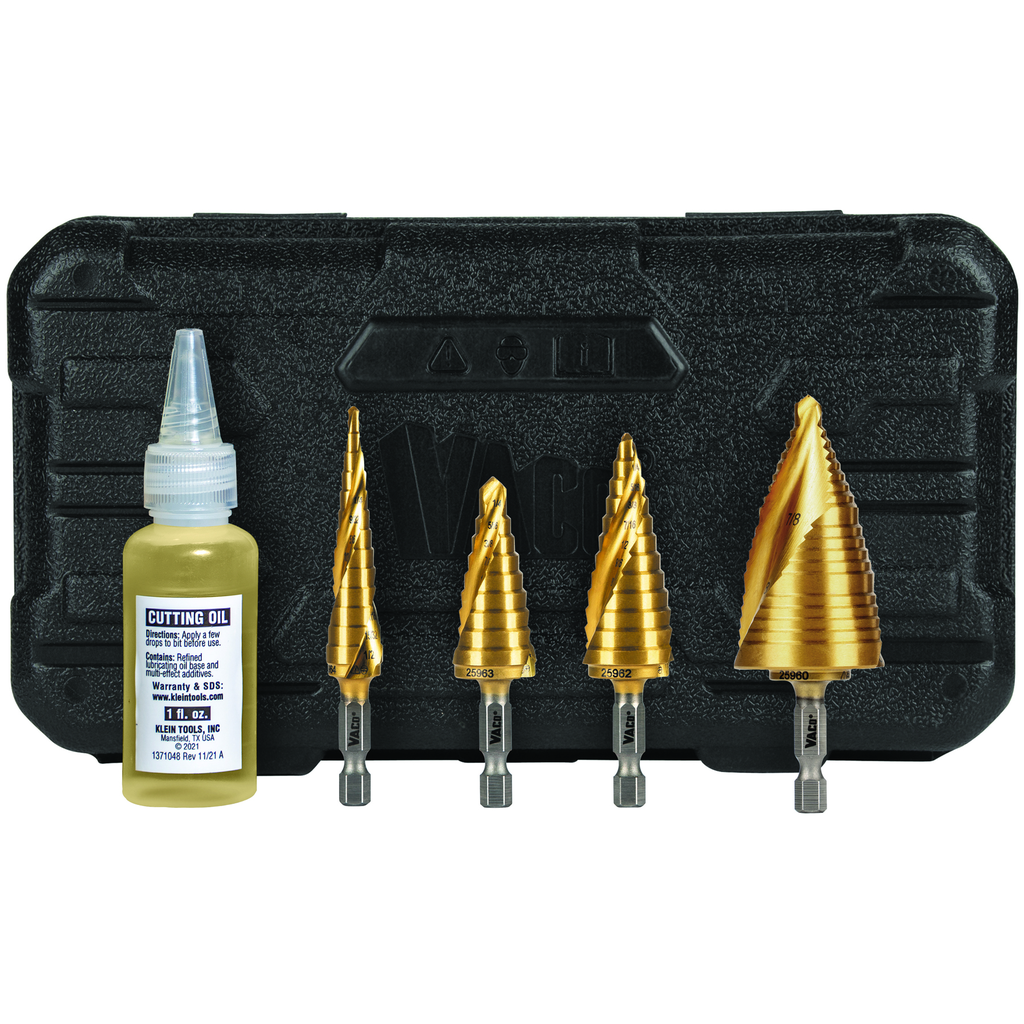

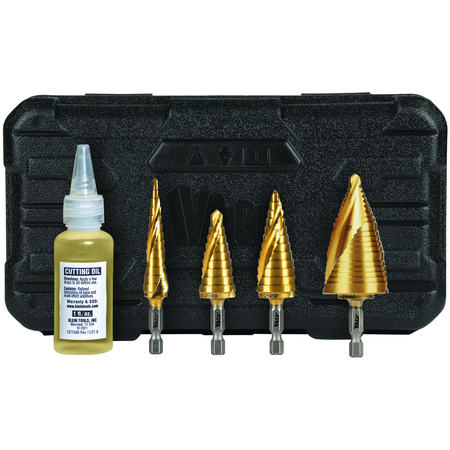

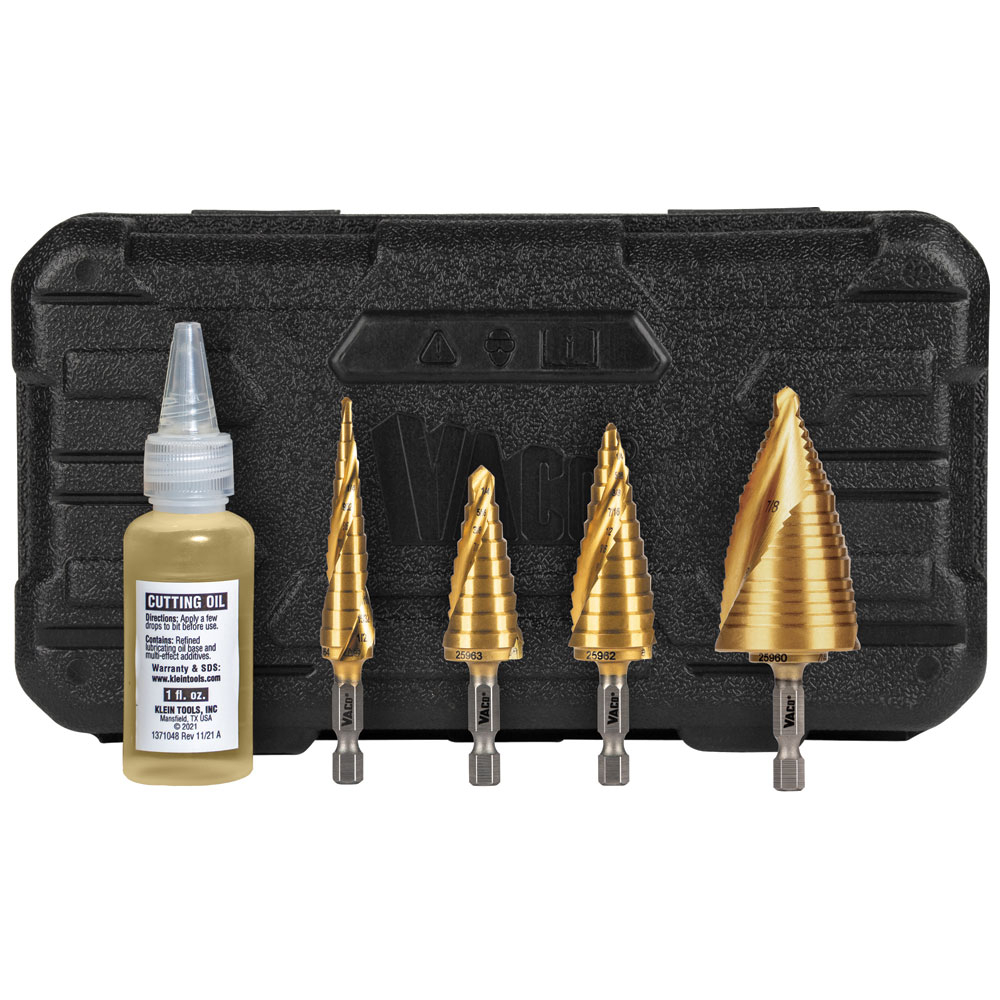

• Rugged case snaps shut with custom inserts for each bit and oil bottle

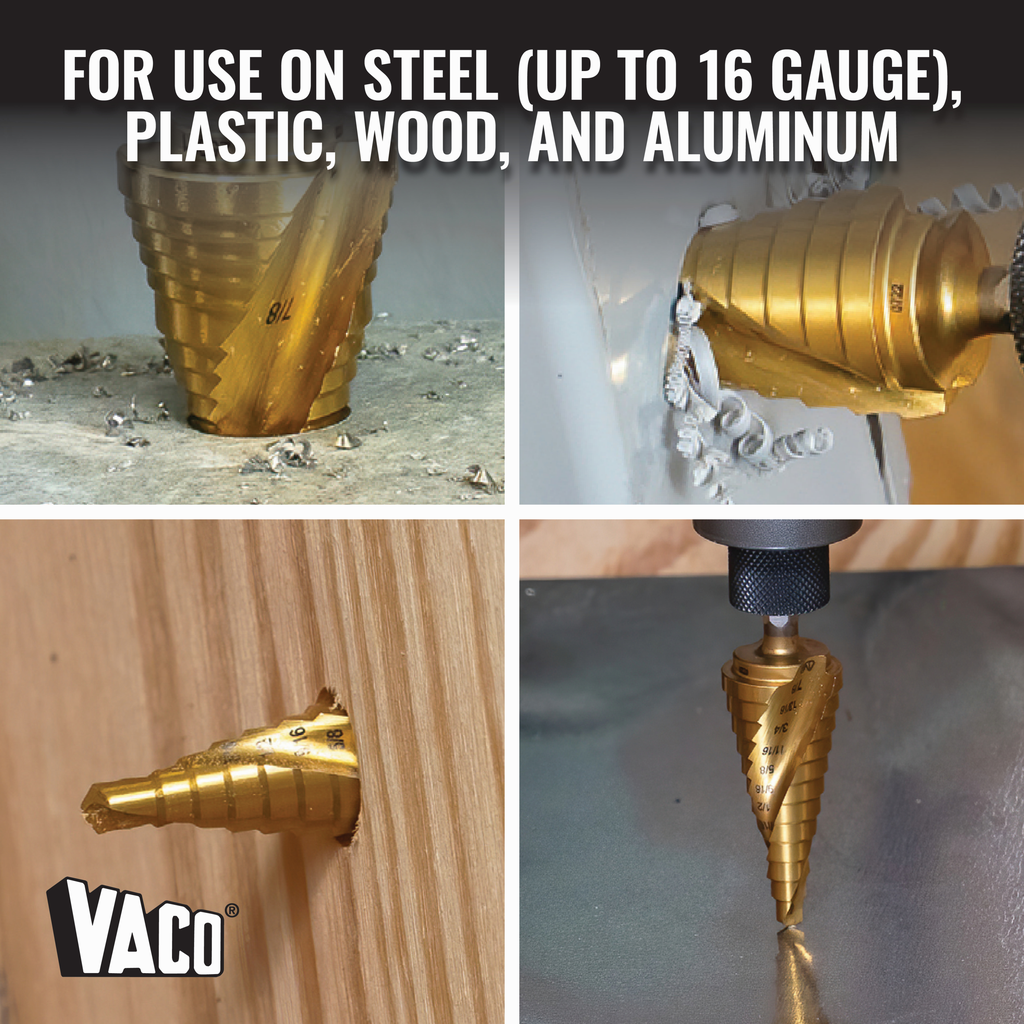

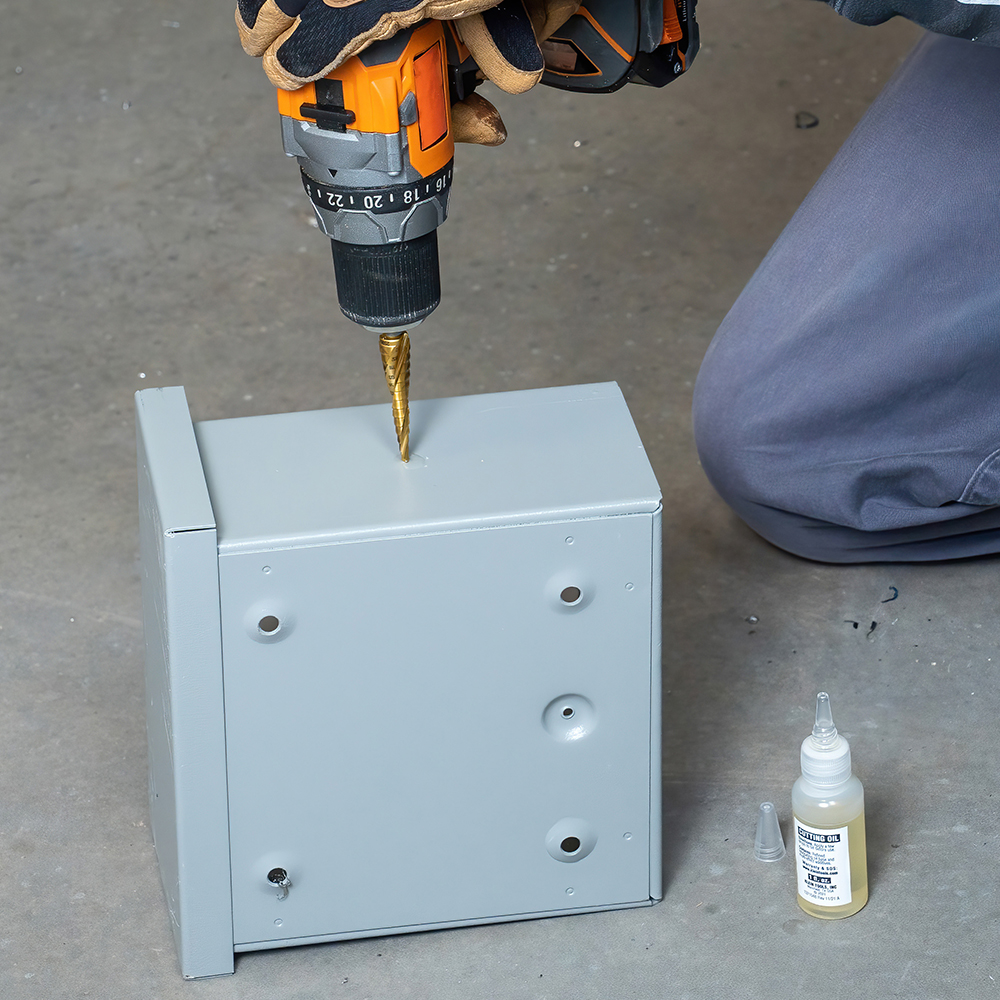

• All-Purpose Step Bit Kit with 4 common step bits sizes (1/2, 3/4, 7/8, and 1-3/8-Inch) cuts holes in wide variety of DIY applications and materials (up to 16 gauge steel, plastic, aluminum, wood)
• Kit comes with a convenient 1-Ounce oil bottle for lubrication between cuts to prolong step bit life

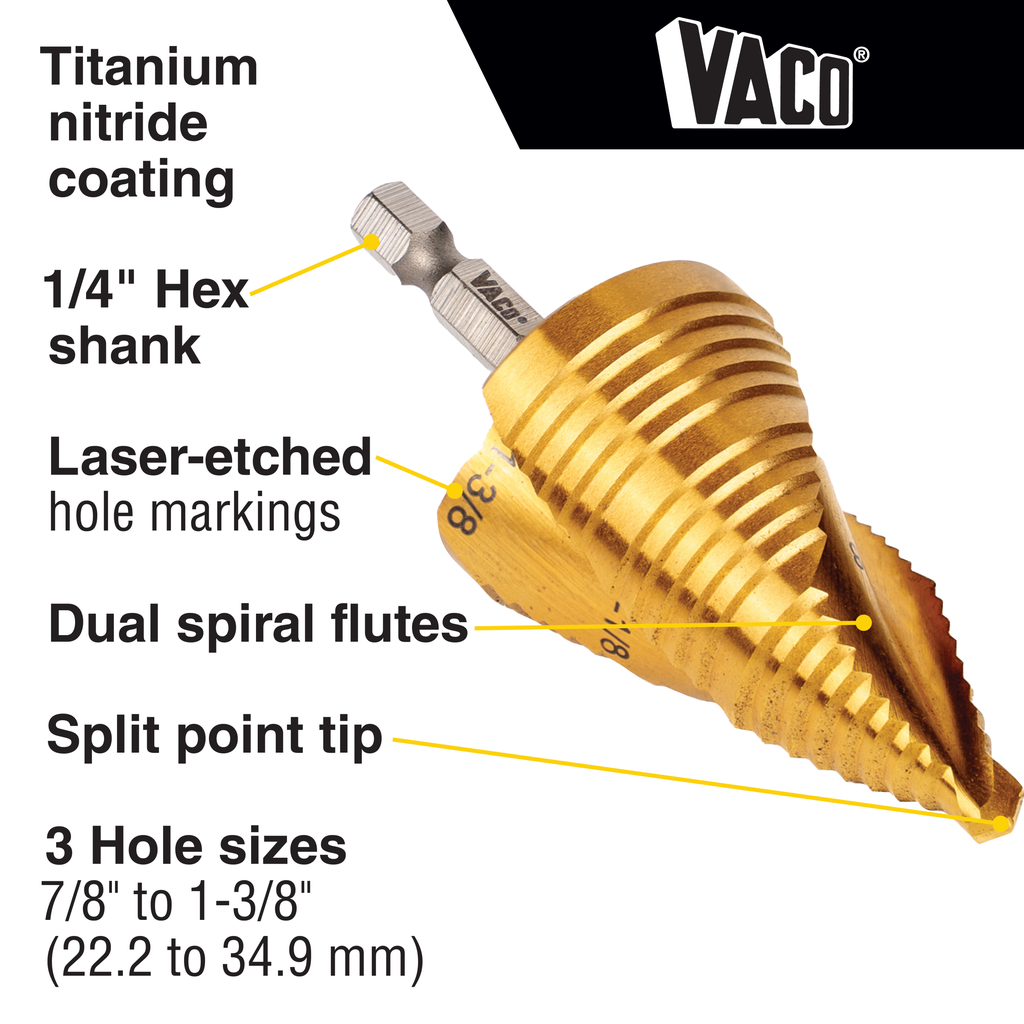

• TiN Coating, Impact Shaft, Dual Spiral Fluting, Oil Bottle, Custom Inserts in Protective Case
• Split point tip quickly starts hole cuts and prevents drifting when pressure is added
• Total of 37 hole sizes

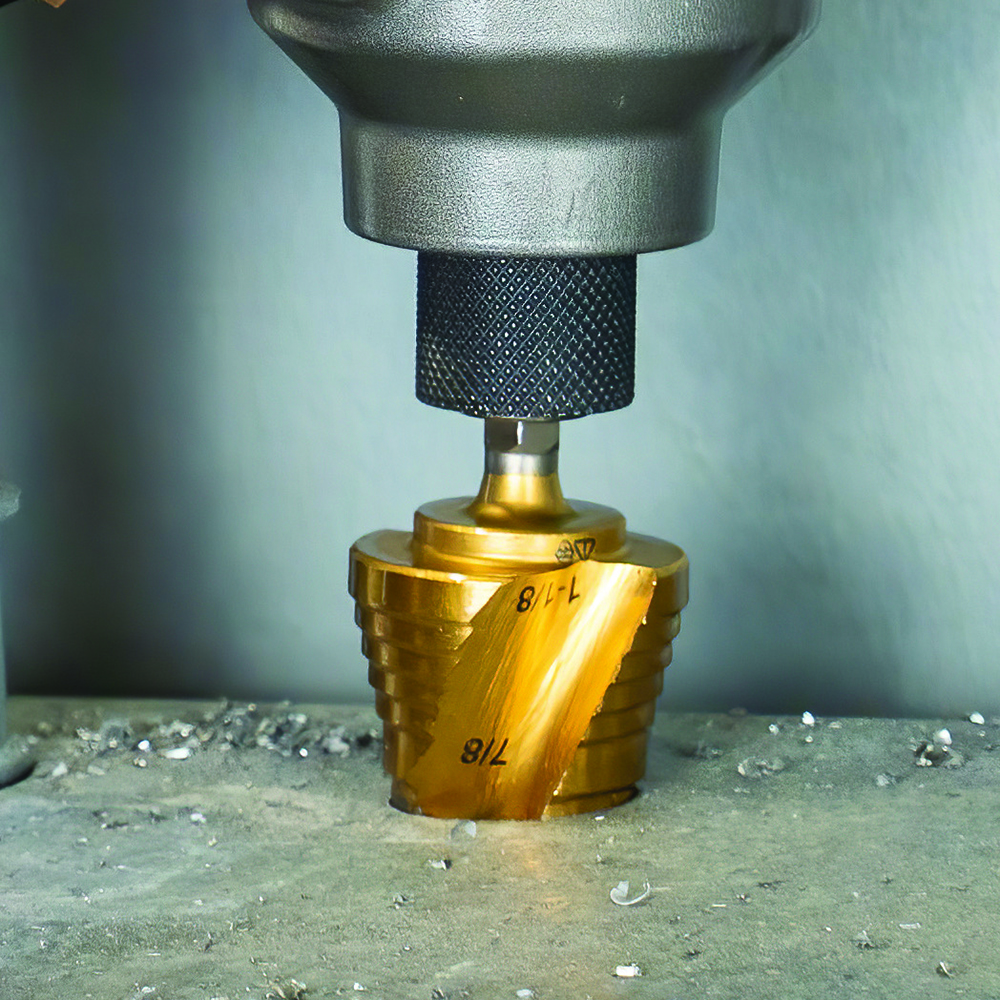

• 2 spiral flutes on each step drill bit remove chips and help pull the bit through material for faster cutting

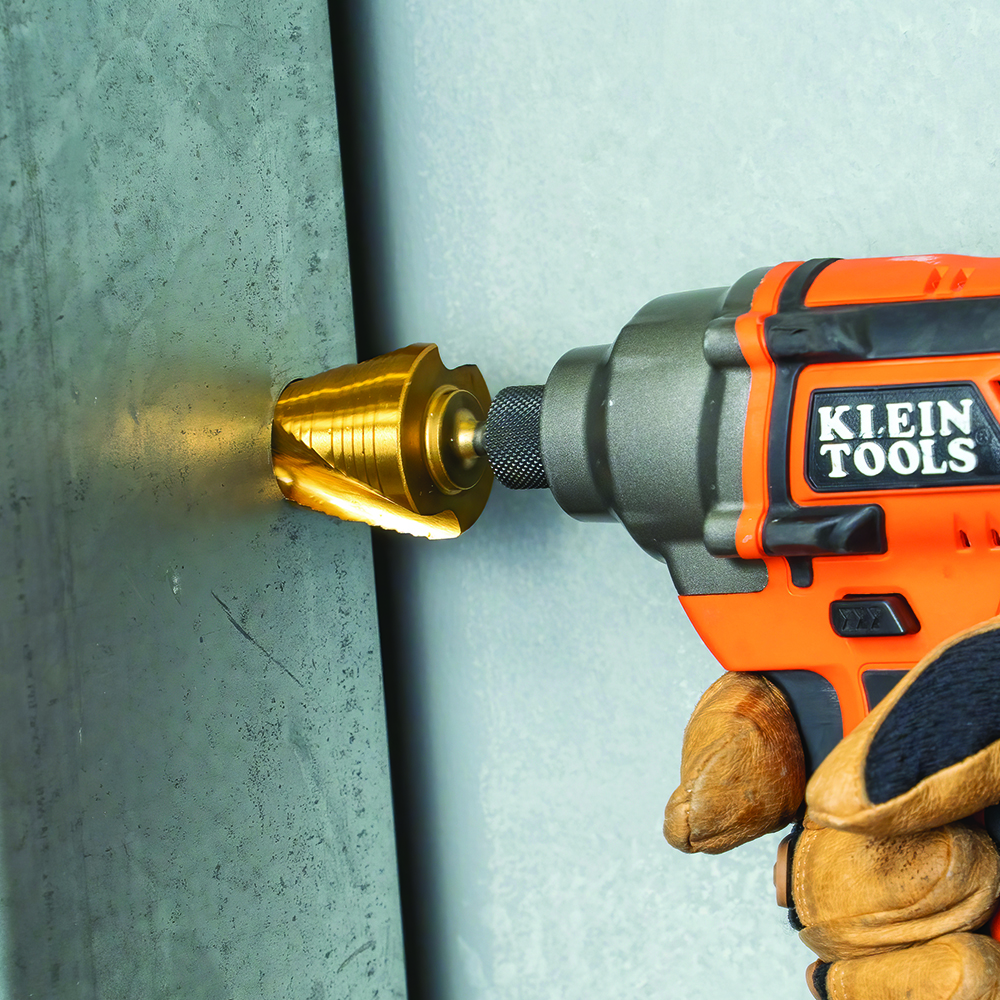

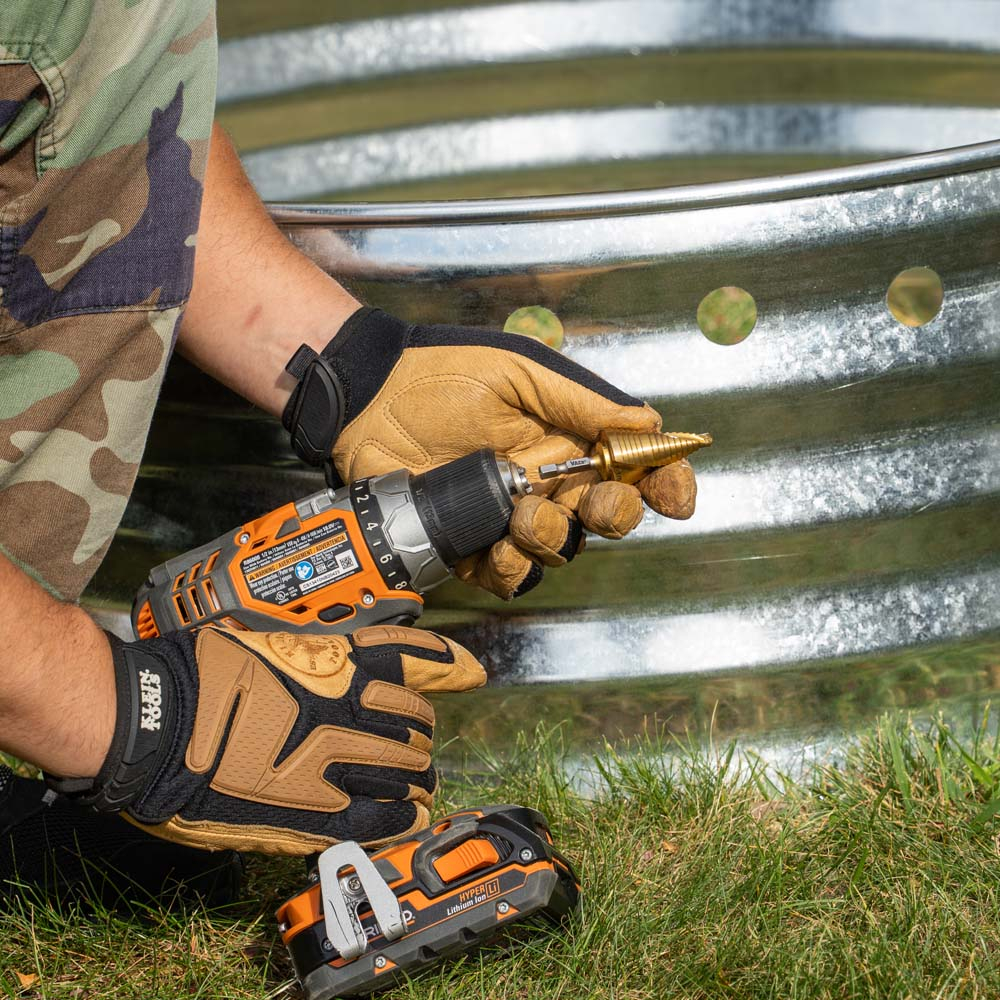

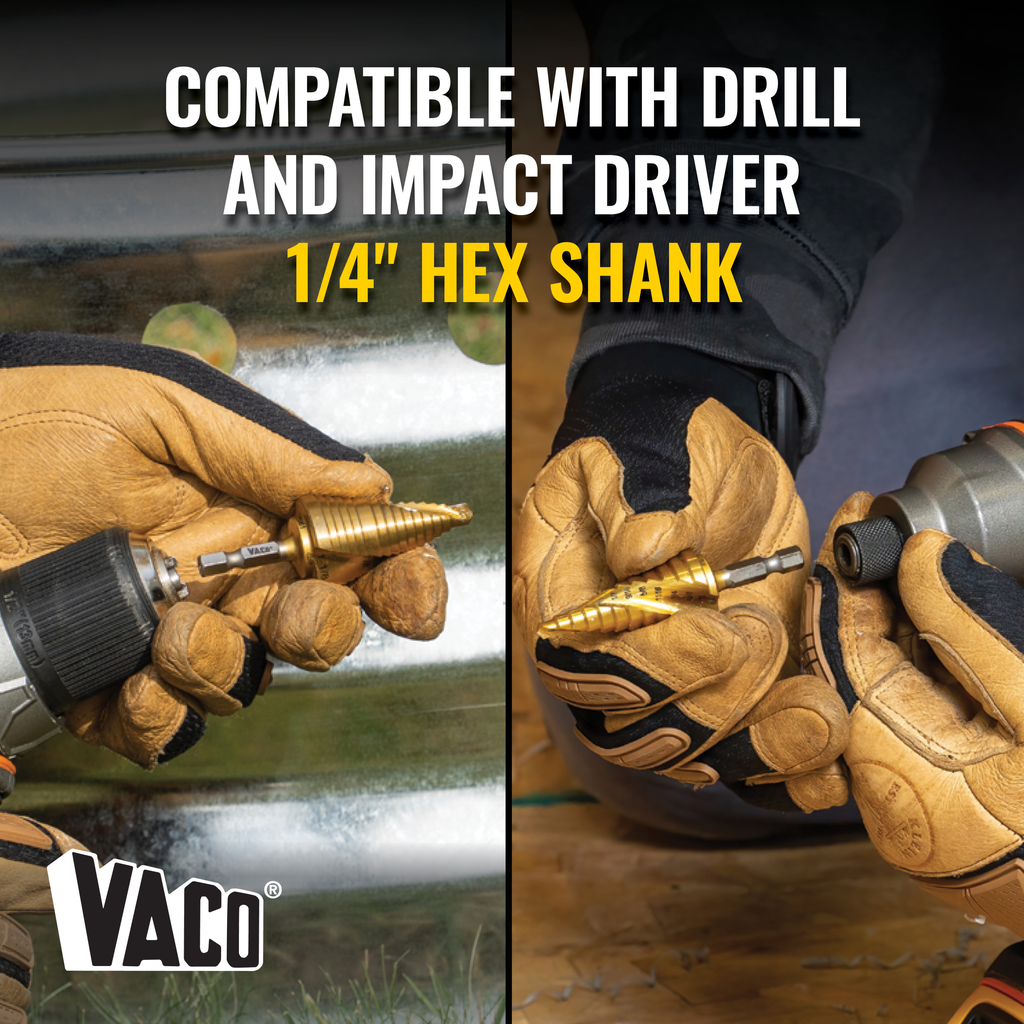

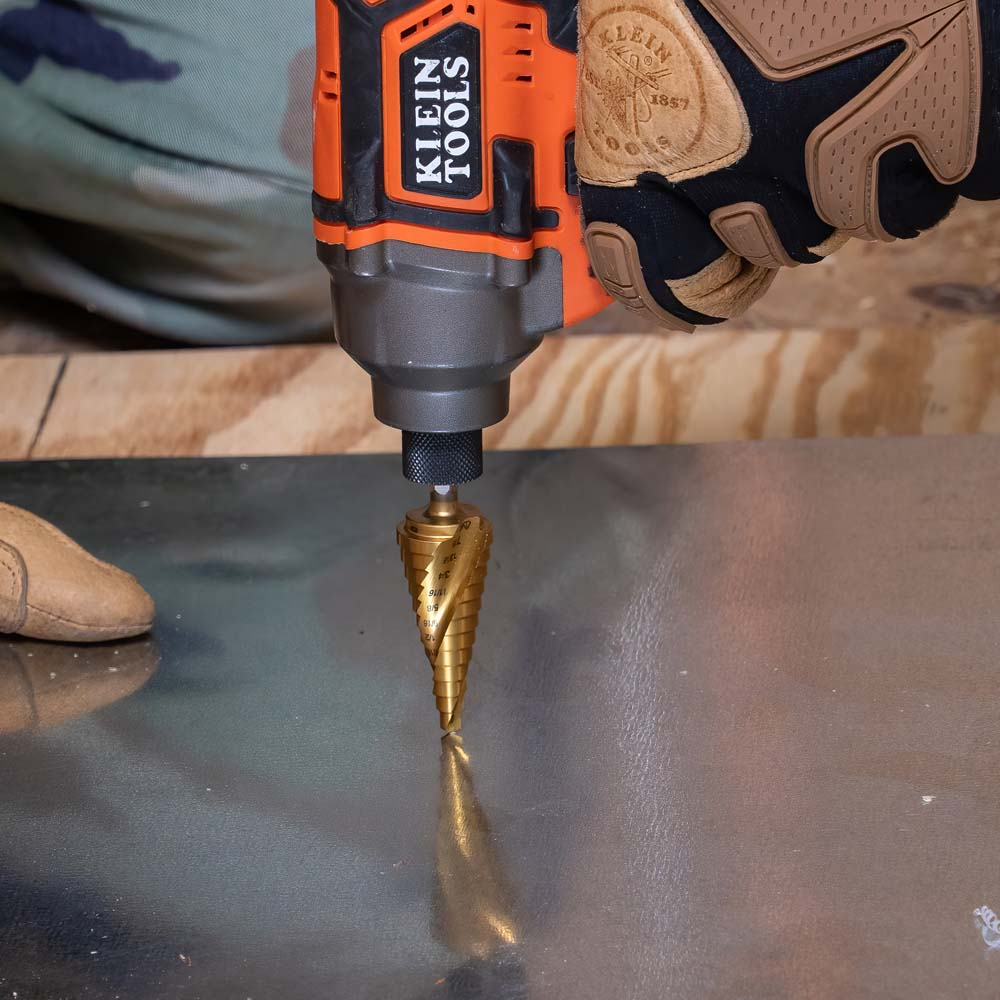

• 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.
• Read and follow safety instructions in power tool owner's manual.

Specifications

• Number of Holes: 37 Total
• Overall Width: 2.75" (7 cm)

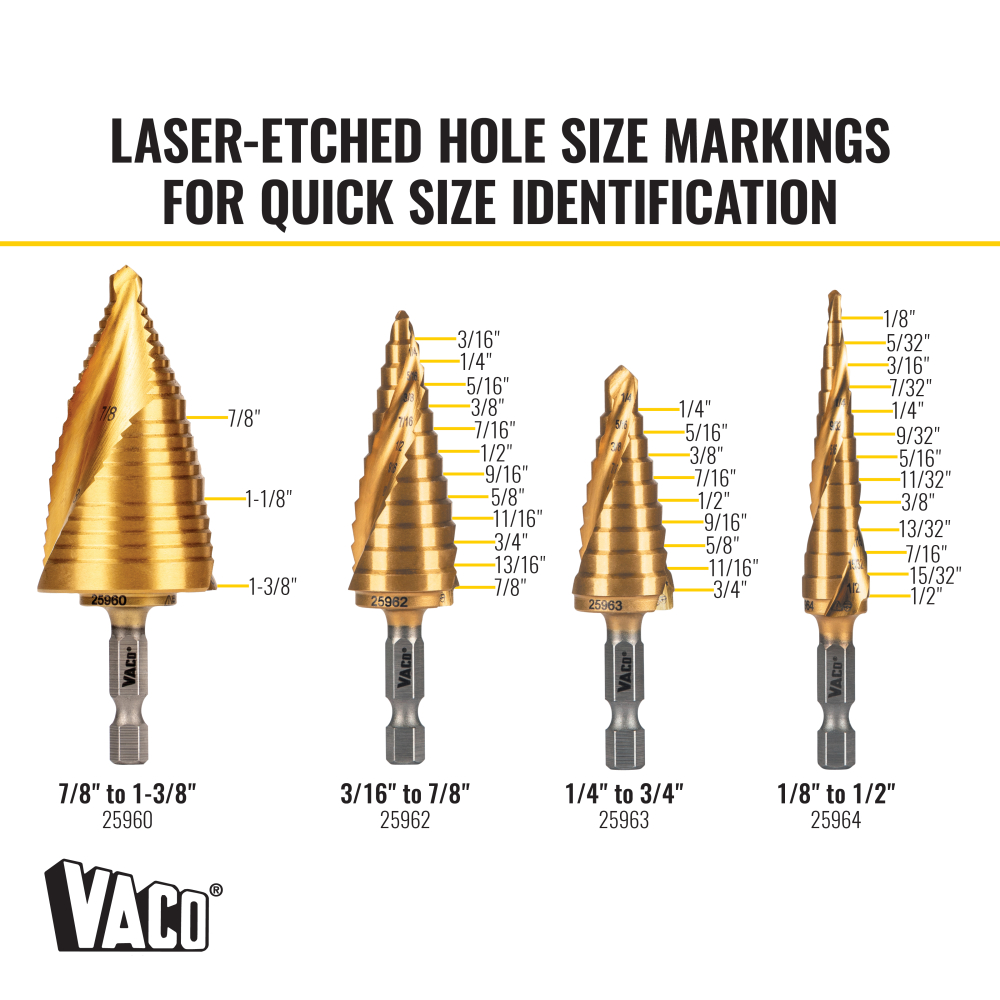

• Size: 1/8" to 1/2" (3.2 to 12.7 mm); 1/4" to 3/4" (6.4 to 19.1 mm); 3/16" to 7/8" (4.8 to 22.2 mm); 7/8" to 1-3/8" (22.2 to 34.9 mm)
• Shank Type: 1/4" Hex
• Country of Origin: China
• Depth: 8.7500 in
• Material: High Speed Steel
• Coating: Titanium Nitride
• Flute Type: Spiral
• Width: 2.7500 in
• Application: Multi-Material Drilling
• Type: Step Drill Bit Set
• Overall Length: 8.75" (22.2 cm)
• Height: 4.8600 in
• Overall Height: 4.9" (12.3 cm)
• Weight: 1.5000 lbs
• Quick Reference: #1, #3, #14, #15
