Step Bit Kit, Spiral Double-Fluted, VACO, 3-Piece

The Electrician's Step Bit Kit features three commonly used step bits, with dual spiral fluting to help pull the step bit through material for faster cutting. Titanium Nitride coating extends the life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Kit comes in a rugged case that includes a convenient oil bottle for bit lubrication and longevity.

Features

• Total of 17 hole sizes

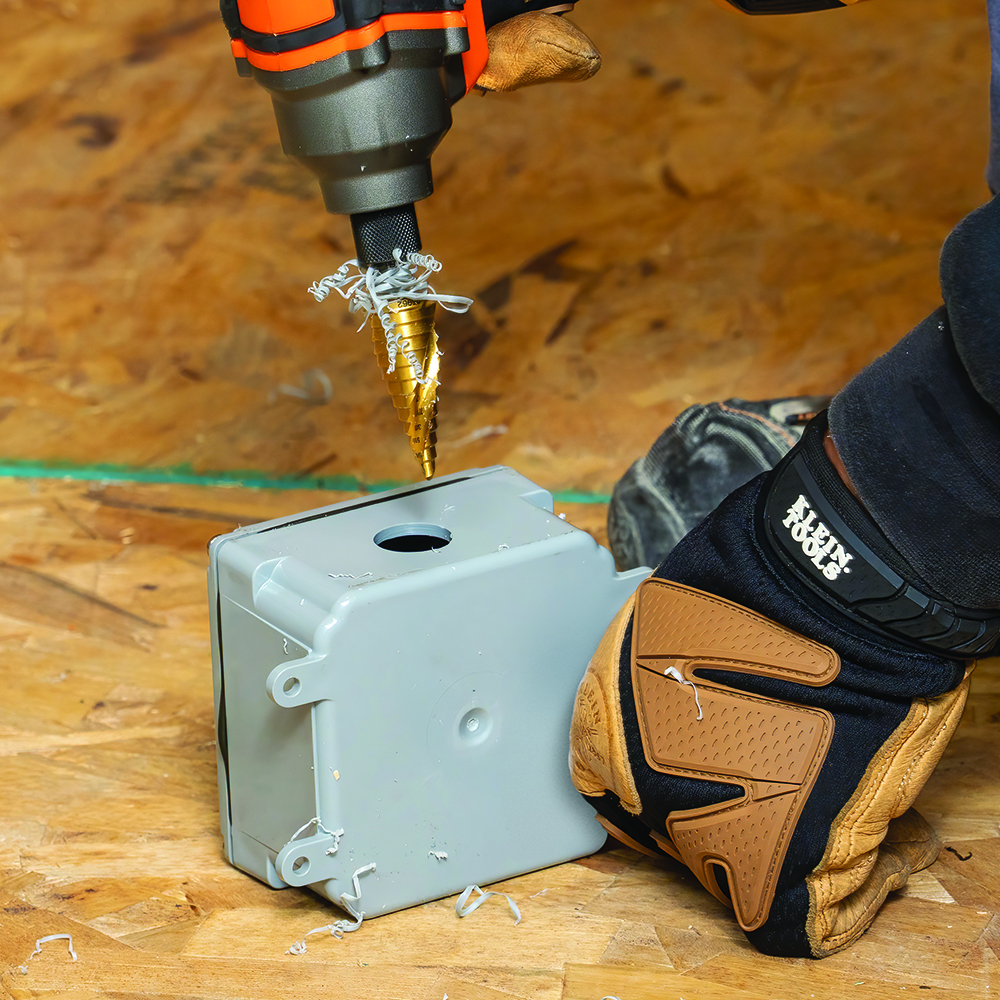

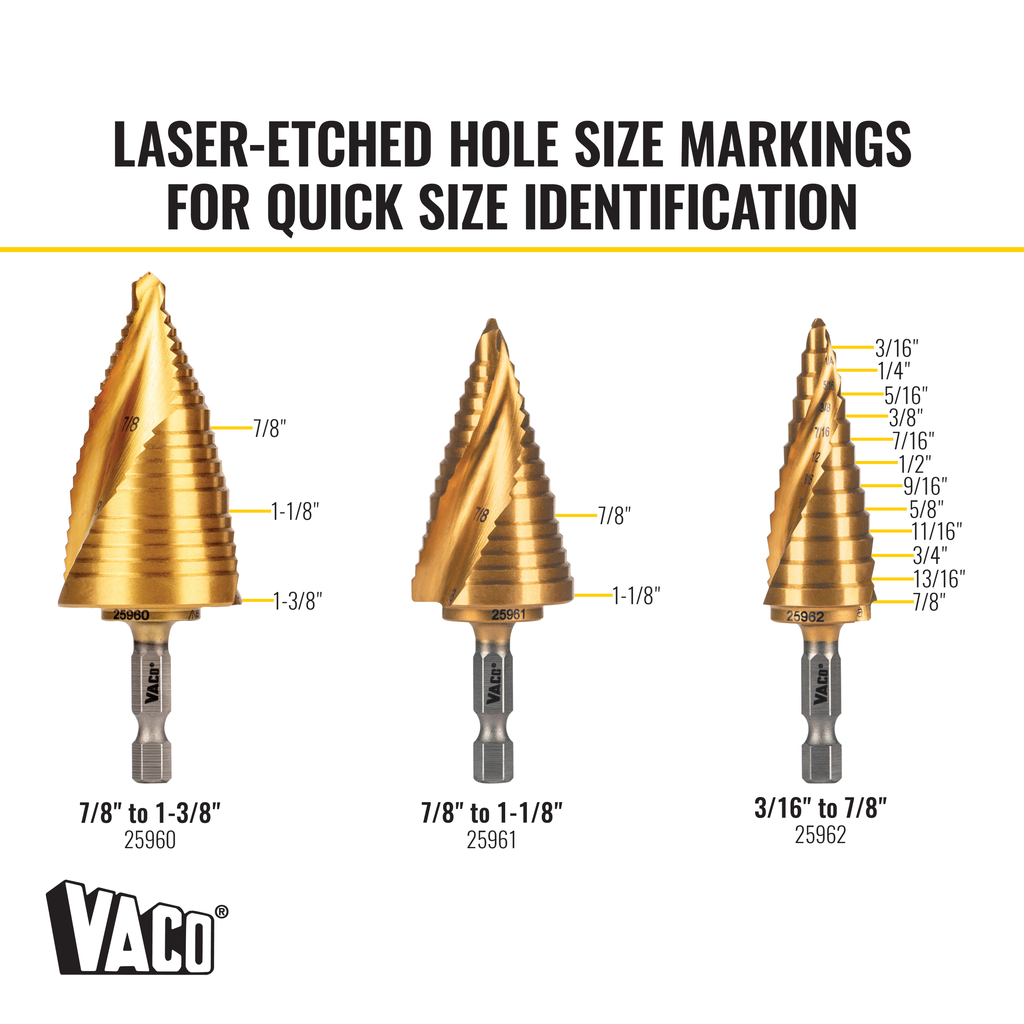

• Electrician's Step Bit Kit with 3 step bits sized 7/8, 1-1/8, and 1-3/8-Inch for creating hole cutouts in panels and j-boxes to accommodate most commonly used 1/2, 3/4, and 1-Inch conduit

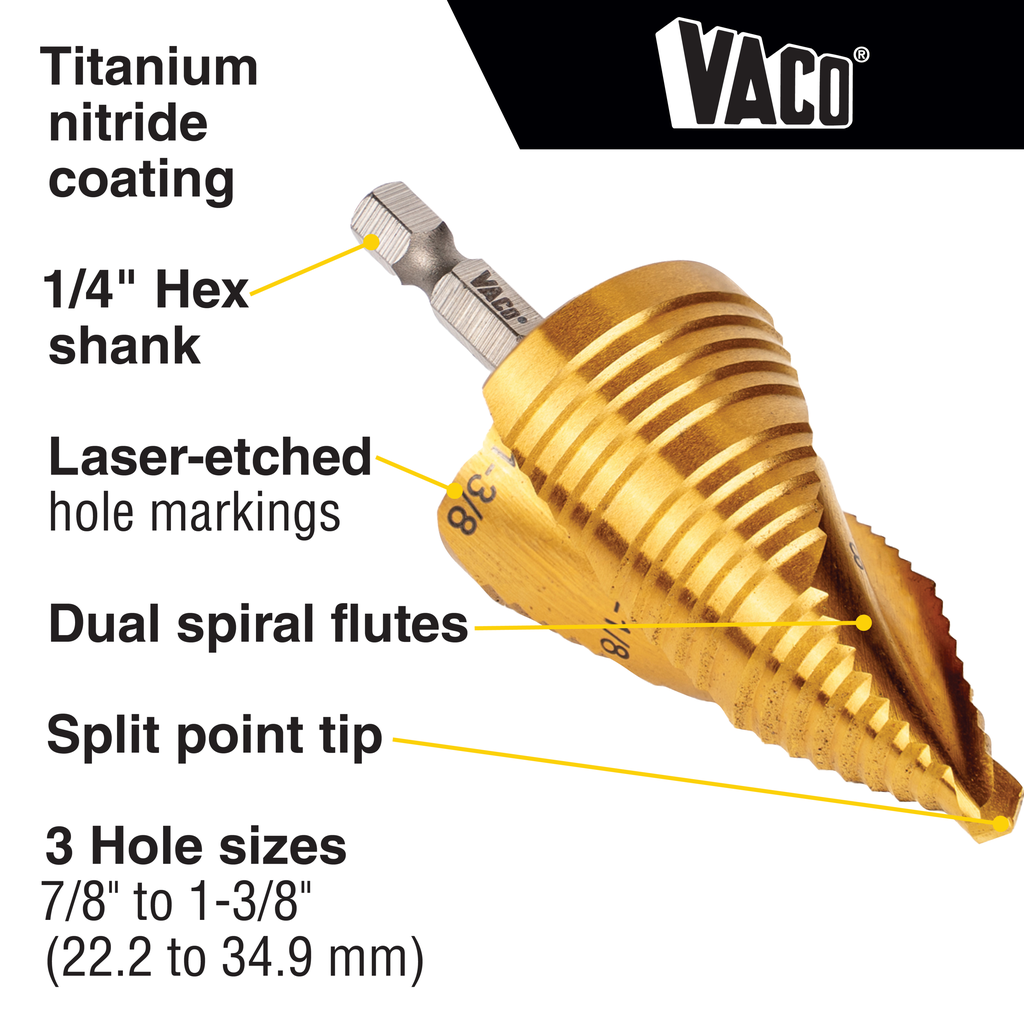

• Split point tip quickly starts hole cuts and prevents drifting when pressure is added

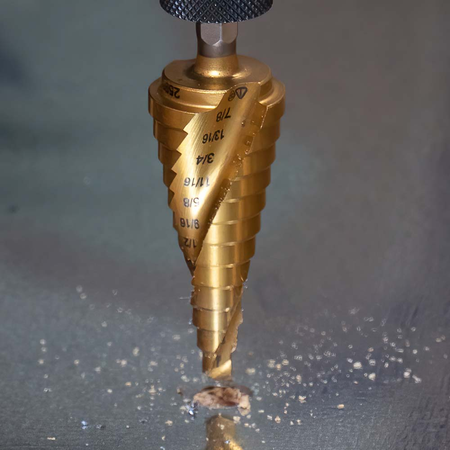

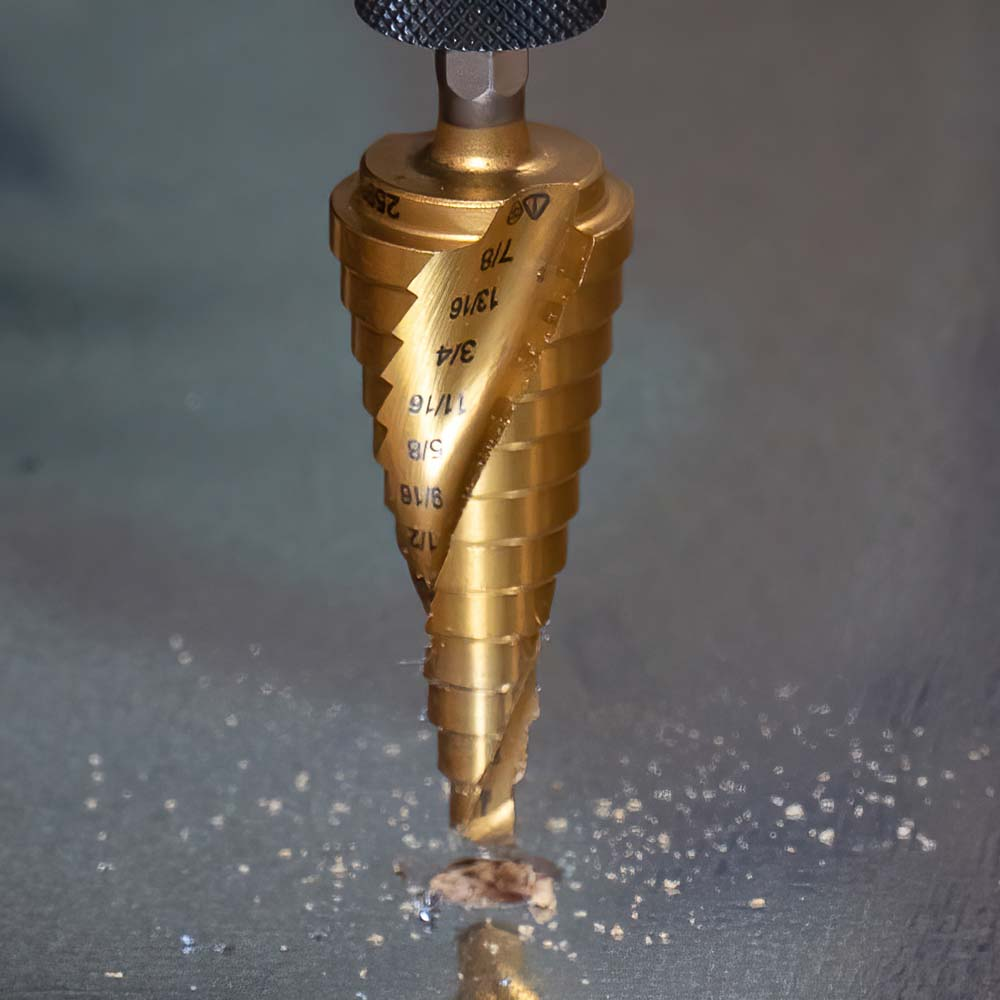

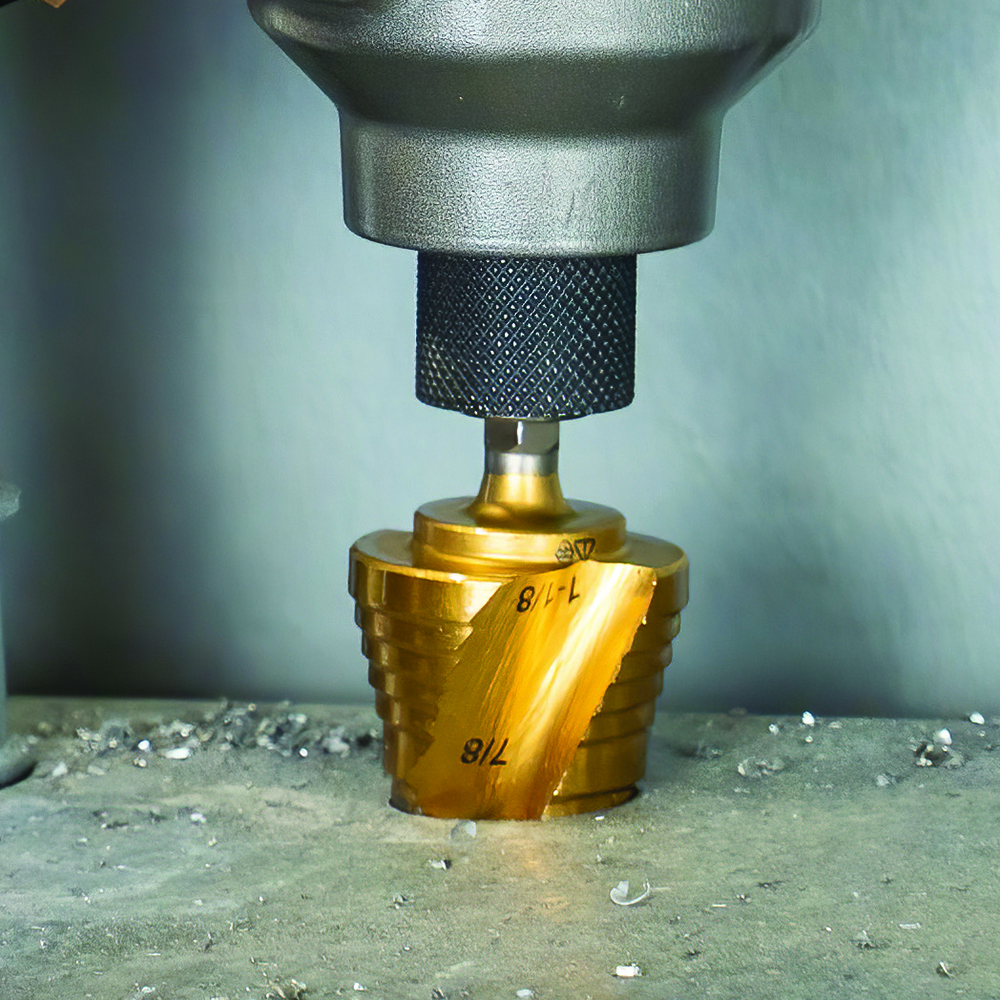

• Two spiral flutes on each step drill bit remove chips and help pull the bit through material for faster cutting
• TiN Coating, Impact Shaft, Dual Spiral Fluting, Oil Bottle, Custom Inserts in Protective Case
• Kit comes with a convenient 1-Ounce oil bottle for lubrication between cuts to prolong step bit life

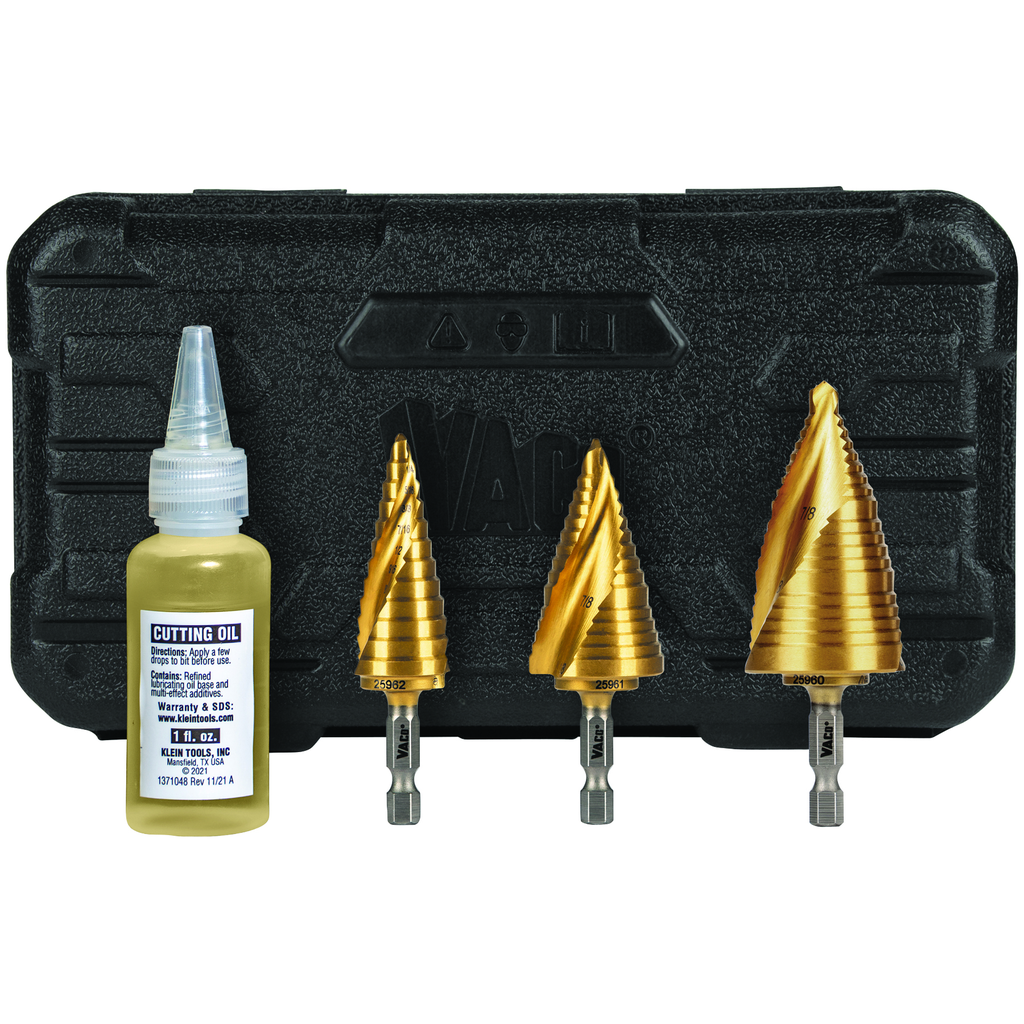

• Rugged case snaps shut with custom inserts for each bit and oil bottle
• Titanium nitride coating dissipates heat for longer bit life

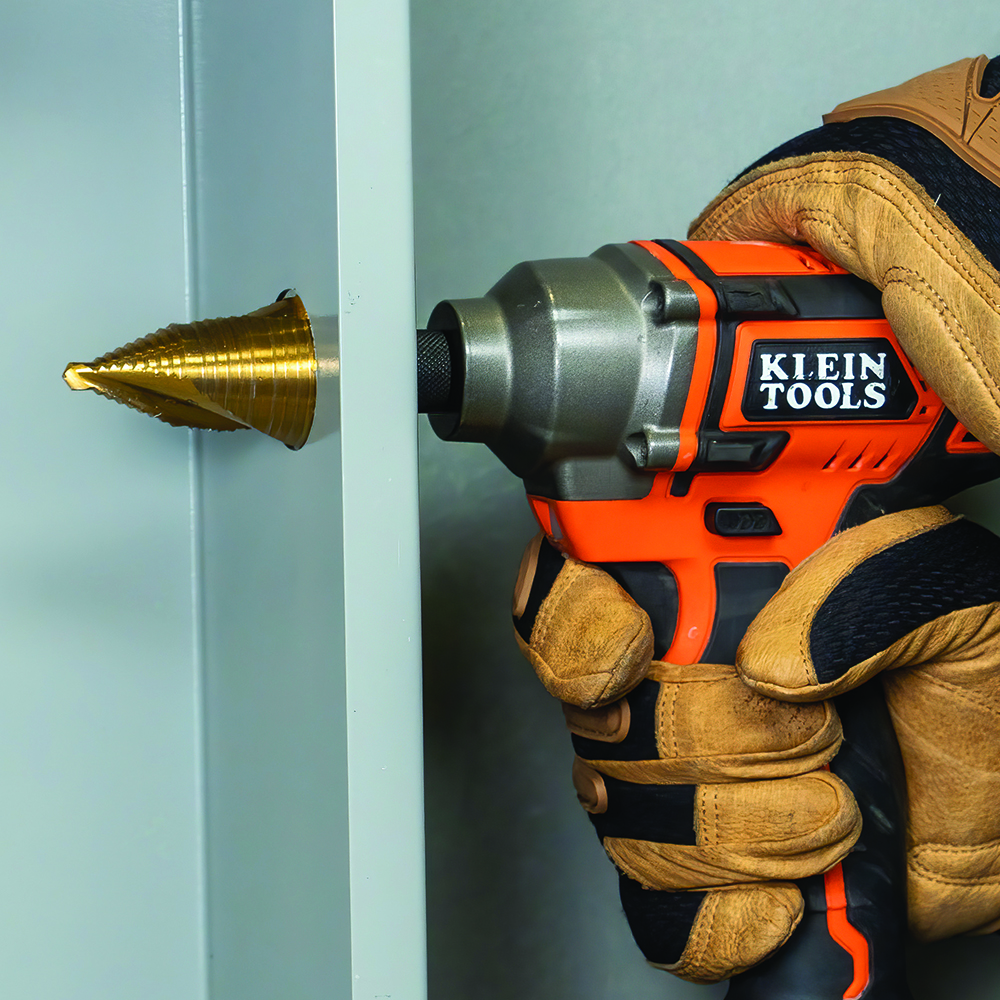

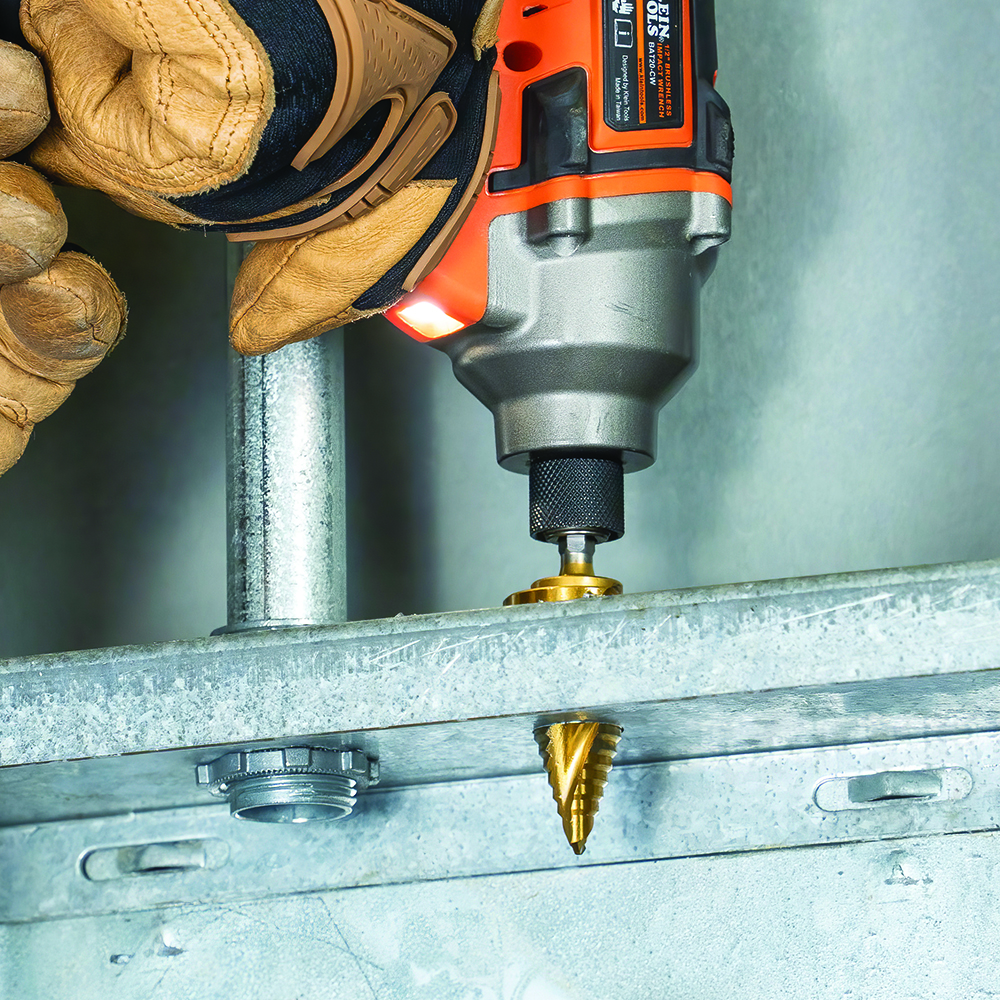

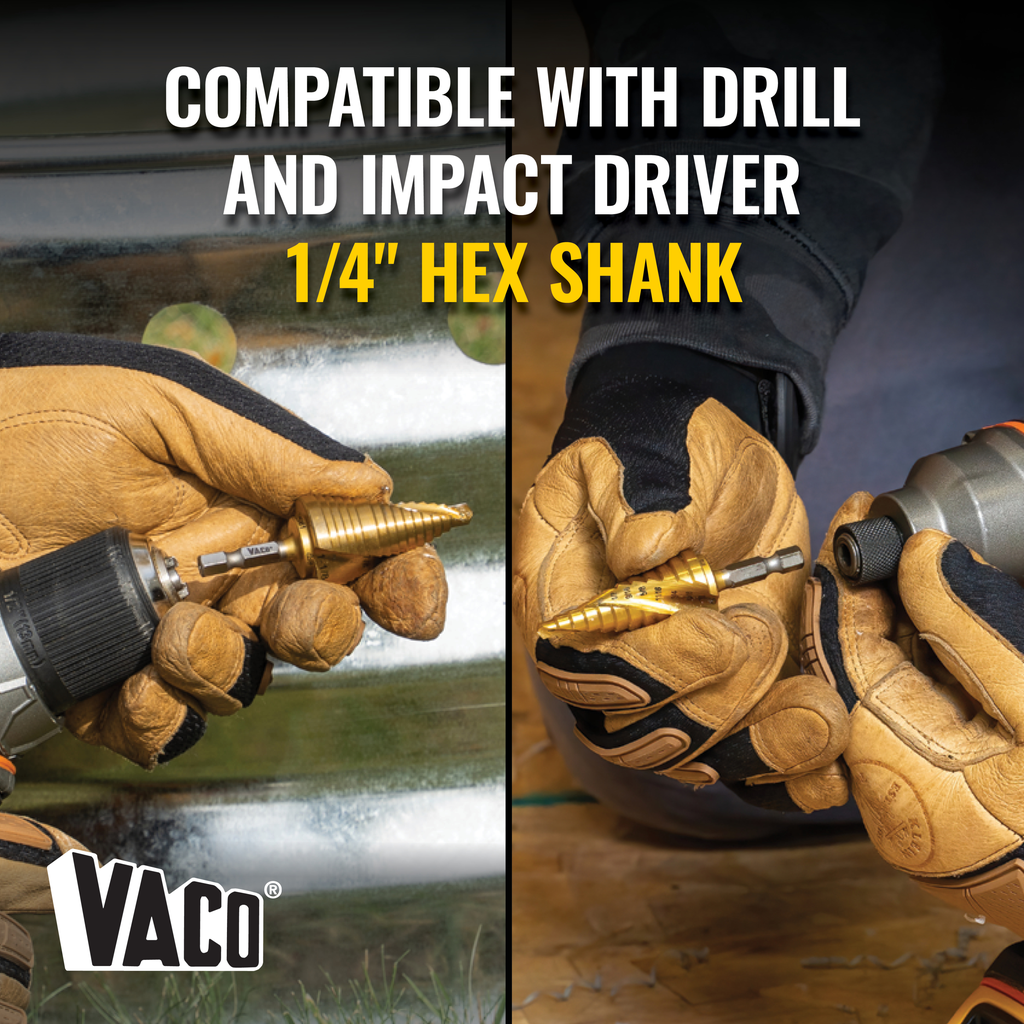

• 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.
• Read and follow safety instructions in power tool owner's manual.

Specifications

• Size: 3/16" to 7/8" (4.8 to 22.2 mm); 7/8" to 1-1/8" (22.2 to 28.6 mm); 7/8" to 1-3/8" (22.2 to 34.9 mm)
• Material: High Speed Steel
• Weight: 1.5000 lbs
• Weight (g): 740

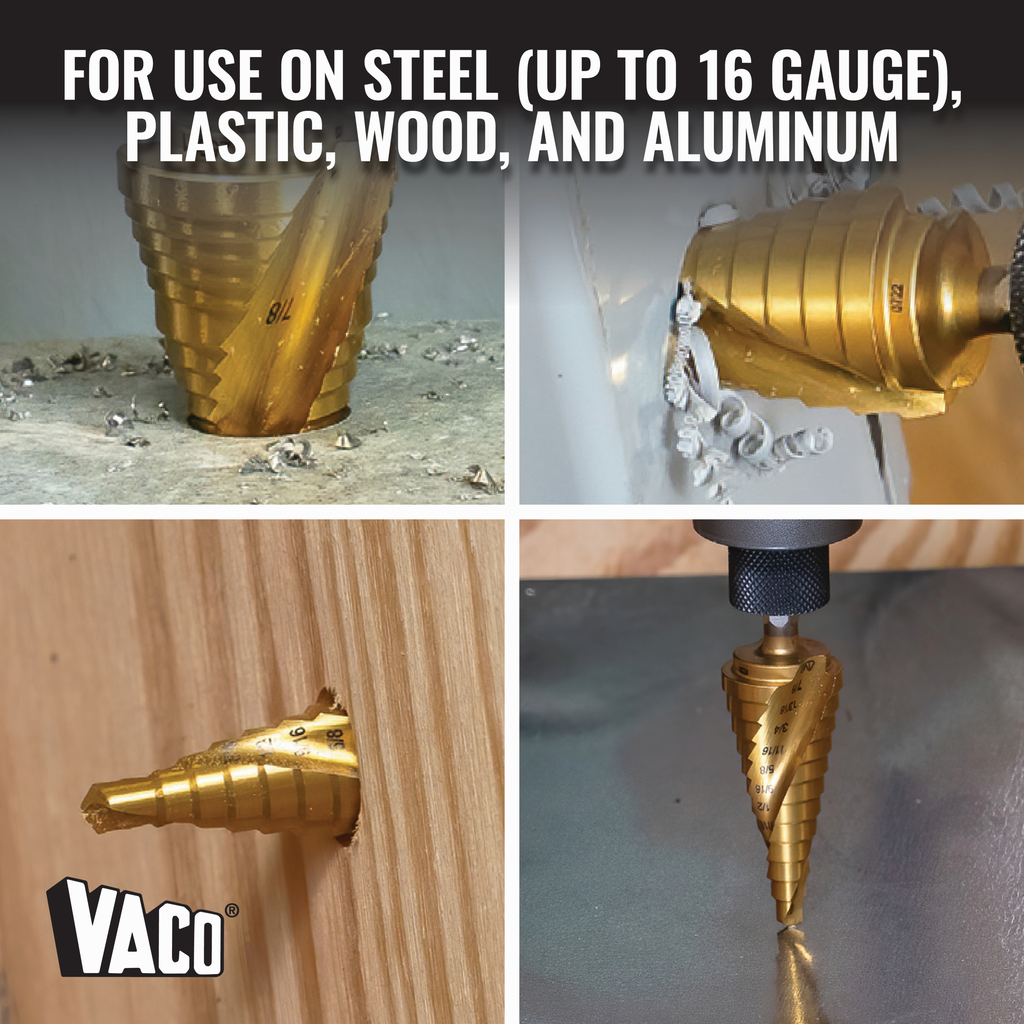

• Application: Multi-Material Drilling
• Flute Type: Spiral
• Overall Height (Inch): 4.9
• Depth: 8.7500 in
• Coating: Titanium Nitride
• Overall Length (cm): 22.2
• Quick Reference: #14, #11, #15
• Overall Length (Inch): 8.75
• Type: Step Drill Bit Set
• Weight (oz): 26.1
• Overall Height (cm): 12.4
• Overall Width (Inch): 2.75
• Overall Width (cm): 7
• Width: 2.7500 in
• Height: 4.8600 in
• Number of Holes: 17 Total
• Shank Type: 1/4" Hex
