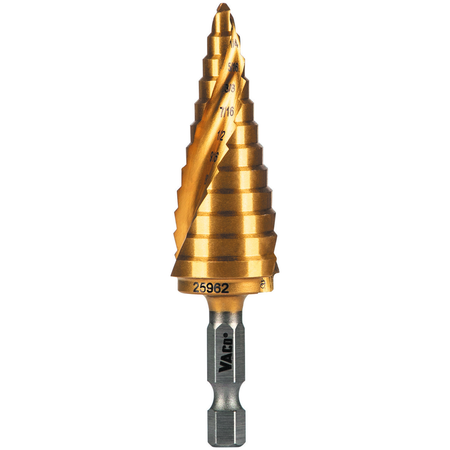

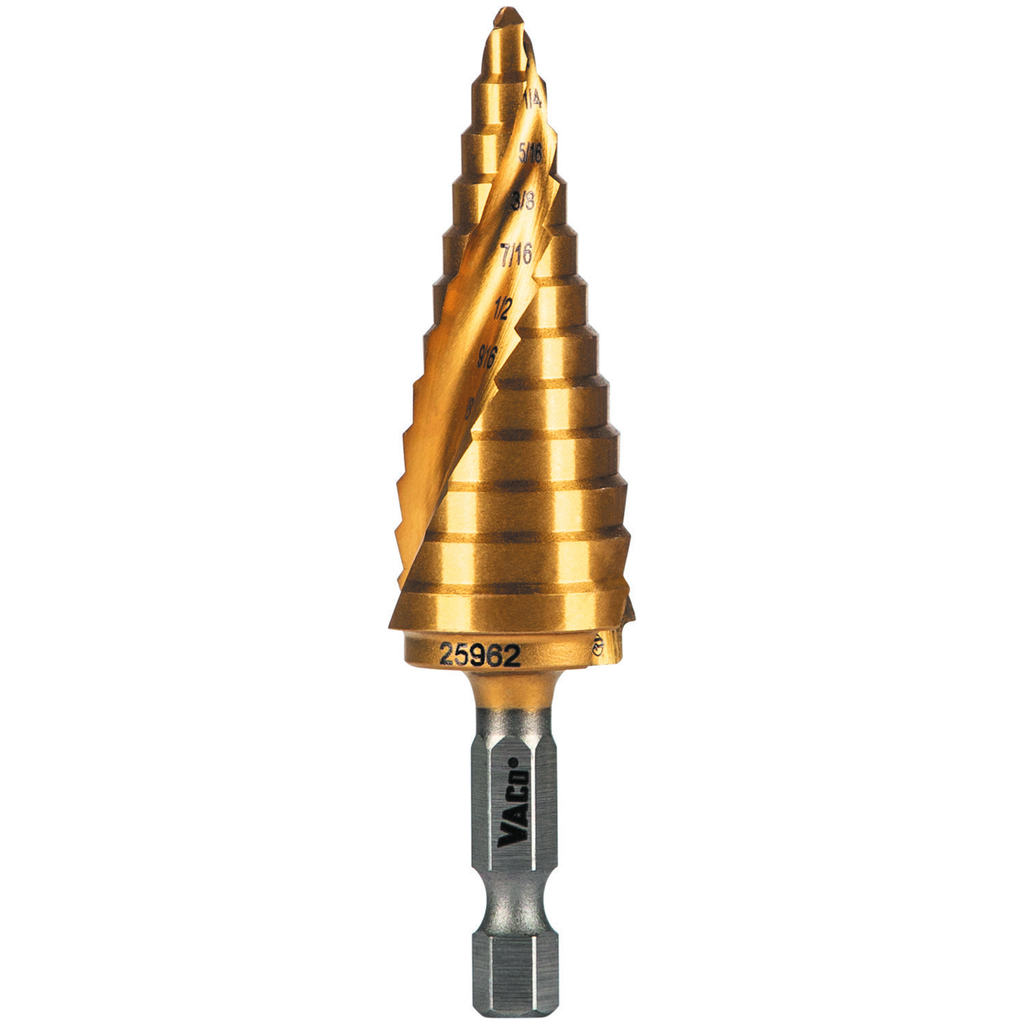

12-Step Drill Bit, Double-Fluted, 3/16-Inch to 7/8-Inch

Dual Spiral Flutes on VACO Step Drill Bits help pull the step bit through material for faster cutting. The Titanium Nitride coating extends the life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Available in five step bit sizes with commonly used hole sizes for steel (up to 16 gauge), plastic, aluminum, and wood.

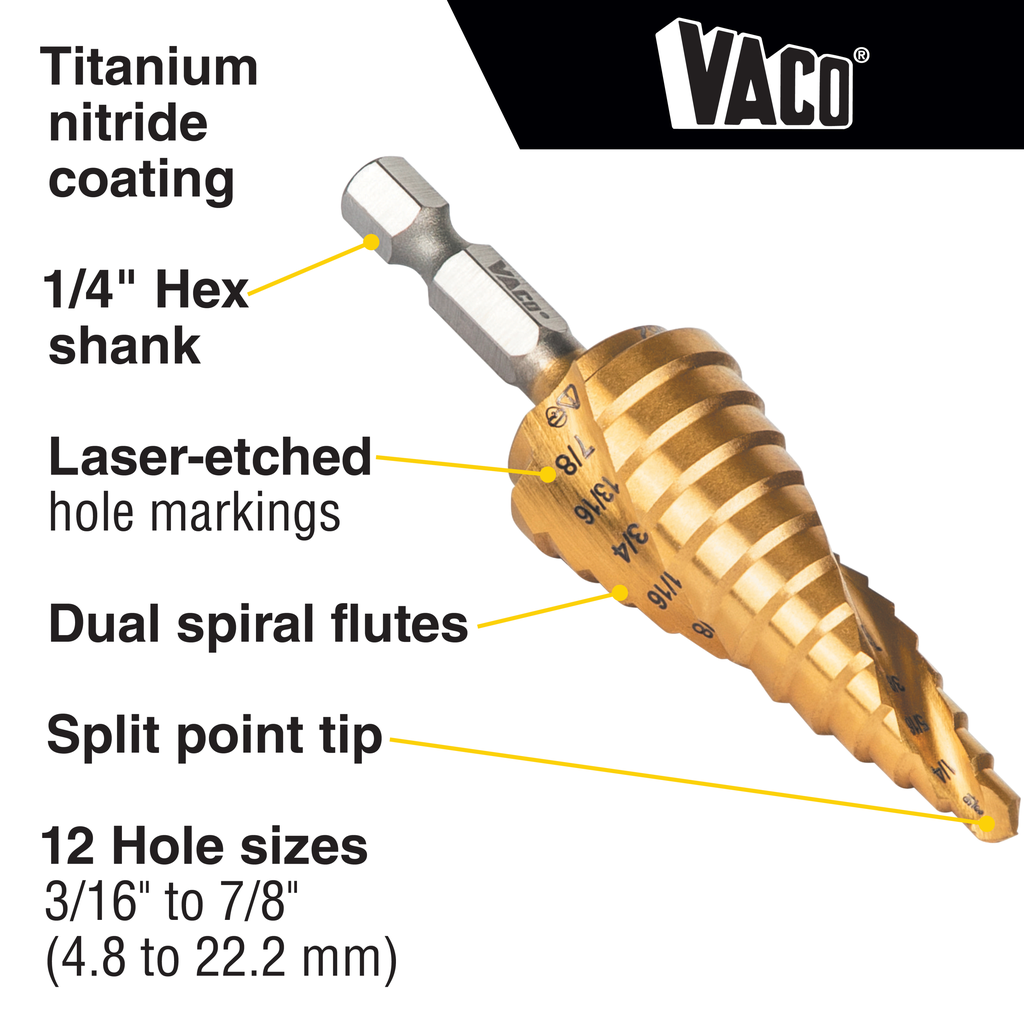

Features

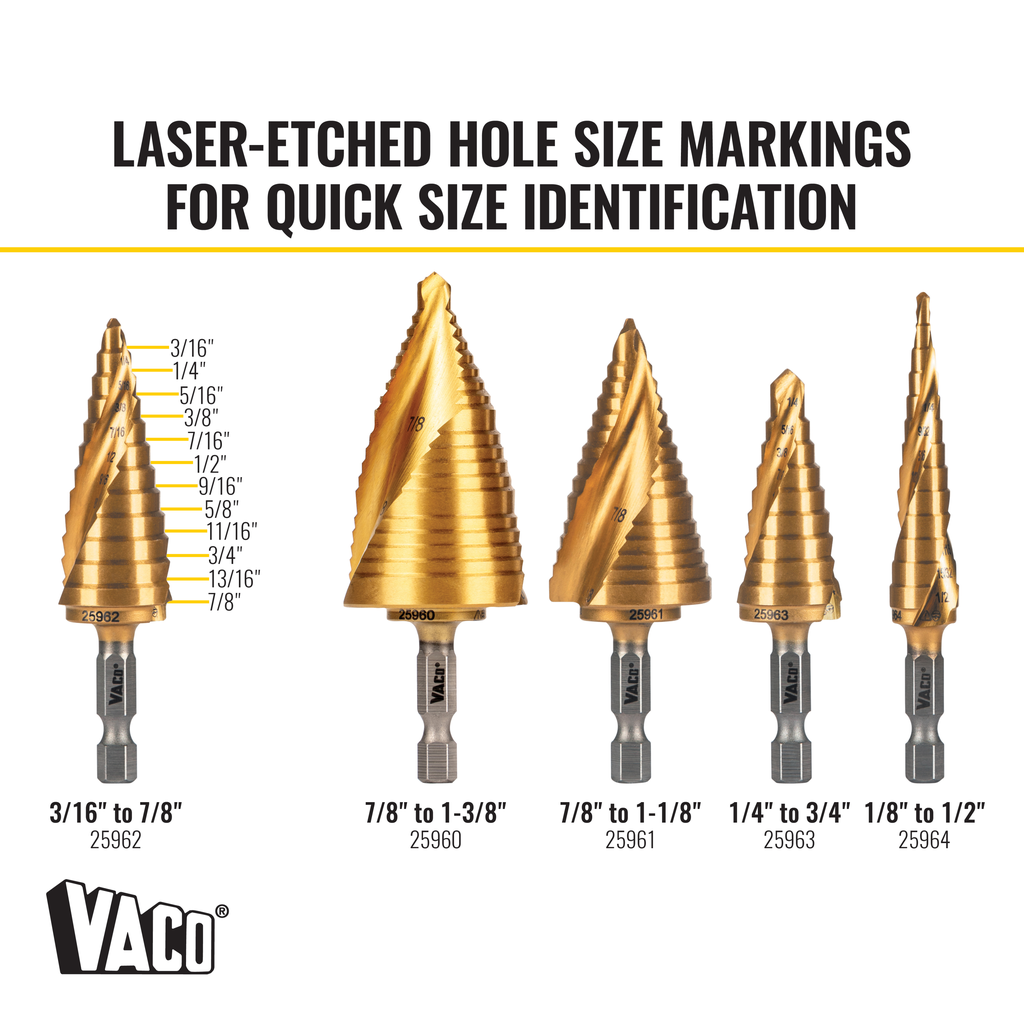

• Laser-etched hole size markings for quick size identification
• Step Drill Bit has 2 spiral flutes to remove chips and help pull the bit through material for faster cutting
• Titanium nitride coating dissipates heat for longer bit life

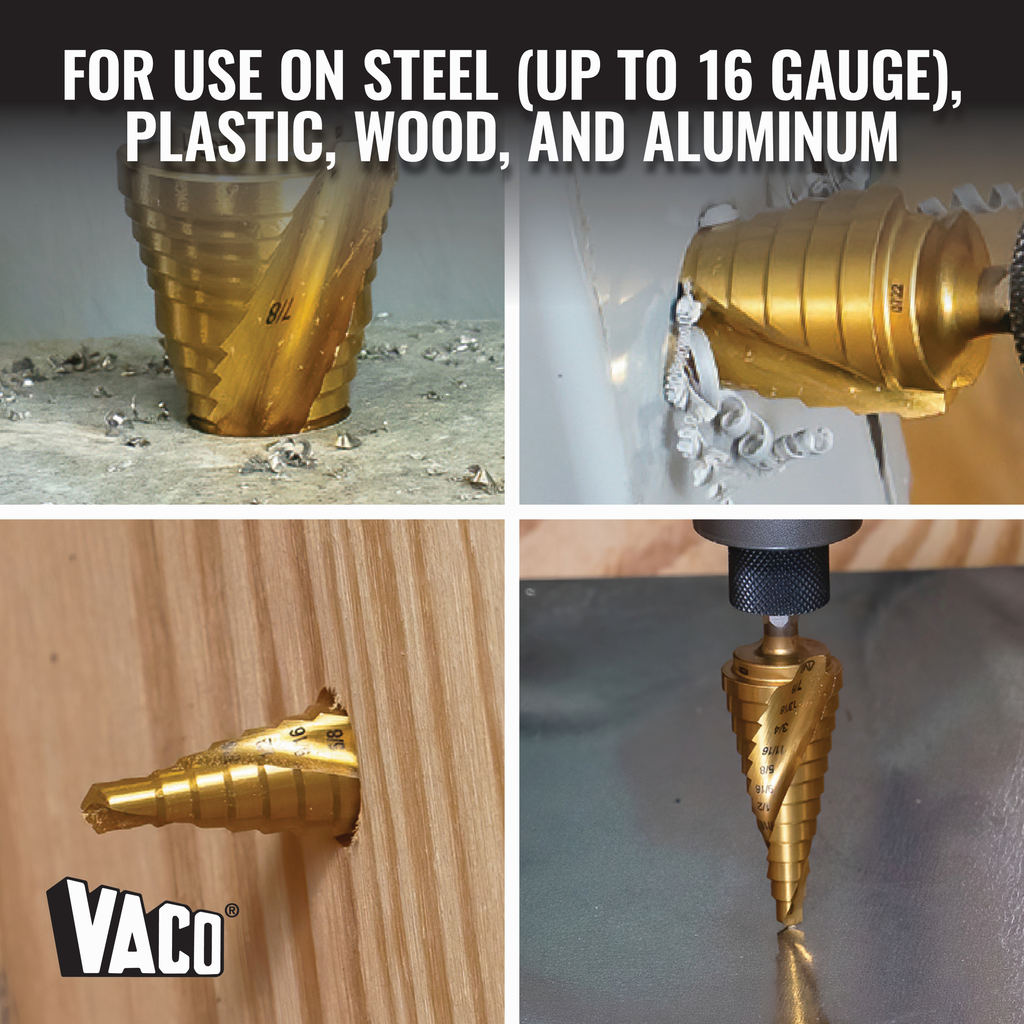

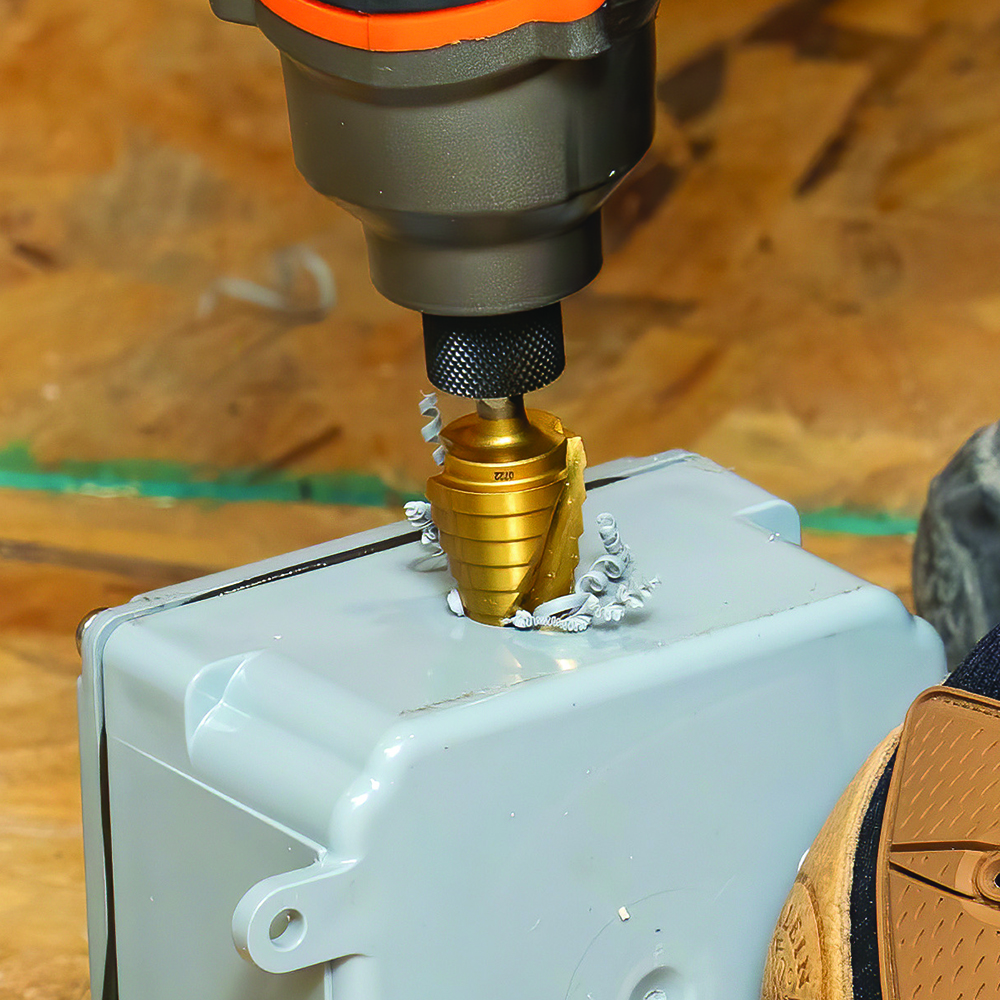

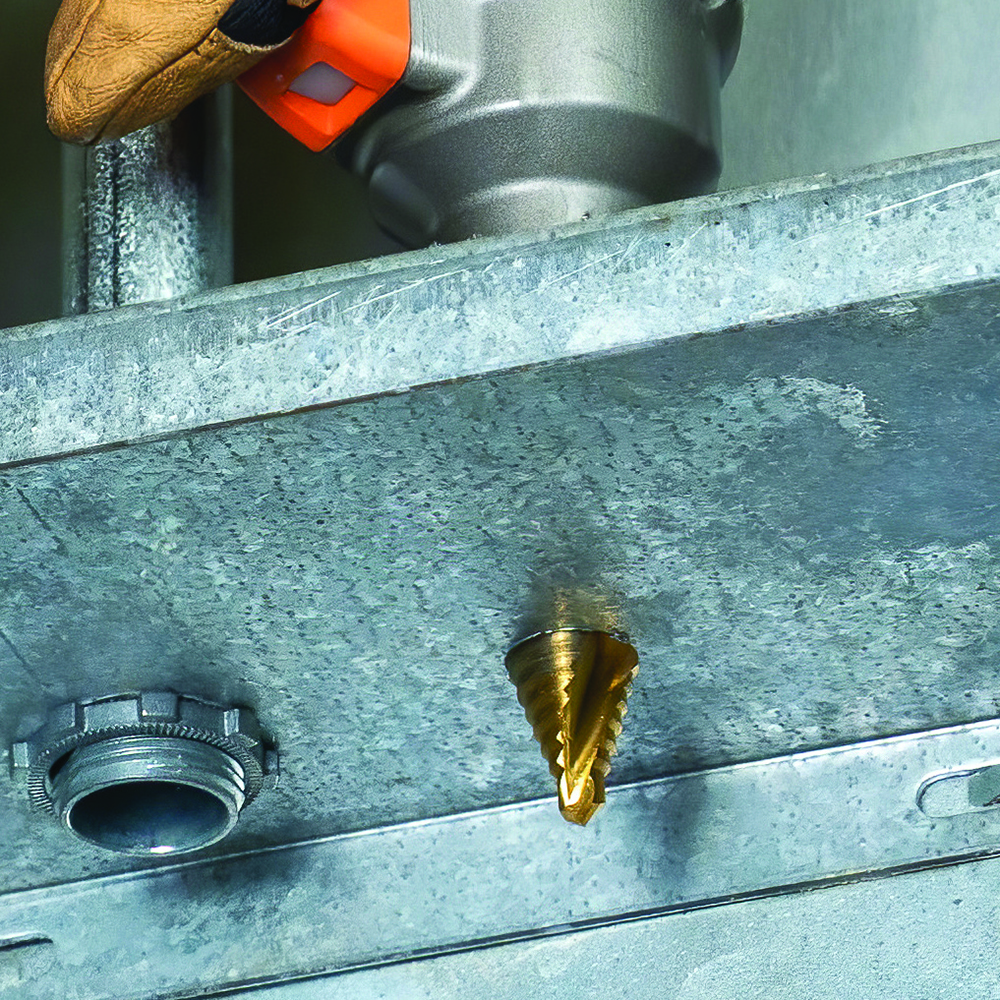

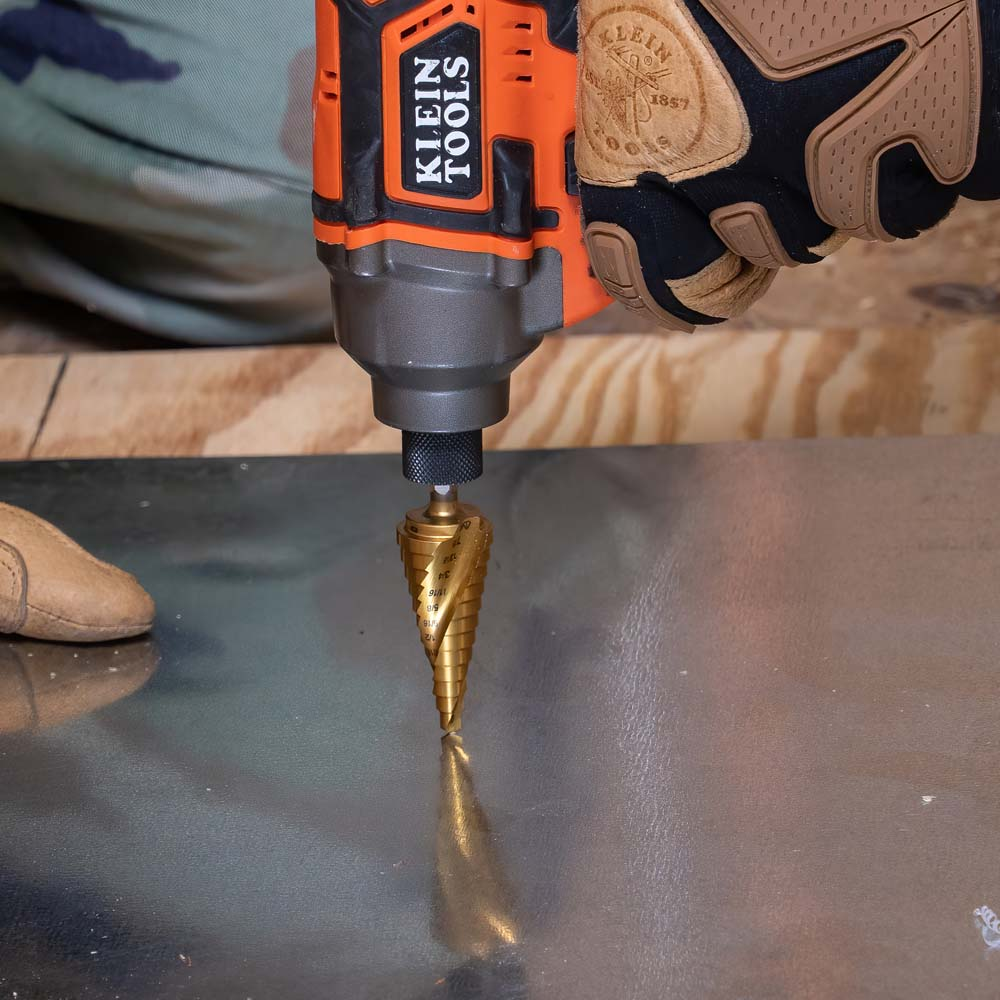

• For use on steel (up to 16 gauge), wood, plastic, and aluminum

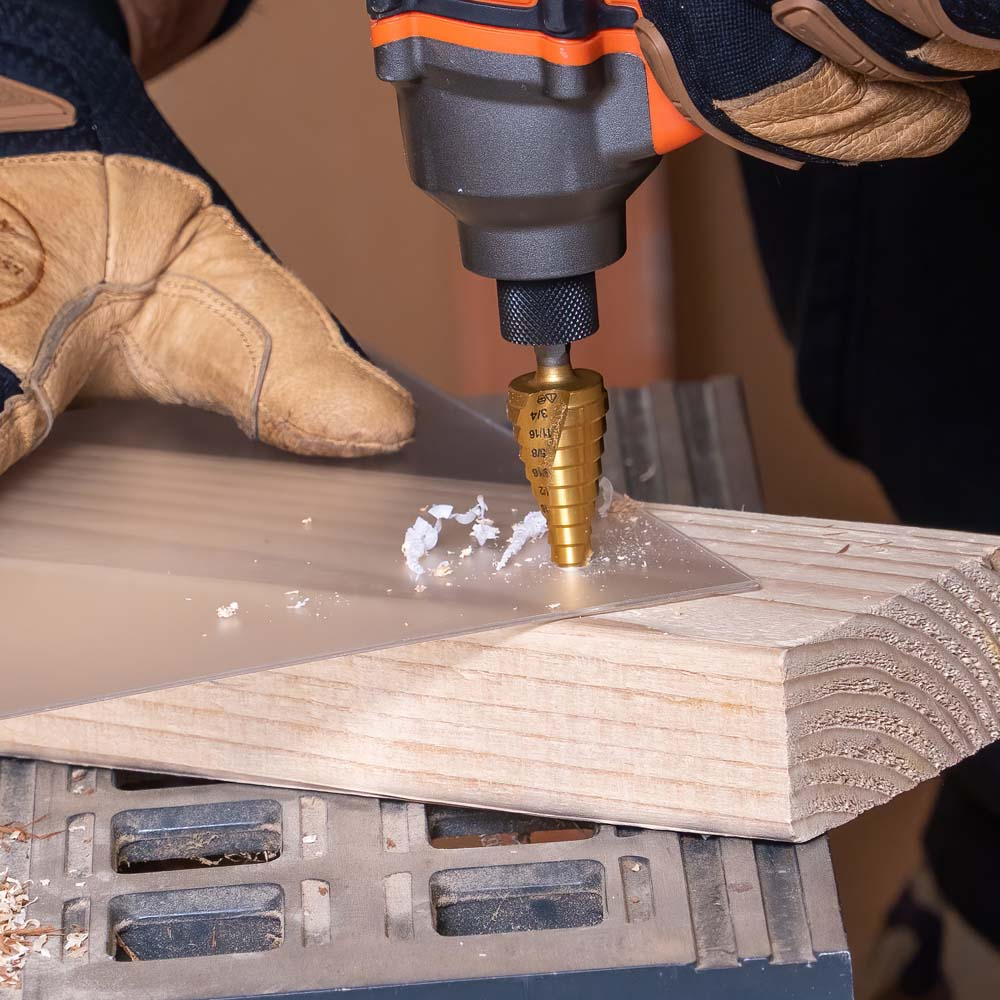

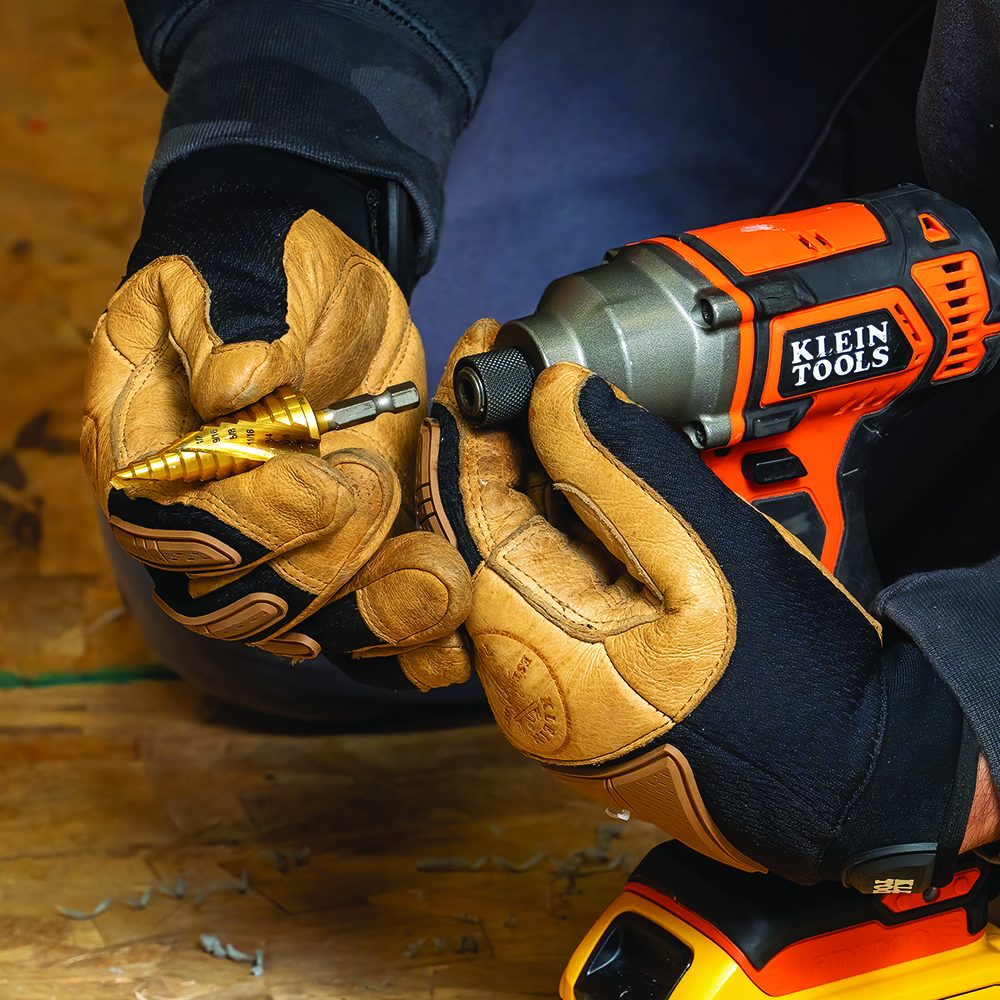

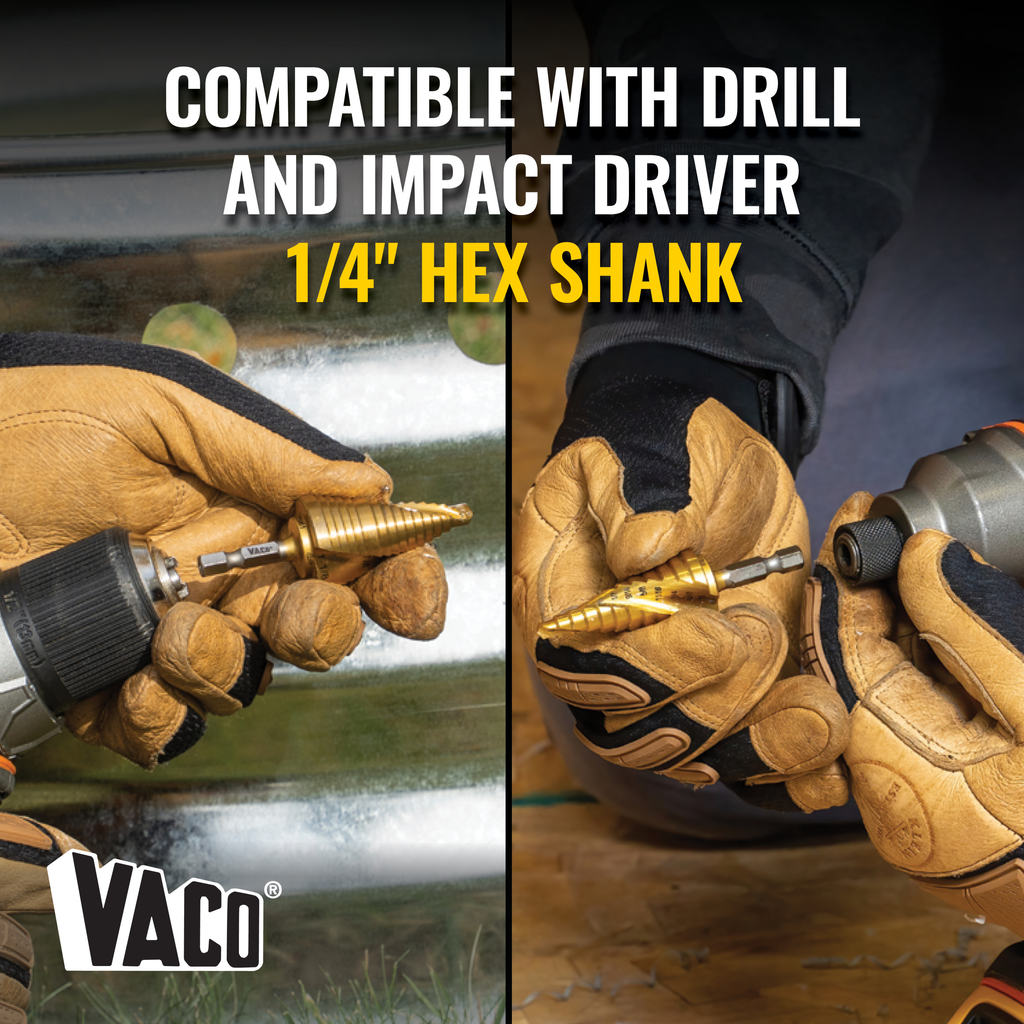

• 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill
• TiN Coating, Impact Shaft, Dual Spiral Fluting
• 12 hole sizes
• Split point tip quickly starts hole cuts and prevents drifting when pressure is added

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.
• Read and follow safety instructions in power tool owner's manual.

Specifications

• Overall Width (cm): 2.2
• Width: 0.8800 in
• Size: 3/16" to 7/8" (4.8 to 22.2 mm)
• Depth: 0.8800 in
• Weight: 0.1400 lbs
• Increment: 1/16" (1.6 mm)
• Number of Holes: 12
• Overall Length (cm): 2.2
• Flute Type: Spiral
• Weight (g): 64
• Shank Type: 1/4" Hex
• Type: Step Drill Bit
• Weight (oz): 2.24
• Overall Height (Inch): 3.2
• Coating: Titanium Nitride
• Overall Width (Inch): 0.88
• Quick Reference: #14
• Material: High Speed Steel
• Overall Height (cm): 8.1
• Application: Multi-Material Drilling
• Overall Length (Inch): 0.88
• Height: 3.2000 in
