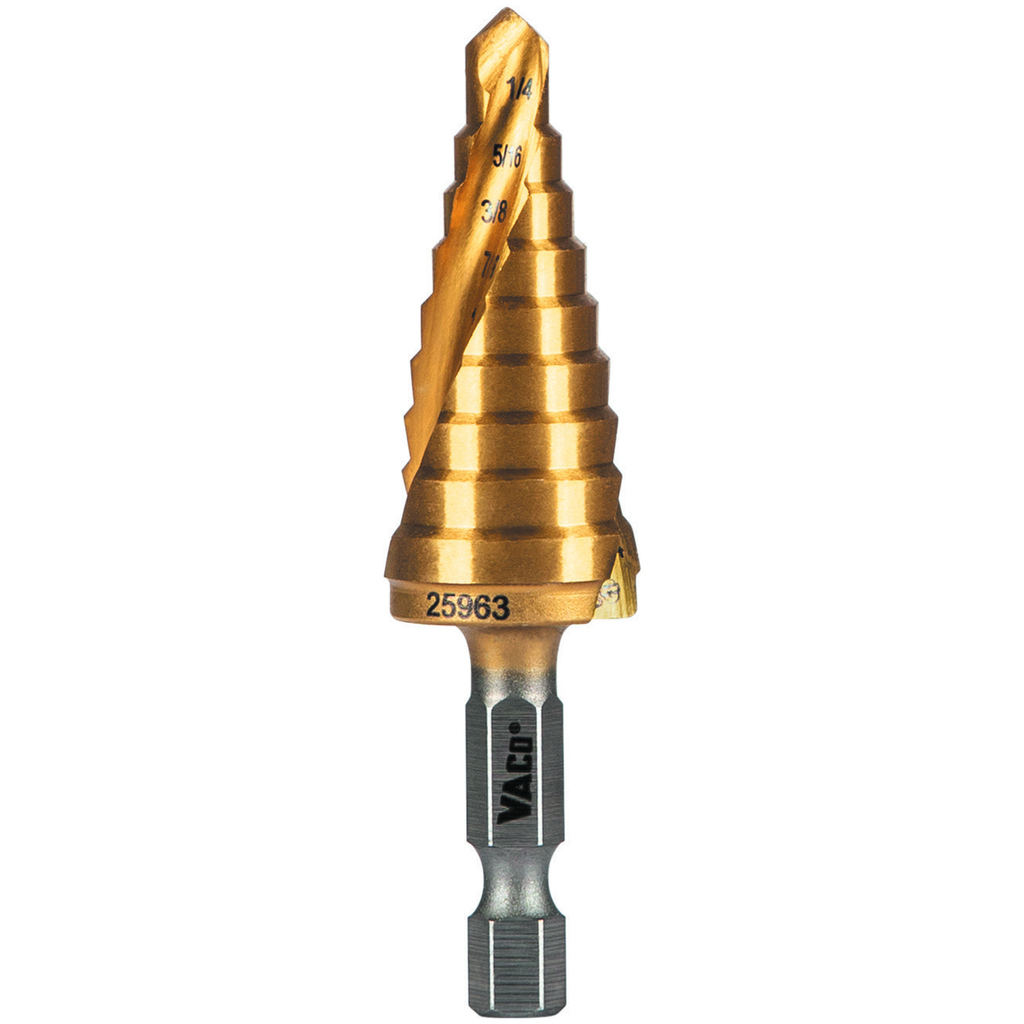

9-Step Drill Bit, Double-Fluted, 1/4-Inch to 3/4-Inch

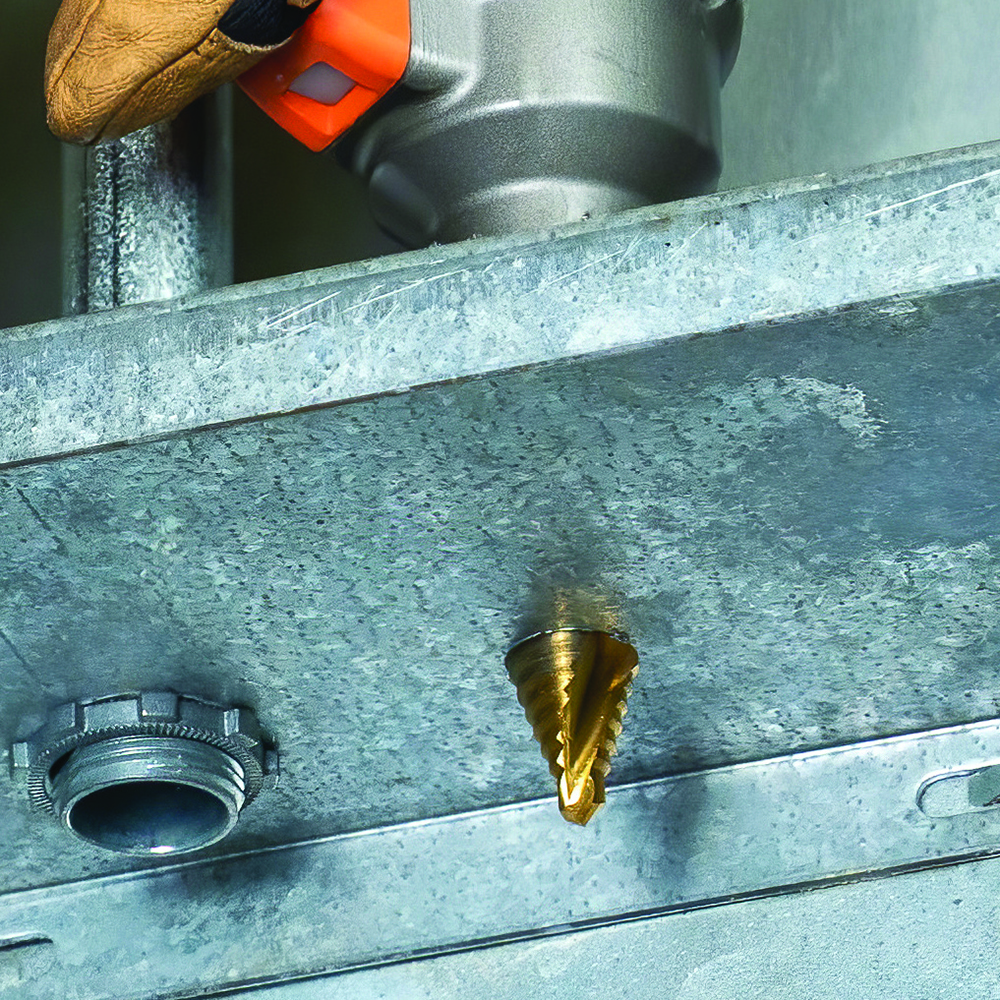

Dual Spiral Flutes on VACO Step Drill Bits help pull the step bit through the material for faster cutting. The Titanium Nitride coating extends life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Available in five step bit sizes with commonly used hole sizes for steel (up to 16 gauge), plastic, aluminum, and wood.

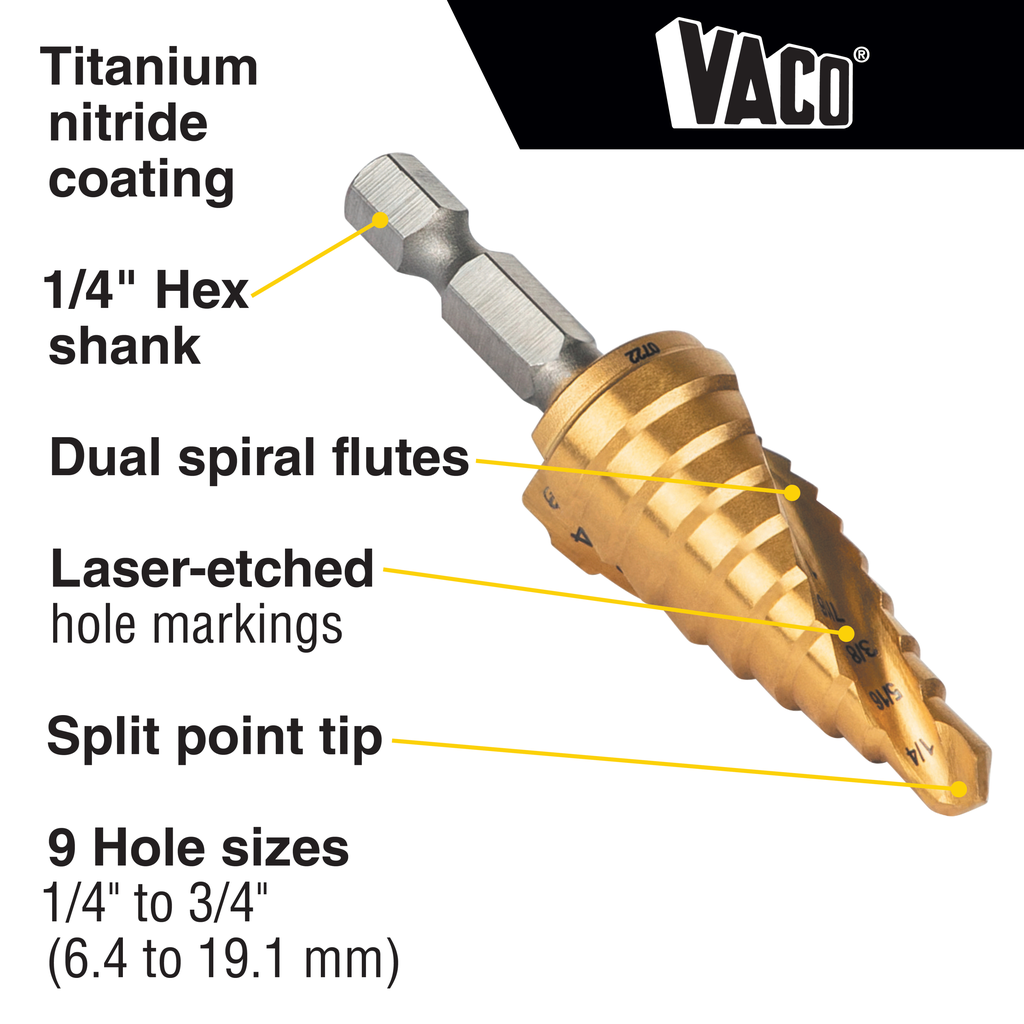

Features

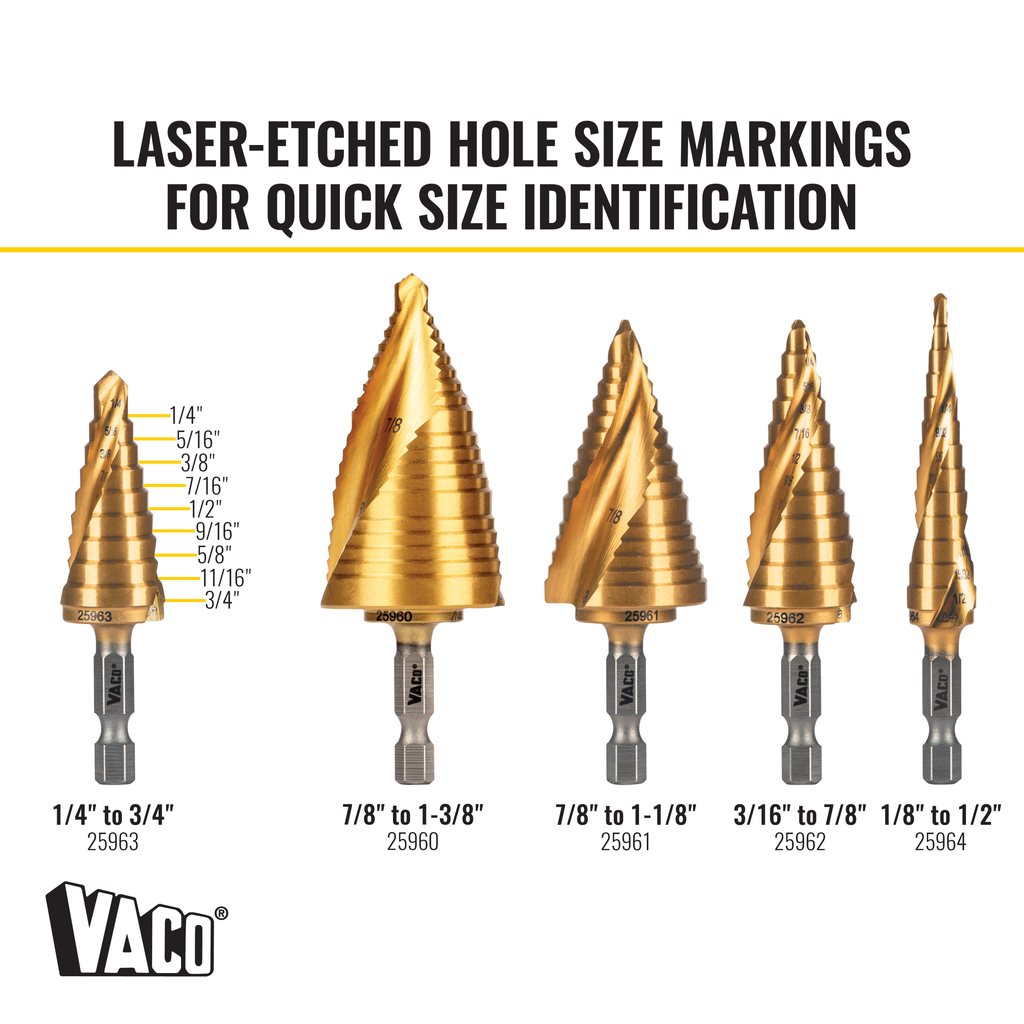

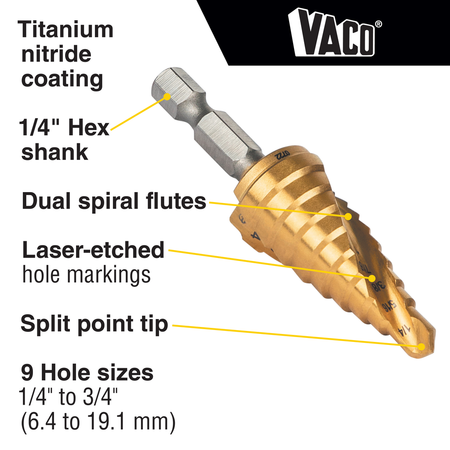

• Laser-etched hole size markings for quick size identification
• Titanium nitride coating dissipates heat for longer bit life

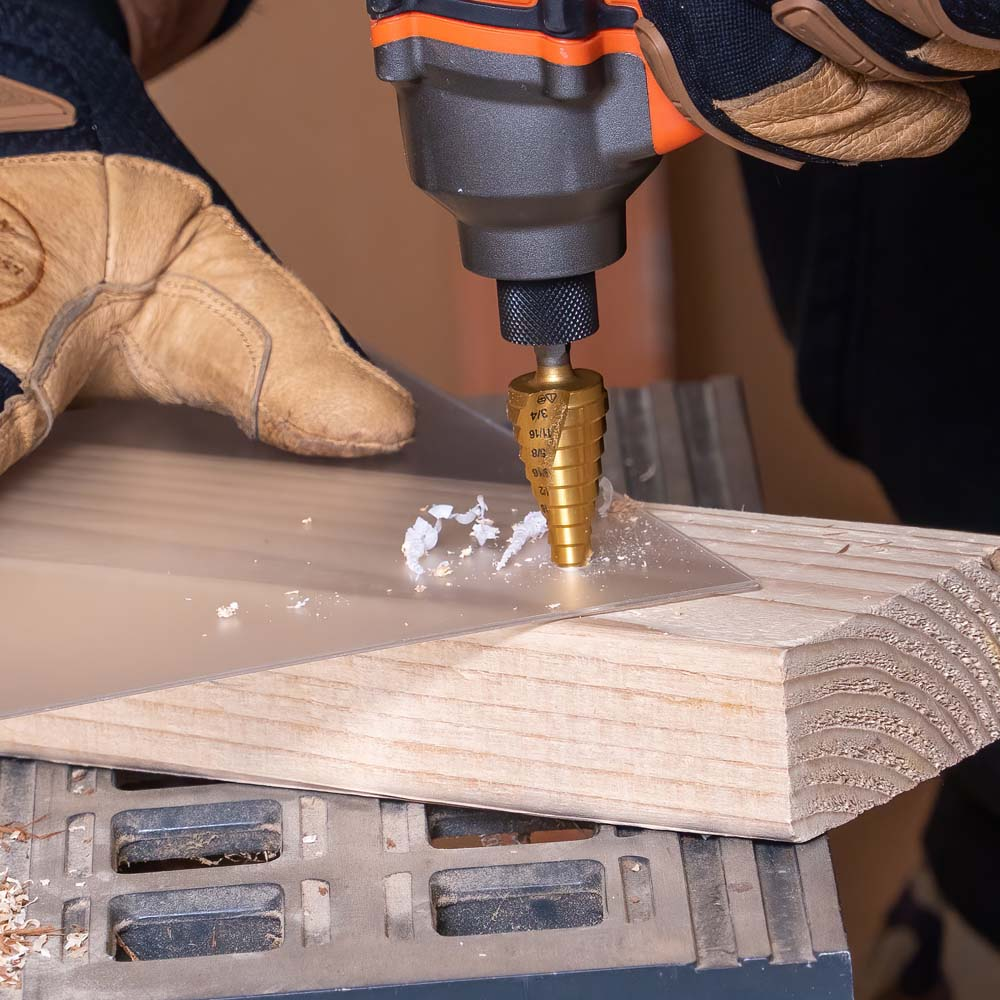

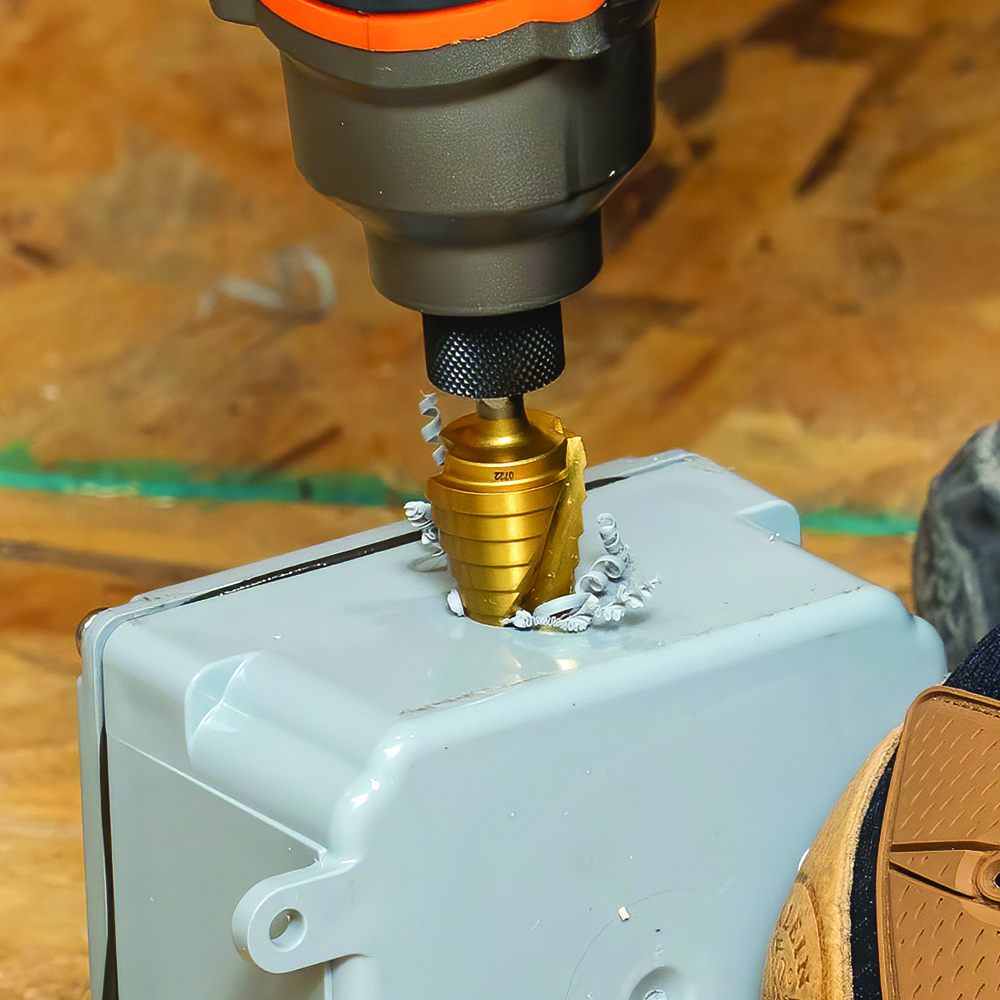

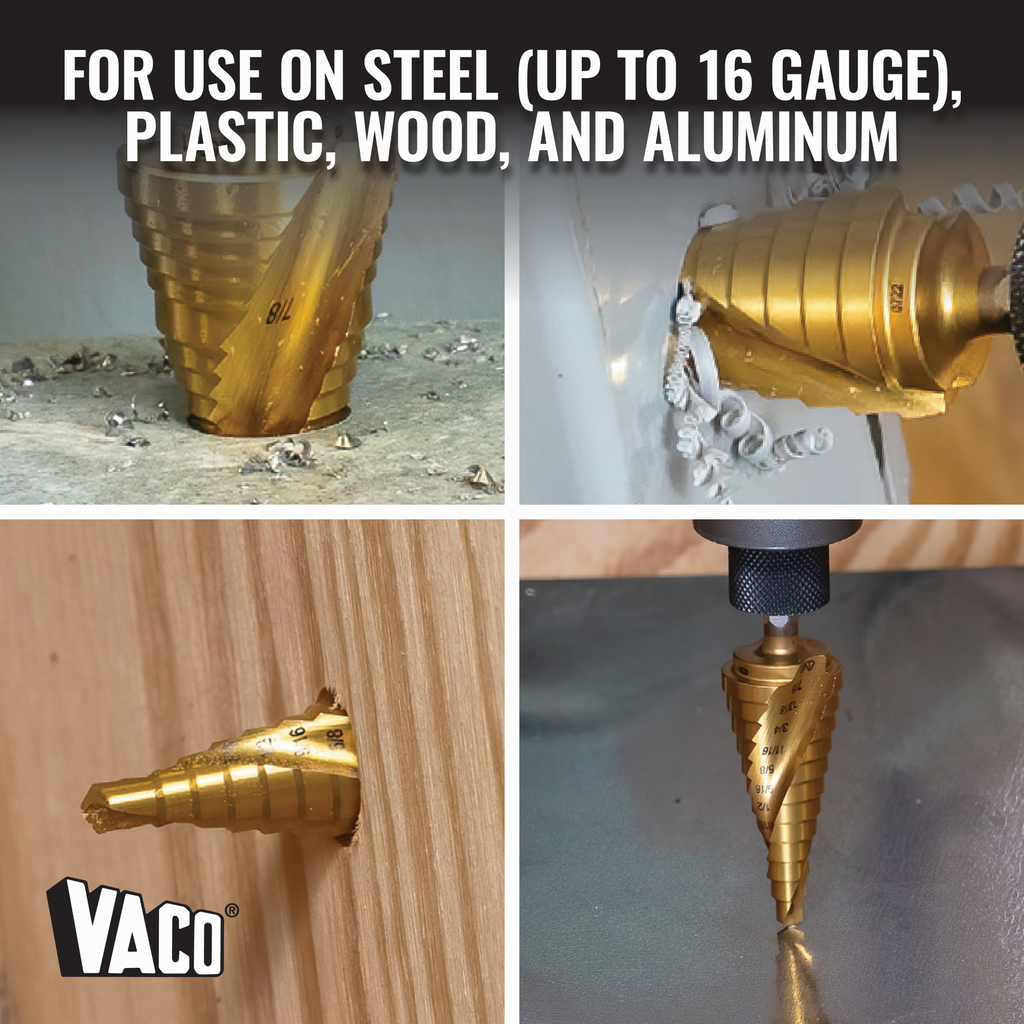

• For use on steel (up to 16 gauge), wood, plastic, and aluminum

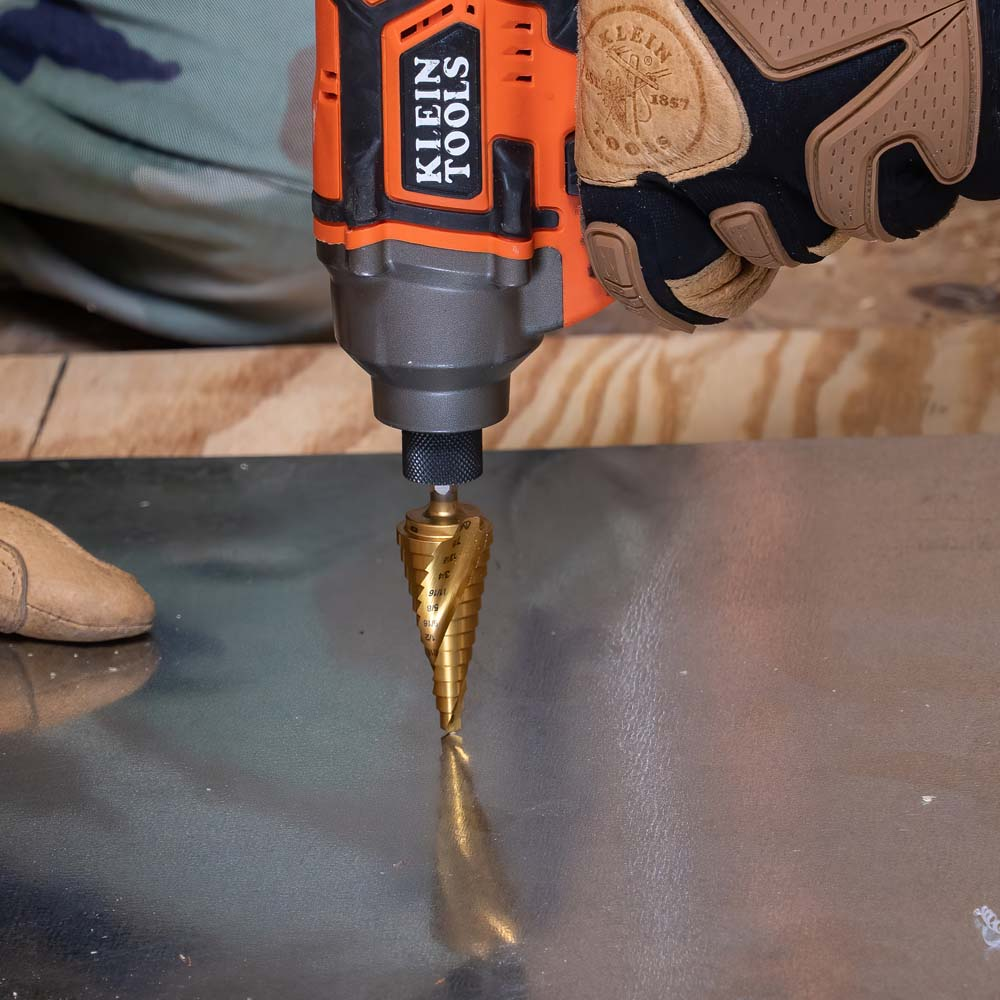

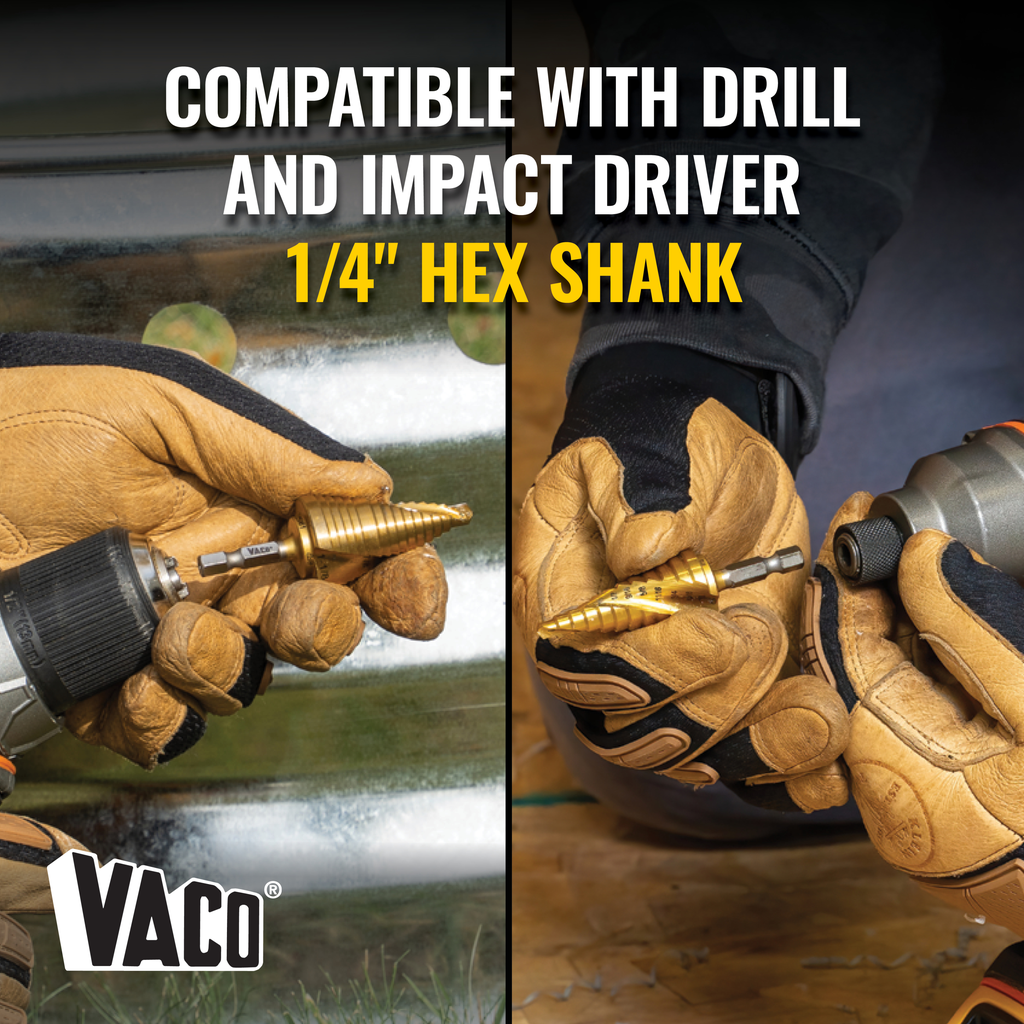

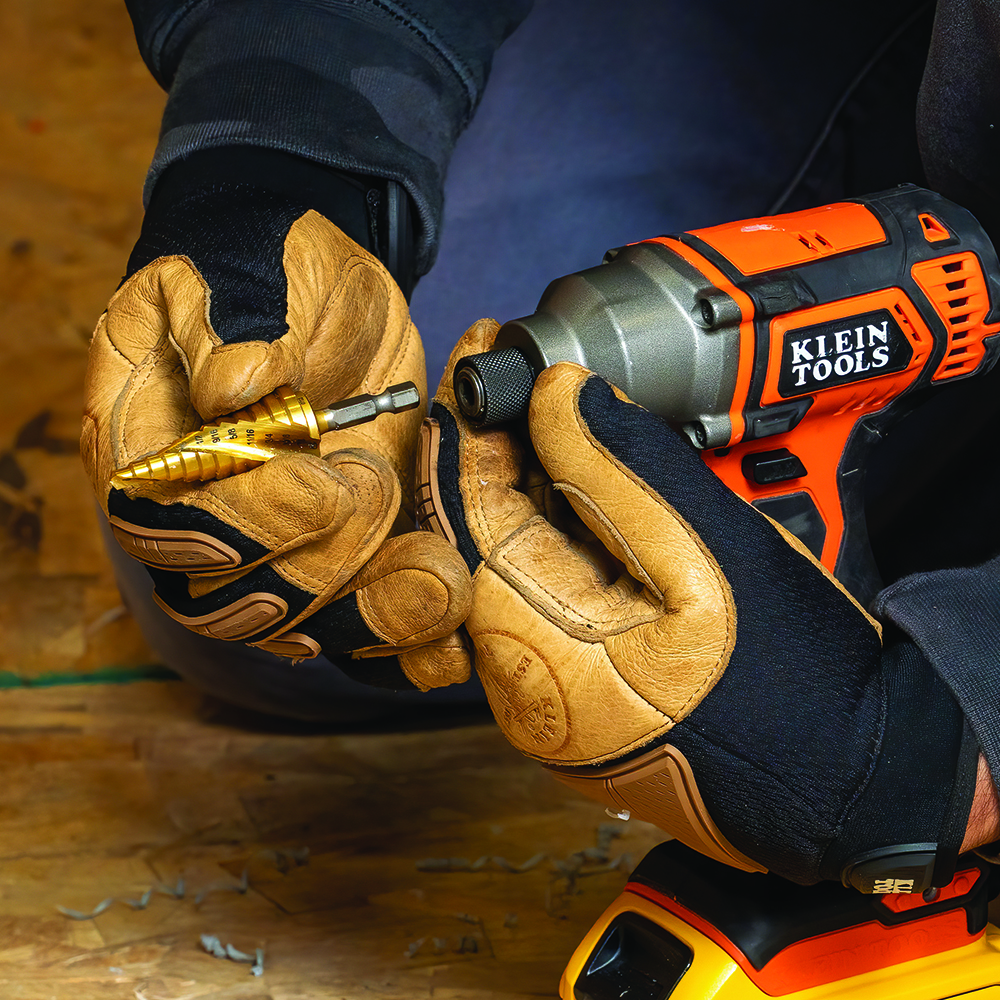

• 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill
• Split point tip quickly starts hole cuts and prevents drifting when pressure is added
• 9 hole sizes
• Step Drill Bit has 2 spiral flutes to remove chips and help pull the bit through material for faster cutting
• TiN Coating, Impact Shaft, Dual Spiral Fluting

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.
• Read and follow safety instructions in power tool owner's manual.

Specifications

• Shank Type: 1/4" Hex
• Coating: Titanium Nitride
• Overall Length (cm): 1.9
• Overall Height (cm): 7.2
• Weight: 0.1100 lbs
• Overall Width (Inch): 0.75
• Type: Step Drill Bit
• Weight (g): 50
• Overall Height (Inch): 2.82
• Width: 0.7500 in
• Overall Width (cm): 1.9
• Depth: 0.7500 in
• Increment: 1/16" (1.6 mm)
• Number of Holes: 9
• Material: High Speed Steel
• Application: Multi-Material Drilling
• Height: 2.8200 in
• Flute Type: Spiral
• Overall Length (Inch): 0.75
• Weight (oz): 1.76
• Size: 1/4" to 3/4" (6.4 to 19.1 mm)
• Quick Reference: #3
