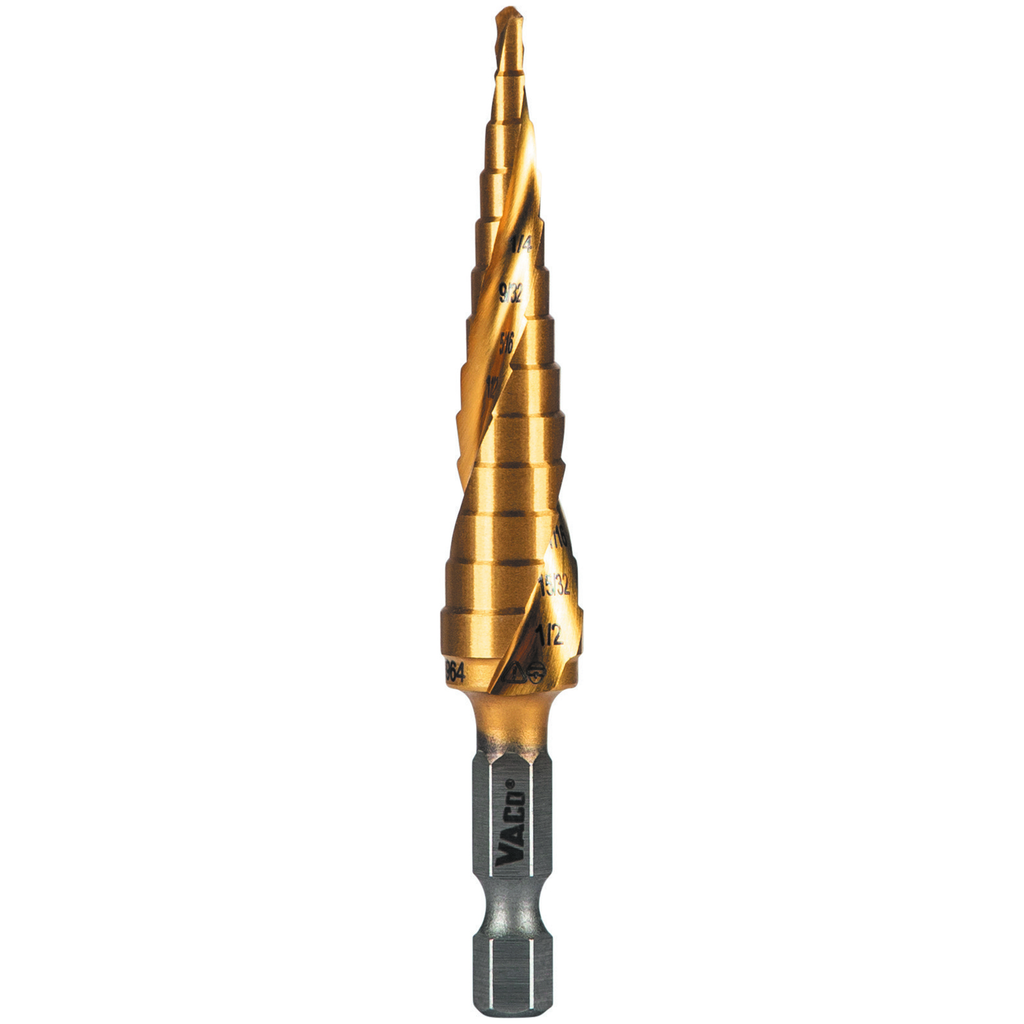

13-Step Drill Bit, Double-Fluted, 1/8-Inch to 1/2-Inch

Dual Spiral Flutes on VACO Step Drill Bits help pull the step bit through material for faster cutting. The Titanium Nitride coating extends the life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Available in five step bit sizes with commonly used hole sizes for steel (up to 16 gauge), plastic, aluminum, and wood.

Features

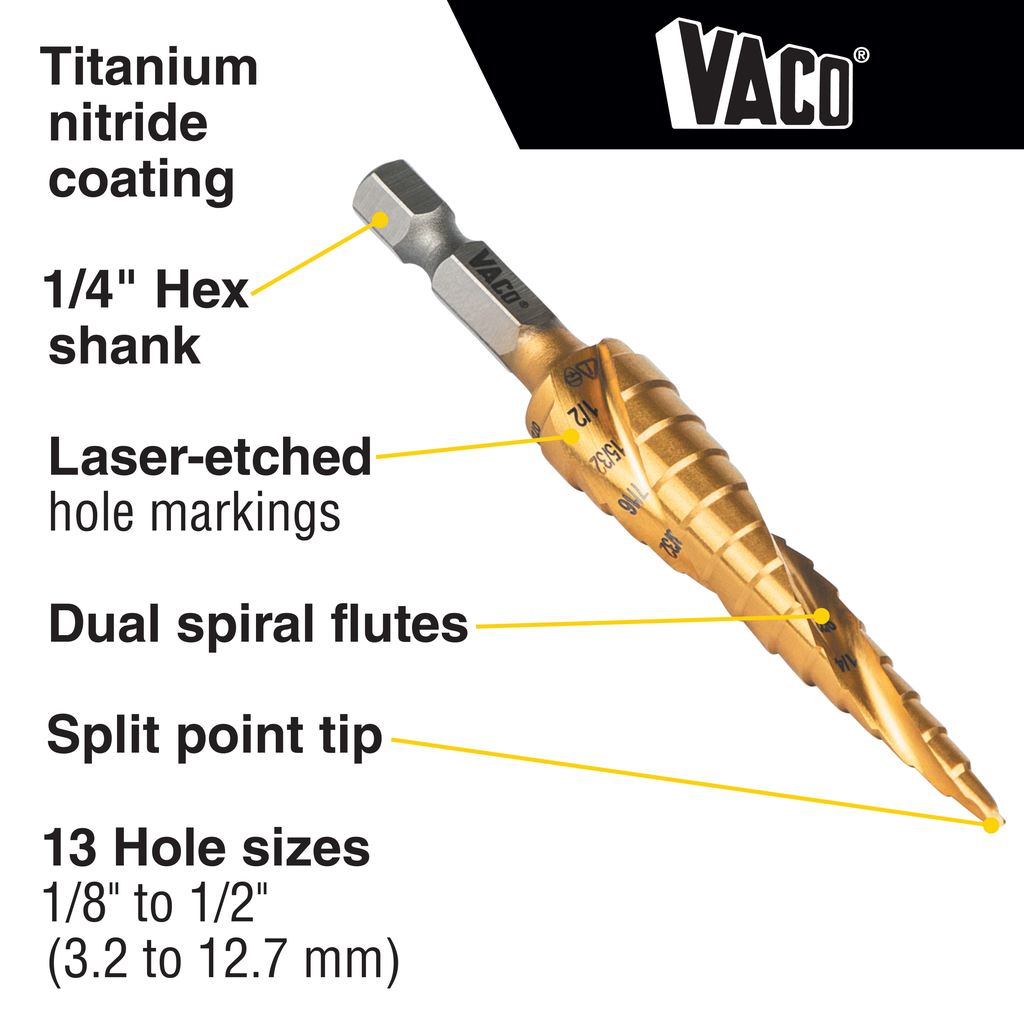

• Titanium nitride coating dissipates heat for longer bit life

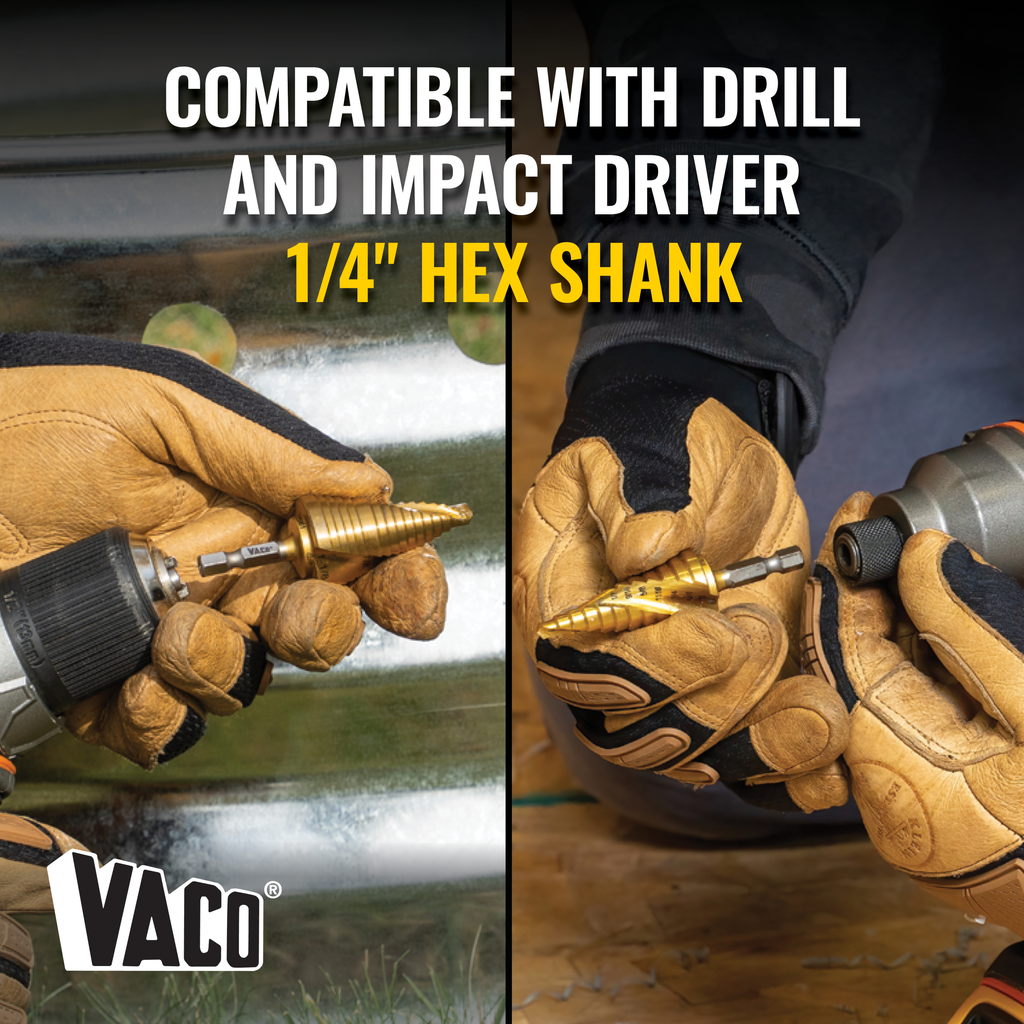

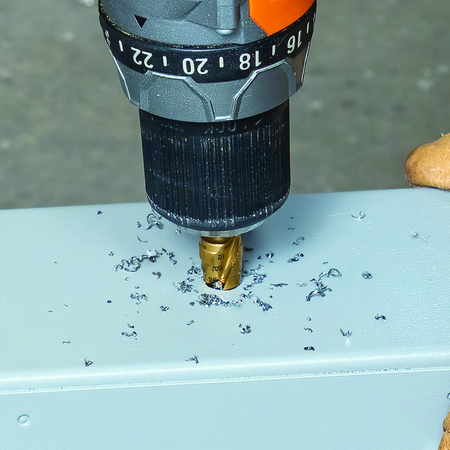

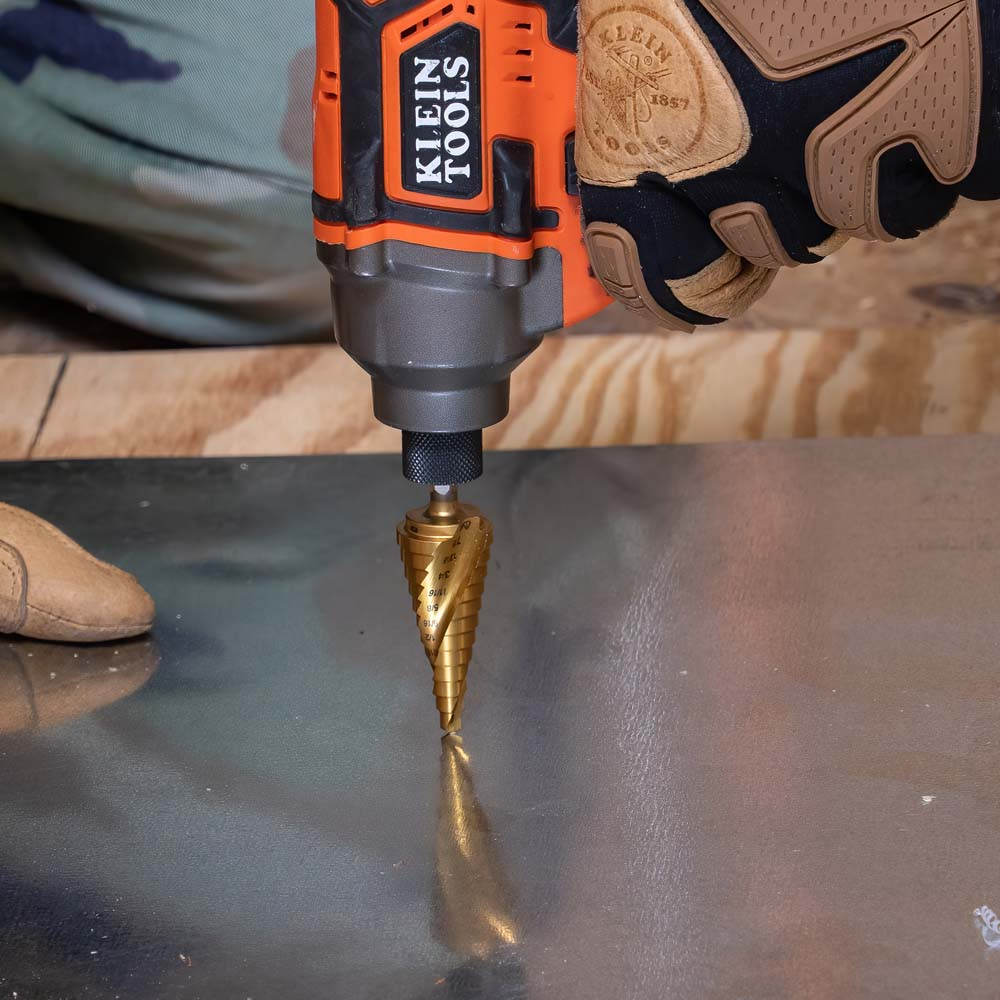

• 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill

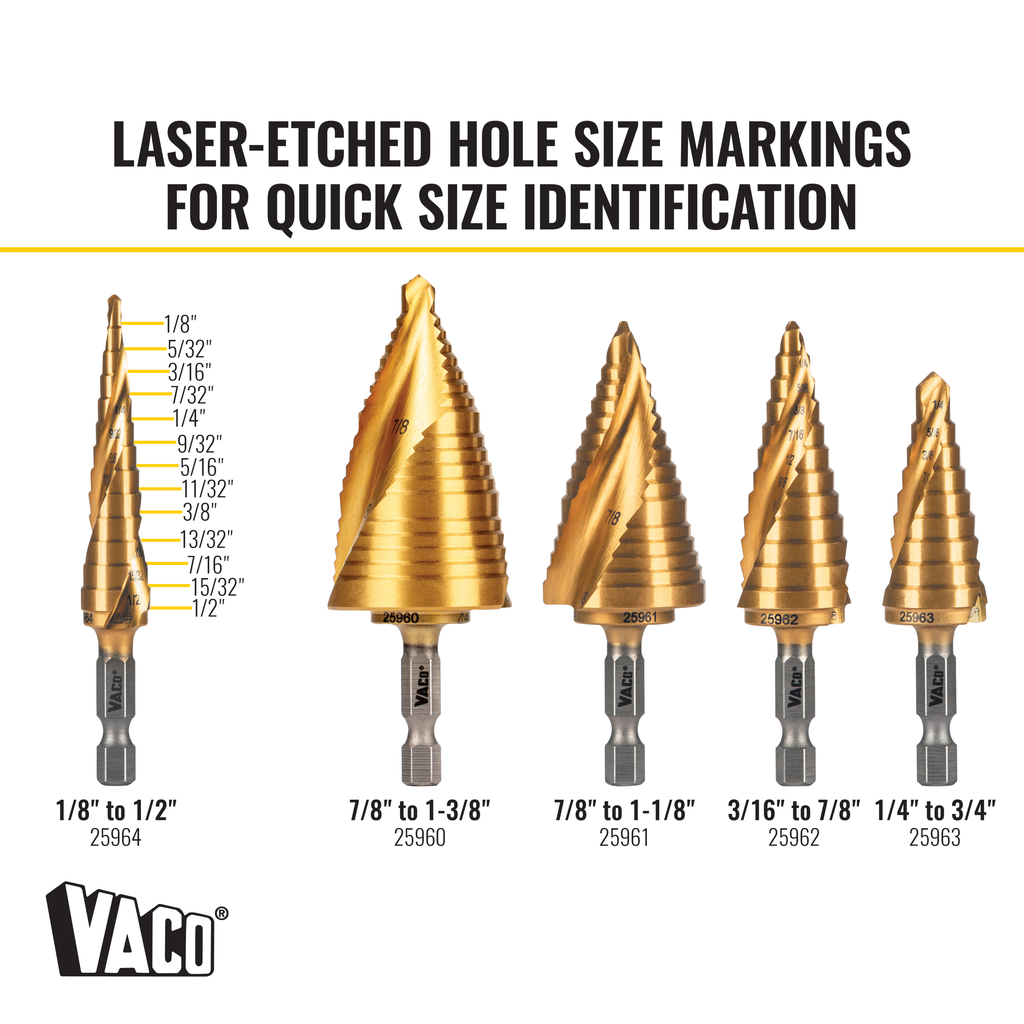

• Laser-etched hole size markings for quick size identification
• Split point tip quickly starts hole cuts and prevents drifting when pressure is added
• 13 hole sizes
• Step Drill Bit has 2 spiral flutes to remove chips and help pull the bit through material for faster cutting
• TiN Coating, Impact Shaft, Dual Spiral Fluting

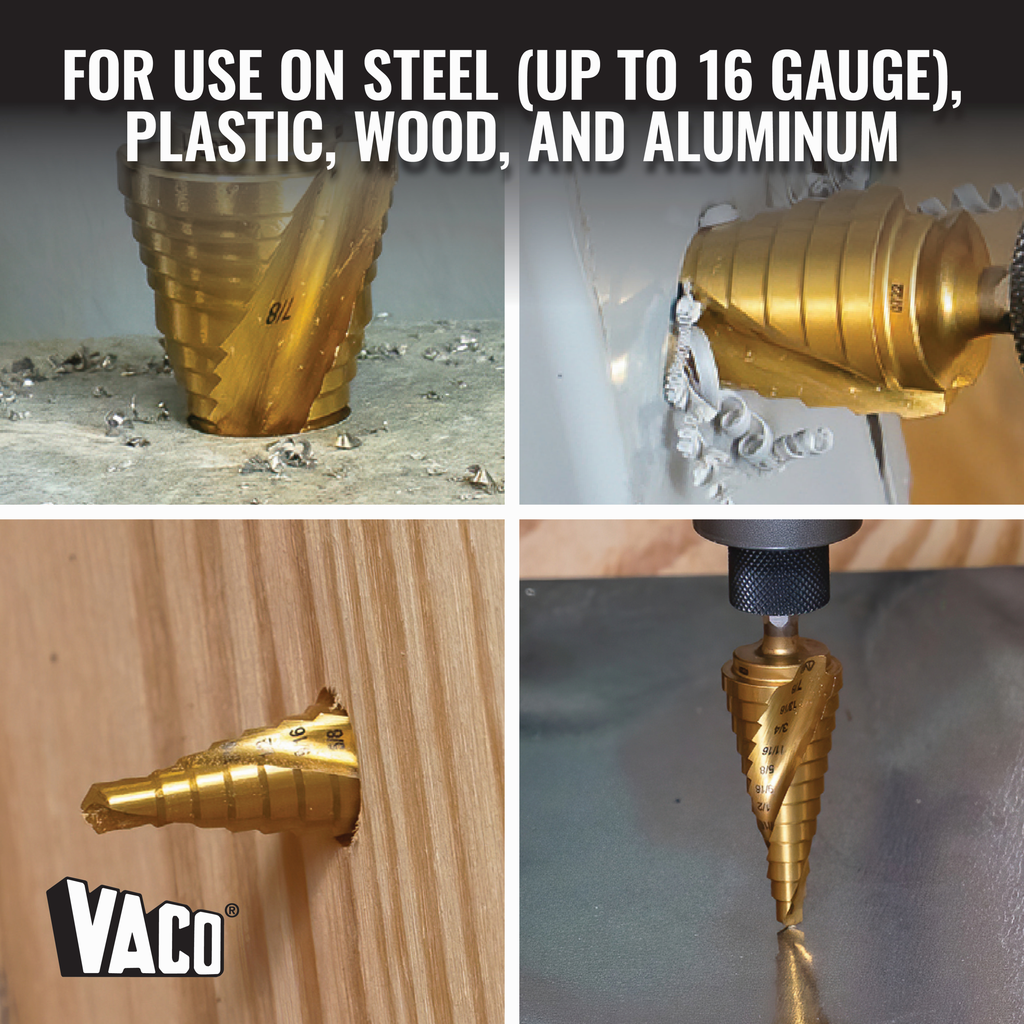

• For use on steel (up to 16 gauge), wood, plastic, and aluminum

Warnings

• Read and follow safety instructions in power tool owner's manual.
• Always ensure that you and persons in the vicinity wear approved eye protection.

Specifications

• Overall Length (Inch): 0.5
• Shank Type: 1/4" Hex
• Size: 1/8" to 1/2" (3.2 to 12.7 mm)
• Application: Multi-Material Drilling
• Overall Width (Inch): 0.5
• Type: Step Drill Bit
• Depth: 0.5000 in
• Overall Length (cm): 1.3
• Number of Holes: 13
• Weight (g): 27
• Coating: Titanium Nitride
• Weight: 0.0600 lbs
• Overall Height (Inch): 3.43
• Flute Type: Spiral
• Material: High Speed Steel
• Width: 0.5000 in
• Increment: 1/32" (0.8 mm)
• Overall Height (cm): 8.7
• Quick Reference: #1
• Height: 3.4300 in
• Overall Width (cm): 1.3
• Weight (oz): 0.96
