Modular Battery for Hard Hat Cooling Fan

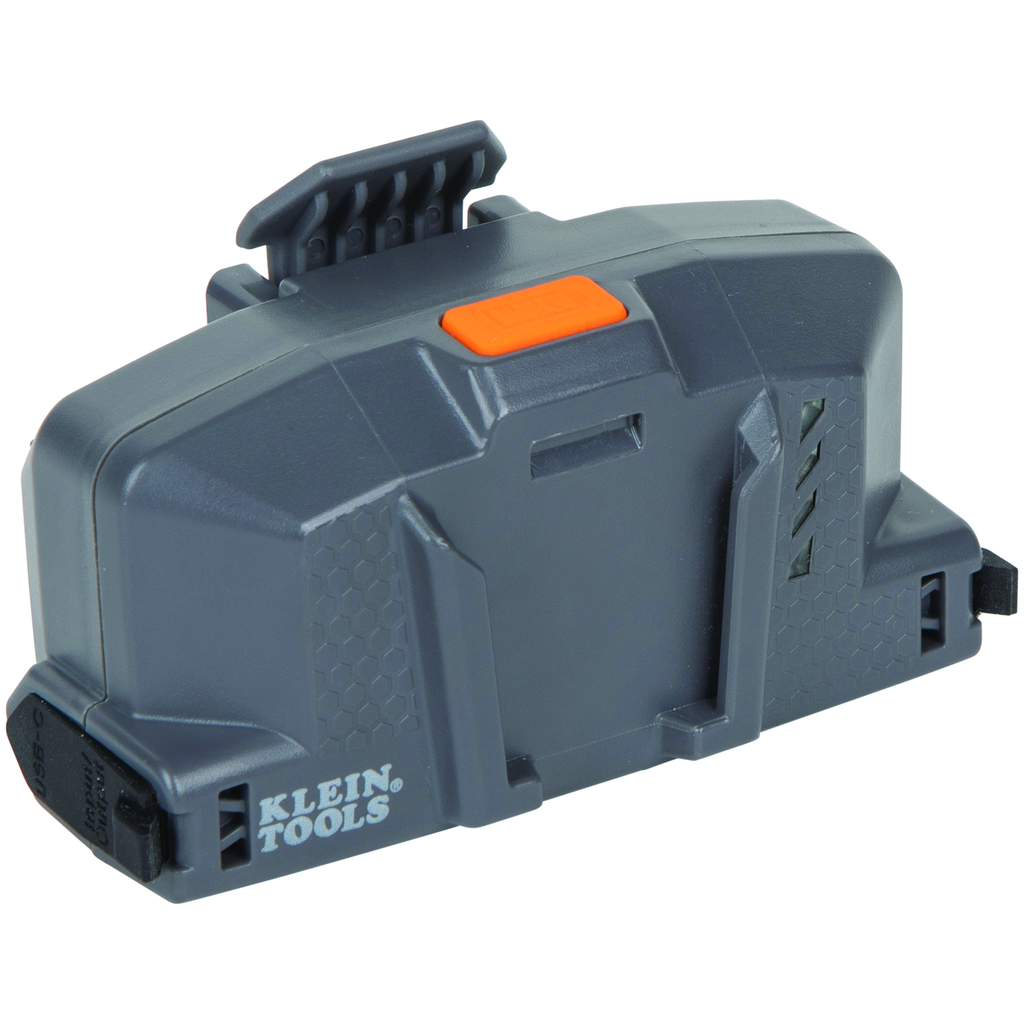

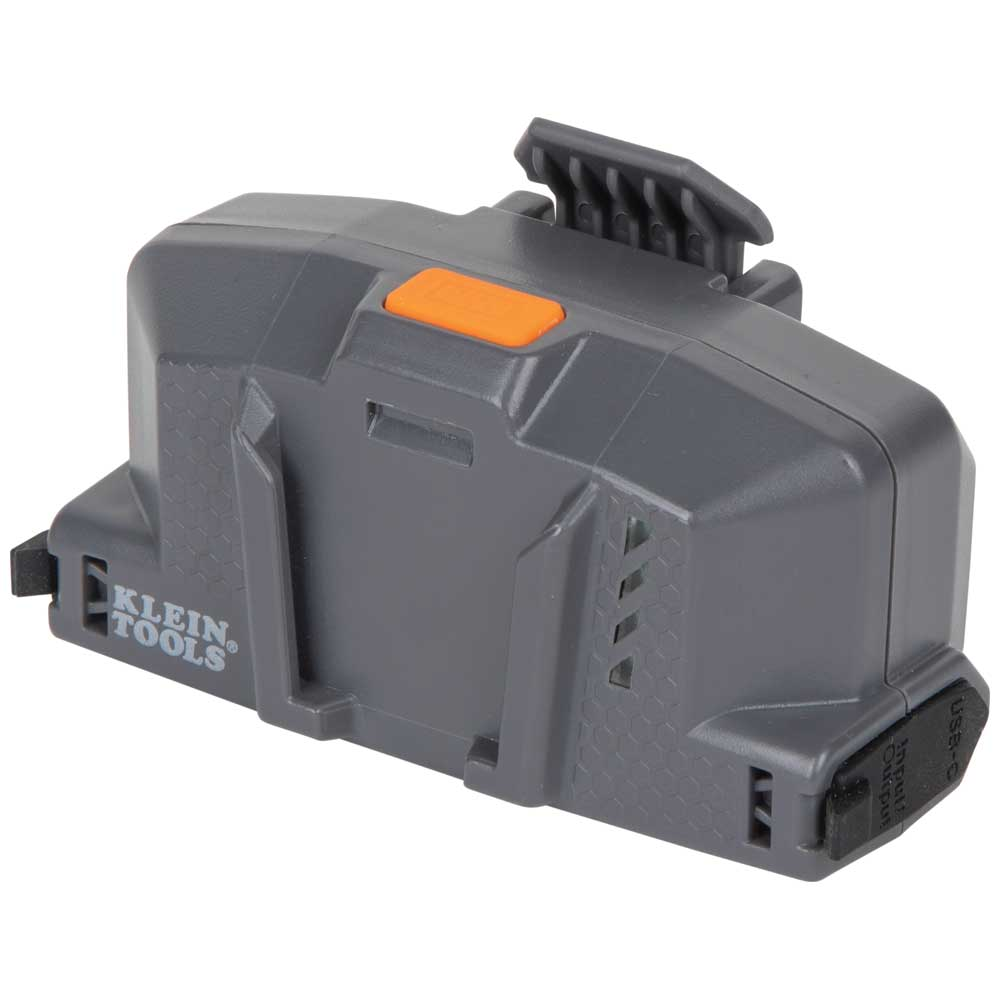

This detachable, rechargeable lithium-ion battery (Cat. No. 29025) powers the Klein Tools Cooling Fan which is designed for use with Klein Tools' hard hats and safety helmets. The battery attaches to Klein's patent-pending front/back accessory mounts for easy attachment and removal. It powers the dual-fan which forces outside air into the shell to push out stale hot air, facilitating cooling in 16 different configurations for efficient airflow. This modular battery can also charge other small USB devices like headlamps, phones, jobsite speakers, and more.

Features

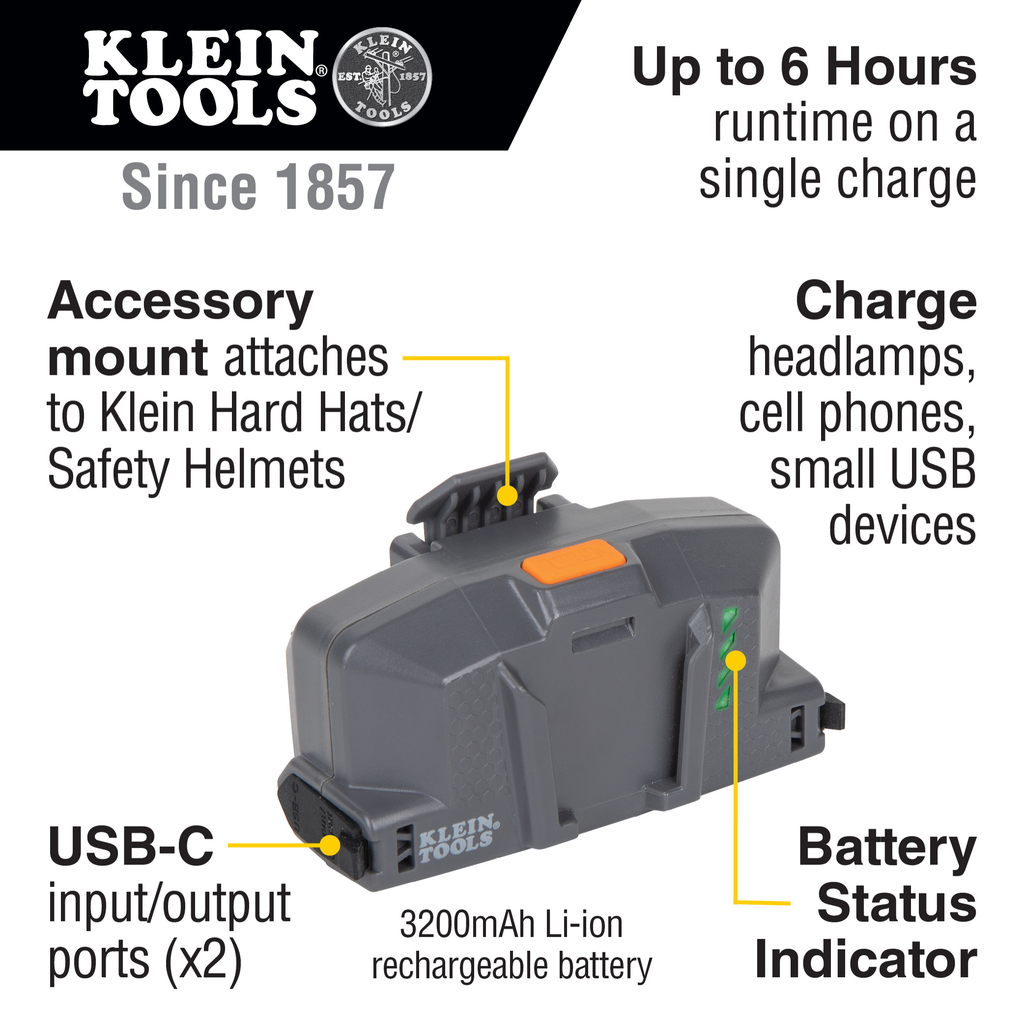

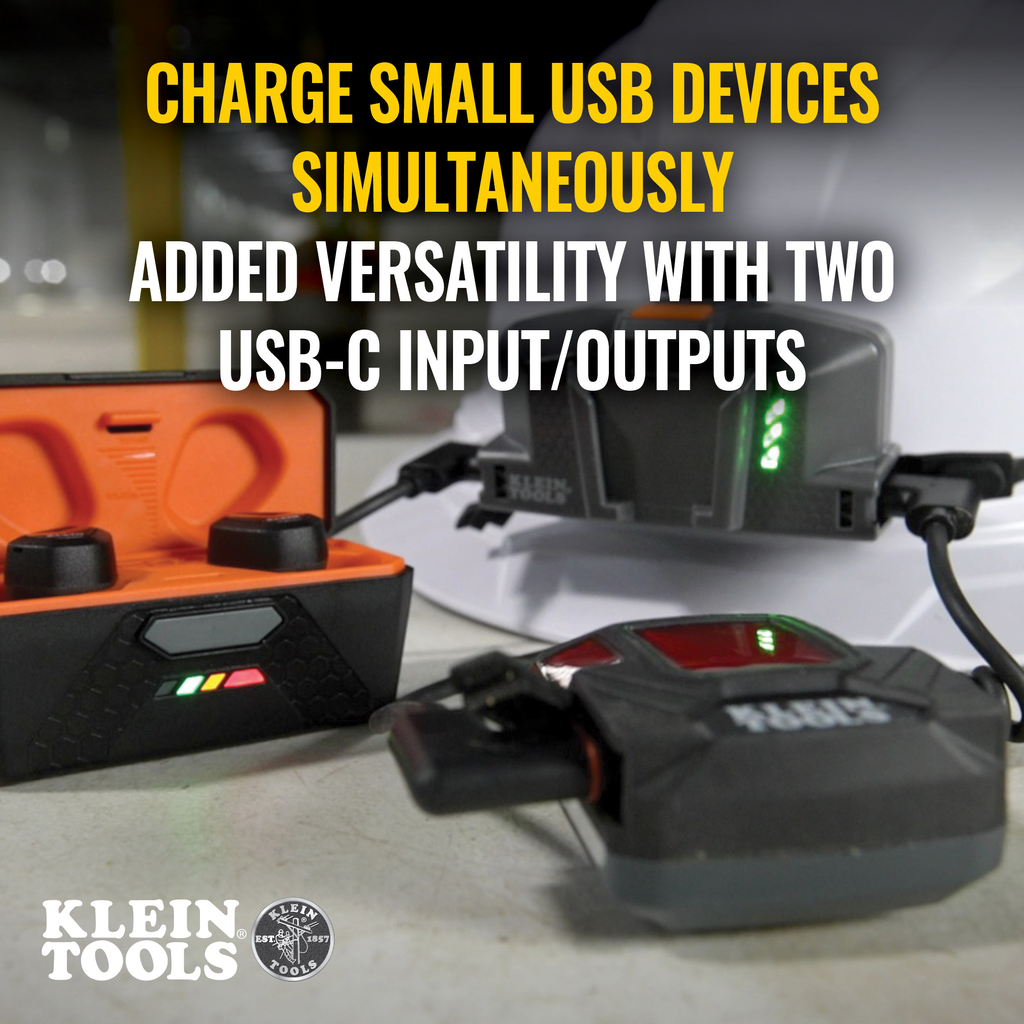

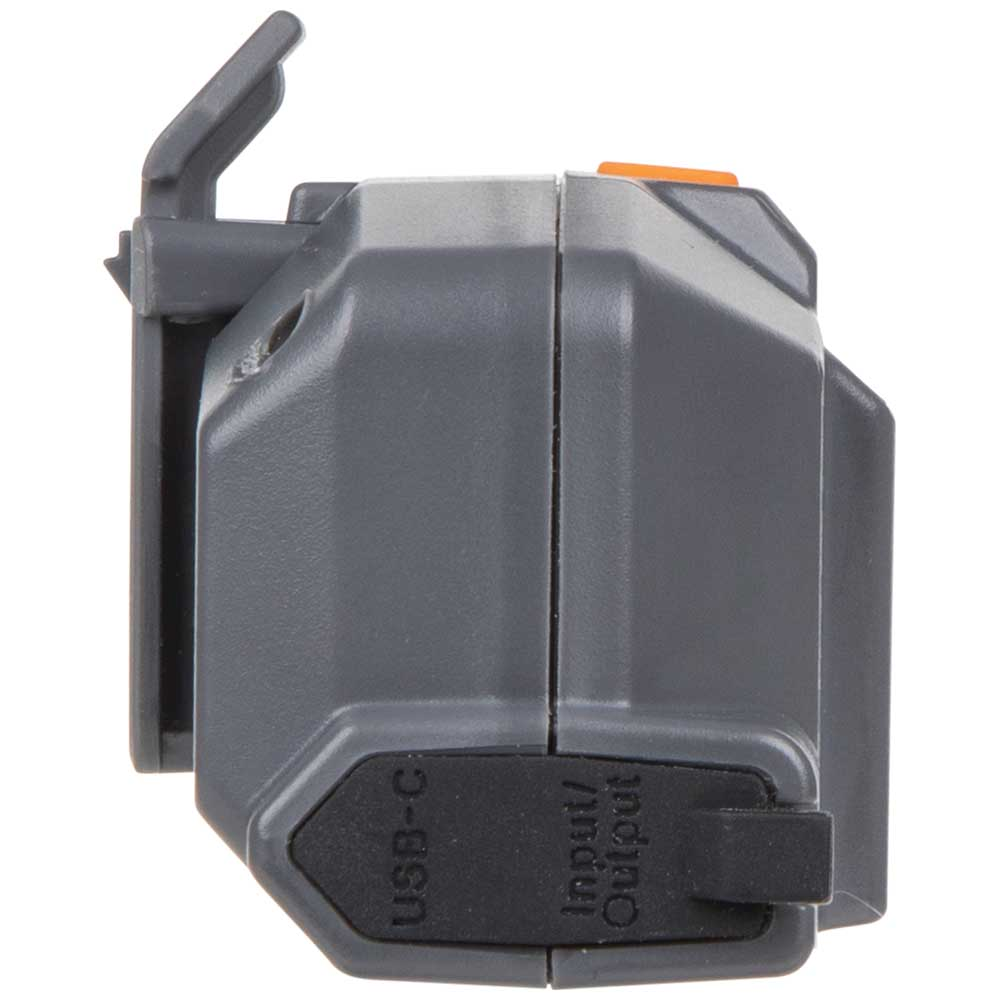

• 2 USB-C input and output ports to simultaneously power or charge 2 USB devices
• 3200 mAh capacity battery; up to 10W of total power
• 4-segment battery status LED indicators
• 4-Segment LED Battery Status Indicators, Smart Battery Protection, Easy Mount onto Klein Tools Hard Hats

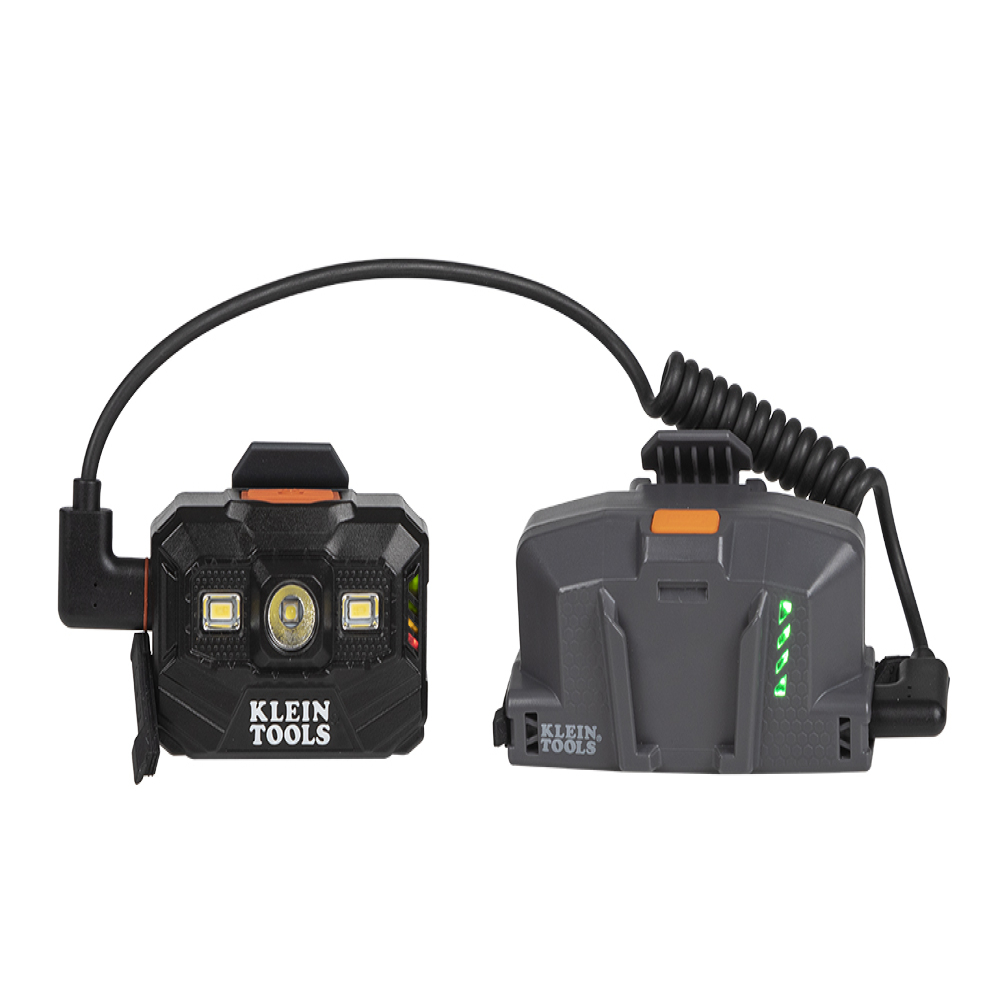

• Rechargeable battery designed to power Klein Tools' cooling fan, small USB-C devices, headlamps, phones and more

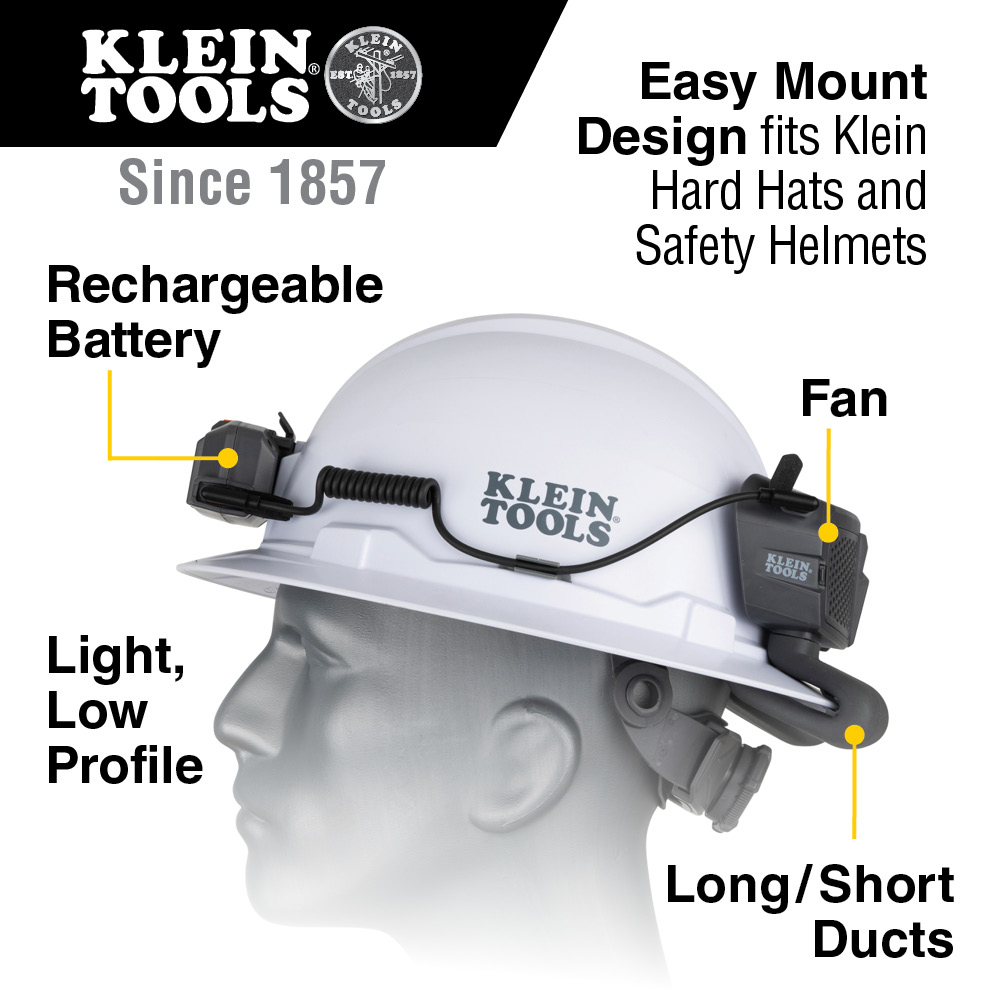

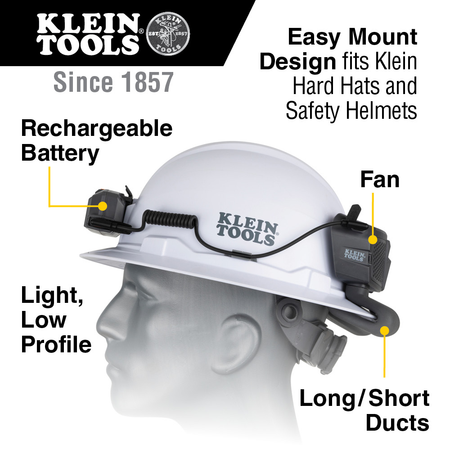

• Easily attach to Klein Tools hard hats/safety helmets accessory mounts; no straps needed
• Built-in smart protection
• Rugged housing; IP 54 rating and 6.6-Foot (2 m) drop protection
• USB-C to USB-A cable included

Warnings

• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all Hard Hats and Accessories before each use. Failure to follow these warnings and instructions may result in serious bodily injury or death

Specifications

• Battery Type: Lithium-Ion
• Type: Rechargeable Lithium-Ion Battery
• Overall Length: 3.5 Inch (8.9 cm)
• Width: 1.7000 in
• Material: Plastic, Metal
• Weight: 0.2500 lbs
• Voltage: 5V (Output)
• Battery Life: 300 Cycles
• Height: 2.0900 in
• Battery Weight: 109 g
• Depth: 3.2500 in
• Included: Modular Battery; USB-C to USB-A Charging Cable
• Overall Width: 4.3 cm (1.7 Inch)
• Overall Height: 2.1 Inch (5.3 cm)
• Rechargeable: Yes
• Recharge Time: Up to 2.5 hr
• Application: Charges Hard Hat Cooling Fan, USB Devices - Headlamps, Smartphones, Flashlights
• For Use With: Klein Tools Cooling Fan
