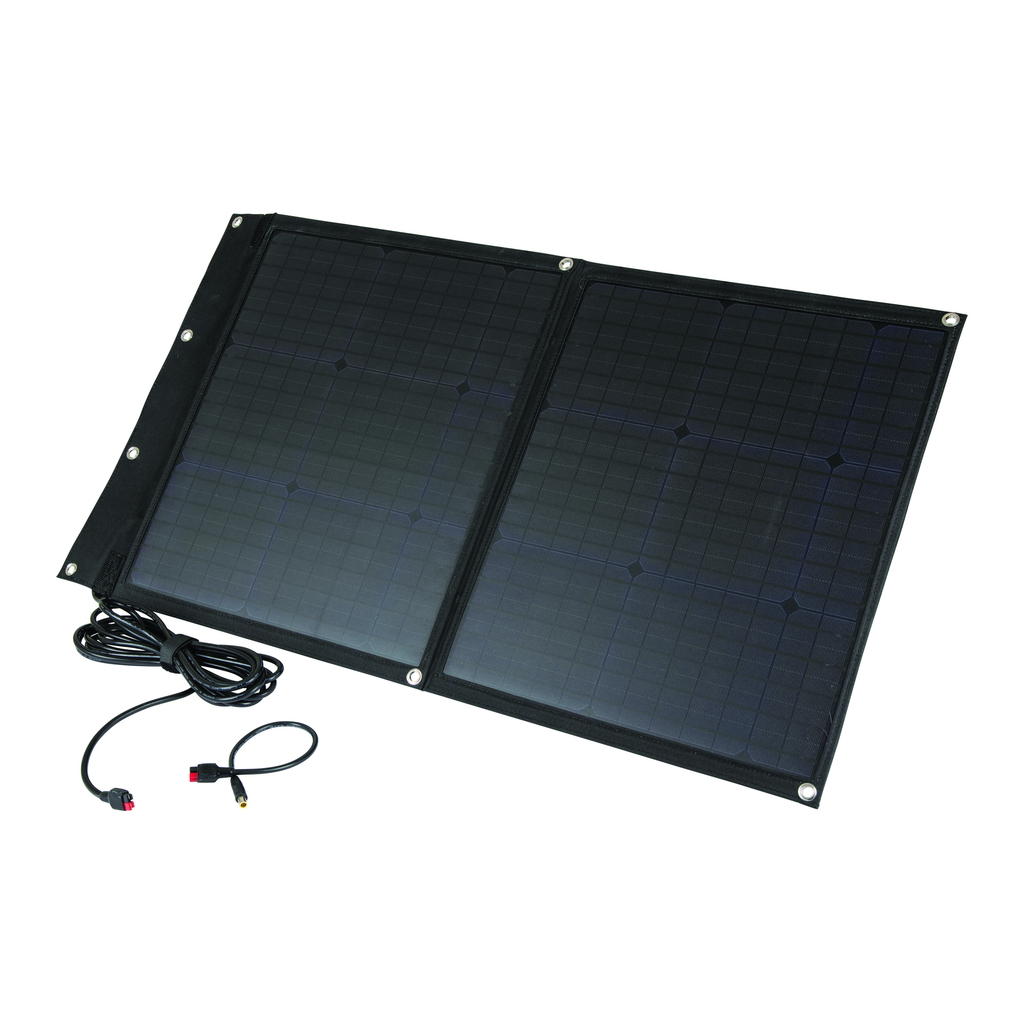

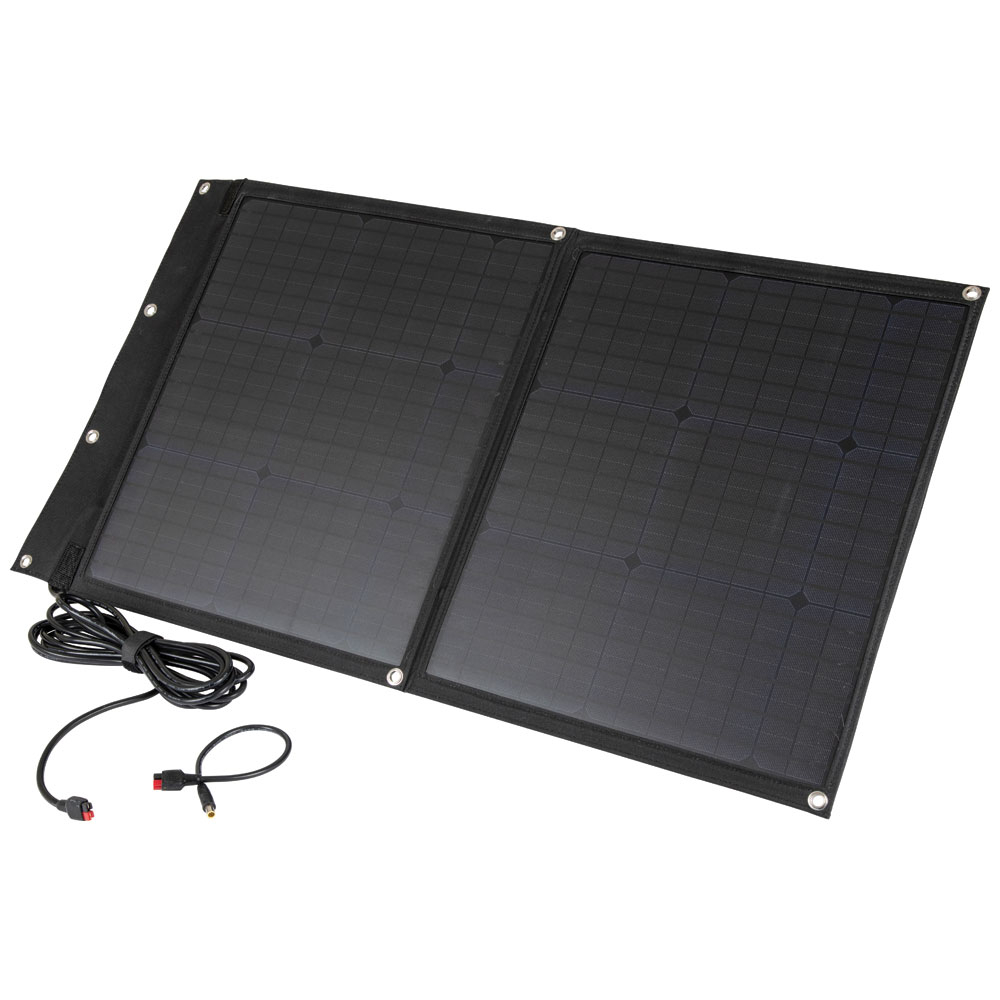

60W Portable Solar Panel

Klein’s 60W Foldable Solar Panel harnesses the sun’s power to keep the job running. A quick and easy way to charge your power banks, power stations, and portable batteries with the built-in extended length DC / APP® compatible cables. Or simply recharge your USB devices with the integrated USB port. This portable and versatile panel can be chained with a second panel to collect even more power from the sun, then simply fold and store away.

Features

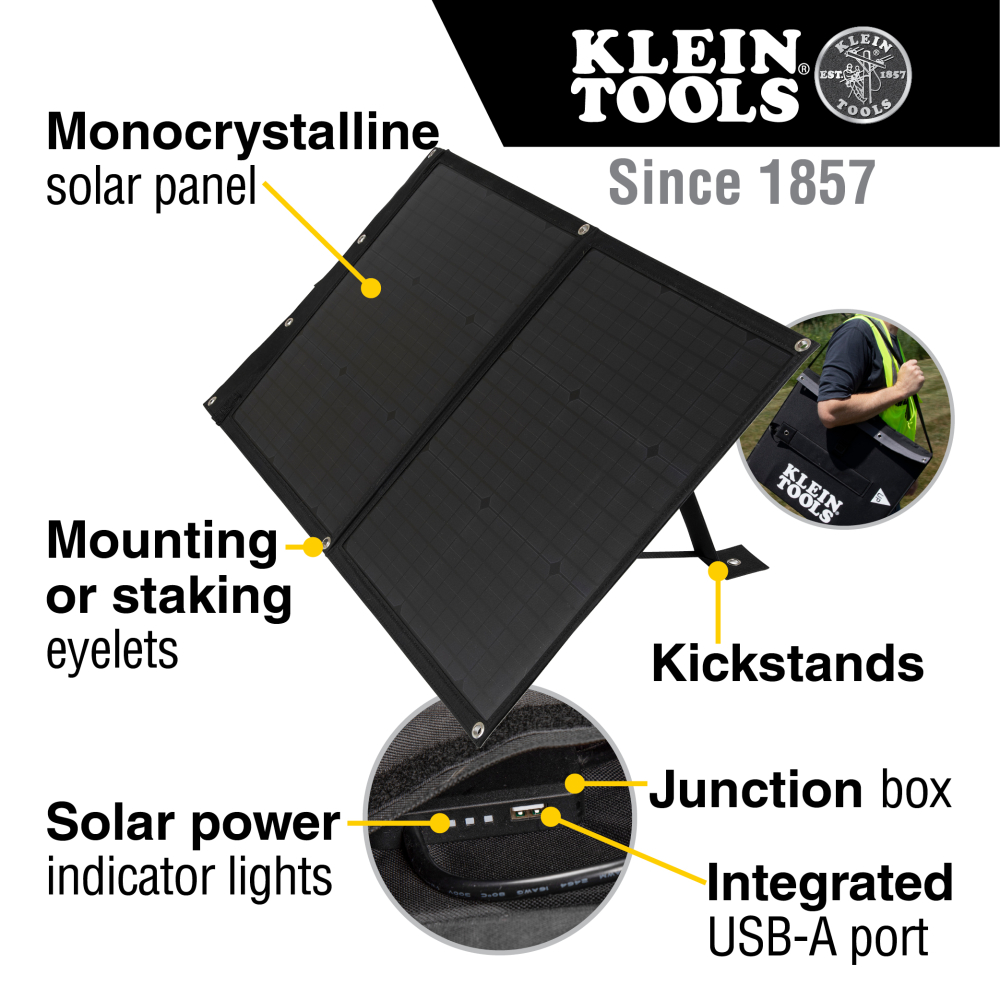

• Adjustable Shoulder Strap, Reinforced Handle, Kickstands, Solar Power Indicator Lights, Chain 2 Solar Panels (up to 120 W)

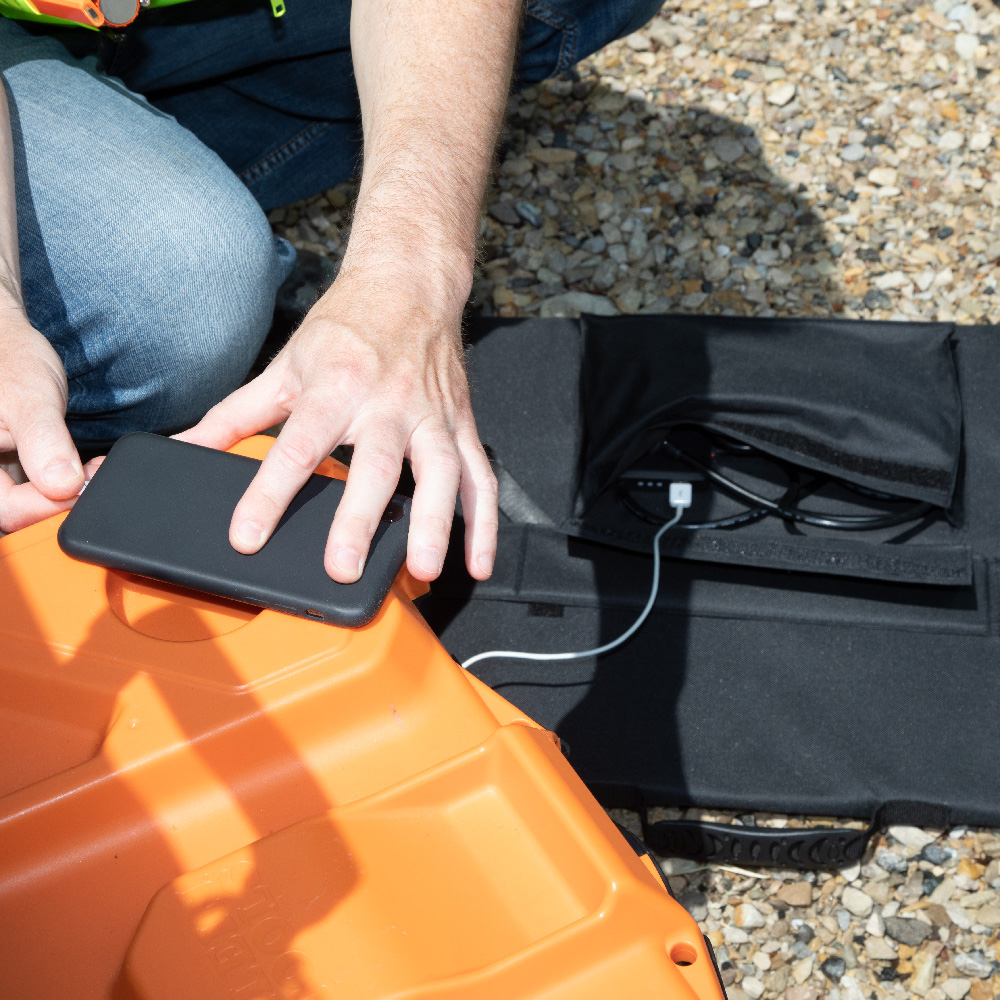

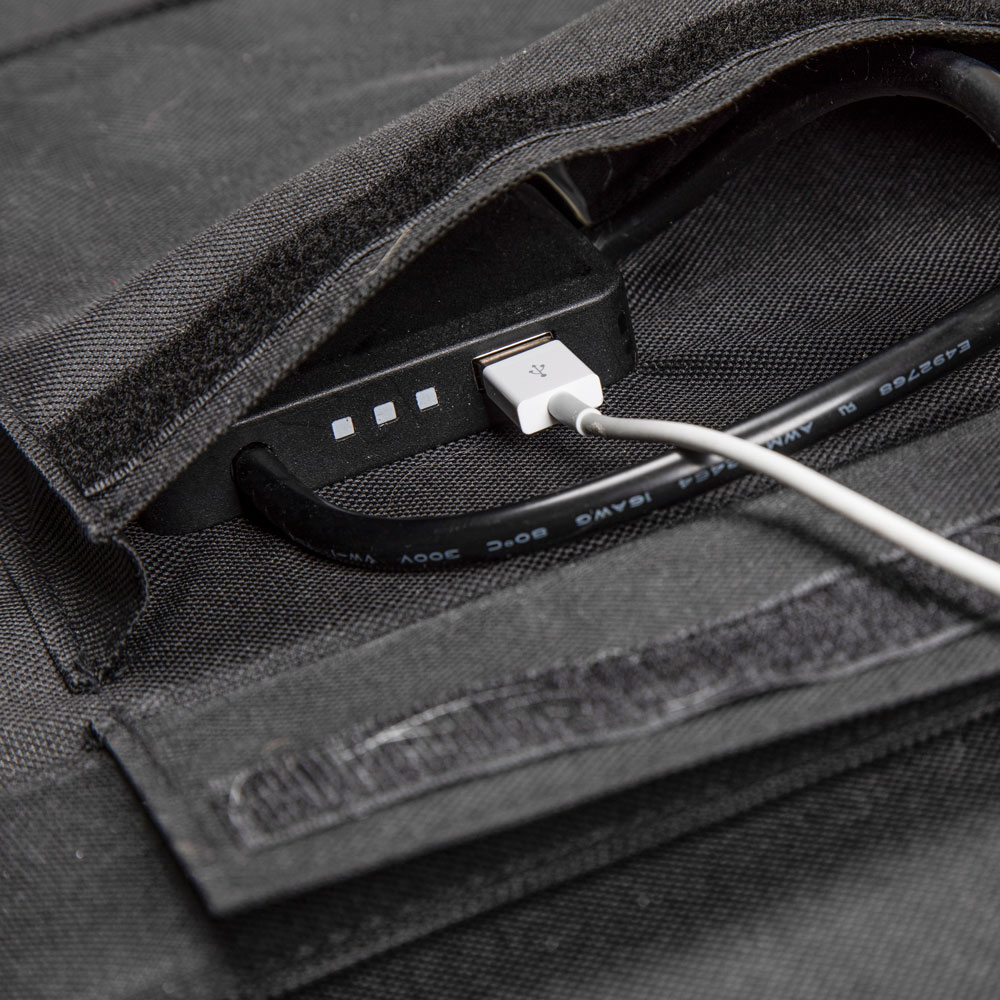

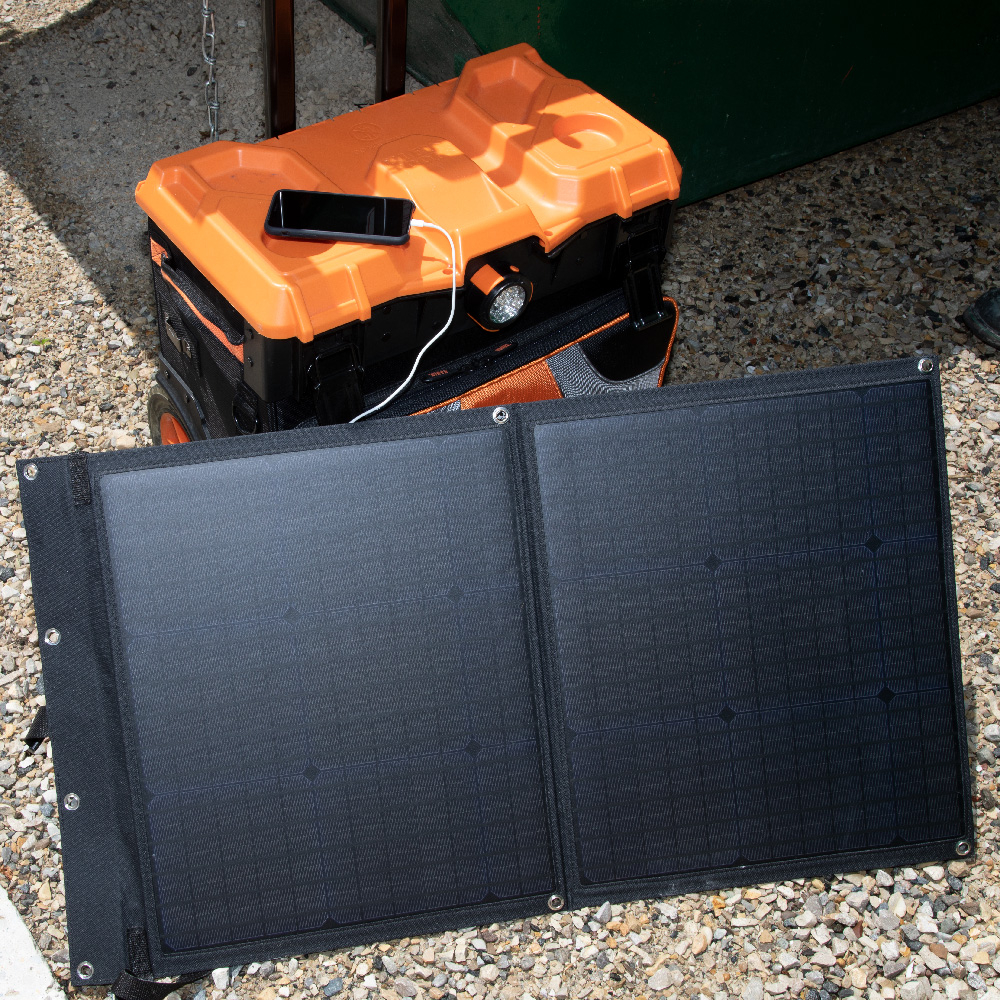

• Integrated USB-A port for direct charging of USB devices
• Two monocrystalline panels fold, creating a protective, compact case for easy storage and versatility
• Eyelets on the panel and kickstands allow you to easily mount or stake the panel
• Kickstands angle the panel to help maximize the surface exposed to the sun and LED lights indicate your level of solar power input

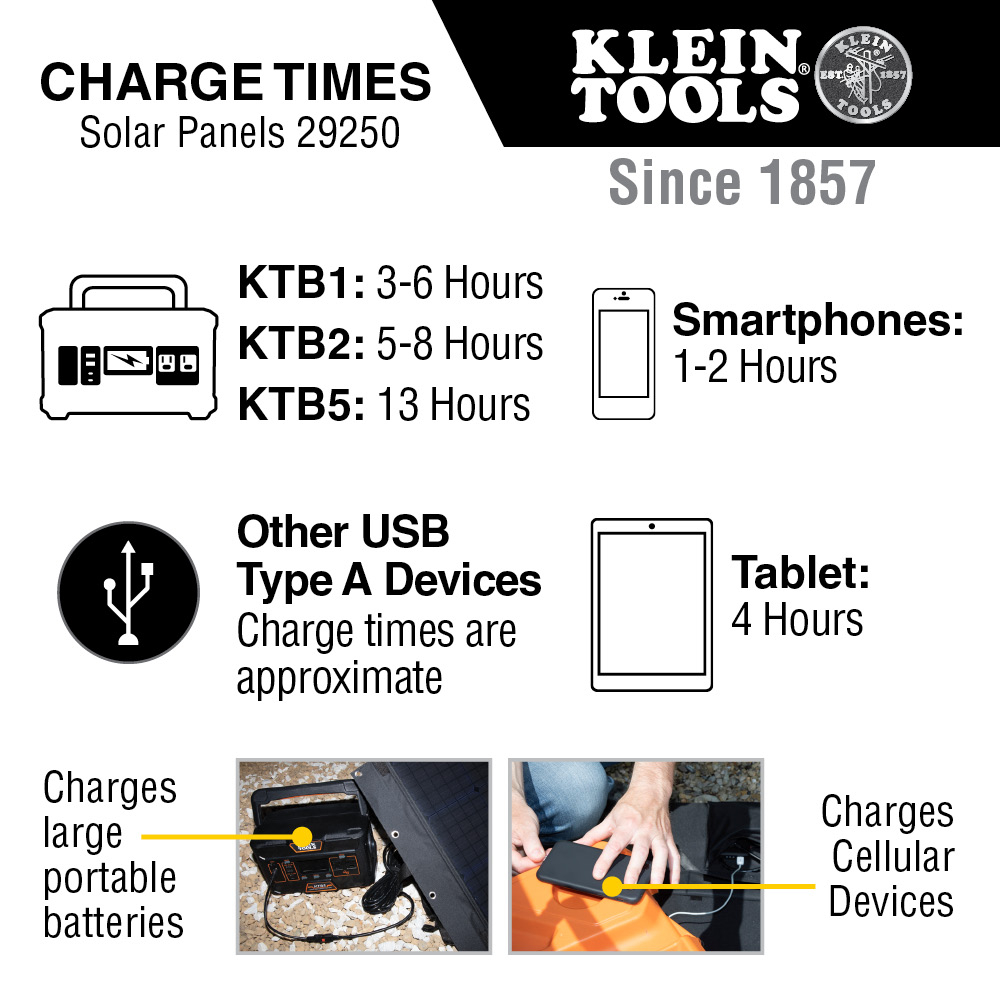

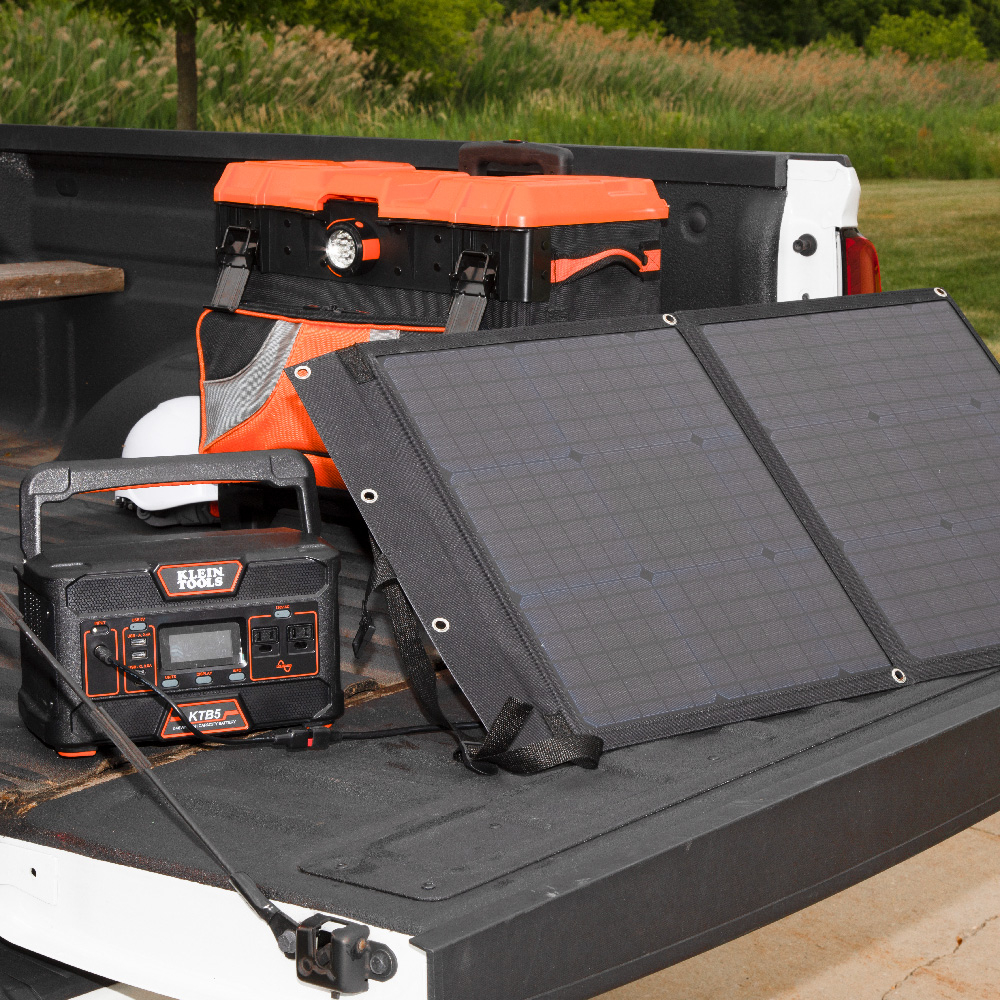

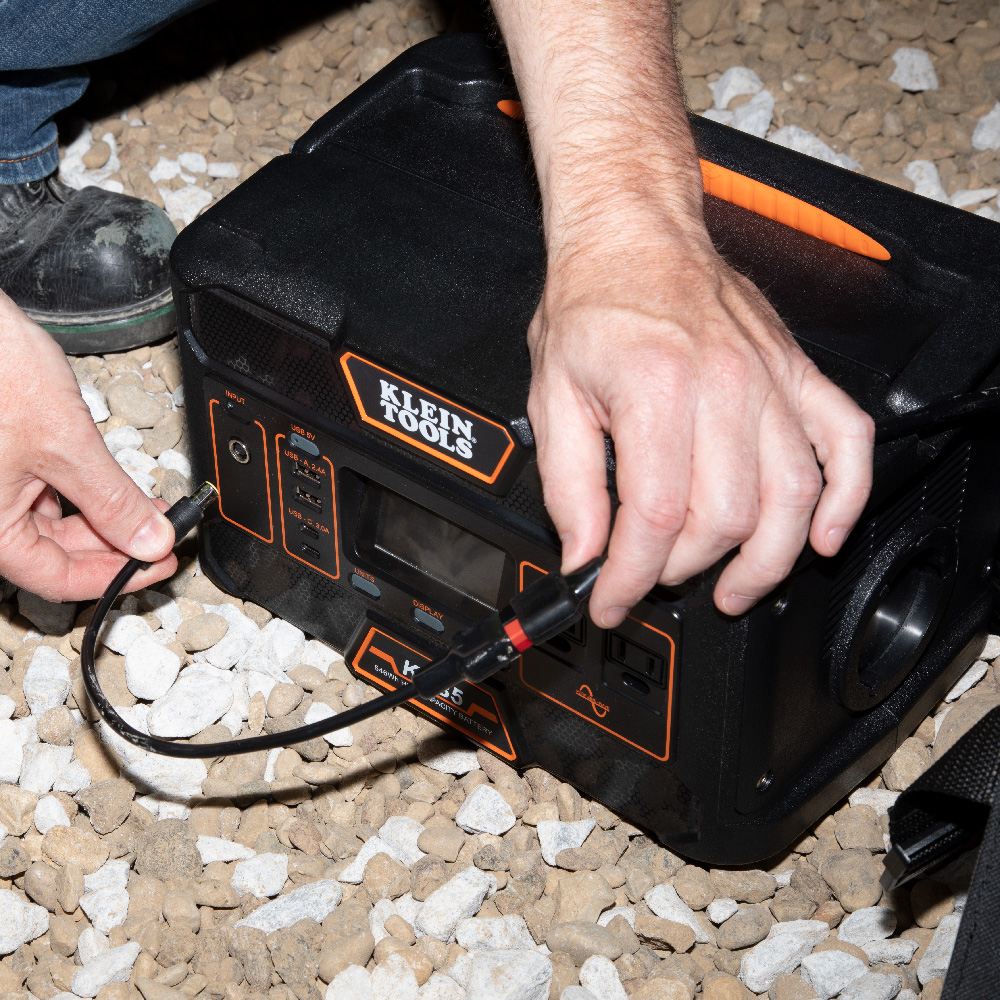

• 60-watt foldable solar panel capable of charging KTB1000 and KTB500 power stations or other APP® compatible devices
• Long reaching 16.4-Foot (5 m) cable compatible with KTB1000 fits conveniently in the integrated power pocket, along with adapter to 8mm DC output and input connector to chain an additional solar panel
• 60-watt foldable solar panel capable of charging power banks, portable batteries and other devices using USB, Anderson Powerpole® (APP®), or 8mm DC connectors
• Carry easily with the reinforced handle or convenient shoulder strap

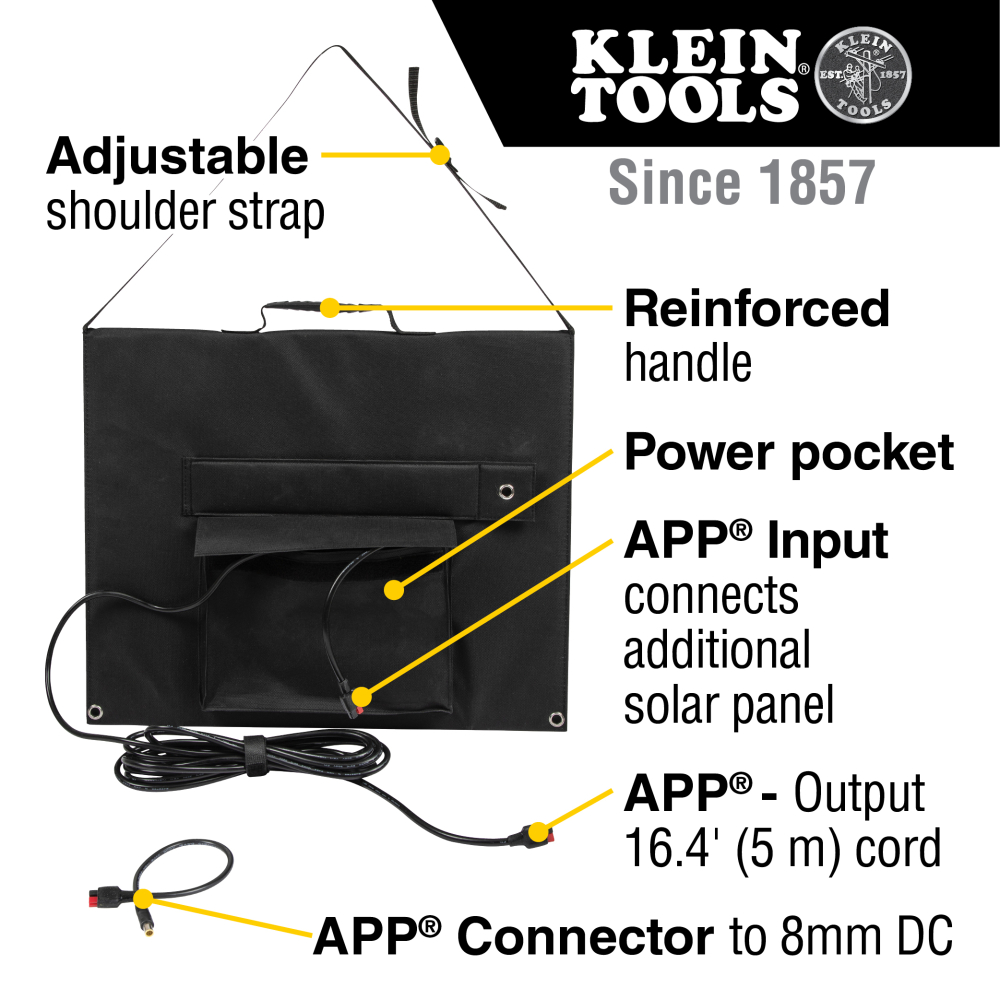

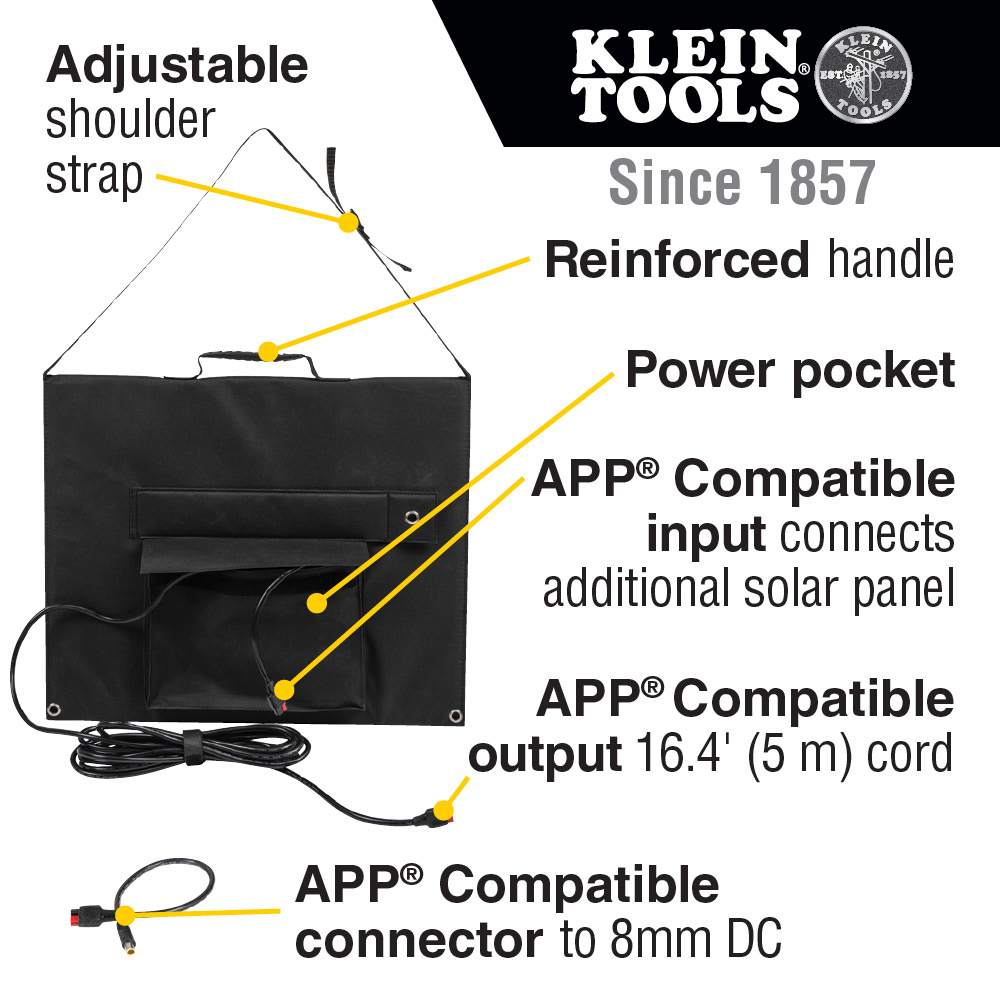

• A long reaching 16.4-Foot (5 m) APP® cable, the APP® to 8mm DC Connector, and the APP® chaining cable all conveniently store in the integrated power pocket

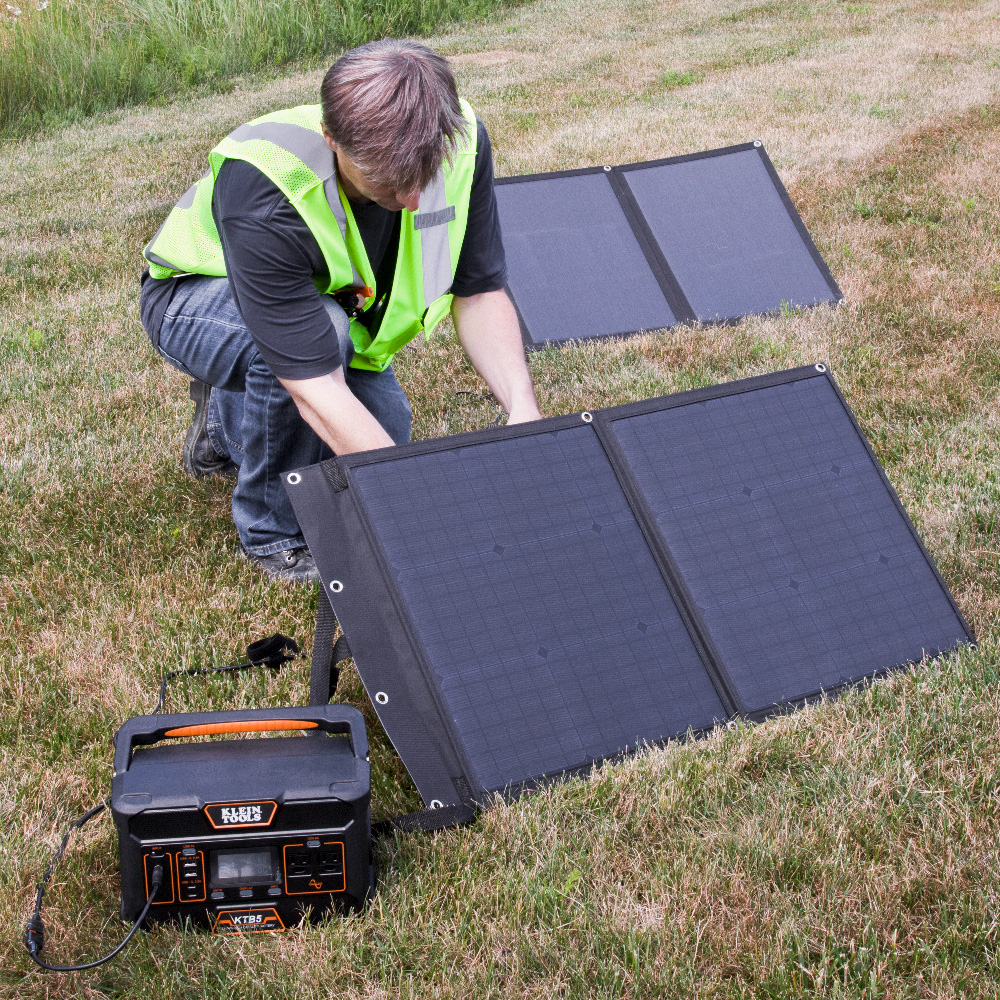

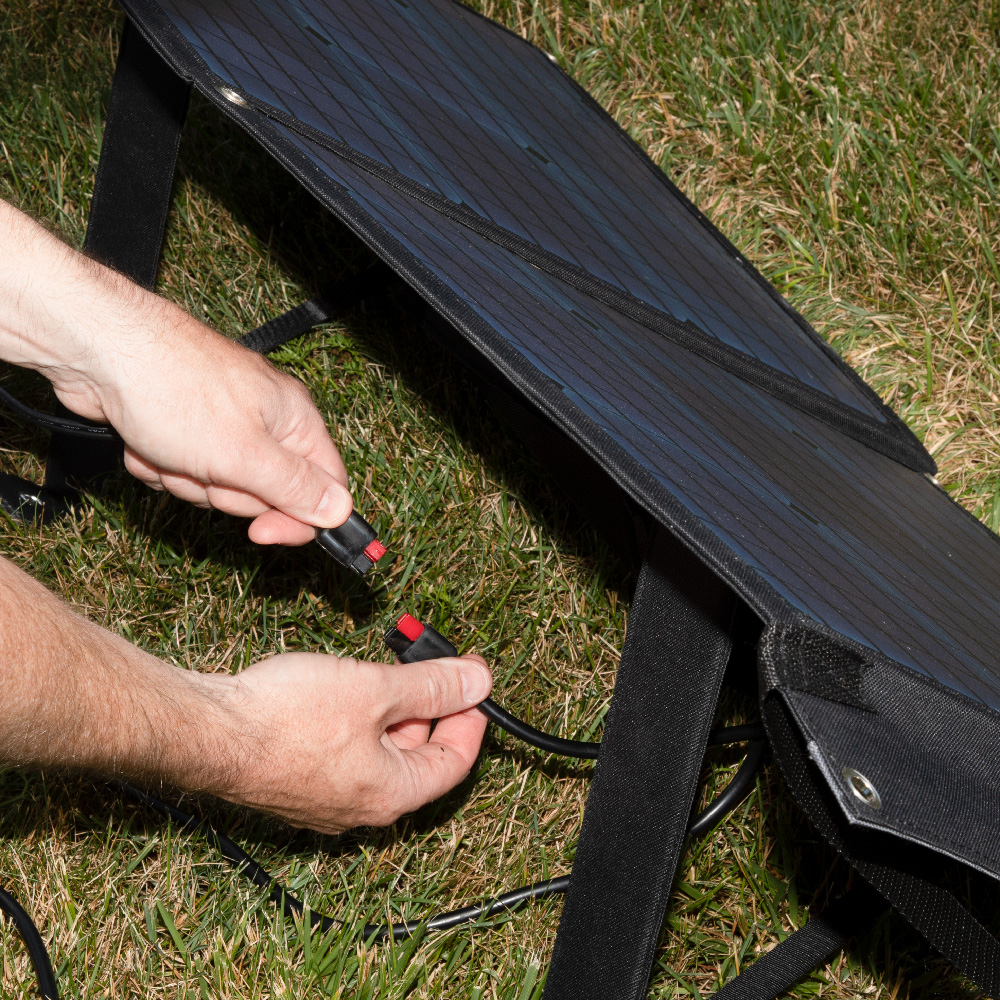

• Capability to chain an additional panel (up to 120W) to collect more solar power and increase charge times

Specifications

• Input Port: APP® compatible Input, USB-A Port
• Overall Height: 36.5" (92.7 cm)
• Type: Monocrystalline
• For Use With: Cat. Nos. KTB1000, KTB500
• Overall Length: 20.5" (52.1 cm)
• Width: 32.3600 in
• Overall Width: 2" (5.1 cm)
• Material: Monocrystalline Silicon
• Cable Size: 16 AWG
• Output Port: APP® compatible - 18V/3.34A, USB-A - 5V/3.0A
• Number of Panels: 2
• Included: Solar Panel, Adapter to 8mm DC Adapter Output and Input Connector, USB-A Output Port
• Depth: 36.5700 in
• Wattage: 60 watts
• Application: Solar Panel, Charges Power Banks, Portable Batteries, Personal Electronics
• Standard: RoHS, CE, EMC, REACH
• Weight: 5.7000 lbs
• Voltage: 18V Maximum
• Amperage: 3.34A Maximum
• Height: 2.0000 in
• Operating Temperature: 14° to 122°F (-10° to 50°C)
