200W Portable Solar Panel

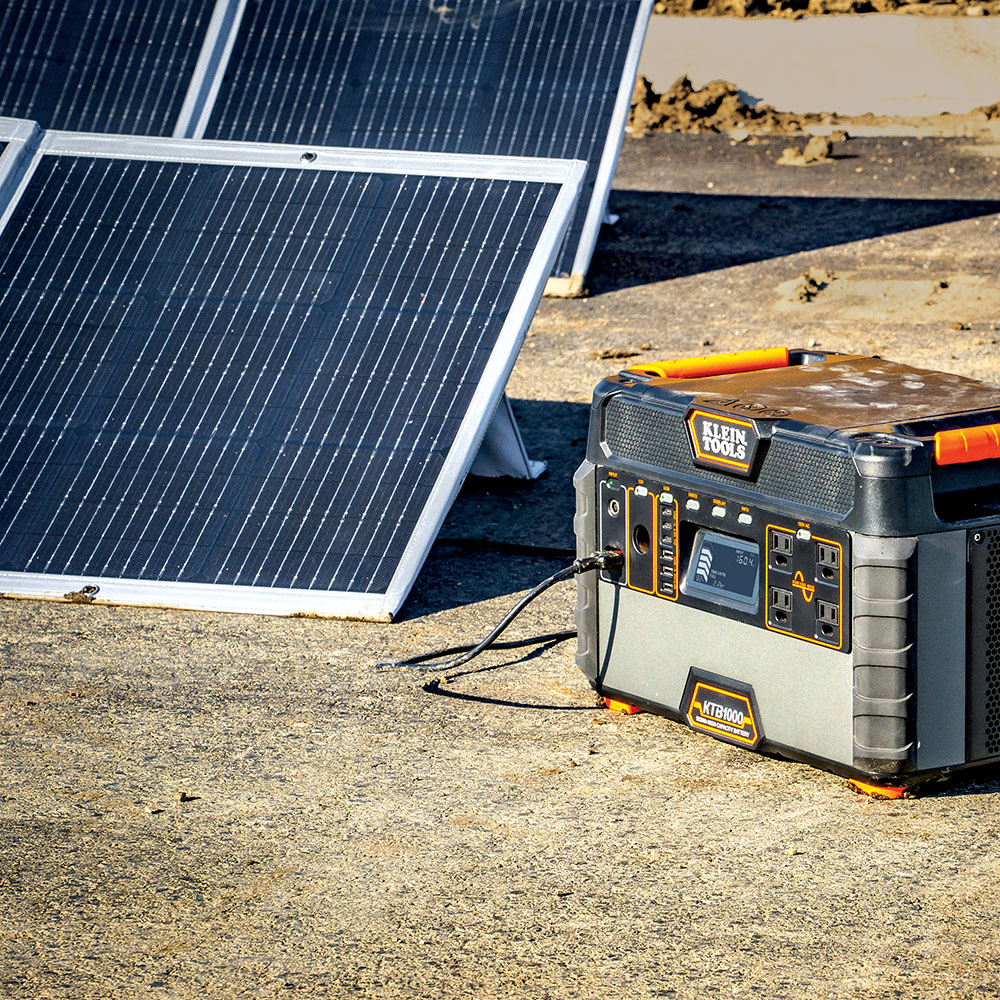

Klein's 200W Foldable Solar Panel harnesses the sun's power to keep the job running. A quick and easy way to charge your power banks, power stations, and portable batteries with the built-in extended length DC / APP® compatible cable. Simply recharge your USB devices with the integrated USB port. This portable and versatile panel can be chained with a second panel to collect even more power from the sun, then simply fold and store away.

Features

• 200W max power output to extend power station runtime in the field

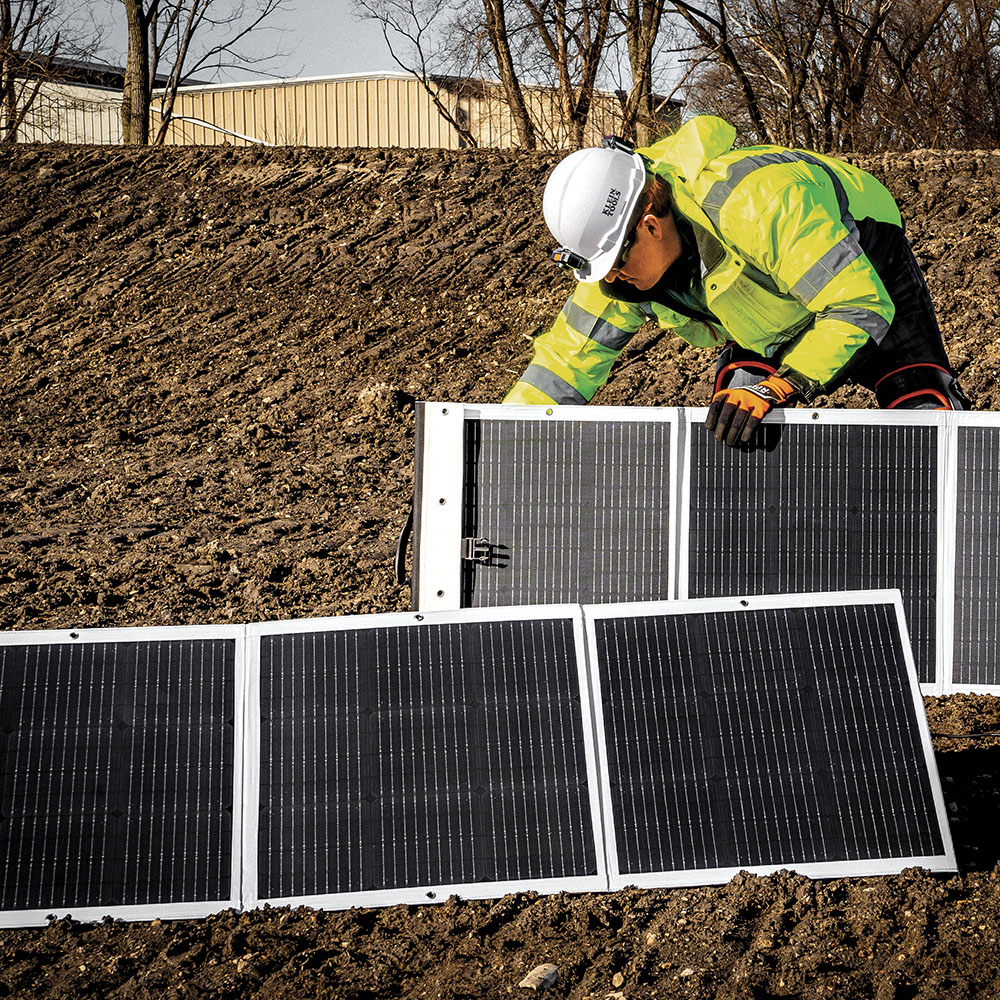

• Up to 400W output when chained with another 200W panel for faster off-grid recharge times
• APP® compatible connector to MC4 adapter, sold separately (Cat. No. 29215)

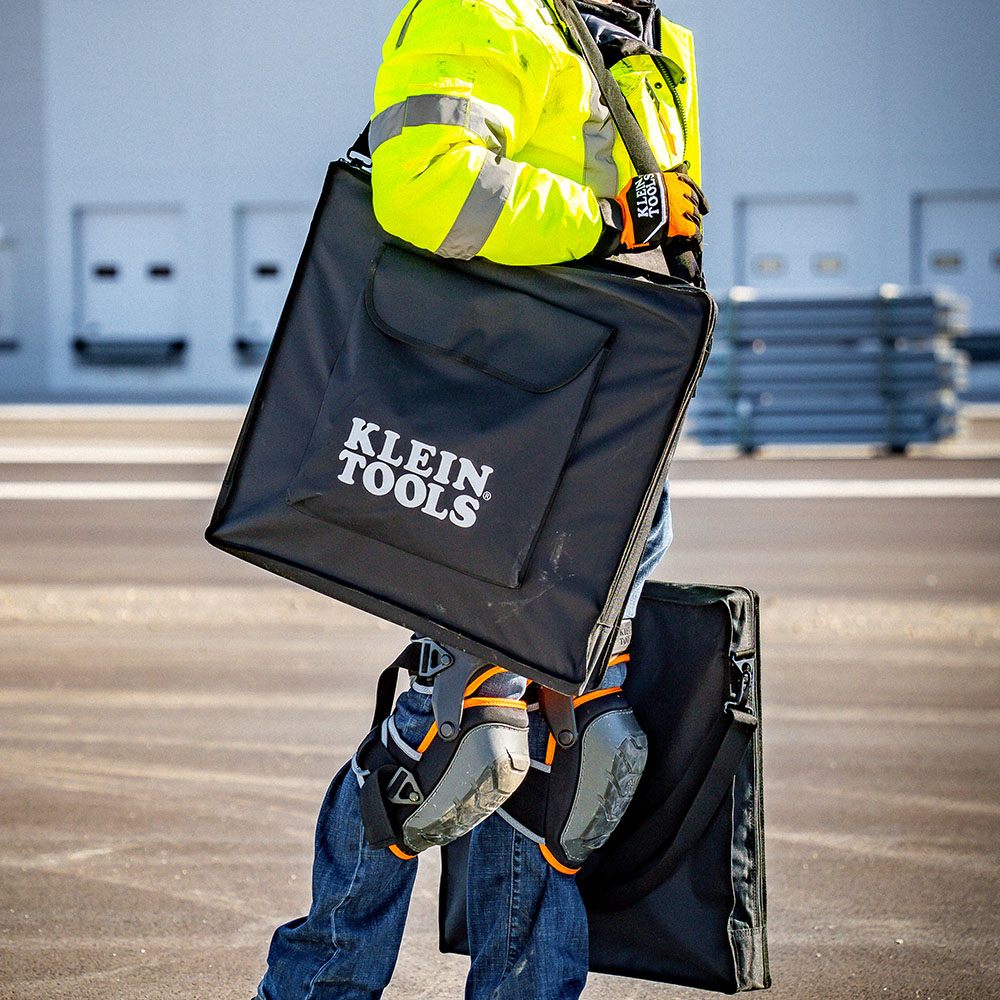

• Carrying case and IP65 rated panel helps keep the panel protected in inclement weather

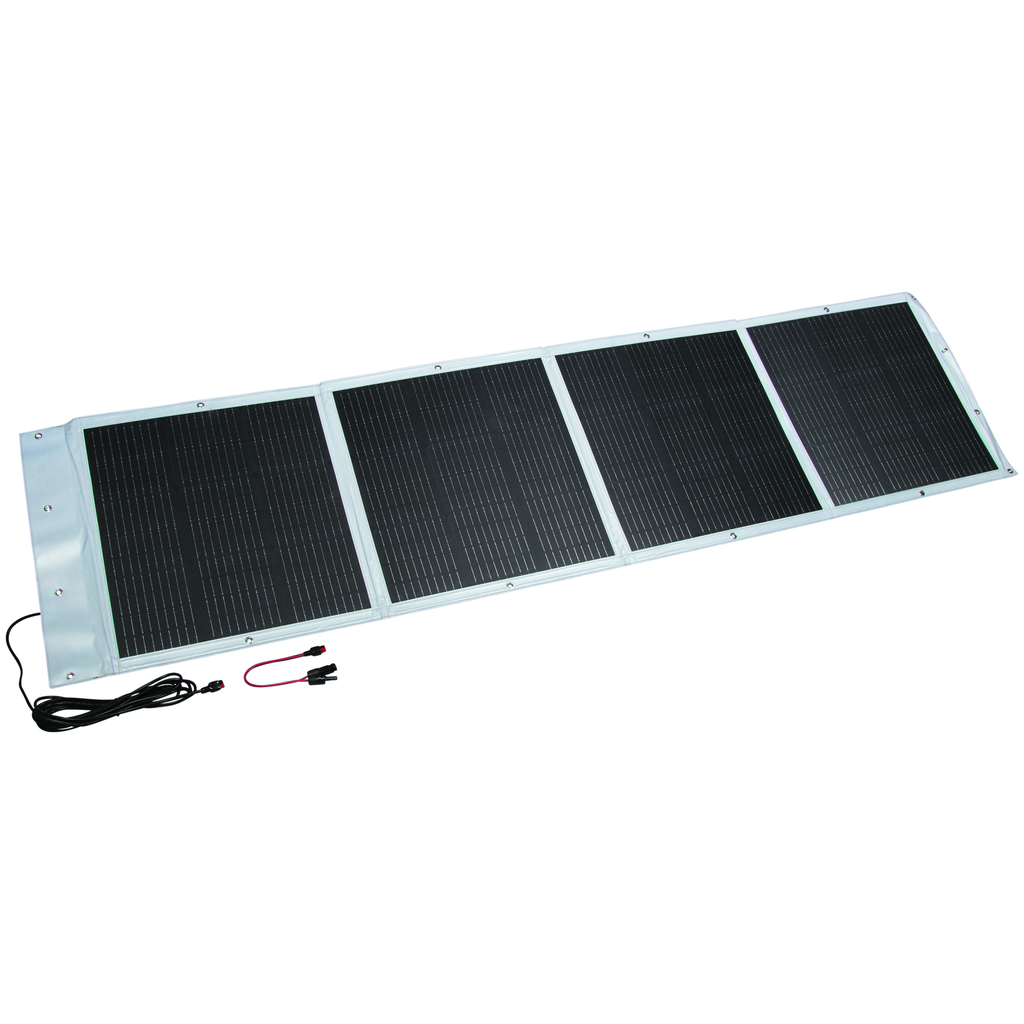

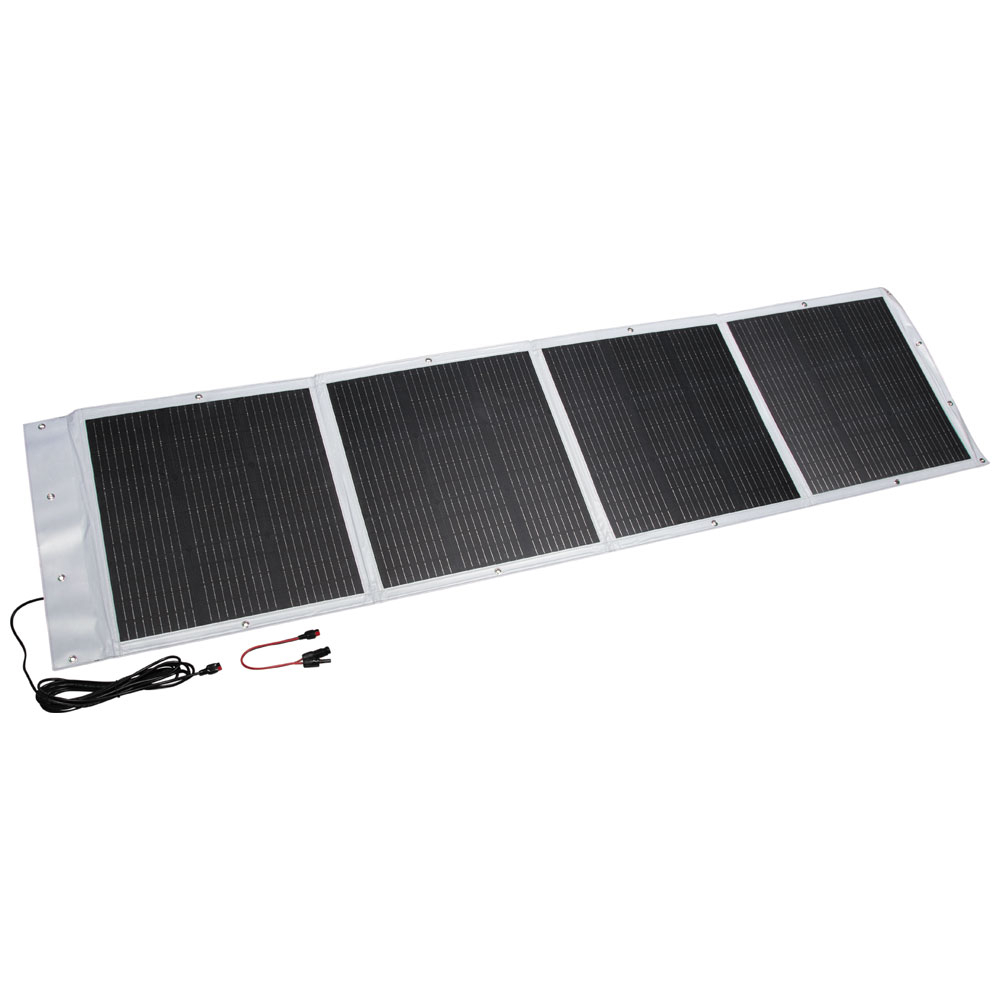

• Four monocrystalline panels fold, creating a protective, compact case for easy storage and versatility
• Adjustable Shoulder Strap, Reinforced Handle, Kickstands, Solar Power Indicator Lights, Chain 2 Solar Panels (up to 400 W)

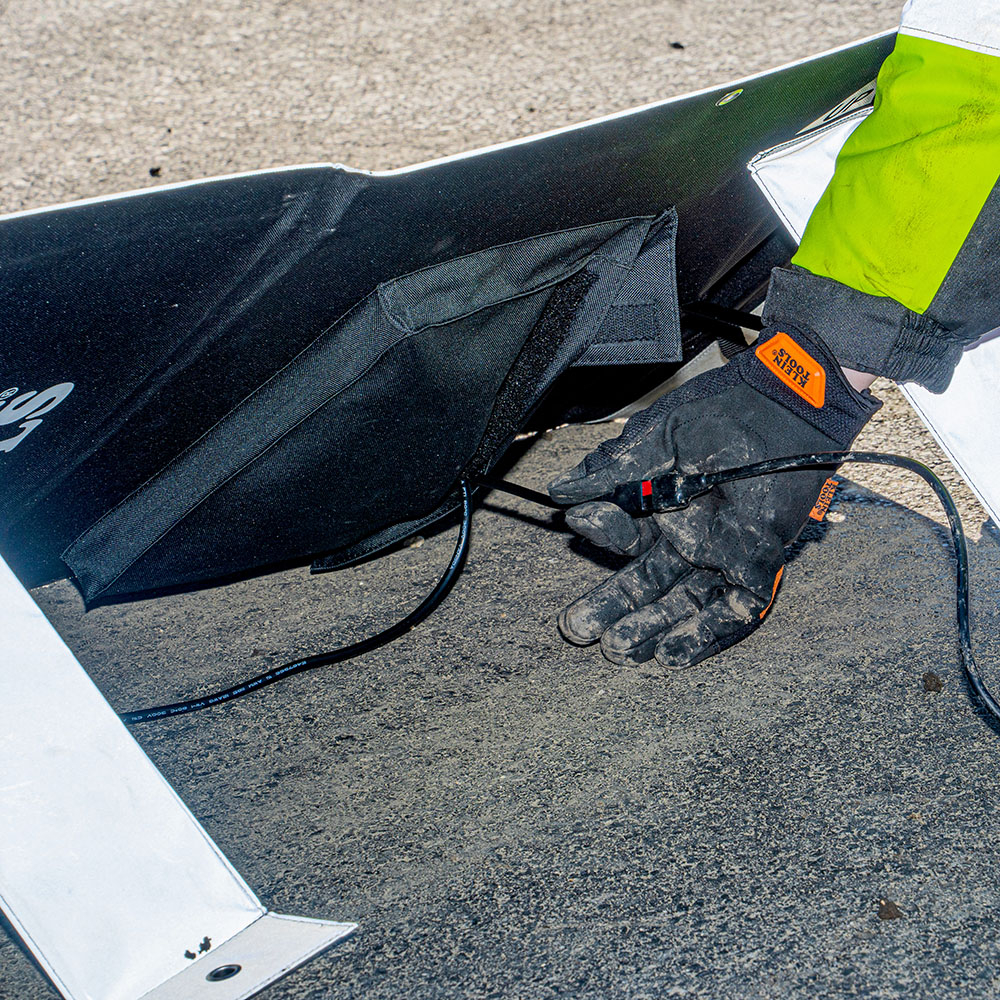

• Long reaching 16.4-Foot (5 m) cable conveniently fits in the integrated storage pocket

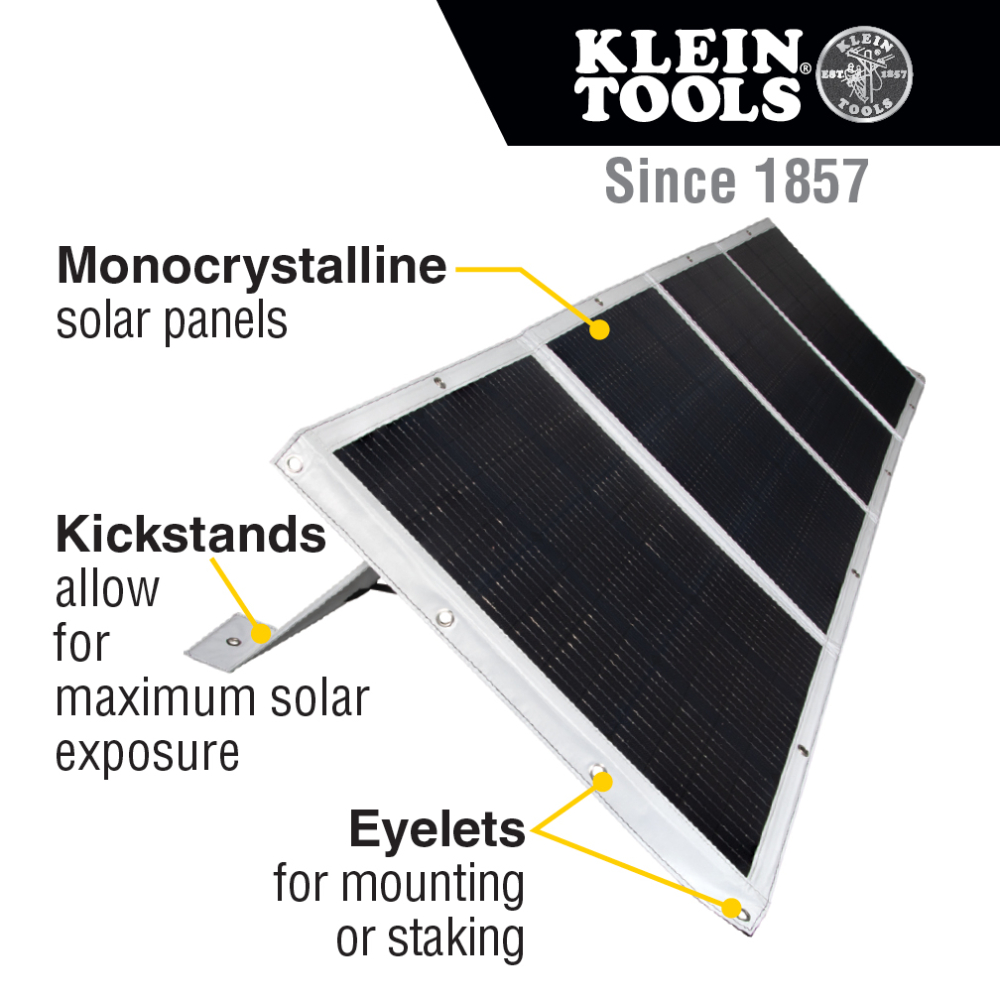

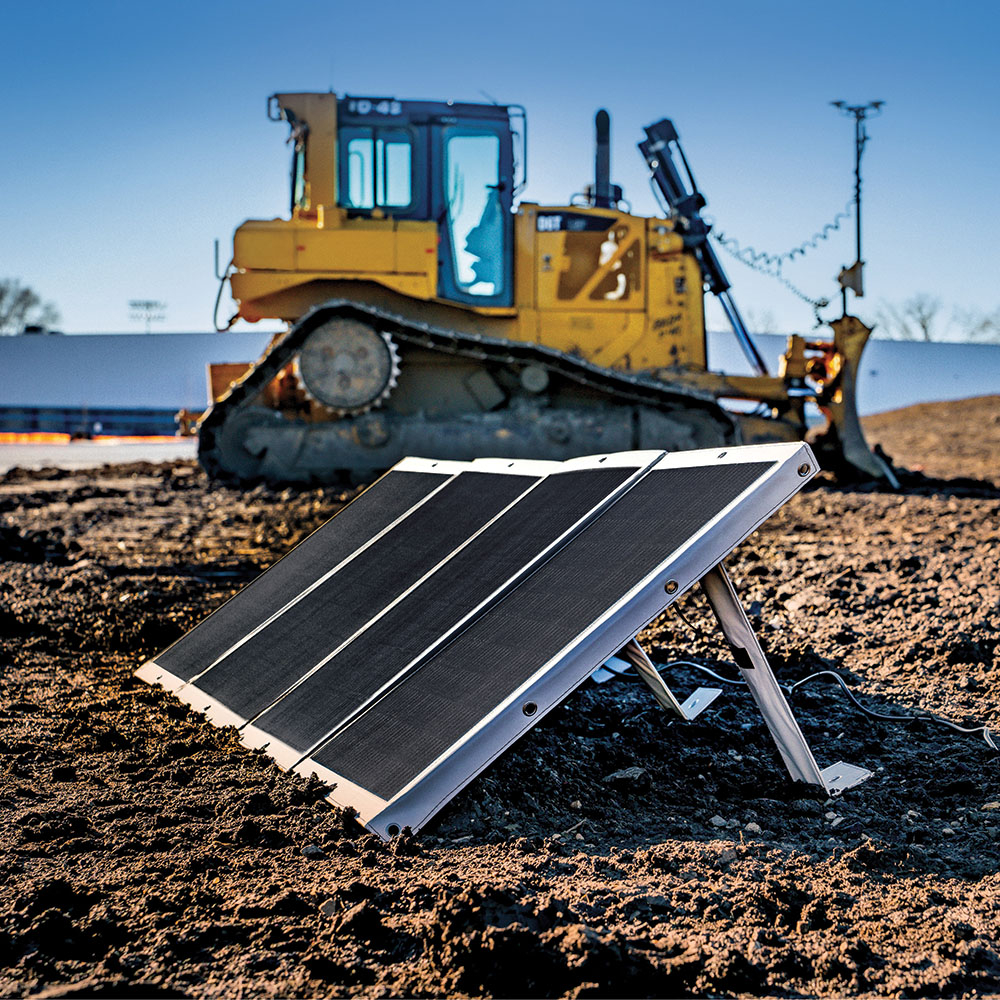

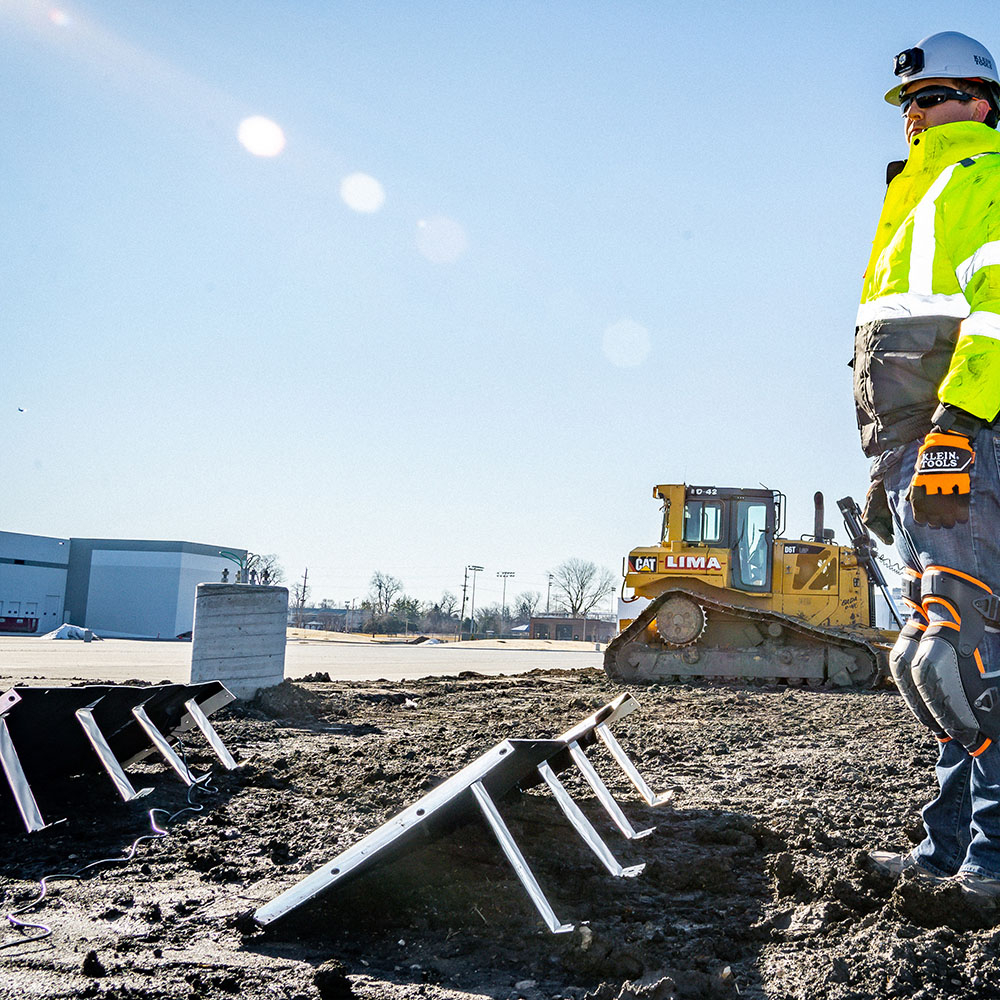

• Kickstands angle the panel to help maximize the surface exposed to the sun, and LED lights indicate the level of power output

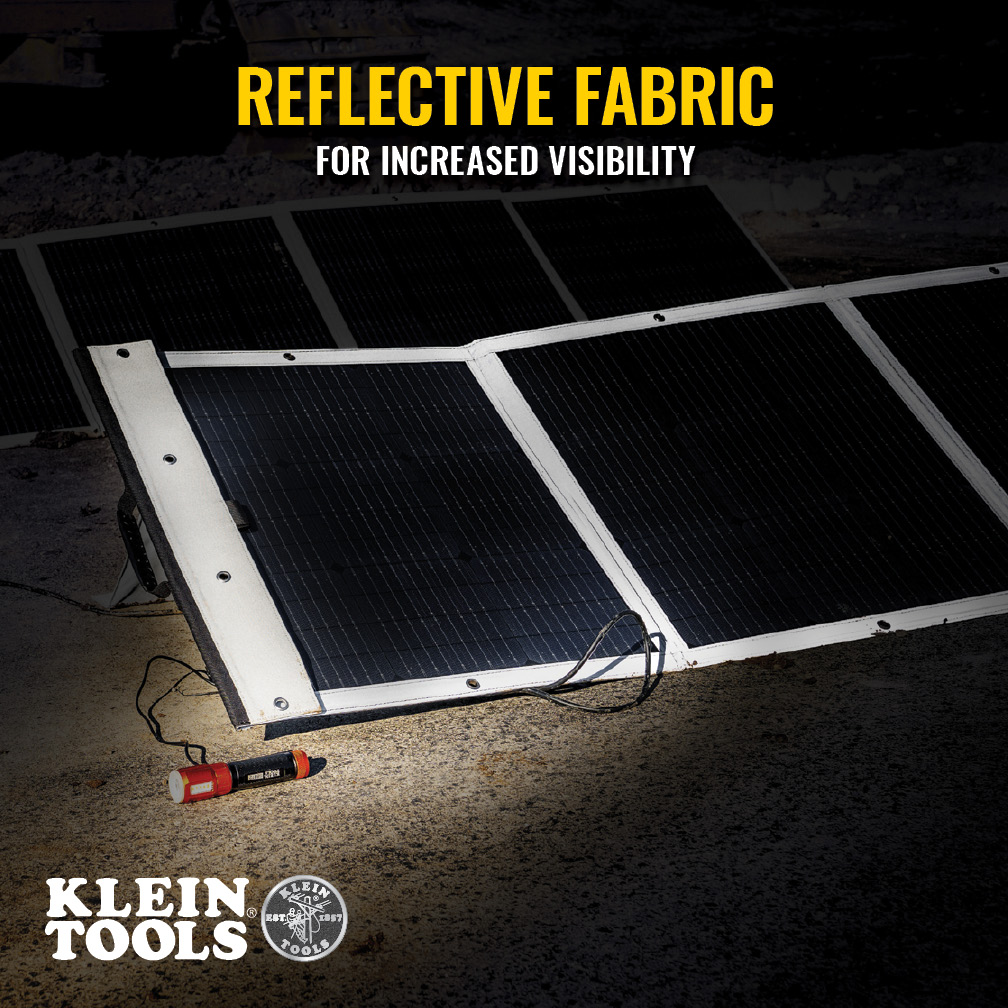

• Reflective fabric on front and rear to help locate panels in the dark

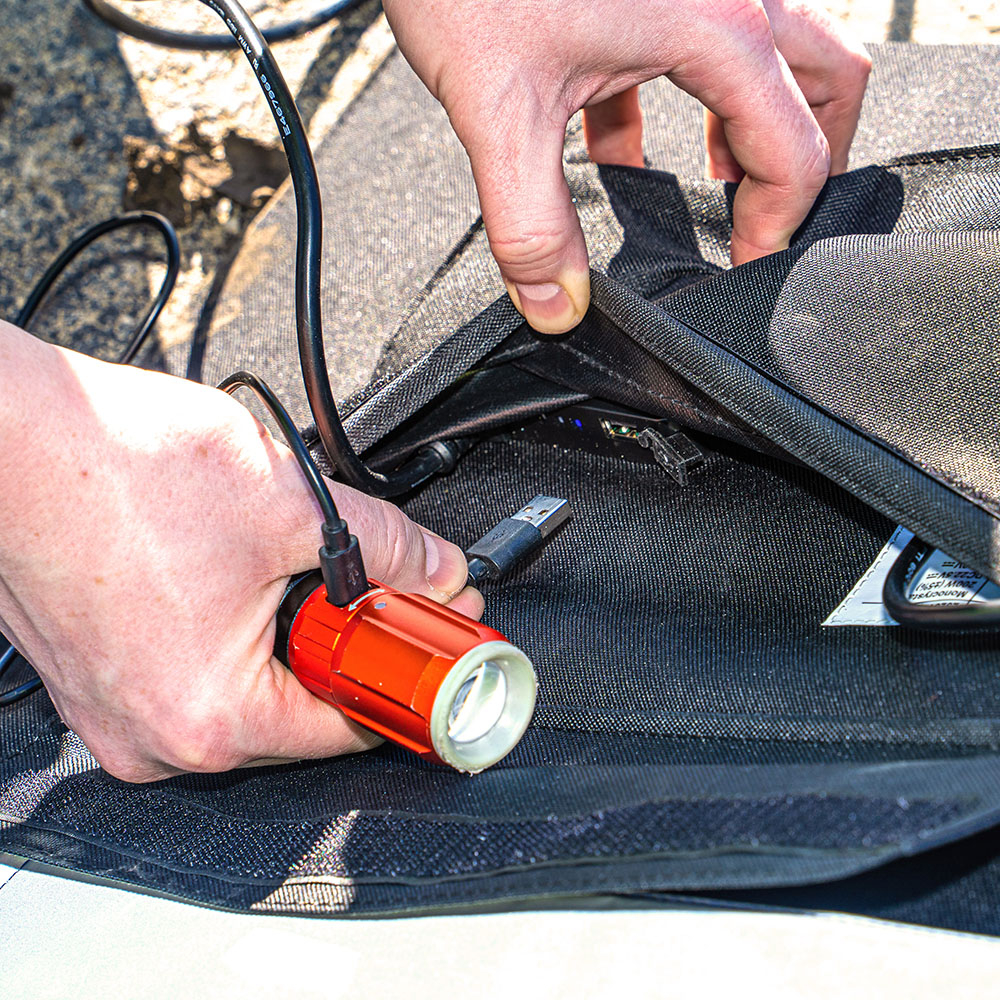

• Integrated USB-A port for direct charging of USB devices
• Replacement carrying case (Cat. No. 29216) for the 200W Portable Solar Panel, sold separately

Warnings

• Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.
• Estimated times and charges are approximate, and not additive, and may vary by application and ambient environmental conditions and were determined based on controlled experiments.
• Do not use the product if it is damaged or modified. Damaged or modified equipment may exhibit unpredictable behavior resulting in fire or risk of injury.
• Read, understand, and follow the instruction manual to ensure safe operation.
• Failure to observe these warnings can result in risk of fire, electric shock, serious injury, and/or property damage.

Specifications

• Type: Monocrystalline
• Overall Length: 91.34 Inch (232 cm)
• Operating Temperature: 32° to 185°F (0° to 85°C)
• Input Port: APP® compatible Input
• Weather Resistant: IP65
• Cable Size: 16 AWG
• Material: Monocrystalline Silicon
• Standard: RoHS, CE, EMC, REACH, FCC
• Weight: 17.9000 lbs
• Included: Solar Panel; USB-A Output Port
• Height: 3.0000 in
• Width: 20.5600 in
• Number of Panels: 4
• Output Port: APP® compatible - 24.6V/10.8A, USB-A - 5V/3.0A
• Wattage: 200W
• Application: Solar Panel, Charges Power Banks, Portable Batteries, Personal Electronics
• Overall Height: 58.6 cm (23.07 Inch)
• Amperage: 10.8 Amps
• Overall Width: 5.1 cm (2 Inch)
• Voltage: 19.8 VDC Maximum
• Depth: 23.0700 in
